Fisher GG20240X012 FIELDVUE DVC6200 Magnetic Feedback Array Kit
The Fisher GG20240X012 Magnetic Feedback Array Kit is designed to provide accurate, non-contact valve travel feedback for compatible Fisher FIELDVUE digital valve controllers.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year (12 Months)Warranty
Product Overview
The Fisher GG20240X012 Magnetic Feedback Array Kit is designed to provide accurate, non-contact valve travel feedback for compatible Fisher FIELDVUE digital valve controllers. Manufactured by Fisher, an Emerson brand, this magnetic feedback assembly allows the valve controller to detect actuator stem movement without requiring direct mechanical contact between the feedback sensor and the moving valve components. Its magnetic sensing arrangement supports reliable valve position measurement, accurate actuator positioning, and consistent performance in industrial process control applications.

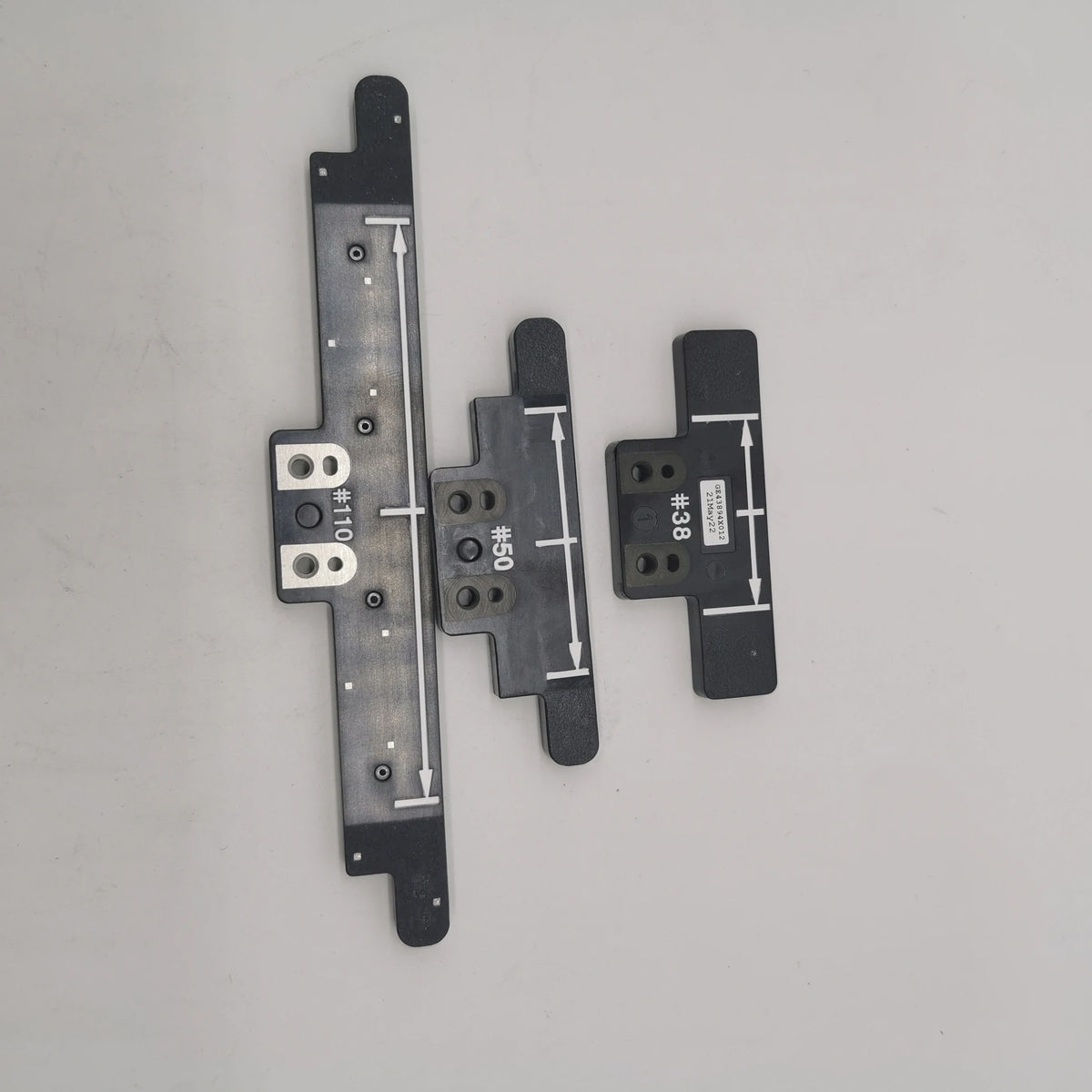

Part of the Fisher FIELDVUE DVC6200 replacement accessory range, the GG20240X012 is an aluminium feedback array kit specified for a 7 mm linear actuator travel range. The magnetic array is mounted to the actuator's moving components and works with the controller's position-sensing system to communicate valve travel. Fisher offers additional feedback arrays in different travel ranges, including 19 mm, 25 mm, 38 mm, 50 mm, 110 mm, and 210 mm configurations. These accessories are used in oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial valve automation systems.
Product identification: The primary listing is for Fisher GG20240X012, a 7 mm aluminium magnetic feedback array kit. The other part numbers in the supplied title represent different travel ranges, materials, or rotary feedback configurations. They should not be treated as identical replacement parts.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Magnetic Feedback Array Kit |
|
Manufacturer / Brand |
Fisher / Emerson |
|
Main Part Number |
GG20240X012 |
|
Product Series |
FIELDVUE |
|
Product Type |
Magnetic Valve Position Feedback Array |
|
Component Category |
Valve Positioner Accessories |
|
Primary Function |
Non-Contact Valve Travel Feedback |
|
Feedback Technology |
Magnetic Position Sensing |
|
Actuator Application |
Sliding-Stem Linear Actuators |
|
Nominal Travel Designation |
7 mm |
|
Travel Equivalent |
Approximately 1/4 Inch |
|
Array Construction |
Aluminium Feedback Assembly |
|
Mounting Configuration |
Linear Actuator Feedback Mounting |
|
Compatible Instrument Family |
Fisher FIELDVUE DVC6200 |
|
Additional Documented Application |
Selected FIELDVUE DVC6200 SIS and 4400 Instruments |
|
Position Measurement |
Non-Contact Magnetic Feedback |
|
Feedback Signal Type |
Magnetic Field Sensed by Controller |
|
Mechanical Movement |
Linear |
|
Mounting Hardware |
Hex Socket Cap Screws and Washers |
|
Feedback Array Mounting |
Actuator-Specific Installation |
|
Electrical Connection |
Not Applicable |
|
Electrical Power Supply |
Not Required |
|
Pneumatic Supply Pressure |
Not Applicable |
|
Communication Protocol |
Not Applicable |
|
Complete Valve Positioner Included |
No |
|
Complete Actuator Included |
No |
|
Control Valve Included |
No |
|
Related Aluminium Array |
GG20240X022 |
|
Related Stainless Steel Array |
GE65853X012 |
|
Related Long-Travel Array |
GE65853X072 |
|

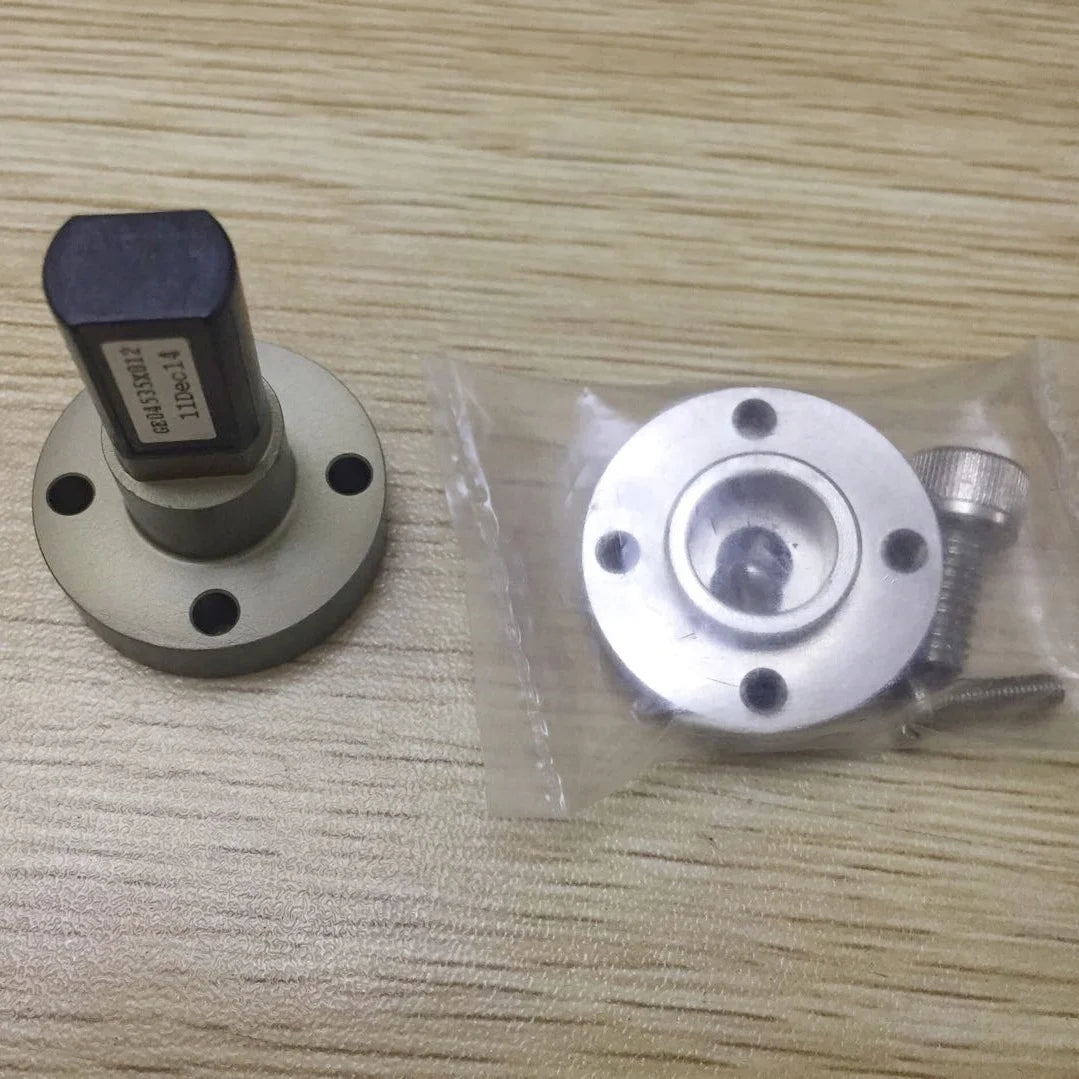

Related Rotary Feedback Kit |
GE71982X012 |
|
Application Scope |
Industrial Valve Position Feedback and Maintenance |
|
Condition |
New |
|
Warranty |
1 Year (12 Months) |
Part numbers, construction materials, kit contents, and travel designations are verified against Emerson's official Fisher FIELDVUE DVC6200 SIS instruction manual, Parts Kit 11. The 7 mm figure is the manufacturer's array travel designation, not the overall physical length of the kit.
Key Features
Original Fisher magnetic feedback array part number GG20240X012
Designed for compatible Fisher FIELDVUE digital valve controllers
7 mm linear valve travel designation for matching actuator applications
Aluminium feedback array construction for compatible mounting systems
Non-contact magnetic sensing technology for reliable valve position measurement
Supports accurate detection of sliding-stem actuator movement
Provides mechanical feedback interface between the actuator and digital valve controller
Helps maintain accurate valve position measurement during control valve operation
Designed for replacement of compatible damaged or worn feedback assemblies
Includes specified mounting hardware as part of the manufacturer's feedback array kit
Suitable for linear pneumatic actuator installations
Supports valve controller maintenance and recalibration after replacement
Compatible with manufacturer-approved mounting arrangements
Available in related travel sizes for different actuator configurations
Suitable for industrial process automation and control valve instrumentation
Typical Applications
Fisher FIELDVUE DVC6200 valve controller maintenance
Industrial pneumatic control valve positioning
Sliding-stem linear actuator feedback systems
Fisher digital valve controller replacement accessories
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining and processing installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing and production machinery
Linear globe valve actuator assemblies
Industrial flow and pressure regulation systems
Control valve instrumentation servicing
Magnetic feedback array replacement
Industrial valve maintenance and equipment refurbishment
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
