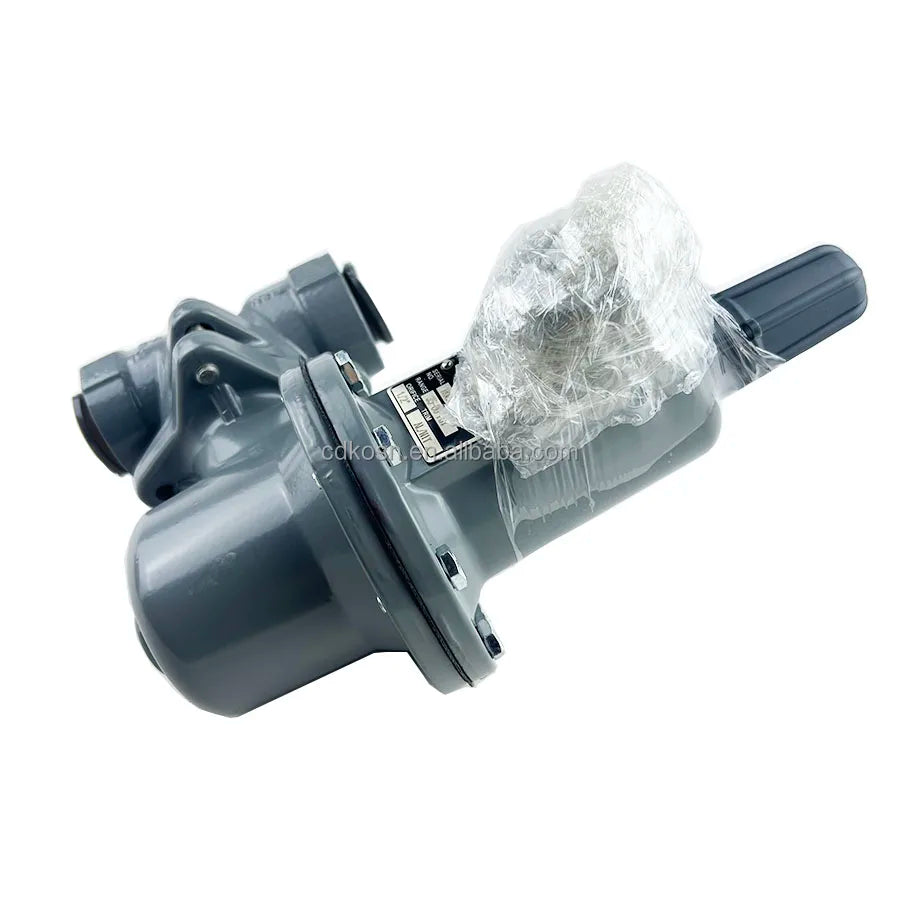

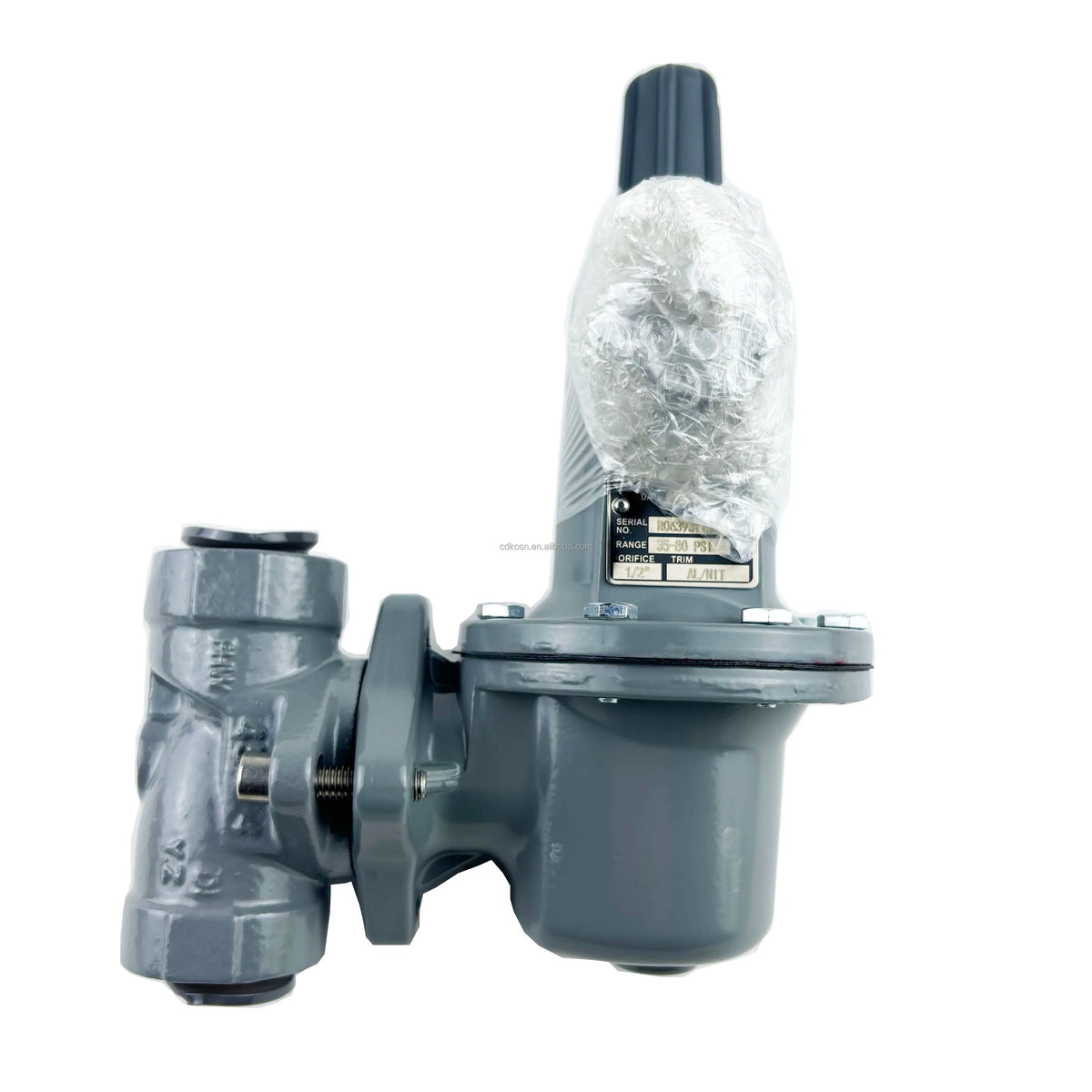

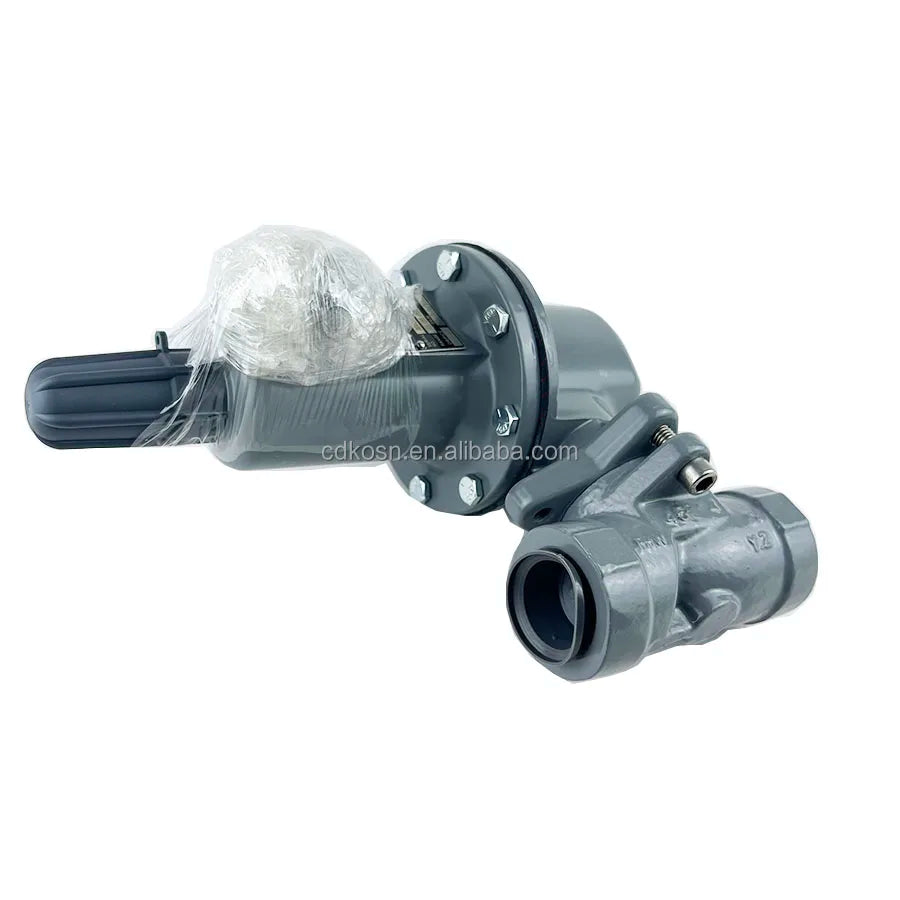

Fisher 627 Series 627-1217-29860 High-Pressure Reducing Regulator
The Fisher 627-1217-29860 Pressure Regulator is a high-pressure, direct-operated reducing valve engineered for high-pressure gas systems and industrial fluid regulation.
- Up to 138 bar (2000 psig) Maximum Inlet Pressure
- 1 Inch or 2 Inch NPT Female (Series Standard Ports) Body Size and Connections
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Fisher 627-1217-29860 Pressure Regulator is a high-pressure, direct-operated reducing valve engineered for high-pressure gas systems and industrial fluid regulation. Manufactured by Emerson under the established Fisher 627 Series platform, this commercial and industrial regulator is designed to reduce variable high inlet supply pressures down to stable, lower downstream working pressures across high-flow gaseous networks.
Constructed with a heavy-duty ductile iron body and an aluminium casing, the 627-1217-29860 is equipped with precision elastomeric internals and a durable seat to deliver tight shutoff under severe service conditions. Operating via internal pressure registration, it requires no external control sensing lines, simplifying pipeline integration. The unit features standard threaded connections, a robust spring mechanism, and an integrated casing vent, making it a dependable choice for farm tap gas supplies, compressed natural gas installations, furnace fuel gas headers, and industrial gas distribution manifolds.
Technical Specifications
| Specification | Value |
| Product Name | High-Pressure Reducing Gas Regulator |
| Manufacturer / Brand | Fisher / Emerson |
| Model / Part Number | 627-1217-29860 |
| Product Series | 627 Series |
| Regulator Type | Direct-Operated Spring-Loaded Pressure-Reducing Regulator |
| Body Size and Connections | 1 Inch or 2 Inch NPT Female (Series Standard Ports) |
| Vent Connection | 3/4 Inch NPT Female Screened Vent |
| Maximum Inlet Pressure | Up to 138 bar (2000 psig) |
| Standard Outlet Pressure Range | Model-Dependent Spring Range (e.g., 5 to 20 or 15 to 40 psig) |
| Pressure Registration | Internal Pressure Registration |
| Body Material | Ductile Iron |
| Bonnet and Diaphragm Casing | Cast Aluminium Alloy / Ductile Iron |
| Diaphragm Material | Nitrile Rubber (NBR) / Neoprene |
| Disk and O-Ring Seals | Nitrile Rubber (NBR) / Fluoroelastomer |
| Orifice Material | Stainless Steel / Brass |
| Operating Temperature Range | -29°C to +82°C (-20°F to +180°F) |
| Flow Capability | High-Capacity Gas Throttling Service |
| Relief Protection Type | Non-Relieving / External Relief Configuration |
| Mounting Orientation | In-Line Horizontal or Vertical Installation |
| Operating Medium | Natural Gas, LP-Gas, Air, Nitrogen, Inert Gases |
| Approximate Net Weight | 4.5 kg to 10.0 kg (Configuration Dependent) |
| Condition | New |
| Warranty | 1 Year |
Key Features
Direct-operated design provides rapid dynamic response to shifting upstream pressures
Heavy-duty ductile iron body engineered to withstand severe high-pressure service
Internal pressure registration eliminates the requirement for external control sensing lines
Stainless steel trim and orifice ensure high resistance to gas erosion and debris wear
Screened casing vent prevents foreign particles and insects from obstructing spring operation
Wide inlet capability supporting high supply pressure reduction down to process levels
Resilient elastomeric soft seat disk delivers tight positive shutoff during zero-demand flow
Tamper-resistant adjusting screw allows precise calibration of downstream setpoints
Proven mechanical durability in demanding outdoor pipeline environments and city gates
Typical Applications
Natural gas farm tap installations and city gate pressure reduction
High-pressure fuel gas supply to industrial furnaces, boilers, and kilns
Compressed natural gas (CNG) dispensing and gas compression stations
First-stage and intermediate pressure reduction in LPG distribution skids
Industrial nitrogen and inert gas blanket supply regulation
Oil and gas gathering manifolds, separator discharge lines, and wellhead setups
Plant utility gas distribution networks requiring dependable pressure reduction
Shipping & Support
Fast dispatch: Australia & Worldwide Shipping
Technical assistance available
1-year warranty
