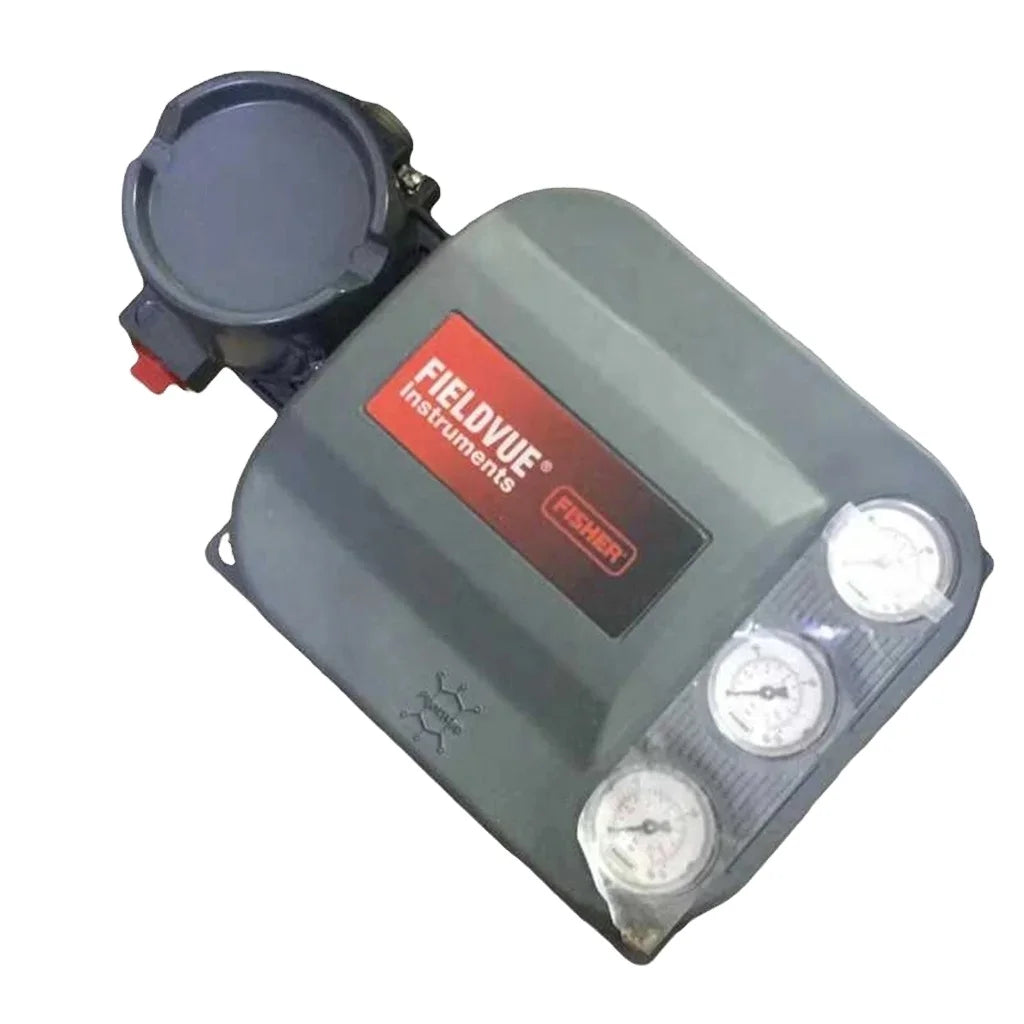

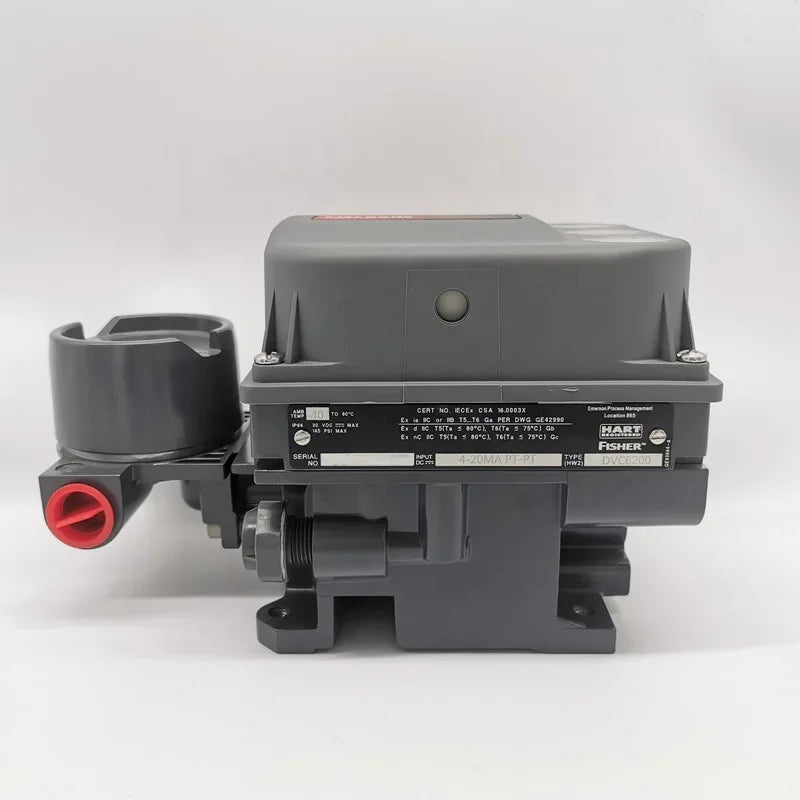

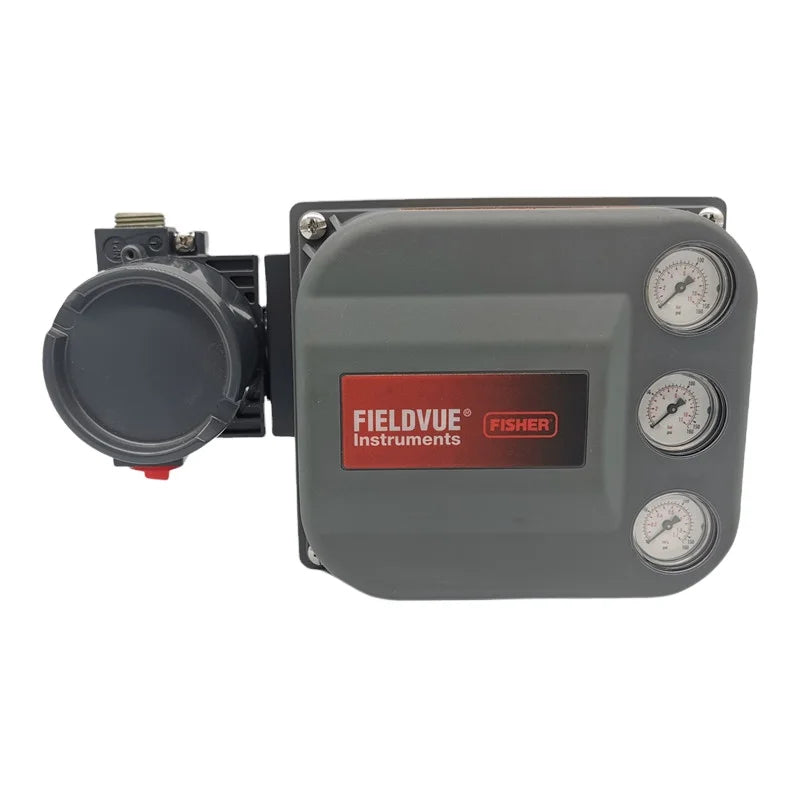

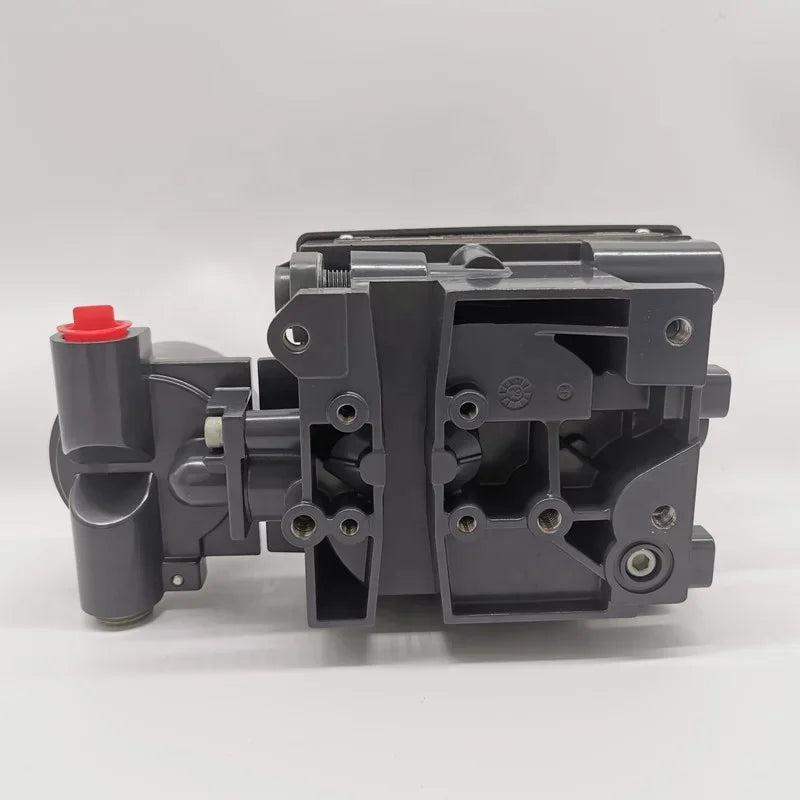

Fisher Positioner DVC6200 Double Action with Feedback New Original Stock DVC6200AD DVC6200PD
The Fisher FIELDVUE DVC6200AD and DVC6200PD Digital Valve Positioners are intelligent electro-pneumatic instruments designed for accurate positioning and control of pneumatic valve actuators in industrial process systems. Manufactured by Fisher, an Emerson...
- Double Acting, Relay A Configuration Pneumatic Configuration
- 145 psig (10 bar), Subject to Actuator Rating Maximum Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Fisher FIELDVUE DVC6200AD and DVC6200PD Digital Valve Positioners are intelligent electro-pneumatic instruments designed for accurate positioning and control of pneumatic valve actuators in industrial process systems. Manufactured by Fisher, an Emerson brand, the DVC6200 Series combines microprocessor-based control, HART digital communication, and contactless magnetic position sensing to deliver precise valve positioning. The double-acting configuration regulates pneumatic pressure to both actuator chambers, supporting responsive valve movement and dependable industrial process control.
The DVC6200AD features advanced diagnostic capabilities for valve performance evaluation and maintenance, while the DVC6200PD adds performance diagnostics for monitoring valve operation during service. Both models support automatic calibration, digital valve tuning, and integration with compatible industrial control systems. Their robust construction and configurable pneumatic relay design make them suitable for oil and gas processing, chemical manufacturing, petroleum refining, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Double Acting Digital Valve Positioner |
|
Manufacturer / Brand |
Fisher / Emerson |
|
Model Number 1 |
DVC6200AD |
|
Model Number 2 |
DVC6200PD |
|
Product Series |
FIELDVUE DVC6200 |
|
Product Type |
Intelligent Electro-Pneumatic Valve Positioner |
|
Positioner Technology |
Microprocessor-Based Digital Control |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
Pneumatic Configuration |
Double Acting, Relay A Configuration |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
HART Revision |
HART 5 or HART 7, Configuration Dependent |
|
Power Configuration |
Two-Wire, Loop Powered |
|
Position Sensing Technology |
Contactless Magnetic Feedback |
|
Position Feedback |
Valve Travel Sensing |
|
Optional Feedback Output |
4–20 mA Position Transmitter, with Suitable I/O Package |
|
Diagnostic Level, DVC6200AD |
Advanced Diagnostics |
|
Diagnostic Level, DVC6200PD |
Performance Diagnostics |
|
Automatic Calibration |
Supported |
|
Valve Diagnostics |
Valve Signature, Step Response and Drive Signal Tests |
|
Performance Monitoring |
Available on DVC6200PD |
|
Diagnostic Software |
Fisher ValveLink |
|
Pneumatic Relay |
Relay A for Double Acting |
|
Maximum Supply Pressure |
145 psig (10 bar), Subject to Actuator Rating |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Housing Material |
Aluminium Alloy, Standard |
|
Enclosure Protection |
IP66 / NEMA 4X, Applicable Configuration |
|
Hazardous Area Certification |
Dependent on Complete Model Code |
|
Actuator Compatibility |
Linear and Rotary Pneumatic Actuators |
|
Mounting Configuration |
Actuator Mounted |
|
Control System Integration |
HART-Compatible DCS and Asset Management Systems |
|
Operating Application |
Industrial Valve Positioning and Monitoring |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital electro-pneumatic valve positioning
Double-acting pneumatic actuator control with Relay A
Accurate 4–20 mA electrical control input
Integrated HART digital communication technology
Contactless magnetic valve position sensing
Advanced valve diagnostics on DVC6200AD
Enhanced performance diagnostics on DVC6200PD
Automatic calibration and digital valve tuning
Valve signature and step response diagnostic capabilities
Optional 4–20 mA position feedback output
Microprocessor-based control for accurate positioning
Durable industrial aluminium enclosure
Compatible with linear and rotary pneumatic actuators
Integration with Fisher ValveLink diagnostic software
Supports predictive maintenance and valve performance monitoring
Suitable for industrial valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
Double-acting pneumatic actuator systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial flow and pressure regulation
Linear and rotary valve automation
Industrial valve performance diagnostics
Distributed control system integration
Pneumatic actuator condition monitoring
Industrial process automation and instrumentation
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
