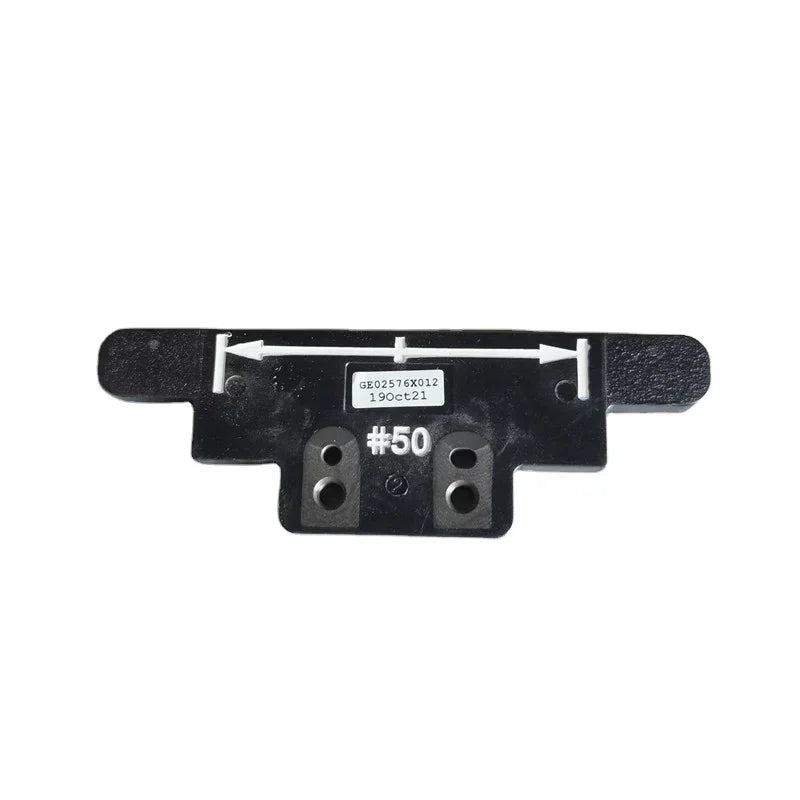

Fisher DVC6200/DVC2000 Linear Feedback Magnetic Strip Assembly Kit – 19mm, 25mm, 38mm, 50mm, 110mm and 210mm
The Fisher DVC6200/DVC2000 Linear Feedback Magnetic Strip Assembly Kit is designed to provide accurate, non-contact valve travel measurement in compatible Fisher FIELDVUE digital valve controllers.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Fisher DVC6200/DVC2000 Linear Feedback Magnetic Strip Assembly Kit is designed to provide accurate, non-contact valve travel measurement in compatible Fisher FIELDVUE digital valve controllers. Manufactured for Fisher positioning systems, an Emerson brand, this magnetic feedback component works with the positioner's Hall-effect sensor to detect the movement of a pneumatic actuator stem. Its magnetic sensing arrangement enables the digital valve controller to monitor actual valve position and adjust pneumatic output pressure to maintain accurate valve travel and dependable process control.

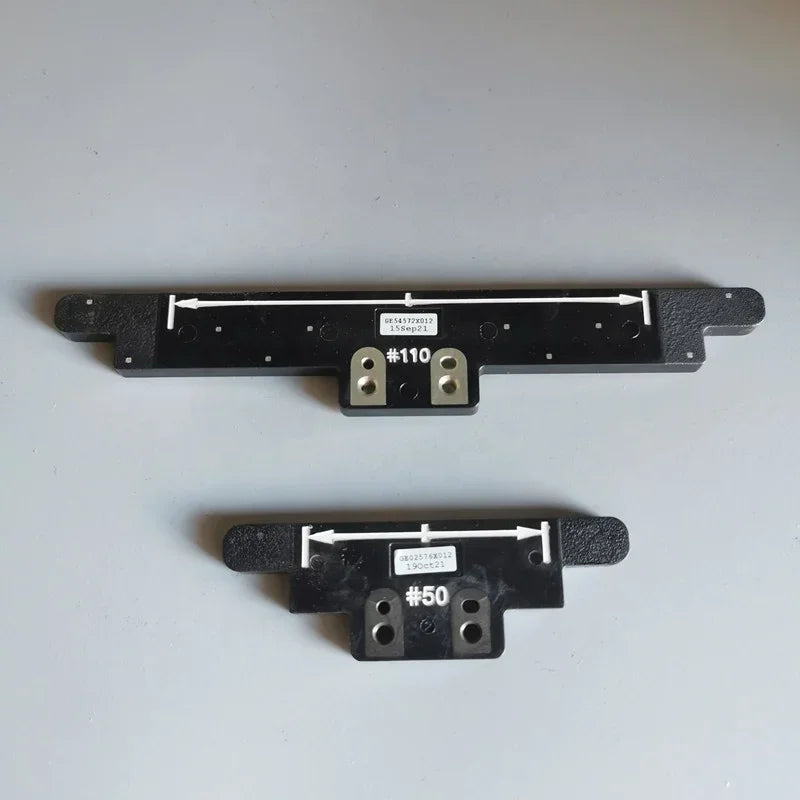

Available in 19mm, 25mm, 38mm, 50mm, 110mm and 210mm travel configurations, these linear magnetic feedback assemblies support different actuator stroke lengths and mounting requirements. The magnetic assembly is attached to the moving actuator linkage, allowing the stationary positioner to track valve movement without direct mechanical contact between the magnet and sensing element. Designed for maintenance, replacement and installation applications, these components are suitable for compatible Fisher DVC6200 and DVC2000 positioners used in oil and gas facilities, chemical processing plants, power generation, water treatment and industrial automation systems.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Linear Feedback Magnetic Strip Assembly |
|
Manufacturer / Brand |
Fisher / Emerson |
|
Product Type |
Magnetic Valve Position Feedback Assembly |
|
Component Category |
Digital Valve Positioner Spare Parts |
|
Compatible Positioner Series |
Fisher FIELDVUE DVC6200 |
|
Additional Compatible Series |
Fisher FIELDVUE DVC2000 |
|
Feedback Technology |
Non-Contact Magnetic Position Sensing |
|
Sensor Compatibility |
Hall-Effect Position Sensor |
|
Feedback Configuration |
Linear / Sliding Stem |
|
Available Magnet Assemblies |
SStem #19, #25, #38, #50, #110 and #210 |
|
Nominal Travel Options |
19mm, 25mm, 38mm, 50mm, 110mm and 210mm |
|
Position Measurement |
Linear Actuator Stem Displacement |
|
Operating Principle |
Magnetic Field Position Detection |
|
Installation Location |
Valve Stem or Compatible Actuator Feedback Linkage |
|
Mounting Application |
Compatible Linear Pneumatic Actuators |
|
Electrical Power Requirement |
No Independent Electrical Supply |
|
Pneumatic Supply Requirement |
None for the Magnetic Assembly |
|
Feedback Function |
Actuator Travel Position Measurement |
|
Contact Type |
Non-Contact Position Sensing |
|
Configuration Selection |
Based on Actuator Stroke and Positioner Feedback Setup |
|
Maintenance Function |
Replacement of Worn, Missing or Damaged Feedback Assemblies |
|
Related Equipment |
Fisher DVC6200 and DVC2000 Digital Valve Controllers |
|
Application Scope |
Industrial Valve Position Feedback Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Linear magnetic feedback assembly for compatible Fisher FIELDVUE digital valve controllers.
-
Designed for Fisher DVC6200 and DVC2000 positioner applications.
-
Non-contact magnetic sensing technology for monitoring pneumatic actuator stem movement.
-
Works with the positioner's Hall-effect sensor to detect actual valve travel.
-
Available in six nominal travel configurations: 19mm, 25mm, 38mm, 50mm, 110mm and 210mm.
-
Supports accurate valve position measurement when correctly matched to actuator stroke.
-
Suitable for sliding-stem pneumatic actuator installations.
-
Helps restore valve travel feedback during positioner maintenance or replacement.
-
Magnetic feedback operation without a separate electrical power connection to the assembly.
-
Reduces reliance on direct-contact sensing components.
-
Supports positioner calibration and monitoring of actuator movement.
-
Compatible with appropriately selected Fisher actuator mounting assemblies.
-
Designed for integration with existing valve positioning feedback arrangements.
-
Useful for industrial instrument servicing and preventive maintenance.
-
Individual travel sizes allow selection according to the actuator's required movement range.
Typical Applications
-
Fisher FIELDVUE DVC6200 positioner maintenance
-
Fisher FIELDVUE DVC2000 positioner servicing
-
Linear pneumatic actuator position measurement
-
Industrial control valve feedback replacement
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Sliding-stem globe valve automation
-
Pneumatic control valve calibration
-
Industrial instrumentation maintenance
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
