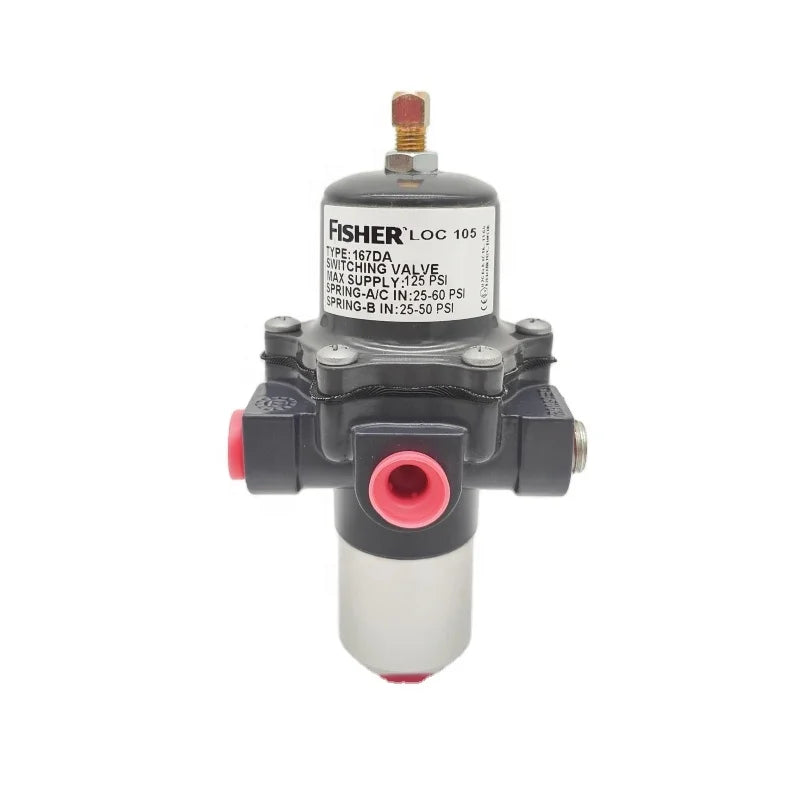

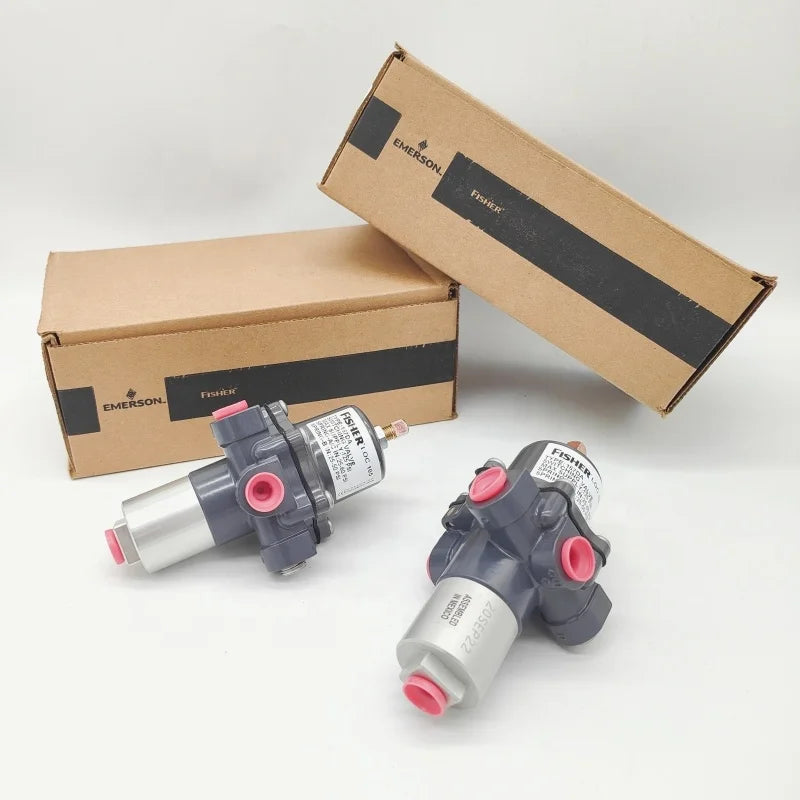

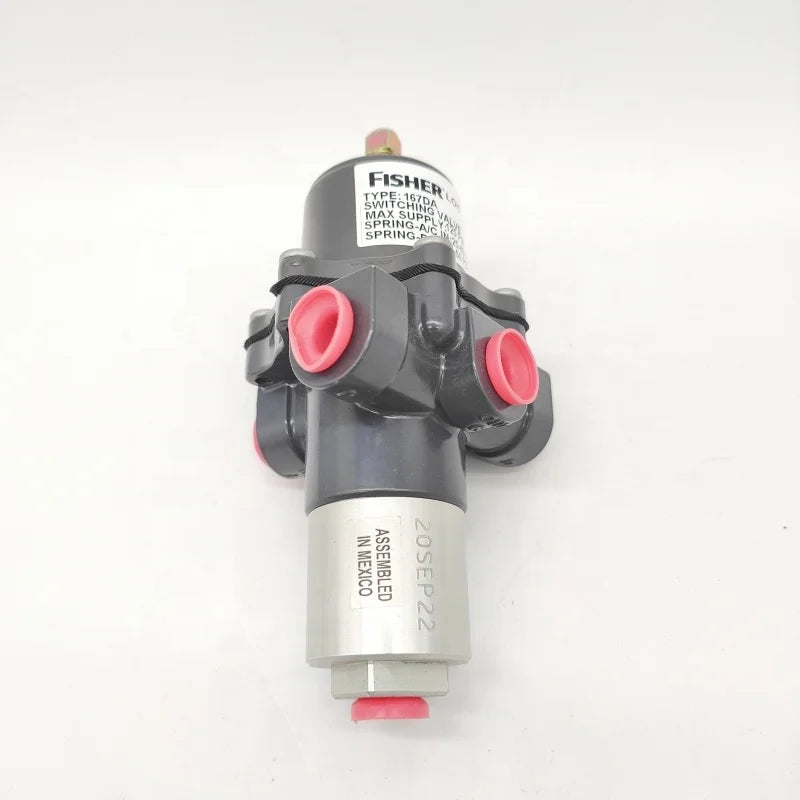

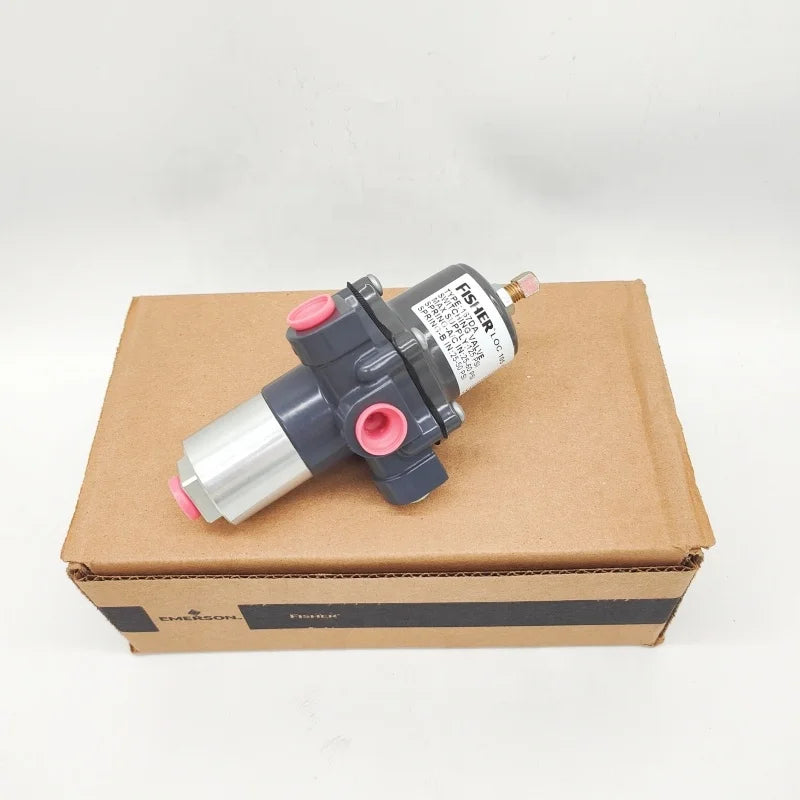

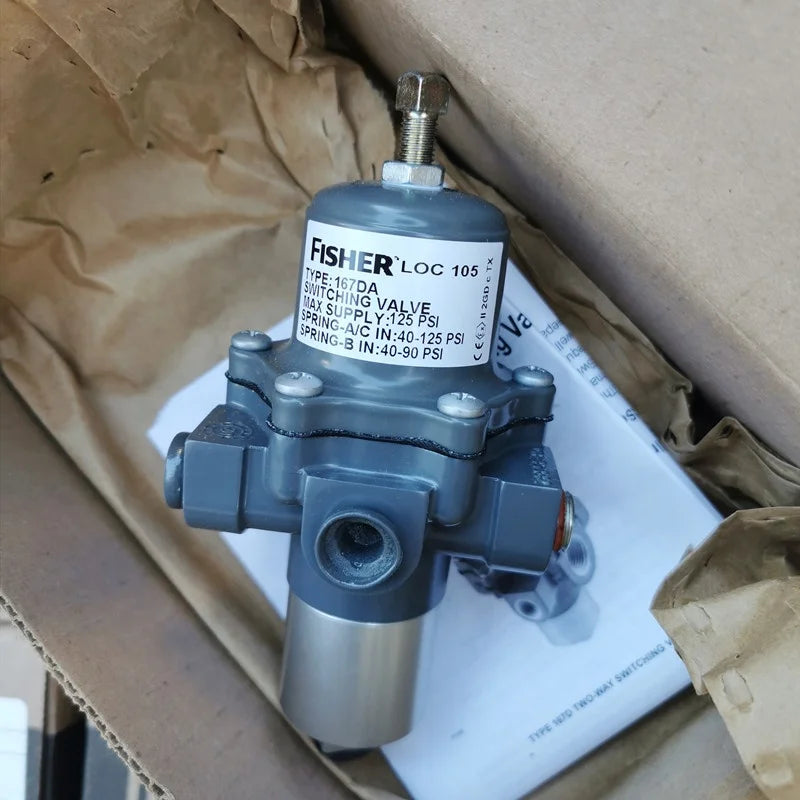

Fisher 167DA-13 Three-Way Self-Operated Pneumatic Switching Valve
The Fisher 167DA-13 Three-Way Self-Operated Switching Valve is designed for reliable pressure-responsive flow switching in industrial pneumatic and gas control systems.
- Three-Way Switching Valve Valve Type
- 125 psig (8.6 Bar) Maximum Operating Inlet Pressure
- Automatic Pneumatic Flow Switching Control Type
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Fisher 167DA-13 Three-Way Self-Operated Switching Valve is designed for reliable pressure-responsive flow switching in industrial pneumatic and gas control systems. Manufactured by Fisher, an Emerson brand, this mechanically operated valve uses control pressure acting against an adjustable spring-loaded diaphragm to direct gas flow between connected ports. Its three-way configuration supports automatic switching between flow paths, providing dependable operation in pneumatic instrumentation, industrial automation, and pressure-controlled process applications.
Part of the Fisher 167D Series, the 167DA-13 features a compact, rugged construction, adjustable spring mechanism, and pressure-operated valve plug arrangement for reliable switching performance. The valve responds to changes in control pressure without requiring an external electrical supply, making it suitable for pneumatic equipment requiring on/off switching, flow diversion, and pressure-related failover functions. The 167DA-13 configuration is listed with 1/4-inch NPT connections and a 0–60 psig control spring range. Its design supports installation in gas distribution systems, pneumatic control circuits, industrial instrumentation, and process automation equipment.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Three-Way Pneumatic Switching Valve |
|
Brand |
Fisher |
|
Manufacturer |
Emerson |
|
Model |
167DA-13 |
|
Series |
167D |
|
Product Type |
Self-Operated Switching Valve |
|
Valve Type |
Three-Way Switching Valve |
|
Structure |
Spring-Loaded Diaphragm and Valve Plug |
|
Operating Principle |
Pressure-Actuated Switching |
|
Control Type |
Automatic Pneumatic Flow Switching |
|
Power Source |
Pneumatic Control Pressure |
|
Control Spring Range |
0–60 psig |
|
Maximum Operating Inlet Pressure |
125 psig (8.6 Bar) |
|
Inlet Connection |
1/4 Inch NPT |
|
Outlet Connections |
1/4 Inch NPT |
|
Control Pressure Connection |
1/4 Inch NPT |
|
Vent Connection |
1/4 Inch NPT |
|
Pressure Registration |
External Control Pressure at Port D |
|
Switching Configuration |
Three-Way, Ports A, B and C |
|
Pressure Adjustment |
Adjustable Control Spring |
|
Standard Operating Temperature |
-29°C to +82°C |
|
Working Medium |
Compatible Gases |
|
Approximate Weight |
0.5 kg |
|
Related Catalogue Reference |
167D-2594-181508 |
|
Application Scope |
Industrial Pneumatic and Gas Switching Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Three-way pneumatic switching design for dependable industrial gas and instrument air control.
-
Self-operated mechanism that responds automatically to changes in pneumatic control pressure.
-
Spring-loaded diaphragm construction for reliable pressure-responsive switching.
-
Adjustable control spring with a 0–60 psig range for the 167DA-13 configuration.
-
Maximum operating inlet pressure of 125 psig for standard 167DA applications.
-
Compact construction for convenient integration into industrial instrumentation assemblies.
-
1/4-inch NPT connections for installation in compatible pneumatic piping systems.
-
Automatic switching between two flow paths to support pressure-controlled operations.
-
Mechanical operation without requiring an external electrical power supply.
-
Rugged construction suitable for demanding industrial operating environments.
-
Corrosion-resistant fasteners for improved service durability.
-
Suitable for pneumatic on/off control, flow diversion, and switching applications.
-
Accessible adjustment mechanism for setting the required switching pressure.
-
Designed for straightforward installation, inspection, and maintenance.
Typical Applications
-
Industrial pneumatic switching systems
-
Pressure-operated flow diversion circuits
-
Pneumatic instrumentation and control assemblies
-
Oil and gas processing facilities
-
Chemical and petrochemical plants
-
Industrial gas distribution systems
-
Pneumatic actuator control circuits
-
Manufacturing and production equipment
-
Power generation and utility systems
-
Industrial process automation systems
-
Pressure-related switching and failover applications
-
Compatible pilot-operated control equipment
