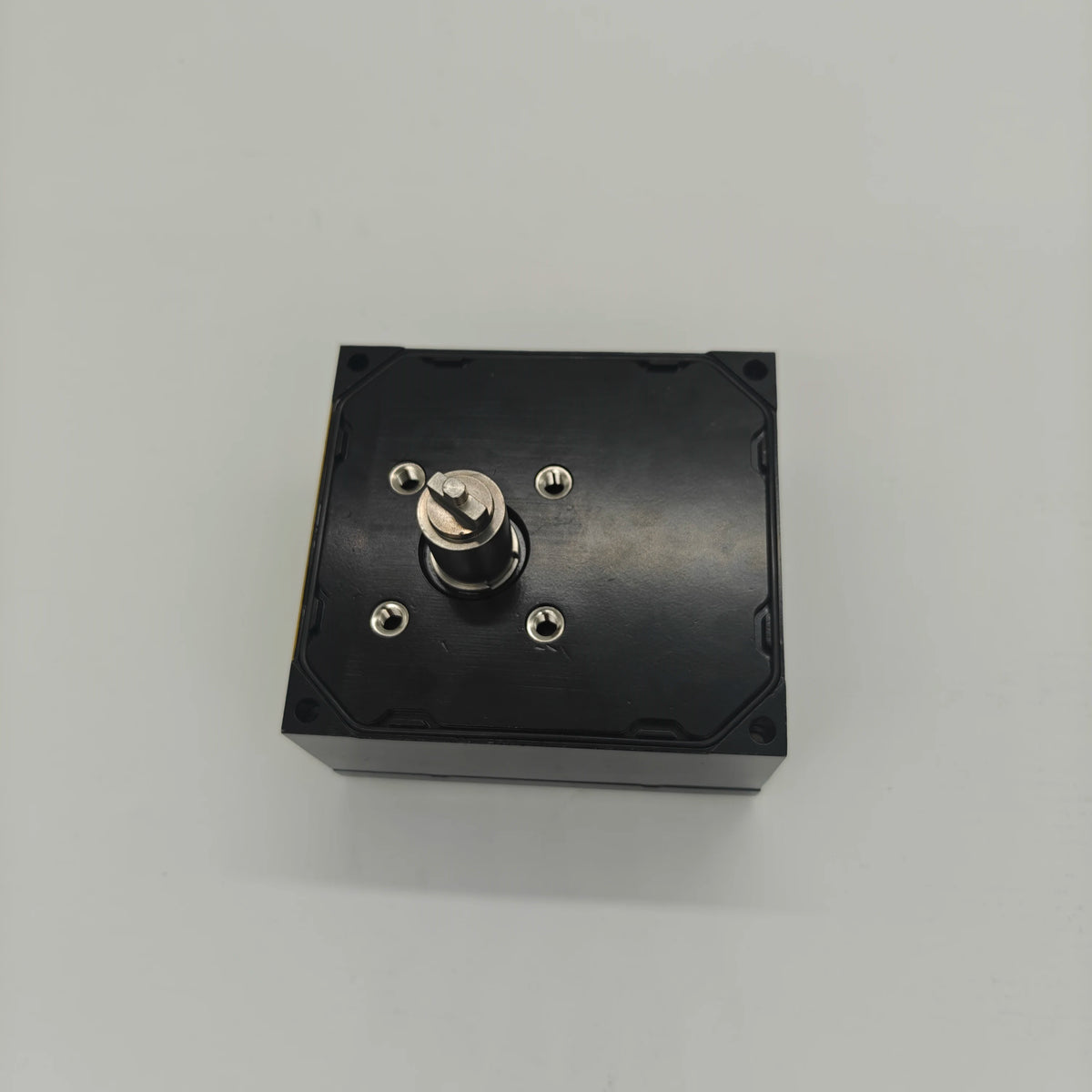

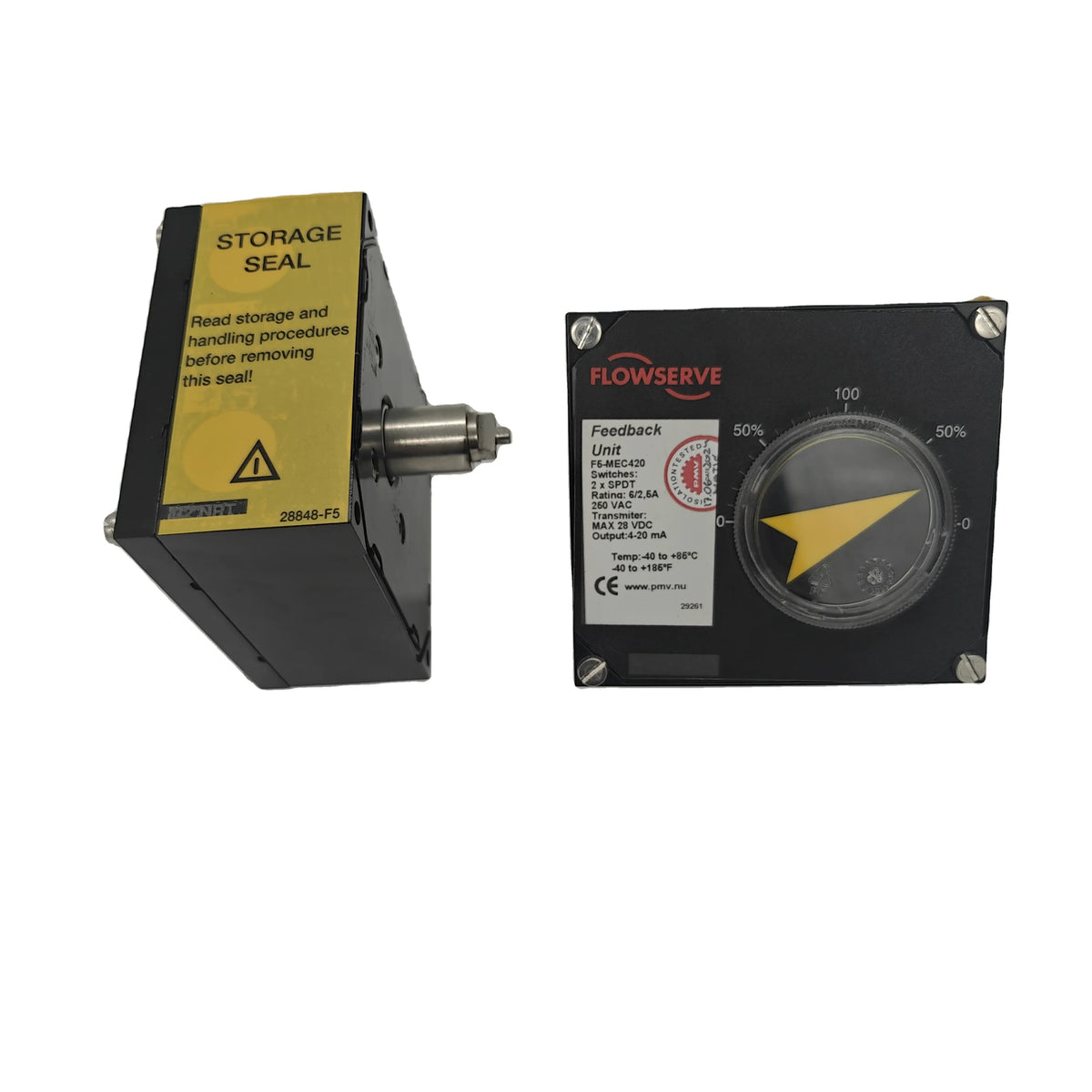

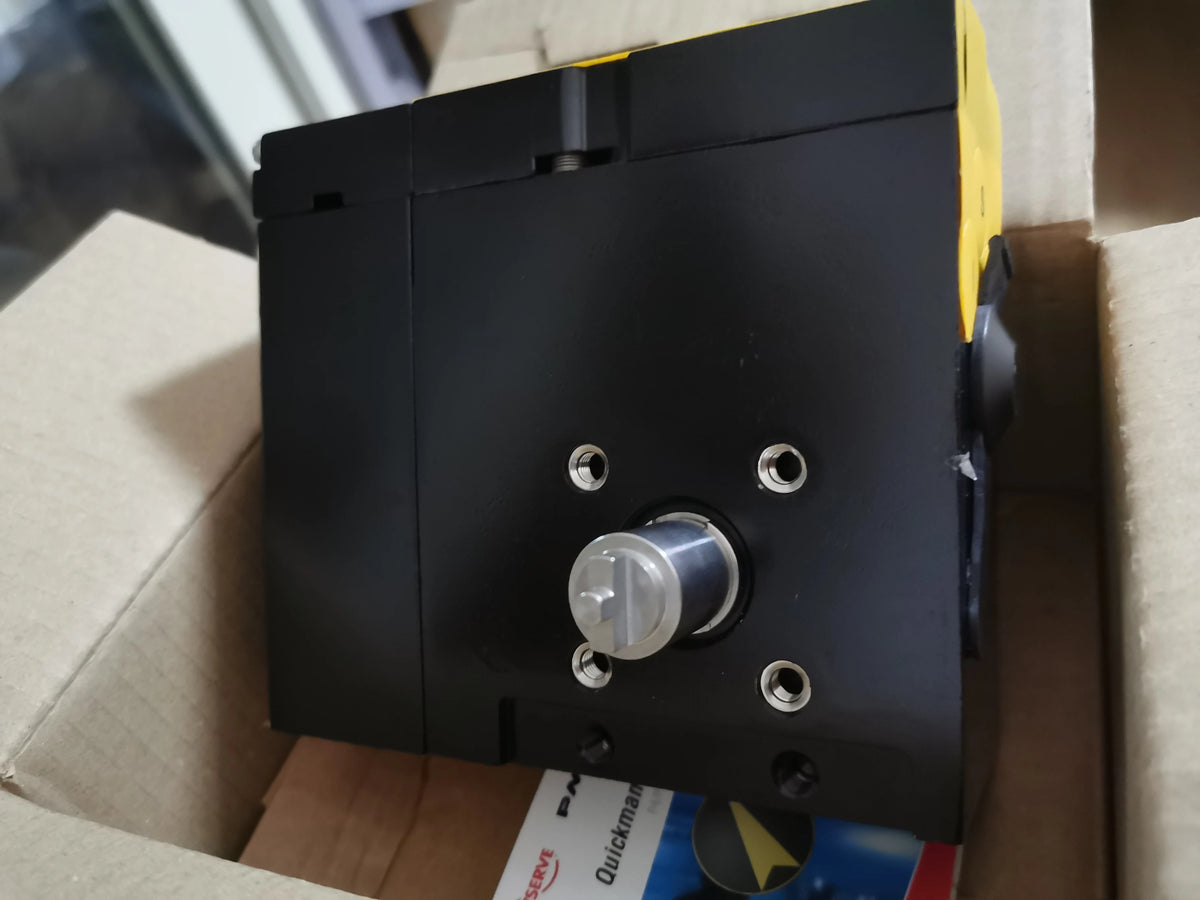

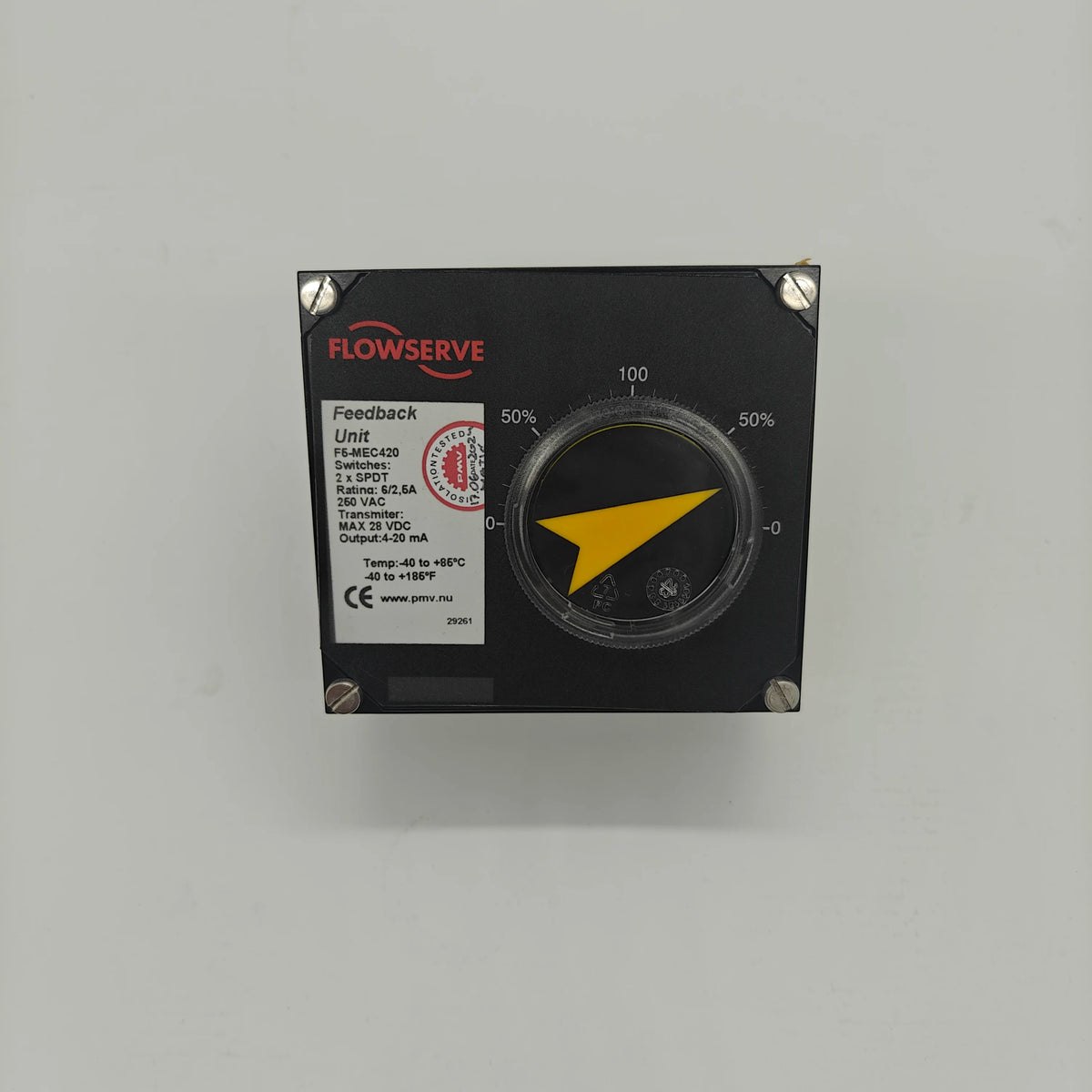

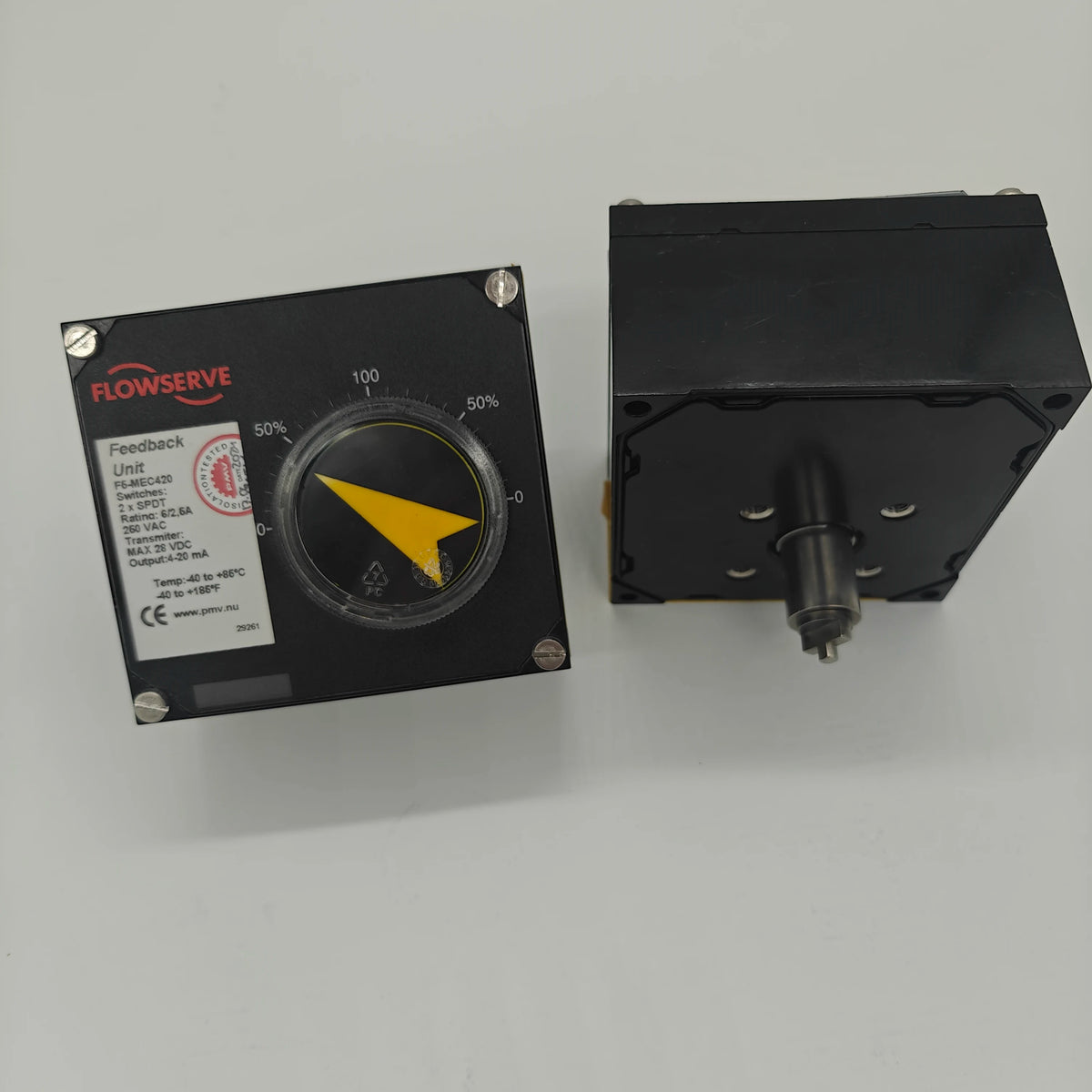

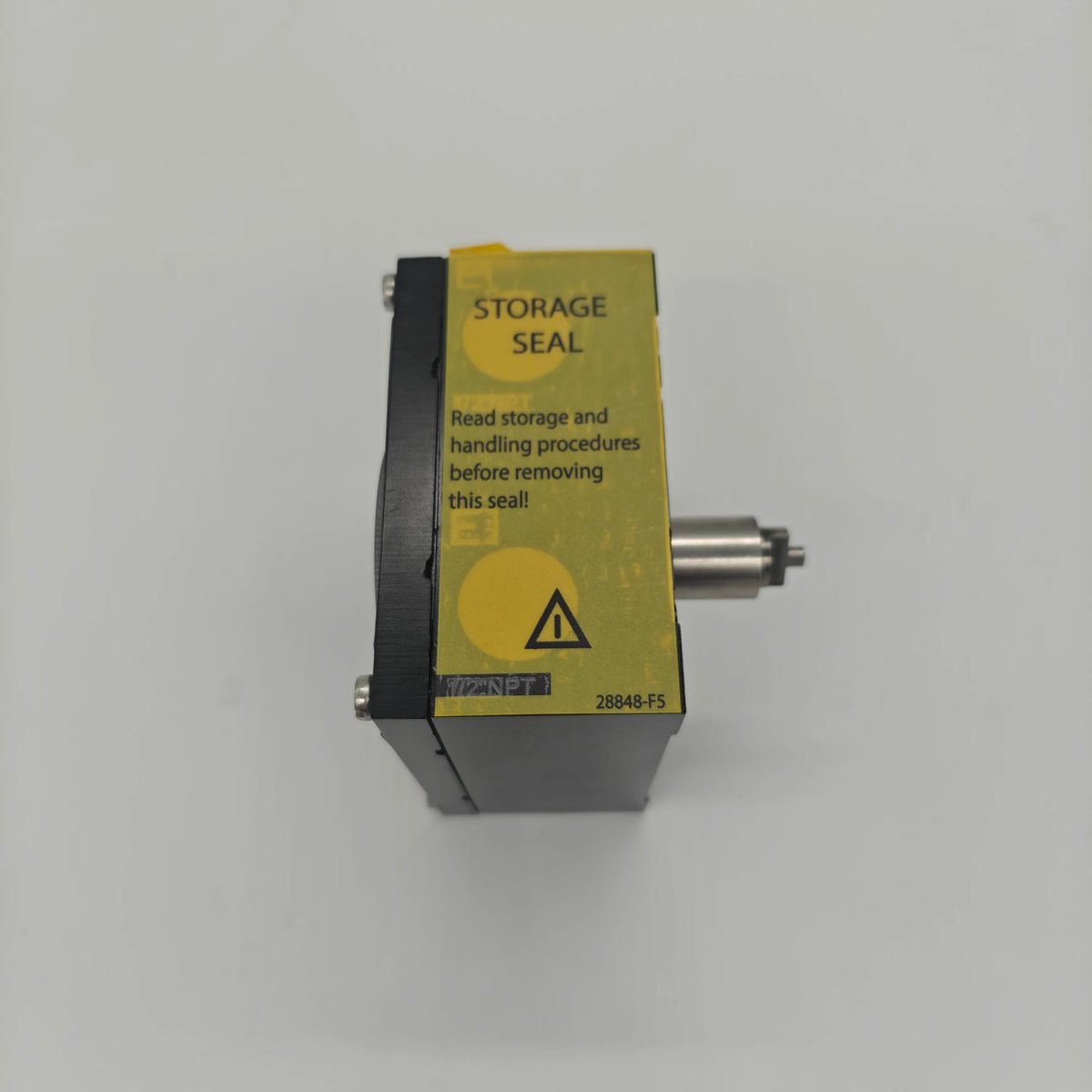

PMV F5ISGU-MEC420-23-FS9DA-Z Valve Position Feedback Unit
The Flowserve PMV F5ISGU-MEC420-23-FS9DA-Z Valve Position Feedback Unit is designed for accurate monitoring and indication of pneumatic control valve positions in industrial process systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Flowserve PMV F5ISGU-MEC420-23-FS9DA-Z Valve Position Feedback Unit is designed for accurate monitoring and indication of pneumatic control valve positions in industrial process systems. Manufactured by PMV, a Flowserve brand, this F5 Series feedback unit combines mechanical limit switches with a 4–20 mA analogue position transmitter. It provides continuous valve position feedback and discrete switching signals for integration with industrial monitoring and automation systems.
The F5ISGU-MEC420-23-FS9DA-Z features two SPDT mechanical switches, an analogue position transmitter, an epoxy-coated enclosure, and an intrinsically safe design configuration. Its modular construction supports installation with compatible PMV P5 and EP5 valve positioners, while the adjustable cam mechanism allows precise switch-point calibration. It is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Valve Position Feedback Unit |
|
Manufacturer / Brand |
Flowserve / PMV |
|
Model Number |
F5ISGU-MEC420-23-FS9DA-Z |
|
Product Series |
PMV F5 |
|
Product Type |
Electromechanical Valve Position Feedback Unit |
|
Feedback Technology |
Mechanical Switches and Analogue Transmitter |
|
Position Feedback Output |
4–20 mA DC |
|
Limit Switch Configuration |
2 × SPDT Mechanical Switches |
|
Switch Function |
Adjustable Valve Position Indication |
|
Transmitter Function |
Continuous Valve Position Feedback |
|
Transmitter Supply |
Configuration Dependent; 28 V DC Maximum for Identified IS Version |
|
Housing Configuration |
Intrinsically Safe, F5IS |
|
Surface Treatment |
Epoxy Coating |
|
Electrical Entry |
PG 13.5, G Code |
|
Spindle Configuration |
Code 23 |
|
Position Indicator |
FS9DA, Exact Indicator Details Require Verification |
|
Operating Temperature |
−40°C to +85°C, NBR Seal Configuration |
|
Sealing Material |
Nitrile Rubber (NBR) |
|
Mounting Compatibility |
Selected PMV P5 and EP5 Positioners |
|
Actuator Mounting |
Possible with Suitable Mounting Kit |
|
Cam Adjustment |
Stepless |
|
Calibration |
Adjustable Switch Points and Transmitter Settings |
|
Operating Application |
Industrial Valve Position Monitoring |
|
Related Reference |
F5-MEC420 |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Integrated 4–20 mA analogue valve position transmitter
Two SPDT mechanical limit switches for valve position indication
Intrinsically safe enclosure configuration for approved installations
Adjustable cam mechanism for precise switch-point settings
Continuous analogue feedback for remote valve monitoring
Compatible with selected Flowserve PMV P5 and EP5 positioners
Durable epoxy-coated housing for industrial environments
Stepless cam adjustment for accurate mechanical calibration
Nitrile rubber seals for dependable enclosure protection
Modular construction for convenient installation and servicing
Supports industrial control system monitoring and automation
Suitable for valve maintenance and replacement applications
Typical Applications
Industrial control valve position monitoring
Pneumatic actuator position feedback systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Rotary ball and butterfly valve monitoring
Industrial valve open and closed position indication
Process automation and remote monitoring systems
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
