Fluidsmart Micro Gear Pump, 90–2700ml/min, SS316L
The Fluidsmart Micro Gear Pump is designed for small-volume liquid transfer requiring precise flow control. With a flow range of 90–2700 ml/min, it supports adjustable delivery across various applications.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
Product Overview

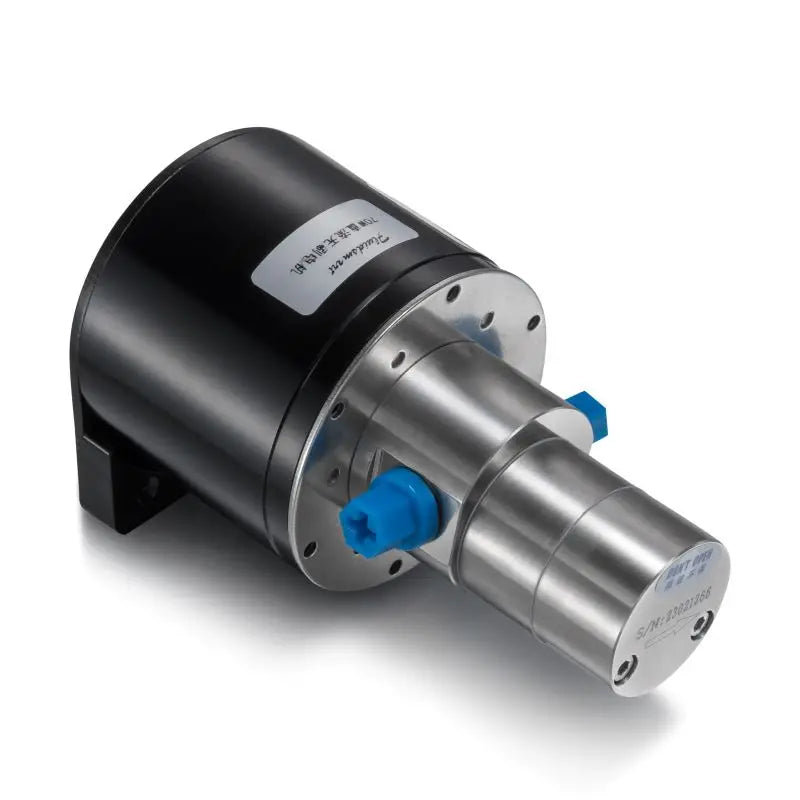

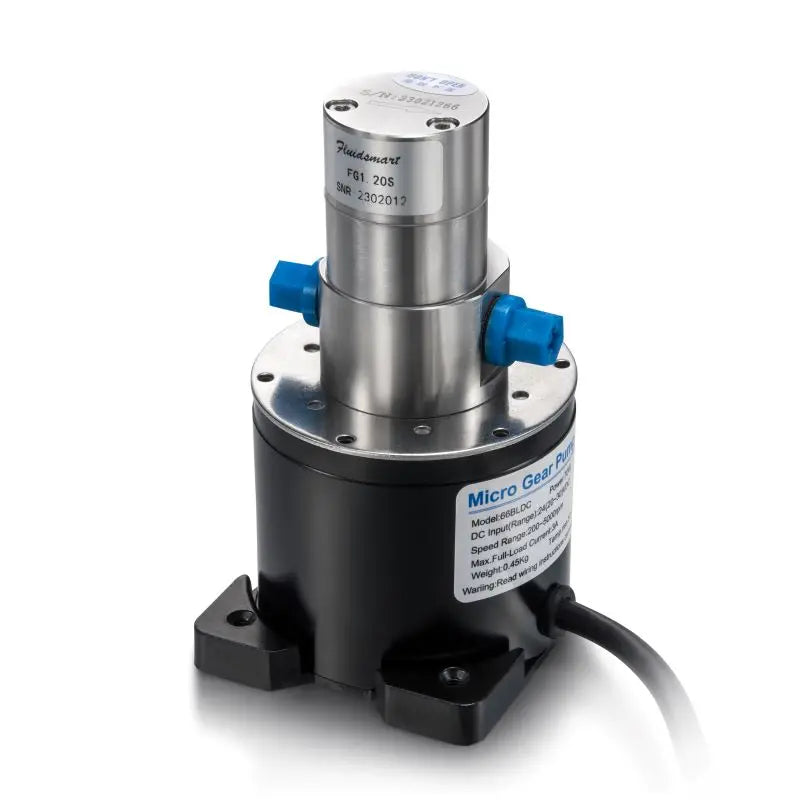

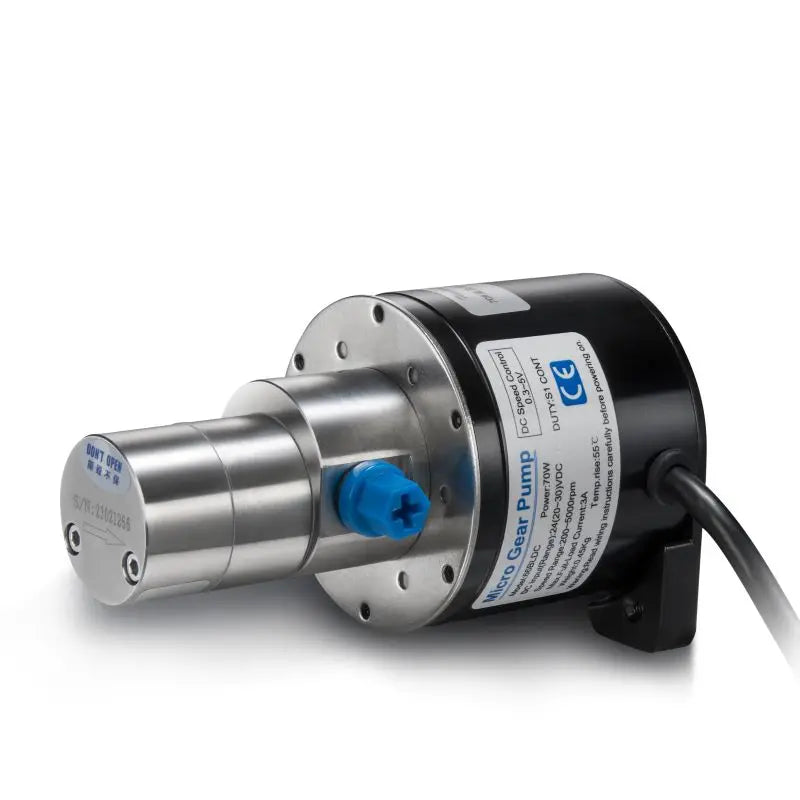

The Fluidsmart Micro Gear Pump is designed for small-volume liquid transfer requiring precise flow control. With a flow range of 90–2700 ml/min, it supports adjustable delivery across various applications.
Its SS316L stainless steel body and magnetic drive ensure corrosion resistance and leak-free operation.
Technical Specifications
| Specification | Value |
|---|---|
| Pump Type | Micro Gear Pump |
| Brand | Fluidsmart |
| Flow Range | 90–2700 ml/min |
| Body Material | SS316L |
| Drive Type | Magnetic Drive |
| Motor Type | Servo |
| Application | Liquid Transfer |
| Condition | New |
Key Features
-
Adjustable flow range
-
Magnetic drive design
-
SS316L stainless construction
-
Precision fluid control
-
Compact structure
-
Stable operation
Typical Applications
-
Laboratory dosing
-
Chemical transfer
-
Medical equipment
-
Industrial automation
-
Analytical systems
Shipping & Support
-
Fast dispatch
-
Australia & world-wide shipping
-
Technical assistance available
-
Warranty available
