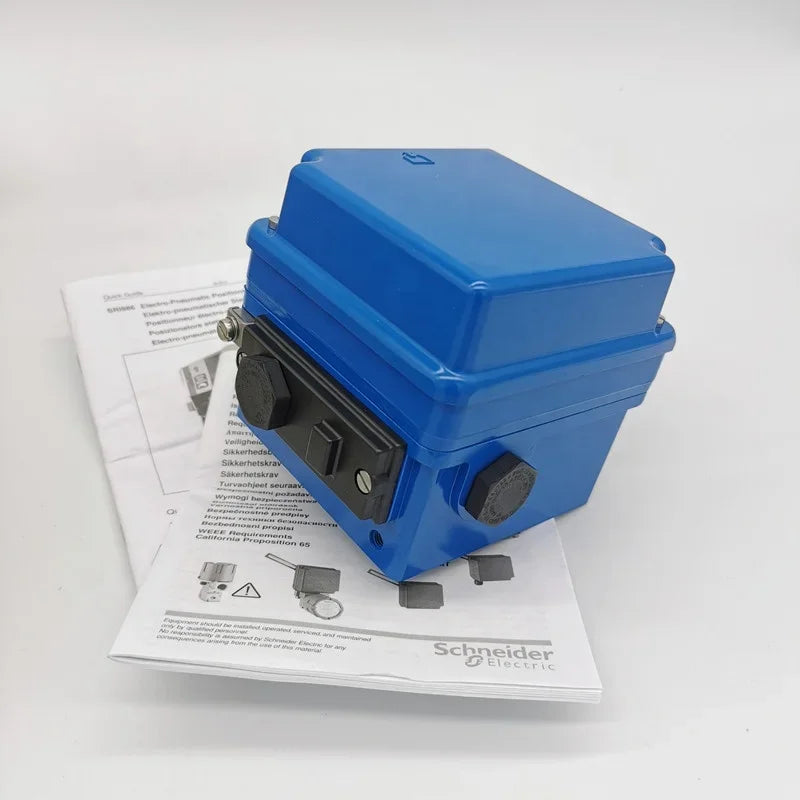

Foxboro Eckardt SRI986-BIDS7EAANA / SRI986-BID7FAANA Electro-Pneumatic Valve Positioners
The Foxboro Eckardt SRI986-BIDS7EAANA and SRI986-BID7FAANA Electro-Pneumatic Valve Positioners are industrial control instruments designed for accurate positioning and regulation of pneumatic valve actuators.
- Single Acting, Confirmed for BIDS7EAANA Actuator Configuration
- 6 bar / 90 psig Maximum Supply Pressure
- Up to Threefold Split-Range Operation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Foxboro Eckardt SRI986-BIDS7EAANA and SRI986-BID7FAANA Electro-Pneumatic Valve Positioners are industrial control instruments designed for accurate positioning and regulation of pneumatic valve actuators. Manufactured under the Foxboro Eckardt brand, associated with Schneider Electric, the SRI986 Series converts 4–20 mA electrical control signals into proportional pneumatic outputs for precise valve movement. Its mechanical force-balance operating principle supports stable valve positioning, adjustable response, and reliable process control in industrial automation systems.
The SRI986-BIDS7EAANA features single-acting pneumatic operation, direct-acting control, adjustable zero and span settings, and an intrinsically safe ATEX configuration. The SRI986 Series also supports optional position transmitters, limit switches, pneumatic boosters, and gauge manifolds. Its rugged aluminium housing and compatibility with linear and rotary actuators make it suitable for oil and gas processing, chemical manufacturing, petroleum refining, power generation, water treatment, and industrial valve automation. The second supplied reference, SRI986-BID7FAANA, requires nameplate verification because it does not match the complete manufacturer ordering-code structure.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electro-Pneumatic Valve Positioner |
|
Manufacturer / Brand |
Foxboro Eckardt / Schneider Electric |
|
Model Number 1 |
SRI986-BIDS7EAANA |
|
Model Number 2 |
SRI986-BID7FAANA |
|
Product Series |
SRI986 |
|
Product Type |
Analogue Electro-Pneumatic Valve Positioner |
|
Positioner Technology |
Mechanical Force-Balance Control |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
Actuator Configuration |
Single Acting, Confirmed for BIDS7EAANA |
|
Electrical Input Signal |
4–20 mA DC |
|
Operating Direction |
Direct Acting |
|
Control Action |
Increasing Input Increases Pneumatic Output |
|
Signal Input Resistance |
Approximately 200 Ω |
|
Maximum Supply Pressure |
6 bar / 90 psig |
|
Pneumatic Output |
Proportional to Electrical Input |
|
Zero Adjustment |
Independently Adjustable |
|
Span Adjustment |
Independently Adjustable |
|
Gain Adjustment |
Adjustable |
|
Damping Adjustment |
Adjustable |
|
Split-Range Operation |
Up to Threefold |
|
Position Feedback |
Mechanical Valve Travel Feedback |
|
Additional Position Transmitter |
Not Included in BIDS7EAANA |
|
Integrated Limit Switches |
Not Included in BIDS7EAANA |
|
Optional Position Transmitter |
4–20 mA, Selected Configurations |
|
Optional Limit Switches |
Inductive or Mechanical |
|
Electrical Cable Entry |
M20 × 1.5 |
|
Cable Gland |
Grey Plastic, BIDS7EAANA |
|
Pneumatic Connections |
G 1/8, Standard Series Configuration |
|
Housing Material |
Aluminium Alloy |
|
Housing Finish |
Protective Blue Coating |
|

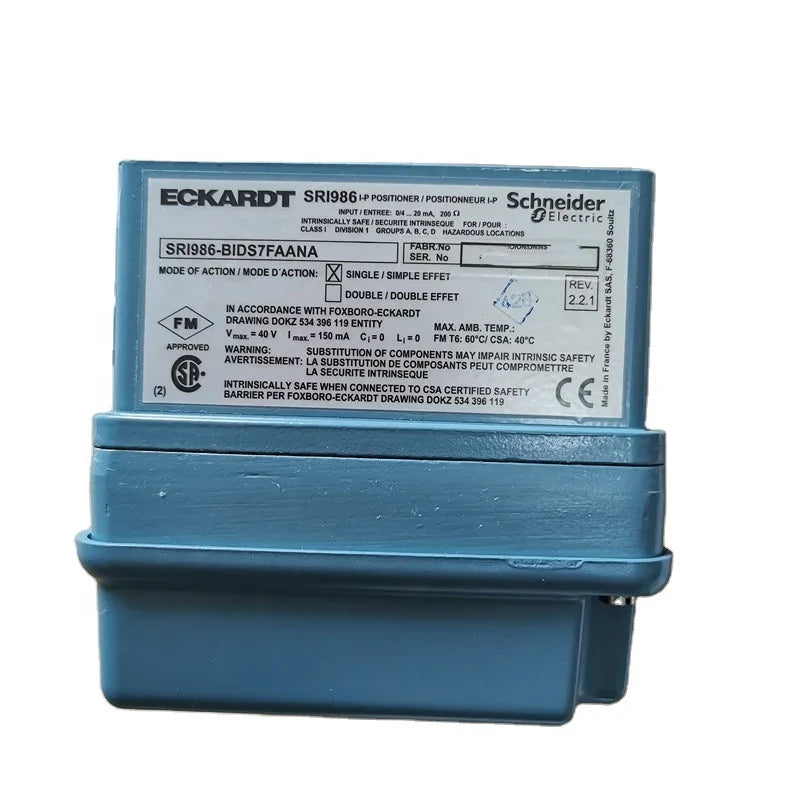

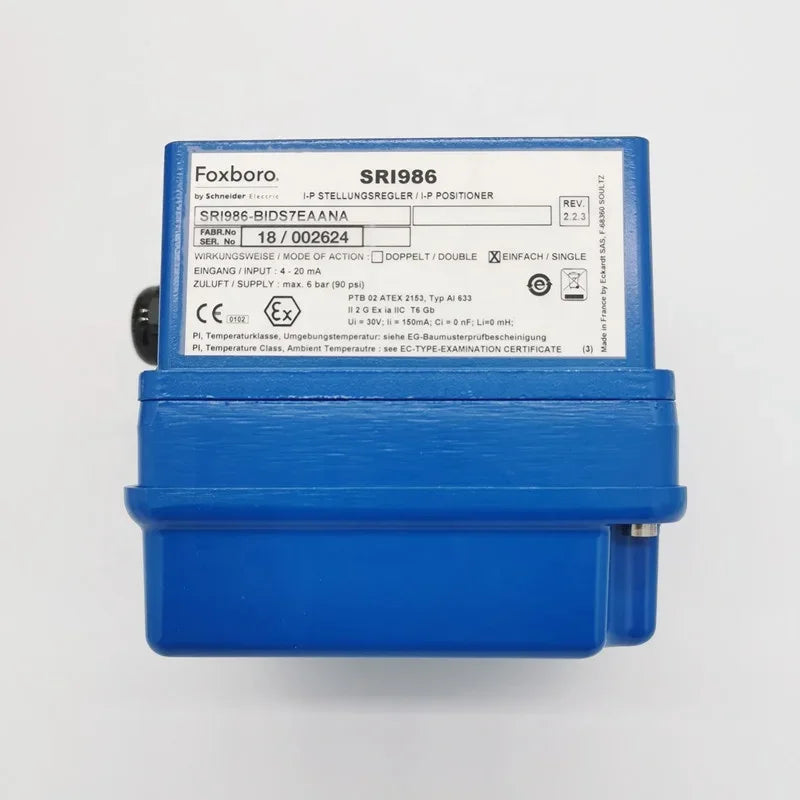

Explosion Protection |
ATEX Intrinsically Safe, BIDS7EAANA |
|
Certification Reference |
II 2 G EEx ia IIC T6, BIDS7EAANA |
|
Standard Enclosure Protection |
IP54 |
|
Optional Enclosure Protection |
IP65, Suitable Configuration |
|
Mounting Standard |
IEC 60534-6 / NAMUR |
|
Linear Actuator Compatibility |
Suitable Diaphragm Actuators |
|
Rotary Actuator Compatibility |
Up to 120° with Suitable Adapter |
|
Mounting Kit |
Ordered Separately |
|
Gauge Manifold |
Ordered Separately |
|
Approximate Weight |
1.5 kg, Single-Acting Version |
|
Control System Compatibility |
Analogue PLC and DCS Control Outputs |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Operating Application |
Industrial Pneumatic Valve Positioning |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Accurate analogue electro-pneumatic valve positioning
4–20 mA electrical control signal
Single-acting pneumatic control on SRI986-BIDS7EAANA
Direct-acting pneumatic output regulation
Mechanical force-balance positioning technology
Independent zero and span adjustment
Adjustable amplification and damping
Split-range control capability up to threefold
Maximum pneumatic supply pressure of 6 bar
Intrinsically safe ATEX configuration on SRI986-BIDS7EAANA
Durable aluminium housing with protective finish
Compact design for industrial actuator installations
Compatible with linear and rotary pneumatic actuators
NAMUR mounting compatibility
Optional 4–20 mA position transmitter configurations
Optional inductive and mechanical limit switches
Low sensitivity to industrial vibration
Suitable for industrial valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
Single-acting pneumatic actuator systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial flow and pressure regulation
Linear and rotary control valve automation
Pneumatic diaphragm actuator positioning
Hazardous-area valve instrumentation with approved configurations
Industrial manufacturing and production equipment
PLC and DCS-based process control systems
Industrial valve maintenance and replacement
