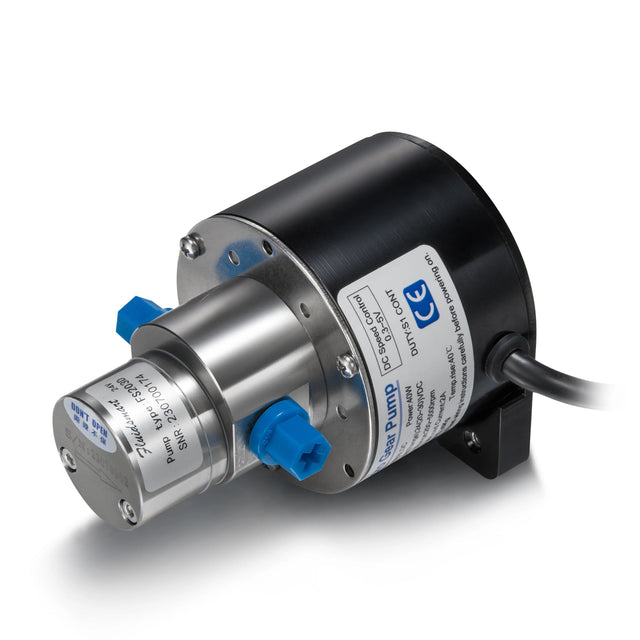

FSG203D, 24V DC Micro Magnetic Gear Pump, SS316L Stainless Steel, 10 Bar
The FSG203D 24V DC micro magnetic gear pump is a compact precision pump designed for accurate liquid transfer in laboratory, medical, and industrial systems.
- Up to 600 ml/min Flow Rate
- 10 Bar Max Continuous Pressure
- 40W Motor Power
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The FSG203D 24V DC micro magnetic gear pump is a compact precision pump designed for accurate liquid transfer in laboratory, medical, and industrial systems. Built with SS316L stainless steel and a magnetic drive structure, it ensures contamination-free operation, corrosion resistance, and reliable long-term performance.
With a maximum pressure of 10 bar and precise gear-driven flow, the FSG203D is ideal for dosing, circulation, and controlled fluid transfer applications requiring stability and accuracy.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | 24V Micro Magnetic Gear Pump |
| Model | FSG203D |
| Pump Type | Magnetic Gear Pump |
| Structure | Gear Pump |
| Pressure | Low Pressure |
| Max Continuous Pressure | 10 Bar |
| Flow Rate | Up to 600 ml/min |
| Flow per Turn | 0.3 ml/r |
| Speed Range | 300 – 4000 RPM |
| Motor Type | Brushless DC Motor |
| Motor Power | 40W |
| Power Source | Electric |
| Voltage | 24V DC |
| Sealing Material | FKM |
| Pump Body Material | SS316L Stainless Steel |
| Connector Size | G1/8 |
| Dimensions | 96 × 66 × 72 mm |
| Warranty | 12 Months |
Key Features
- Magnetic drive design reduces leakage risk
- SS316L stainless steel for corrosion resistance
- Brushless DC motor for smooth operation
- Compact micro pump for tight installations
- Precise and stable fluid delivery
- Low maintenance and long service life
Typical Applications
- Laboratory fluid handling
- Chemical dosing systems
- Medical equipment
- Cooling systems
- Analytical instruments
- Precision liquid transfer
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
