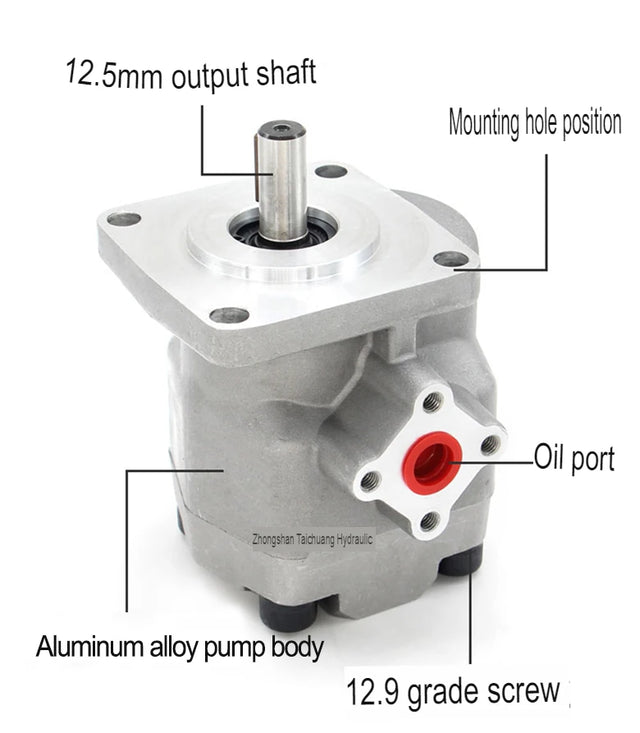

HGP-2A-12R Hydraulic Gear Pump, 12cc, Flange Mount, Right Rotation
The HGP-2A-12R hydraulic gear pump is a high-pressure external gear pump designed for reliable oil circulation and stable pressure output in industrial and mobile hydraulic systems.
- 12 cc/rev Displacement
- Up to 21 MPa Max Continuous Pressure
- 800 – 3000 RPM Speed Range
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The HGP-2A-12R hydraulic gear pump is a high-pressure external gear pump designed for reliable oil circulation and stable pressure output in industrial and mobile hydraulic systems. Built with precision-machined gears and a durable cast iron housing, this pump delivers consistent volumetric efficiency and long service life.
Part of the HGP-2A series, the pump supports multiple displacement options including HGP-2A-8R, HGP-2A-9R, HGP-2A-11R and HGP-2A-F10R, making it suitable for a wide range of hydraulic power requirements. Its compact footprint allows easy installation in tractors, construction equipment, and industrial hydraulic units.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Hydraulic Gear Pump |
| Model | HGP-2A-12R |
| Series | HGP-2A |
| Pump Type | External Gear Pump |
| Displacement | 12 cc/rev |
| Max Continuous Pressure | Up to 21 MPa |
| Rotation | Right-hand (Clockwise from shaft end) |
| Mounting Type | Flange Mount |
| Shaft Type | Keyed Shaft |
| Speed Range | 800 – 3000 RPM |
| Housing Material | Cast Iron |
| Working Medium | Hydraulic Oil |
| Condition | New |
| Warranty | 12 Months |
Key Features
• High-pressure external gear pump design
• Stable hydraulic oil delivery with low pulsation
• Durable cast iron pump body
• High volumetric efficiency performance
• Compact structure for easy installation
• Reliable operation in continuous-duty systems
Typical Applications
• Agricultural tractors and implements
• Construction machinery
• Industrial hydraulic power units
• Hydraulic presses
• Forestry and mining equipment
Shipping & Support
• Fast dispatch – Australia & world-wide shipping
• Technical assistance available
• 12-month warranty
