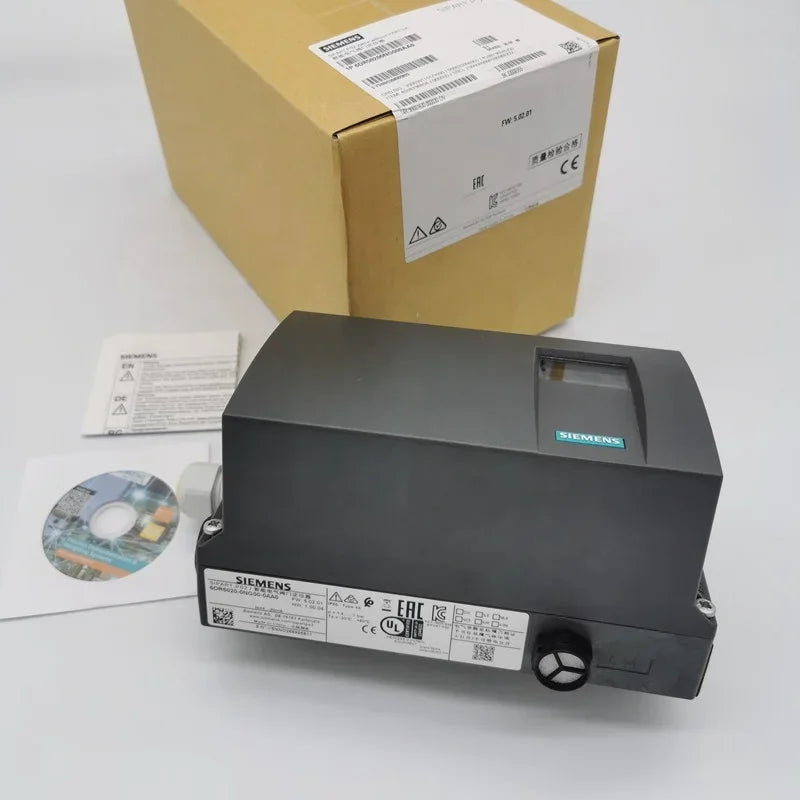

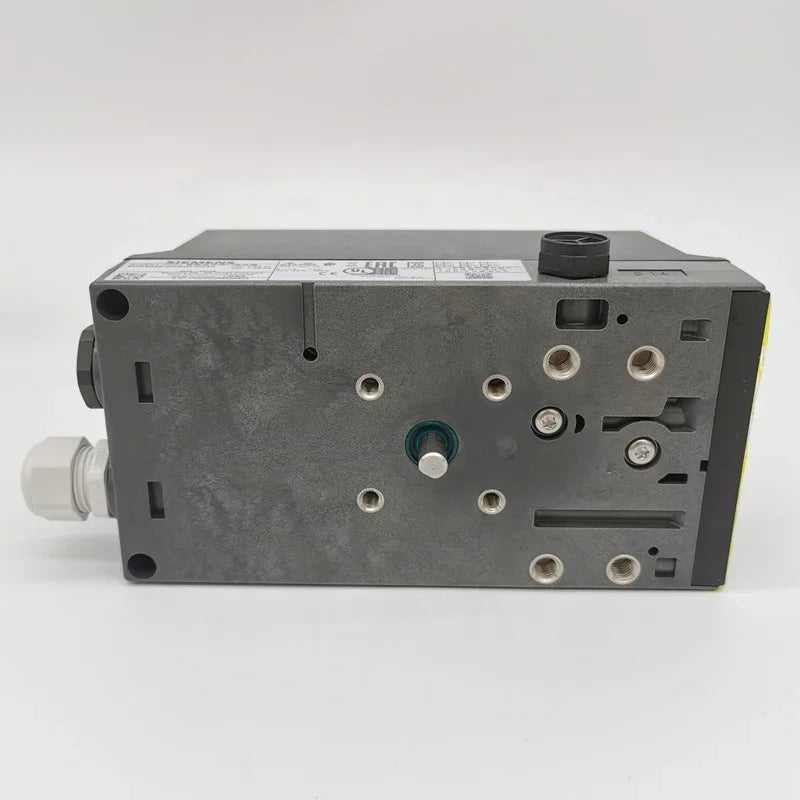

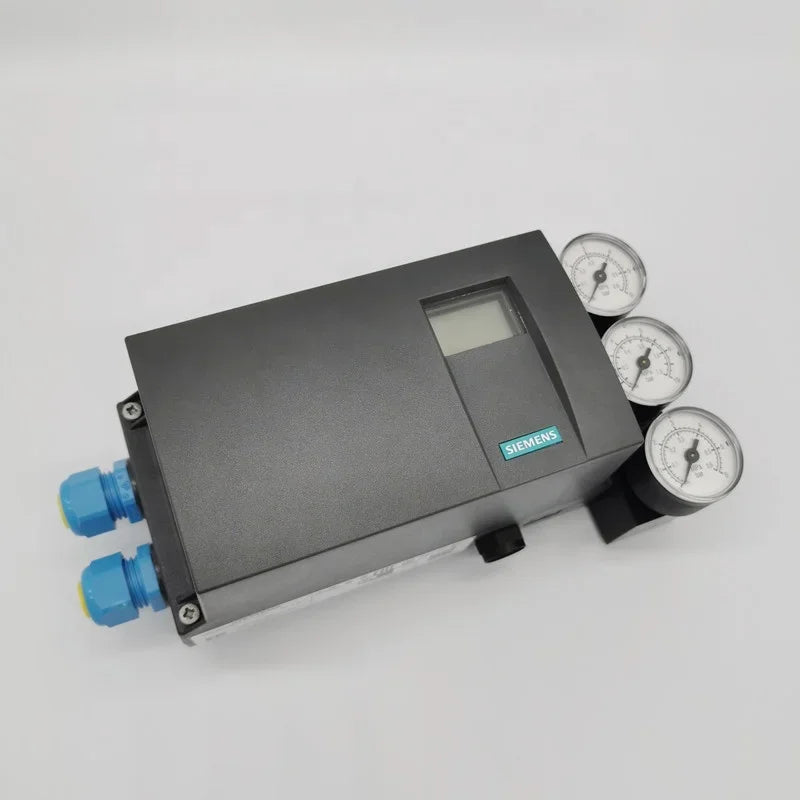

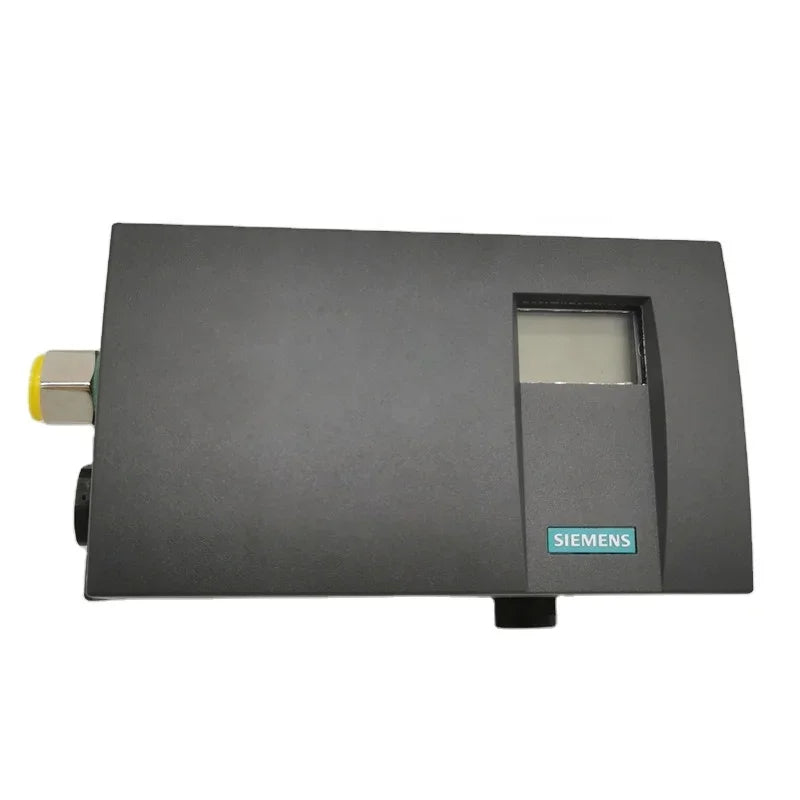

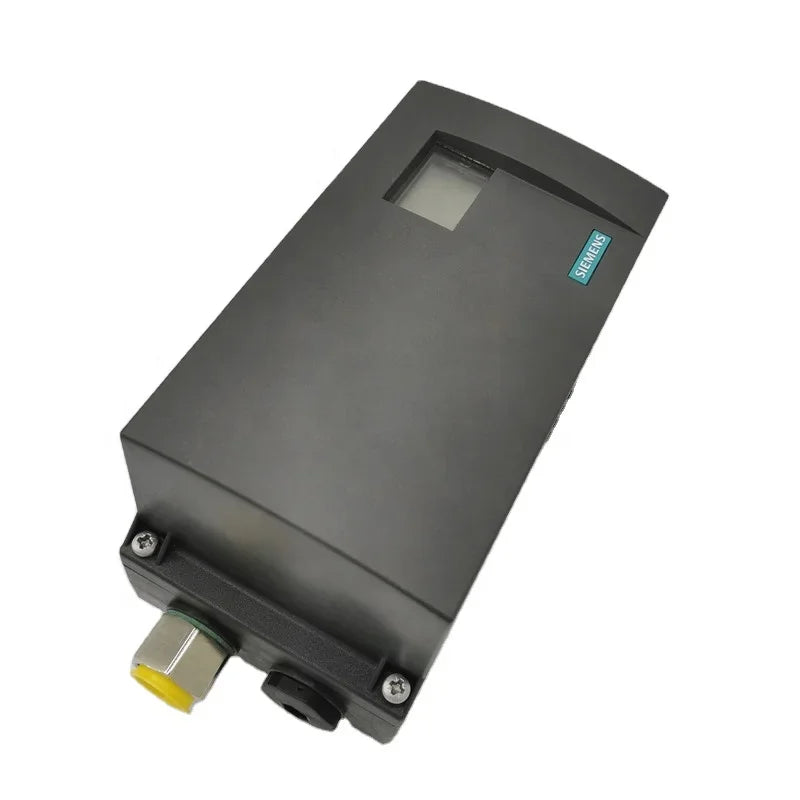

Siemens 6DR5220-0EN00-0AA0 SIPART PS2 Intelligent Digital Valve Positioner
The Siemens 6DR5220-0EN00-0AA0 SIPART PS2 Intelligent Digital Valve Positioner is designed for precise positioning and automated control of double-acting pneumatic valve actuators in industrial process systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Siemens 6DR5220-0EN00-0AA0 SIPART PS2 Intelligent Digital Valve Positioner is designed for precise positioning and automated control of double-acting pneumatic valve actuators in industrial process systems. Manufactured by Siemens, this smart electropneumatic positioner uses a standard 4–20 mA electrical input signal with HART digital communication to regulate pneumatic output pressure and maintain accurate valve positioning. Its microprocessor-based control technology continuously monitors actuator movement and adjusts the pneumatic outputs, supporting responsive valve operation, stable flow regulation, and reliable performance in demanding industrial environments.
Part of the Siemens SIPART PS2 series, the 6DR5220-0EN00-0AA0 features a double-acting pneumatic configuration, durable polycarbonate enclosure, automatic initialization, and local digital controls for commissioning and monitoring. Its intrinsically safe (Ex i) configuration supports installation in suitably certified hazardous areas when used with the appropriate electrical protection measures. The positioner includes 1/2-inch NPT electrical and 1/4-inch NPT pneumatic connections and is suitable for compatible linear and rotary pneumatic actuators. Applications include oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial process automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
Siemens |
|
Main Model |
6DR5220-0EN00-0AA0 |
|
Series |
SIPART PS2 |
|
Product Type |
Intelligent Digital Valve Positioner |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Wiring Configuration |
2-, 3- or 4-Wire, Depending on Installation |
|
Actuator Configuration |
Double Acting |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Pneumatic Control |
Two Pneumatic Actuator Outputs |
|
Housing Material |
Polycarbonate |
|
Housing Type |
Industrial Instrument Enclosure |
|
Explosion Protection |
Intrinsic Safety (Ex i) |
|
Electrical Connection |
1/2 Inch NPT |
|
Pneumatic Connections |
1/4 Inch NPT |
|
Position Measurement |
Electronic Valve Travel Feedback |
|
Calibration |
Automatic Initialization and Calibration |
|
Local User Interface |
Integrated Display and Operating Keys |
|
Configuration |
Local Controls and HART Communication |
|
Related Isolator |
Siemens SITRANS I200, 7NG4131-1AA00 |
|
Working Medium |
Clean, Dry Instrument Air |
|
Related Models |
6DR5210, 6DR5120, 6DR5110, 6DR5015, 6DR5215, 6DR5010 |
|
Application Scope |
Industrial Pneumatic Valve Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent digital valve positioning for precise industrial pneumatic actuator control.
-
Double-acting pneumatic configuration for bidirectional actuator operation.
-
Standard 4–20 mA electrical input signal for integration into industrial automation systems.
-
HART communication for remote parameter configuration, monitoring, and diagnostics.
-
Microprocessor-based control technology for accurate and responsive valve positioning.
-
Automatic initialization and calibration to simplify installation and commissioning.
-
Integrated digital display and local operating controls for instrument configuration.
-
Durable polycarbonate housing suitable for industrial instrumentation applications.
-
Intrinsically safe Ex i configuration for appropriately certified hazardous-area installations.
-
Standard 1/2-inch NPT electrical cable entry.
-
Standard 1/4-inch NPT pneumatic connections for compatible instrument air piping.
-
Compatible with linear and rotary pneumatic actuators using suitable mounting arrangements.
-
Electronic valve travel feedback for continuous position monitoring.
-
Configurable operating characteristics to match compatible actuator requirements.
-
Supports process control integration through compatible HART communication equipment.
-
Designed for industrial control valve maintenance, replacement, and automation upgrades.
Typical Applications
-
Industrial process automation systems
-
Double-acting pneumatic control valve assemblies
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Petroleum refining installations
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Rotary ball and butterfly valve automation
-
Linear pneumatic control valve positioning
-
Industrial flow and pressure regulation systems
-
Distributed control systems with HART communication
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
