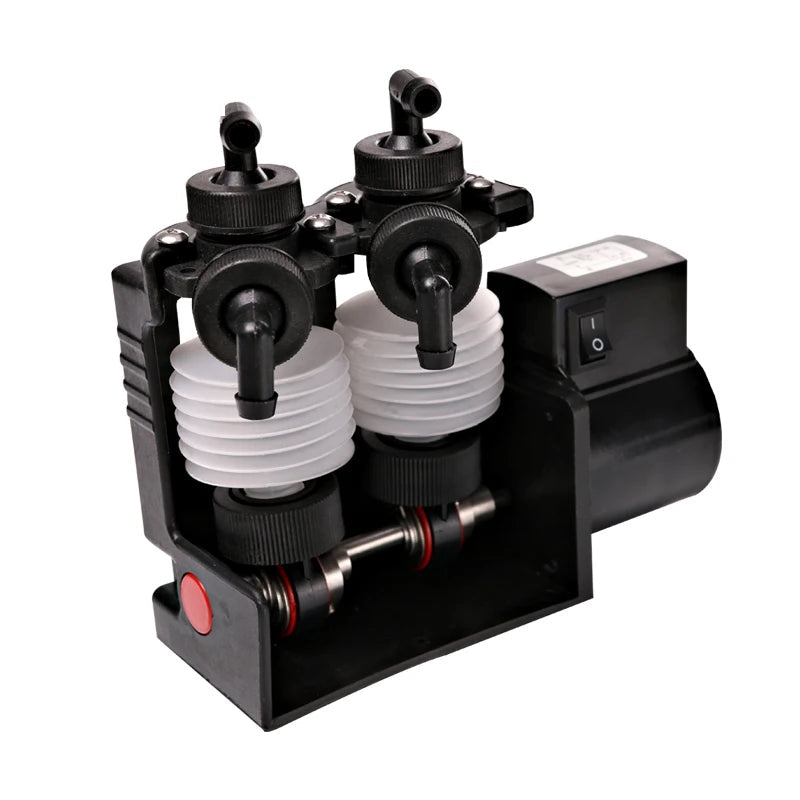

HOP 2DZ-2Z Metering Pump, Automatic Chemical Dosing Pump 6W 24–240V
The HOP 2DZ-2Z metering pump is a compact and precise chemical dosing solution designed for controlled fluid injection in industrial and commercial applications.
- 232 × 2 / 278 × 2 ml/min Flow Rate
- 250 PSI Max Pressure Rating
- 0.008 HP Horsepower
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The HOP 2DZ-2Z metering pump is a compact and precise chemical dosing solution designed for controlled fluid injection in industrial and commercial applications. Engineered for accuracy and consistency, it delivers stable dosing performance while operating with low power consumption.
Constructed from durable polypropylene, this pump offers resistance to a wide range of chemicals, making it suitable for water treatment, automotive, and industrial dosing systems.

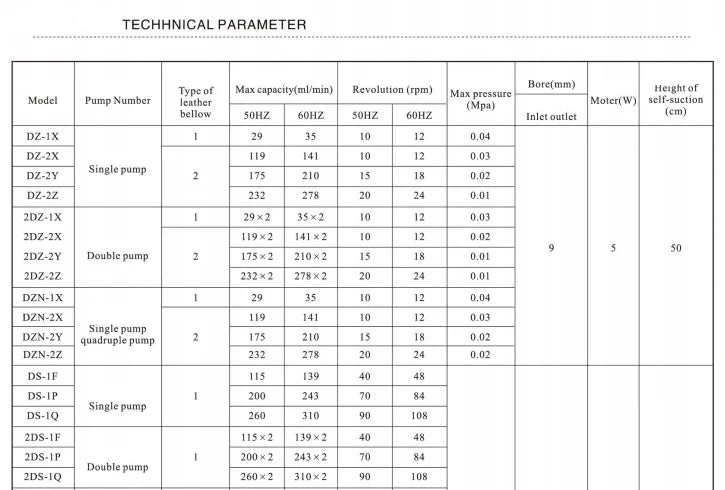

Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Metering Pump |
| Model | 2DZ-2Z |
| Brand | HOP |
| Pump Type | Chemical Dosing Pump |
| Structure | Metering Pump |
| Pressure | 0.01 MPa (0.1 Bar) |
| Max Pressure Rating | 250 PSI |
| Flow Rate | 232 × 2 / 278 × 2 ml/min |
| Power Source | Electric |
| Voltage | 24V / 100V / 110V / 220V / 240V |
| Power | 6 W |
| Horsepower | 0.008 HP |
| Suction Height | 5 m |
| Outlet Size | 9 mm |
| Rotational Speed | 20 / 24 rpm |
| Material | Polypropylene |
| Dimensions | 18 × 19.5 × 16.1 cm |
| Weight | 2 kg |
| Customization | OEM, ODM, OBM Available |
| MOQ | 2 Pieces |
| Packaging | Carton |
| Warranty | 1 Year |
Key Features
- Precise and consistent chemical dosing performance
- Compact and lightweight design
- Energy-efficient operation at only 6W
- Wide voltage compatibility for flexible installation
- Chemical-resistant polypropylene construction
- Suitable for continuous dosing applications
Typical Applications
- Chemical dosing systems
- Water and wastewater treatment
- Automotive and industrial processes
- Laboratory fluid control
- Agricultural and irrigation systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
