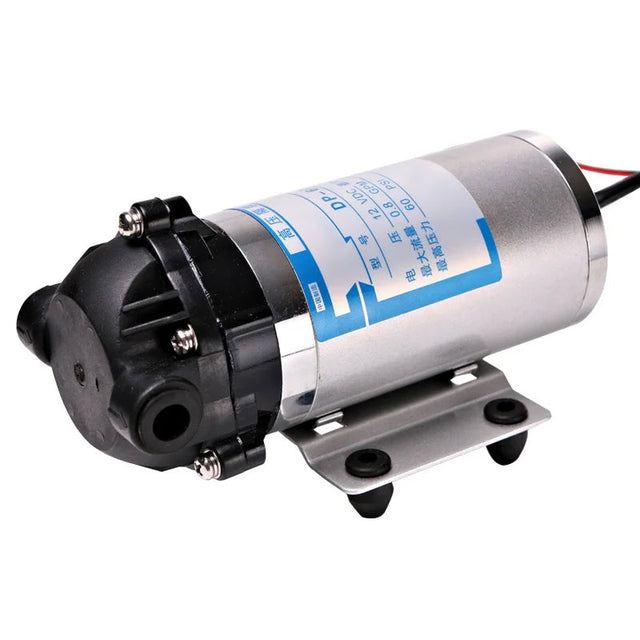

HOP DP-50 12V Diaphragm Pump, 16 L/min Electric Air Pump 50 PSI Chemical-Resistant
The HOP DP-50 12V diaphragm pump is a compact and efficient electric air pump designed for versatile industrial and domestic applications.
- 16 L/min Flow Rate
- 50 PSI (0.35 MPa) Pressure
- 0.086 HP Horsepower
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The HOP DP-50 12V diaphragm pump is a compact and efficient electric air pump designed for versatile industrial and domestic applications. Operating on a 12V power supply, it delivers reliable performance with a pressure rating of up to 50 PSI (0.35 MPa).
Built with chemical-resistant polypropylene (PP) materials and a brush motor, this pump is suitable for handling water, light chemicals, and various fluid transfer applications across multiple industries.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Electric Diaphragm Pump |
| Model | DP-50 12V |
| Brand | HOP |
| Pump Type | Diaphragm Pump |
| Structure | Diaphragm Pump |
| Pressure | 50 PSI (0.35 MPa) |
| Flow Rate | 16 L/min |
| Power Source | Electric |
| Voltage | 12V |
| Power | 65 W |
| Horsepower | 0.086 HP |
| Suction Height | 5 m |
| Outlet Size | 0.5 inch |
| Cable Length | 0.5 m |
| Material | Polypropylene (PP) |
| Impeller Material | Engineering Plastic (PP) |
| Motor Type | Brush Motor |
| Dimensions | 27.5 × 12.5 × 11.5 cm |
| Weight | 4 kg |
| Certification | CE |
| Customization | OEM, ODM, OBM Available |
| MOQ | 1 Piece |
| Packaging | Carton |
| Warranty | 1 Year |
Key Features
- Compact 12V design for portable and flexible use
- Delivers up to 50 PSI pressure with stable output
- Chemical-resistant polypropylene construction
- Efficient brush motor with low power consumption
- Suitable for a wide range of fluid transfer applications
- Easy installation and maintenance
Typical Applications
- Water distribution and transfer
- Agricultural irrigation systems
- Wastewater and drainage systems
- Automotive and machinery use
- Food and beverage processing
- Household and light industrial applications
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
