HOP MP-20RM Magnetic Drive Pump, PVDF Chemical Pump 32 L/min 220V
The HOP MP-20RM magnetic drive pump is a compact and corrosion-resistant solution designed for safe chemical transfer applications.
- 27 / 32 L/min Flow Rate
- 0.02 MPa (0.2 Bar) Pressure
- 3.1 m / 4.3 m Head
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview

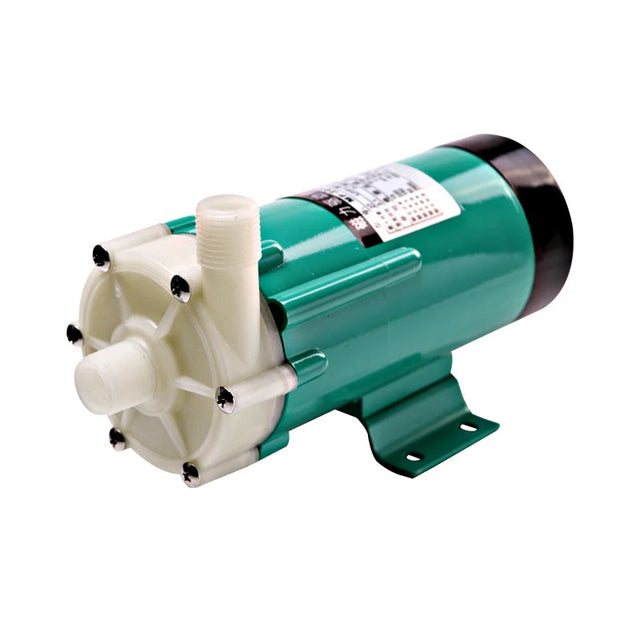

The HOP MP-20RM magnetic drive pump is a compact and corrosion-resistant solution designed for safe chemical transfer applications. Built with PVDF material, it offers excellent resistance to acids and aggressive liquids, making it ideal for laboratory and industrial environments.
With a seal-less magnetic coupling design, this pump eliminates leakage risks and ensures safe, maintenance-friendly operation when handling hazardous fluids.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Magnetic Drive Pump |
| Model | MP-20RM |
| Brand | HOP |
| Pump Type | Magnetic Pump |
| Structure | Magnetic Drive |
| Pressure | 0.02 MPa (0.2 Bar) |
| Flow Rate | 27 / 32 L/min |
| Head | 3.1 m / 4.3 m |
| Power Source | Electric |
| Voltage | 220V AC 60Hz |
| Power | 15 W |
| Horsepower | 0.02 HP |
| Outlet Size | 0.71 inch |
| Pump Body Material | PVDF |
| Impeller Material | Engineering Plastic (PP) |
| Weight | 3 kg |
| Dimensions | 13 × 8 × 8 cm |
| Customization | OEM, ODM, OBM Available |
| MOQ | 1 Piece |
| Packaging | Carton |
| Warranty | 1 Year |
Key Features
- PVDF construction for excellent chemical and acid resistance
- Magnetic drive design eliminates leakage risks
- Compact and lightweight for easy installation
- Low power consumption at 15W
- Stable and reliable fluid transfer
- Suitable for continuous operation
Typical Applications
- Chemical and acid transfer
- Laboratory fluid handling
- Water treatment systems
- Industrial liquid circulation
- Pharmaceutical and processing industries
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
