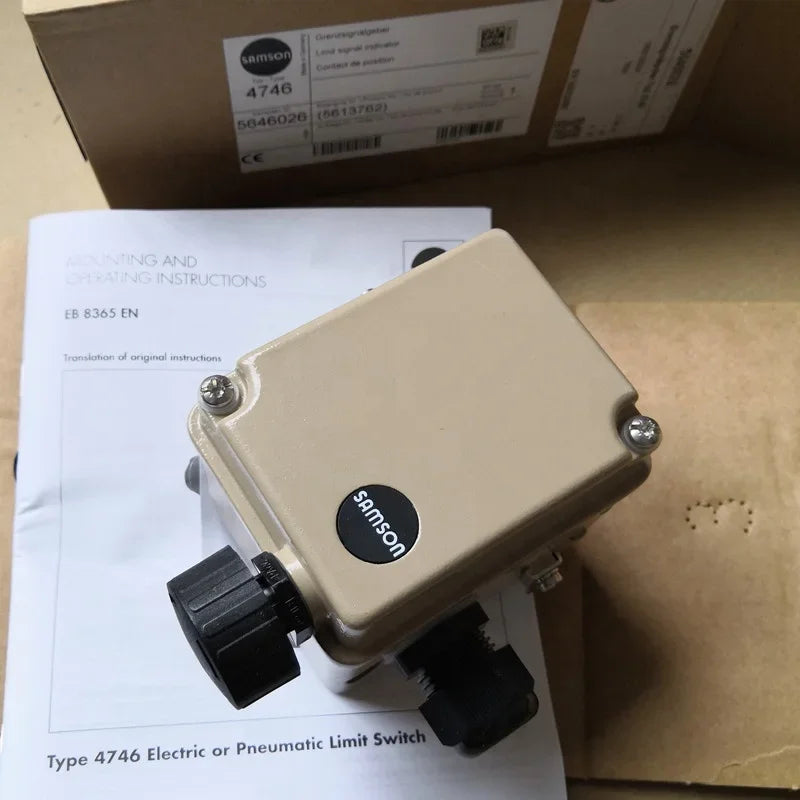

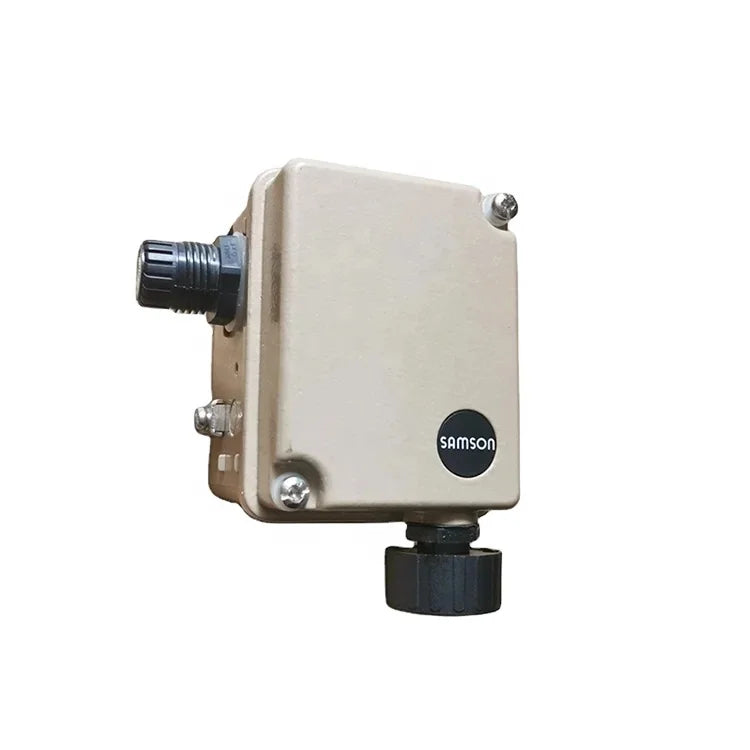

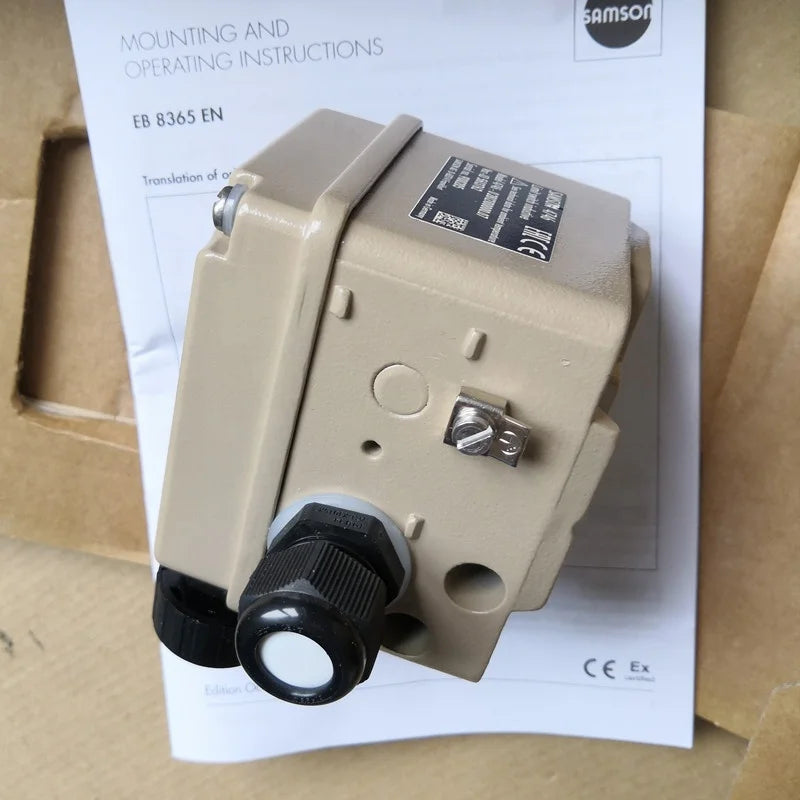

SAMSON 4746-02102100 Inductive Valve Position Limit Switch
The SAMSON 4746-02102100 Inductive Valve Position Limit Switch is designed for reliable valve position detection and monitoring in industrial process control systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The SAMSON 4746-02102100 Inductive Valve Position Limit Switch is designed for reliable valve position detection and monitoring in industrial process control systems. Part of the SAMSON Type 4746 series, this limit switch detects when a pneumatic or electrically actuated control valve reaches a predetermined travel position and generates a switching signal for monitoring or control equipment. Its inductive sensing mechanism supports accurate valve open and closed position indication, consistent switching performance, and dependable operation in industrial automation applications.
Manufactured by SAMSON, the Type 4746 series features a durable powder-coated aluminium housing, adjustable switching points, and a mechanical feedback mechanism that converts linear valve movement into rotary shaft movement. The 4746-02102100 belongs to the inductive limit switch family, while related configurations include 4746-1211210000 and 4746-132021000. The series supports mounting on compatible control valves and SAMSON Type 4763 and 4765 positioners, making it suitable for chemical processing, oil and gas facilities, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Inductive Valve Position Limit Switch |
|
Brand |
SAMSON |
|
Manufacturer |
SAMSON AG |
|
Model |
4746-02102100 |
|
Series |
Type 4746 |
|
Product Type |
Industrial Valve Limit Switch |
|
Switch Technology |
Inductive Proximity Sensing |
|
Control Function |
Valve Position Detection and Limit Switching |
|
Operating Principle |
Non-Contact Inductive Switching |
|
Position Indication |
Valve Open / Closed |
|
Number of Limit Contacts |
Up to 2, Depending on Configuration |
|
Switching Arrangement |
Adjustable Switching Points |
|
Contact Operation |
Normally Open or Normally Closed, Depending on Sensor |
|
Position Feedback Mechanism |
Mechanical Lever and Rotating Shaft |
|
Housing Material |
Powder-Coated Aluminium |
|
Lever and Shaft Material |
Stainless Steel 1.4571 |
|
Electrical Cable Entry |
M20 × 1.5 |
|
Enclosure Protection |
IP65 |
|
Linear Travel Range |
7.5–180 mm, Depending on Lever |
|
Lever I Travel Range |
7.5–60 mm |
|
Lever II Travel Range |
60–180 mm |
|
Mounting Standard |
IEC 60534-6 / NAMUR |
|
Compatible Positioners |
SAMSON Type 4763 and Type 4765 |
|
Approximate Weight |
0.7 kg |
|
Related Models |
4746-1211210000, 4746-132021000 |
|
Application Scope |
Industrial Control Valve Position Monitoring |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Inductive valve position sensing for reliable industrial control valve monitoring.
-
Non-contact switching technology for dependable valve travel detection.
-
Adjustable switching points for accurate open and closed position indication.
-
Supports monitoring of valve travel limits in industrial process automation systems.
-
Durable powder-coated aluminium housing for industrial operating environments.
-
Stainless steel feedback lever and shaft construction for mechanical durability.
-
IP65 enclosure protection against dust and water ingress.
-
Compatible with pneumatic and electrically actuated control valves.
-
Supports NAMUR mounting arrangements according to IEC 60534-6.
-
Suitable for direct attachment to compatible SAMSON Type 4763 and 4765 valve positioners.
-
Linear actuator travel compatibility from 7.5 to 180 mm with appropriate mounting levers.
-
Independently adjustable limit contacts for flexible switching applications.
-
Suitable for integration into industrial alarms, control panels and automation systems.
-
Compact design for convenient installation and maintenance.
-
Designed for reliable valve position monitoring in industrial process control applications.
Typical Applications
-
Industrial control valve position monitoring
-
Pneumatic actuator travel detection
-
Industrial process automation systems
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
SAMSON Type 4763 and 4765 positioner assemblies
-
Valve open and closed position indication
-
Industrial alarm and monitoring circuits
-
Process control valve maintenance
-
Automated valve control systems
