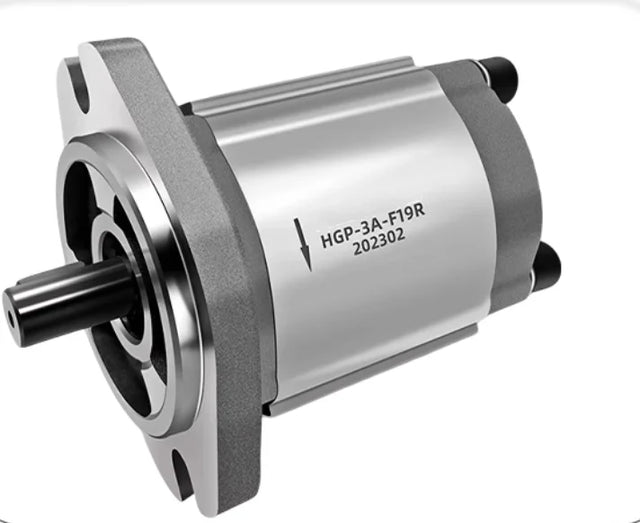

HGP-3A-F19R, Hydraulic Gear Pump, 19cc, Flange Mount, Right Rotation
The HGP-3A-F19R is a high-pressure external gear pump with 19cc displacement per revolution.
- 19 cc/rev Displacement
- ~28.5 L/min Approx. Flow @ 1500 RPM
- Up to 250 bar Max Continuous Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The HGP-3A-F19R is a high-pressure external gear pump with 19cc displacement per revolution. Designed for stable flow output and reliable performance, this model is suitable for hydraulic power units, agricultural machinery, and compact industrial systems.
Engineered with a durable cast iron housing and precision-machined gears, it delivers consistent volumetric efficiency and low-noise operation under medium-duty hydraulic applications.
Technical Specifications
| Specification | Value |
|---|---|
| Model | HGP-3A-F19R |
| Series | HGP-3A |
| Pump Type | External Gear Pump |
| Displacement | 19 cc/rev |
| Rotation | Right-hand (Clockwise from shaft end) |
| Mounting Type | Flange Mount |
| Shaft Type | Keyed Shaft |
| Max Continuous Pressure | Up to 250 bar |
| Peak Pressure | Up to 280 bar |
| Speed Range | 800 – 3000 RPM |
| Approx. Flow @ 1500 RPM | ~28.5 L/min |
| Housing Material | Cast Iron |
| Condition | New |
| Warranty | 12 Months |
Key Features
- High-pressure gear pump design
- Stable and consistent flow output
- Low-noise gear profile
- Compact footprint
- Durable cast iron body
- Suitable for continuous-duty applications
Typical Applications
- Hydraulic power packs
- Industrial presses
- Agricultural equipment
- Lifting platforms
- Compact construction machinery
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
