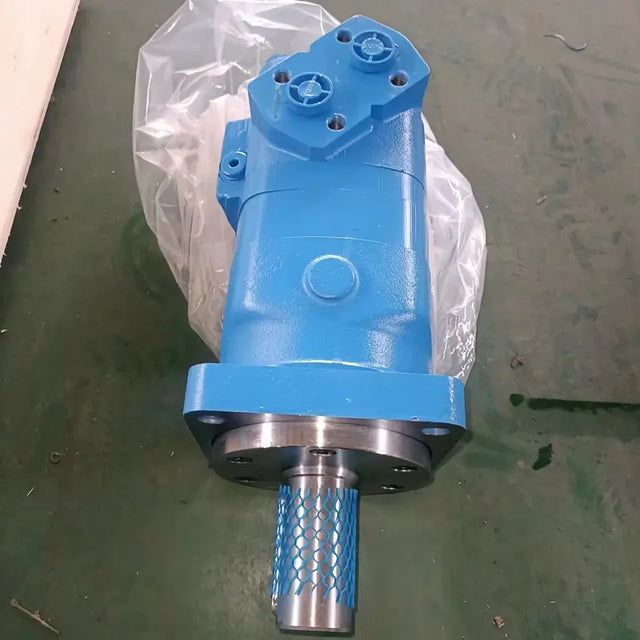

Hydraulic Orbit Motor 6K-490 6K-390 6K-400 6K-310
The Hydraulic Orbit Motor series including models 6K-490, 6K-390, 6K-400, and 6K-310 is designed for high-torque, low-speed hydraulic drive applications.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The Hydraulic Orbit Motor series including models 6K-490, 6K-390, 6K-400, and 6K-310 is designed for high-torque, low-speed hydraulic drive applications. Built on a cycloid (gerotor) motor design, these units deliver smooth rotational performance, strong starting torque, and reliable operation in demanding mobile and industrial systems.
Commonly referenced with part numbers 612-2045, 620-0014, 612-0085, and 612-1023, this orbit motor range is suitable for heavy-duty hydraulic circuits requiring consistent torque output and compact installation. Its robust construction ensures durability under continuous operating conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Motor Type | Hydraulic Orbit Motor (Cycloid / Gerotor) |
| Available Models | 6K-490 / 6K-390 / 6K-400 / 6K-310 |
| Reference Part Numbers | 612-2045 / 620-0014 / 612-0085 / 612-1023 |
| Displacement | Model Dependent |
| Torque Output | High Torque, Low Speed |
| Rotation | Bi-Directional |
| Mounting Type | Flange Mount |
| Shaft Type | Keyed or Splined (Configuration Dependent) |
| Max Continuous Pressure | Up to 210 bar |
| Peak Pressure | Up to 250 bar |
| Housing Material | High-Strength Cast Iron |
| Application | Mobile & Industrial Hydraulic Systems |
| Condition | New |
| Warranty | 12 Months |
Key Features
-
Cycloid (gerotor) high-torque motor design
-
Smooth low-speed operation
-
Strong starting torque
-
Compact and durable construction
-
Bi-directional rotation capability
-
Suitable for continuous-duty applications
Typical Applications
-
Agricultural machinery
-
Construction equipment
-
Conveyor drives
-
Winches and hoists
-
Industrial automation systems
-
Mobile hydraulic drive systems
Shipping & Support
-
Fast dispatch - Australia & World wide shipping
-
Technical assistance available
-
12-month warranty
