IMI Norgren TPRA/802080/M100 Double Acting Pneumatic Cylinder
The IMI Norgren TPRA/802080/M100 Pneumatic Cylinder is a heavy-duty, double-acting linear actuator manufactured by IMI Norgren under the established PRA/802000/M and TPRA/802000/M profile cylinder series.
- 1.0 to 10.0 bar (14.5 to 145 psi) Operating Pressure Range
- G 3/8 Female Thread Port Size / Pneumatic Connection
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview

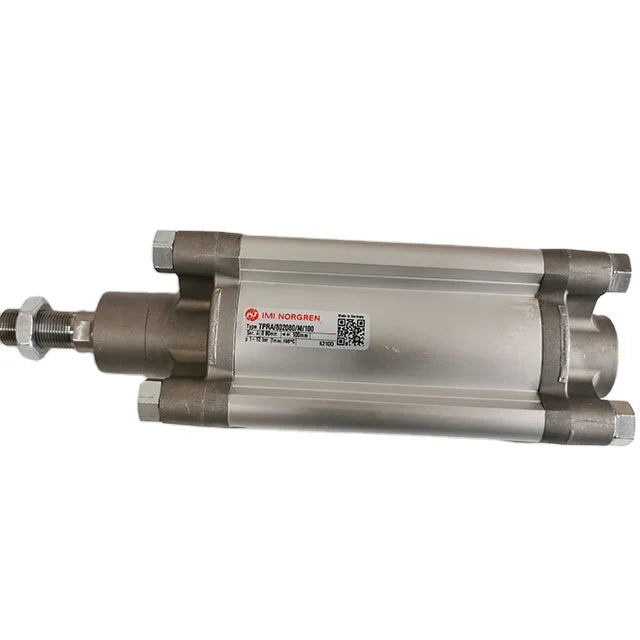

The IMI Norgren TPRA/802080/M100 Pneumatic Cylinder is a heavy-duty, double-acting linear actuator manufactured by IMI Norgren under the established PRA/802000/M and TPRA/802000/M profile cylinder series. Conforming to ISO 15552, ISO 6431, and VDMA 24562 international standards, this industrial cylinder features an 80 mm bore diameter and a 100 mm stroke length. It delivers high-thrust linear mechanical motion across a wide spectrum of demanding automation and machine-building applications.
Engineered with an extruded aluminium profile barrel, the cylinder incorporates integrated sensor mounting grooves that allow flush mounting of magnetic reed and inductive proximity switches without protruding brackets. The TPRA/802080/M100 is equipped with Norgren's adaptive cushioning system (ACS) alongside adjustable end-position cushioning, absorbing kinetic energy smoothly at high stroke velocities while minimizing impact wear and noise. Featuring a hard-chromium plated steel piston rod, low-friction polyurethane seals, and anodized aluminium end covers, this cylinder delivers reliable cyclic durability across automated packaging systems, material handling machinery, assembly lines, and industrial manufacturing plants.
Technical Specifications
| Specification | Value |
| Product Name | Double-Acting Pneumatic Profile Cylinder |
| Manufacturer / Brand | IMI Norgren |
| Model Number | TPRA/802080/M100 |
| Product Series | PRA/802000/M / TPRA/802000/M Series |
| Cylinder Standard | ISO 15552 / ISO 6431 / VDMA 24562 |
| Operating Mode | Double Acting with Magnetic Piston |
| Cylinder Bore Diameter | 80 mm |
| Stroke Length | 100 mm |
| Operating Pressure Range | 1.0 to 10.0 bar (14.5 to 145 psi) |
| Port Size / Pneumatic Connection | G 3/8 Female Thread |
| Piston Rod Thread | M20 × 1.5 Male Thread |
| Piston Rod Diameter | 25 mm |
| Cushioning Type | Adjustable Pneumatic End Cushioning with Adaptive System |
| Cushioning Length | 31 mm |
| Barrel Material | Anodized Extruded Aluminium Profile |
| End Covers Material | Pressure Die-Cast Aluminium |
| Piston Rod Material | Stainless Steel / Hard-Chromium Plated Steel |
| Seals & O-Rings Material | High-Grade Polyurethane (PUR) / Nitrile Rubber (NBR) |
| Operating Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Theoretical Thrust at 6 bar (Outstroke) | Approximately 3,016 N |
| Theoretical Pull at 6 bar (Instroke) | Approximately 2,722 N |
| Position Sensing Capability | Magnetic Piston for Flush-Mounted Slot Sensors |
| Operating Medium | Clean, Filtered Compressed Air (Lubricated or Non-Lubricated) |
| Condition | New |
| Warranty | 1 Year |
Key Features
Conforms to international ISO 15552 and ISO 6431 standards for interchangeable mounting dimensions
Integrated sensor grooves in the profile barrel allow flush, protected mounting of position switches
Adjustable pneumatic end-position cushioning smoothly dampens high-speed piston deceleration
Standard magnetic piston enables contactless stroke position feedback to control PLCs
Robust extruded aluminium profile body delivers high torsional stiffness and clean exterior lines
Hard-chromium plated steel piston rod resists corrosion, surface scoring, and mechanical wear
High-performance polyurethane seals ensure low breakaway friction and extended service life
Substantial thrust generation of over 3,000 N at 6 bar supply pressure for heavy handling tasks
Suitable for deployment with dry, unlubricated or lubricated compressed air systems
Typical Applications
Linear actuation in automated material handling, sorting conveyors, and transfer stations
High-speed pneumatic clamping, pressing, and positioning in automotive assembly lines
Carton erecting, case packing, and palletizing machinery in packaging facilities
Pneumatic gate control, diverter mechanisms, and bulk material handling equipment
Machine tool automation, part feeding mechanisms, and robotic transfer tables
Heavy woodworking machinery, sawmill log handling, and clamping systems
General factory automation circuits requiring standardized ISO pneumatic cylinders
Shipping & Support
Fast dispatch: Australia & Worldwide Shipping
Technical assistance available
1-year warranty
