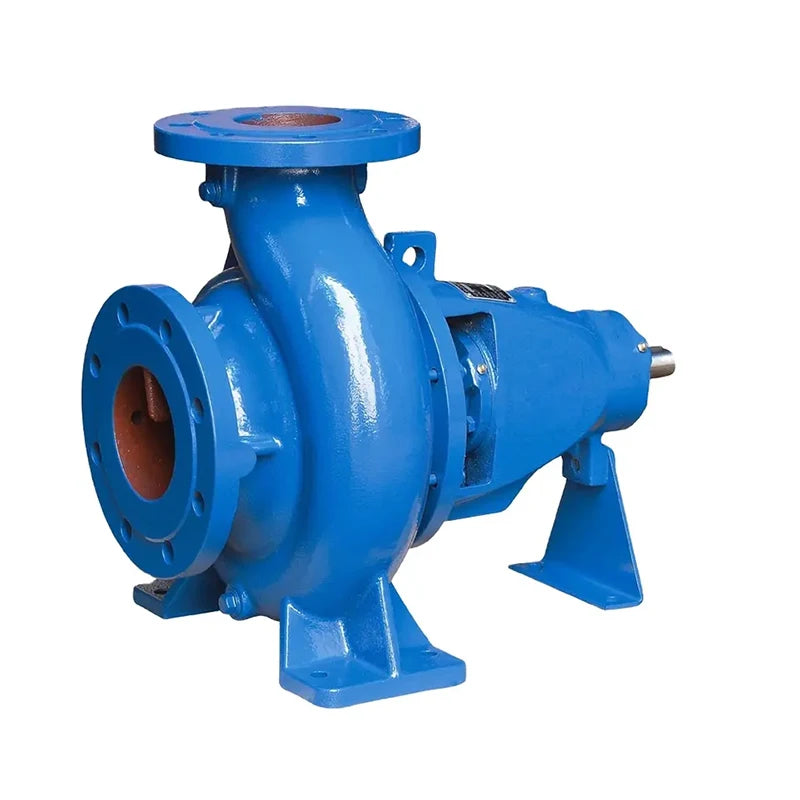

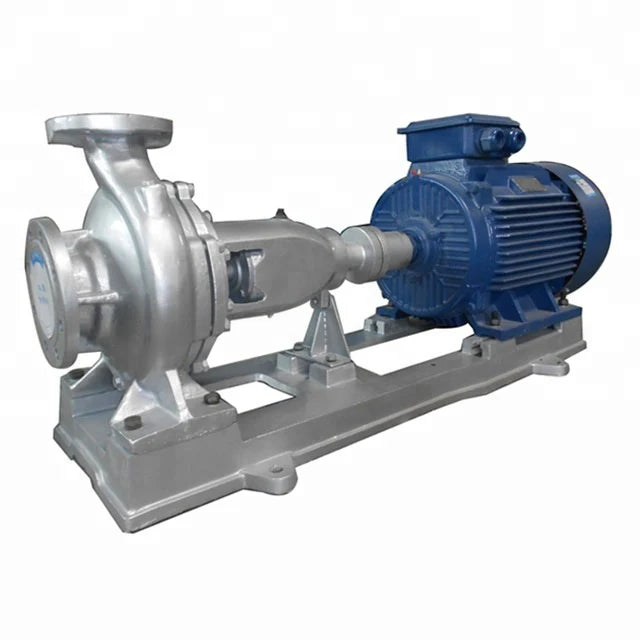

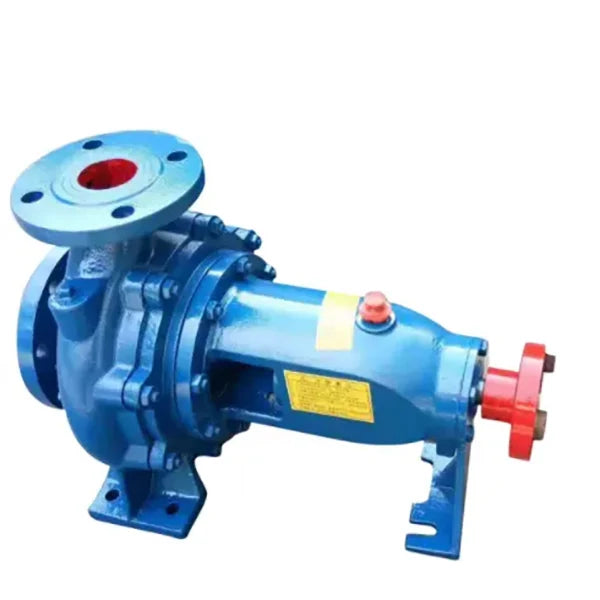

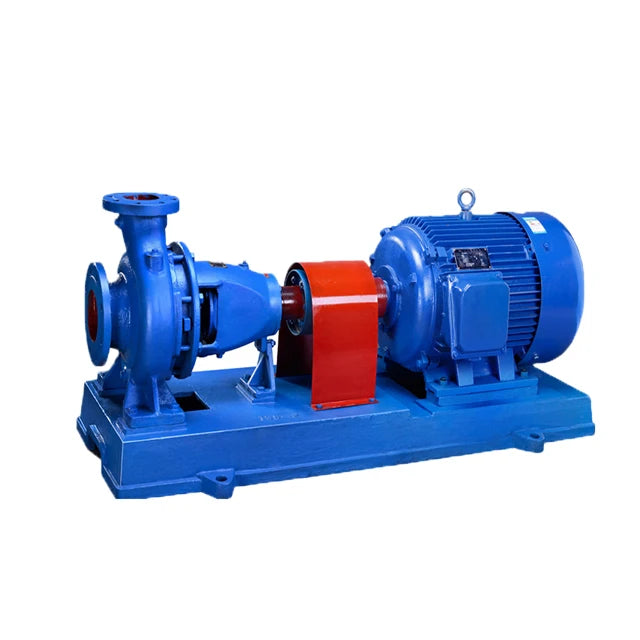

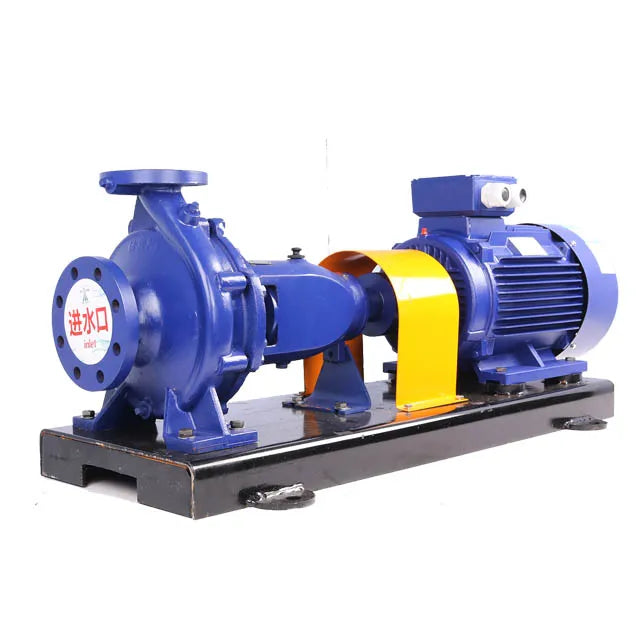

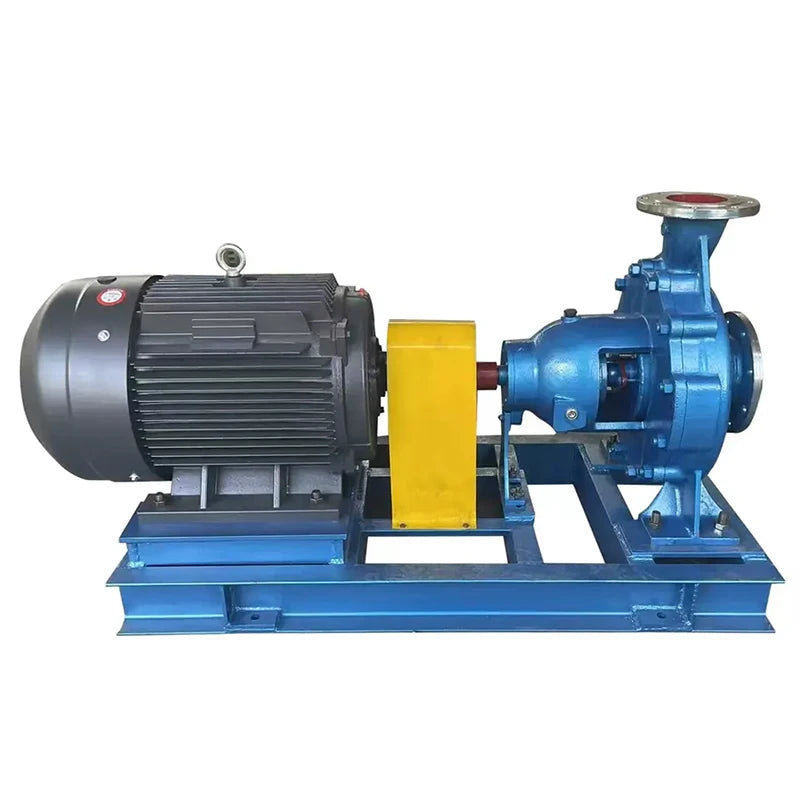

IS IR Sinyane Centrifugal Water Pump, 7.5kW 4-Inch 12.5Bar Cast Iron/Stainless Steel Pump
The IS IR Sinyane centrifugal water pump is a heavy-duty single-stage horizontal pump designed for high-efficiency water transfer across industrial, agricultural, and municipal applications.
- Up to 400 m³/h Flow Rate
- 0 – 12.5 Bar Pressure
- 125 m Max Head
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The IS IR Sinyane centrifugal water pump is a heavy-duty single-stage horizontal pump designed for high-efficiency water transfer across industrial, agricultural, and municipal applications. Constructed from cast iron or stainless steel, it ensures durability and corrosion resistance in demanding environments.
With a maximum head of 125 m and flow capacity up to 400 m³/h, this pump delivers reliable performance for high-volume and high-pressure water systems.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Centrifugal Water Pump |
| Model | IS / IR |
| Brand | Sinyane |
| Pump Type | Centrifugal Pump |
| Structure | Single-Stage Horizontal |
| Pressure | 0 – 12.5 Bar |
| Max Head | 125 m |
| Flow Rate | Up to 400 m³/h |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Rating | 7.5 kW |
| Power Range | 0.5 – 100 HP |
| Voltage | 110 – 480 V |
| Frequency | 50 / 60 Hz |
| Pump Body Material | Cast Iron / Stainless Steel |
| Sealing Type | Mechanical Seal / Packing Seal |
| Outlet Size | 32 – 200 mm |
| Suitable Media | Clear Water |
| Certification | CE / ISO |
| Operation Mode | Continuous Duty |
| Application Scope | Industrial / Agricultural |
| Warranty | 12 Months |
Key Features
- High-efficiency centrifugal pump design
- Durable cast iron or stainless steel construction
- Maximum head up to 125 m
- Flow capacity up to 400 m³/h
- Wide power and voltage compatibility
- Suitable for continuous industrial operation
Typical Applications
- Water distribution systems
- Irrigation and agriculture
- Industrial water transfer
- HVAC circulation systems
- Municipal water treatment
- Wastewater transport
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
