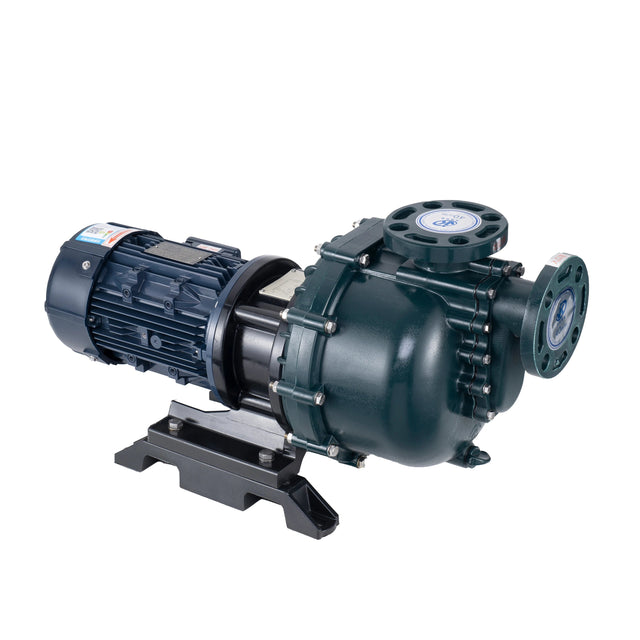

JKB-F-50052H Chemical Self-Priming Centrifugal Pump, 415V FRPP/PVDF Acid Transfer Pump
The JKB-F-50052H centrifugal pump is a high-performance self-priming chemical pump designed for handling corrosive and aggressive liquids.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The JKB-F-50052H centrifugal pump is a high-performance self-priming chemical pump designed for handling corrosive and aggressive liquids. Built with FRPP and PVDF materials, it offers excellent resistance to acids, alkalis, and chemical solutions in demanding industrial environments.
With a self-priming design and high-pressure capability, this pump is ideal for continuous liquid transfer in wastewater treatment, electroplating, PCB manufacturing, and chemical processing applications.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Chemical Self-Priming Centrifugal Pump |
| Model | JKB-F-50052H |
| Brand | |
| Pump Type | Centrifugal Pump |
| Structure | Single-Stage Pump |
| Pressure | High Pressure |
| Power Source | Electric |
| Voltage | 220V / 380V / 415V |
| Frequency | 50 / 60 Hz |
| Horsepower | 1 – 10 HP |
| Rated Power | Up to 3.75 kW (5 HP) |
| Pump Body Material | FRPP / PVDF |
| Impeller Material | FRPP / PVDF |
| Sealing Material | SSIC / Ceramic |
| Outlet Size | 50 mm |
| Pump Type | Self-Priming |
| Chemical Compatibility | Strong acids / alkalis |
| Operation Mode | Continuous Duty |
| Certification | CE |
| Application Scope | Industrial |
| Warranty | 12 Months |
Key Features
- Self-priming centrifugal pump design
- FRPP and PVDF construction for corrosion resistance
- Suitable for strong acids and chemical liquids
- High-pressure performance for industrial processes
- Durable sealing with SSIC/Ceramic materials
- Reliable operation in harsh environments
Typical Applications
- Chemical processing plants
- PCB manufacturing and electroplating
- Wastewater treatment systems
- Acid and alkali transfer
- Coating and etching processes
- Industrial cleaning systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
