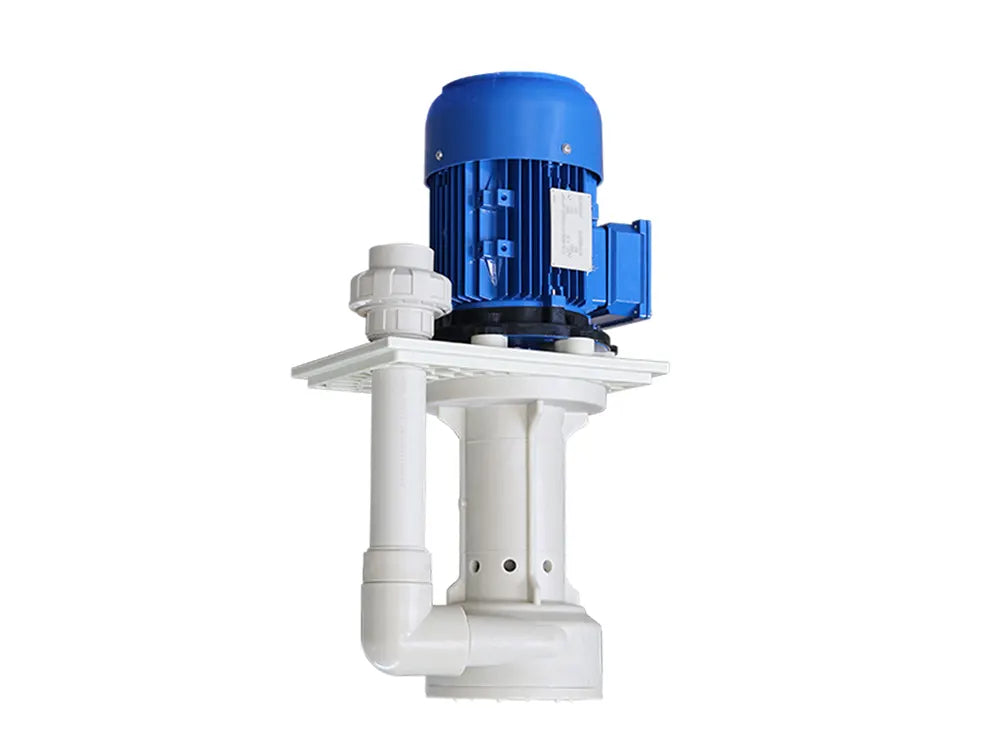

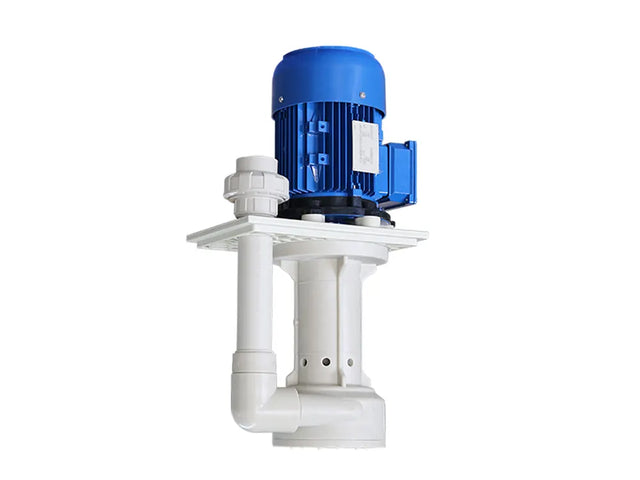

JKH-D-40SK-3HP Jiekai Vertical Chemical Pump, 3HP Corrosion-Resistant High-Flow Plating Pump
The JKH-D-40SK-3HP Jiekai vertical chemical pump is a high-performance corrosion-resistant pump engineered for aggressive liquid handling in industrial environments.
- 500 – 2,000 L/min Flow Rate
- 0.1 – 10 Bar Pressure Range
- 3HP / 6HP / 7.5HP Horsepower
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The JKH-D-40SK-3HP Jiekai vertical chemical pump is a high-performance corrosion-resistant pump engineered for aggressive liquid handling in industrial environments. Designed with PP construction and reinforced components, it delivers excellent durability when handling plating solutions, wastewater, and chemically active fluids.
With high flow capacity and strong pressure performance, this pump is ideal for continuous circulation and transfer in electroplating, chemical processing, and wastewater systems.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Vertical Chemical Pump |
| Model | JKH-D-40SK-3HP |
| Brand | Jiekai Pump |
| Pump Type | Chemical Pump |
| Structure | Single-Stage Pump |
| Pressure Range | 0.1 – 10 Bar |
| Power Source | Electric |
| Motor Type | Single-Phase / Three-Phase |
| Horsepower | 3HP / 6HP / 7.5HP |
| Voltage | 220V / 380V / 415V |
| Frequency | 50 / 60 Hz |
| Flow Rate | 500 – 2,000 L/min |
| Max Flow Rate | Up to 500 m³/h |
| Outlet Size | 40 mm (1-1/2") |
| Discharge Size | 1-1/2 inch |
| Pump Body Material | PP (Polypropylene) |
| Impeller Material | Glass Fiber Reinforced Plastic |
| Sealing Material | EPDM / VITON |
| Chemical Compatibility | Corrosive liquids / plating solutions |
| Applicable Temperature | 5 – 80°C |
| Connection Type | Flange / Union |
| Operation Mode | Manual Control |
| Certification | CE, ISO 9001 |
| Application Scope | Industrial |
| Warranty | 12 Months |
Key Features
- Vertical design for space-efficient installation
- High flow rate up to 2,000 L/min
- Excellent corrosion resistance with PP construction
- Reinforced impeller for durability
- Suitable for continuous industrial operation
- Compatible with aggressive chemical fluids
Typical Applications
- Electroplating and PCB processing
- Chemical liquid transfer
- Wastewater treatment systems
- Industrial circulation systems
- Acid and alkaline solution handling
- Coating and surface treatment processes
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
