JSV Super Q Vacuum Pump System, 40–900m³/h 1.5–22.5kW Rotary Vane Unit

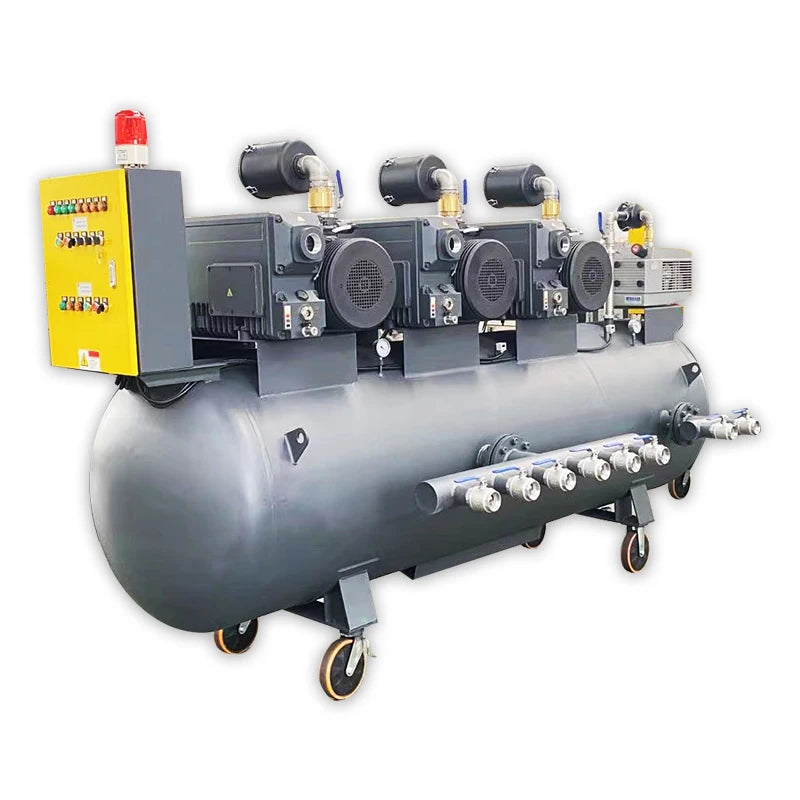

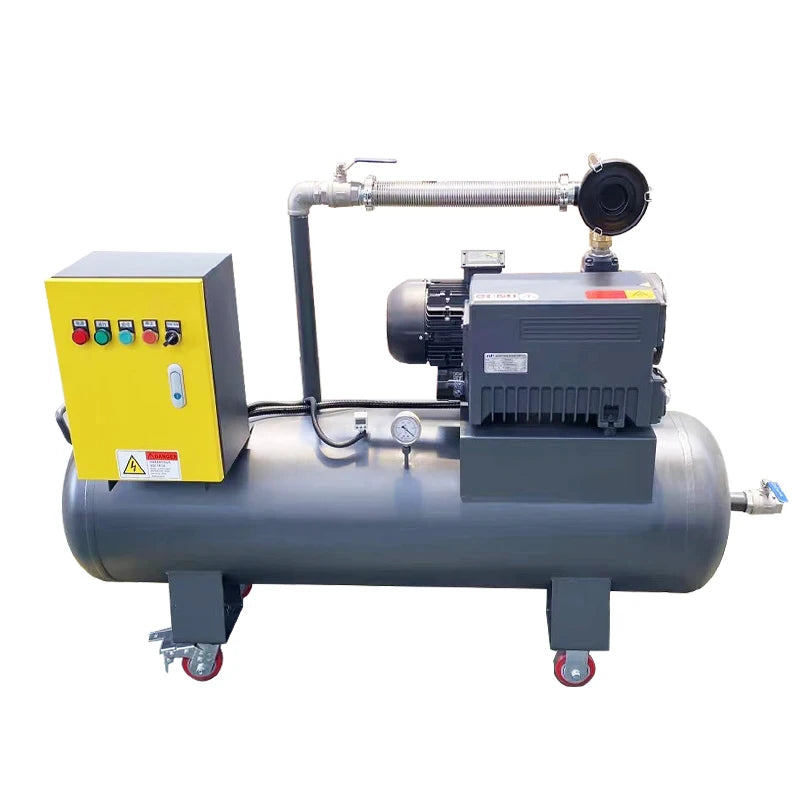

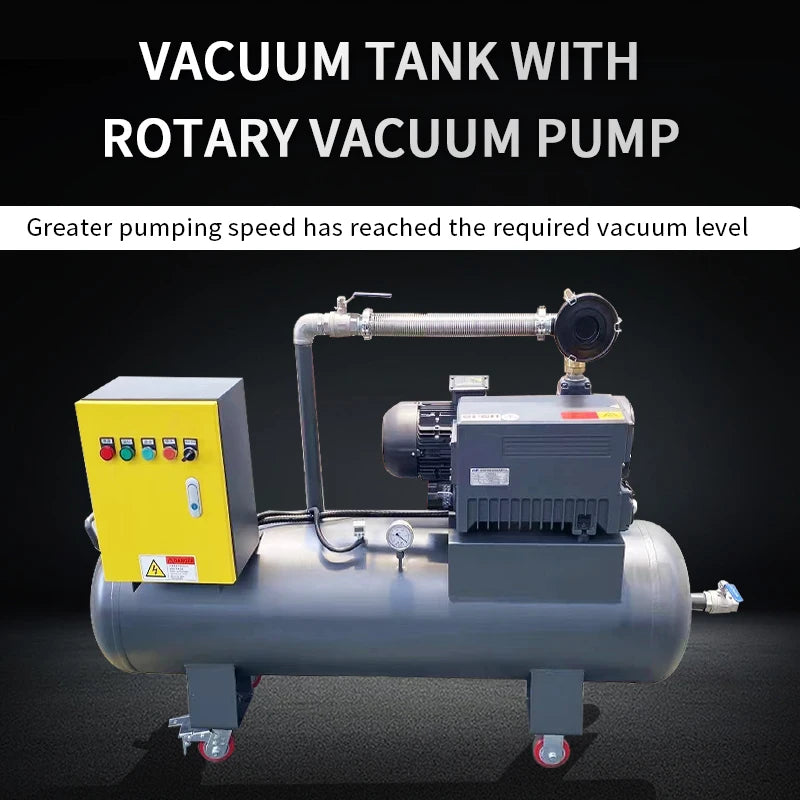

The JSV Super Q vacuum pump system is an integrated solution combining a rotary vane vacuum pump with a vacuum tank, designed for large-scale industrial vacuum applications.
- 40 – 900 m³/h Flow Rate
- 1.5 – 22.5 kW Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview

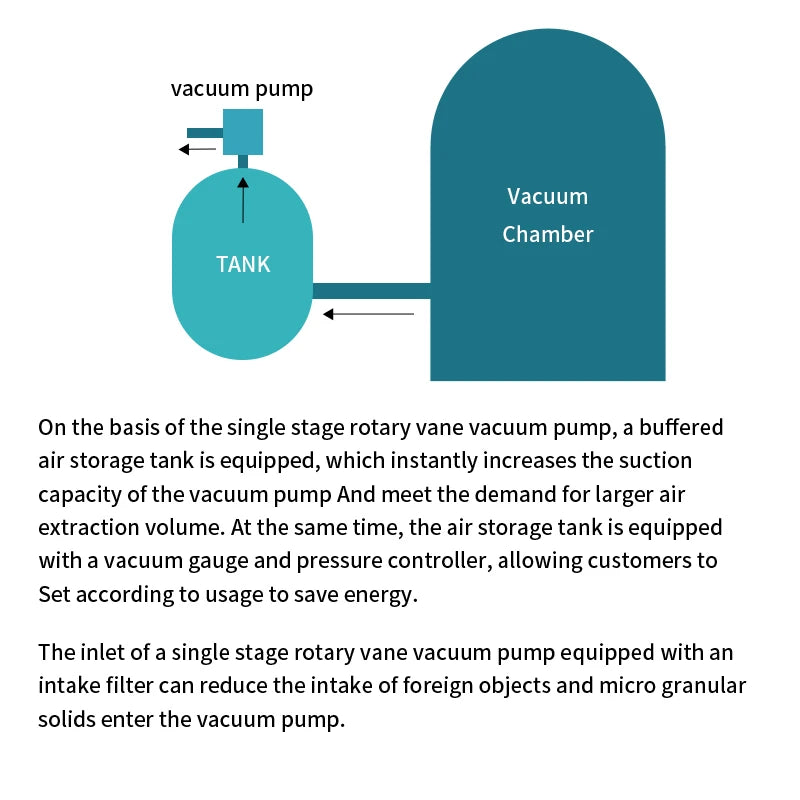

The JSV Super Q vacuum pump system is an integrated solution combining a rotary vane vacuum pump with a vacuum tank, designed for large-scale industrial vacuum applications. Engineered for high pumping efficiency and system stability, it provides reliable vacuum performance across a wide flow range.
With capacities from 40 to 900 m³/h and power up to 22.5 kW, this system is ideal for continuous-duty operations in demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Vacuum Pump System |
| Model | JSV Series |
| Brand | Super Q |
| Pump Type | Rotary Vane Vacuum Pump |
| Structure | Single-Stage System with Tank |
| Pressure | Vacuum |
| Max Continuous Pressure | Designed for vacuum systems |
| Flow Rate | 40 – 900 m³/h |
| Speed Range | Standard motor speed |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Rating | 1.5 – 22.5 kW |
| Voltage | 220V |
| Pump Body Material | Industrial Alloy |
| Sealing Type | Oil-Sealed |
| System Type | Tank + Vacuum Pump |
| Suitable Media | Air |
| Application Scope | Industrial vacuum systems |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features

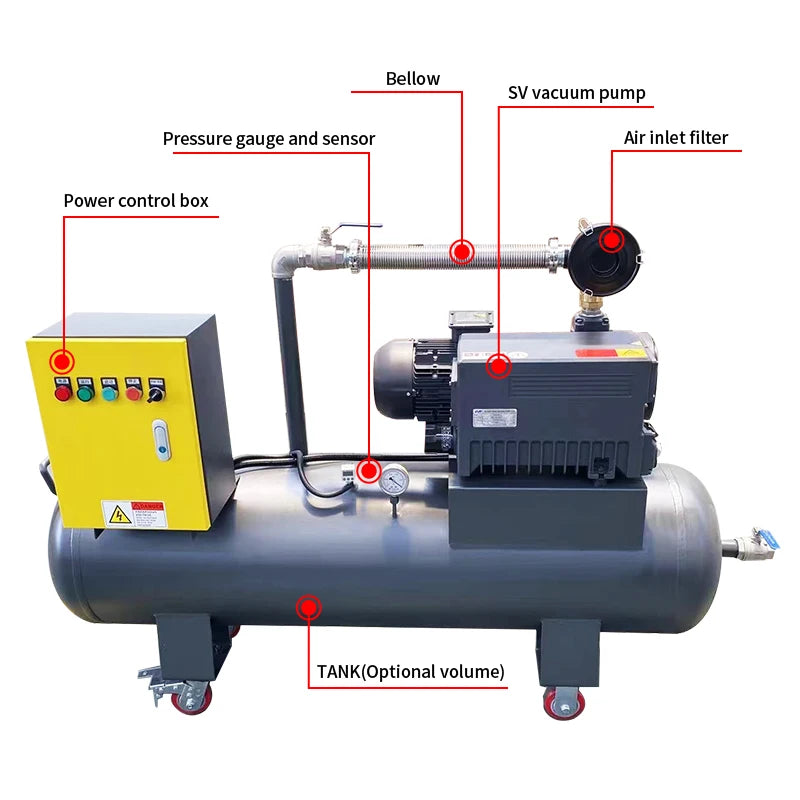

- Integrated vacuum tank and pump system
- High flow capacity up to 900 m³/h
- Stable and efficient vacuum performance
- Suitable for continuous industrial use
- Wide power range for flexible applications
- Durable and robust construction
Typical Applications
- Textile industry
- Pharmaceutical processing
- Chemical industry
- Manufacturing systems
- Semiconductor and chip production
- Experimental equipment
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
