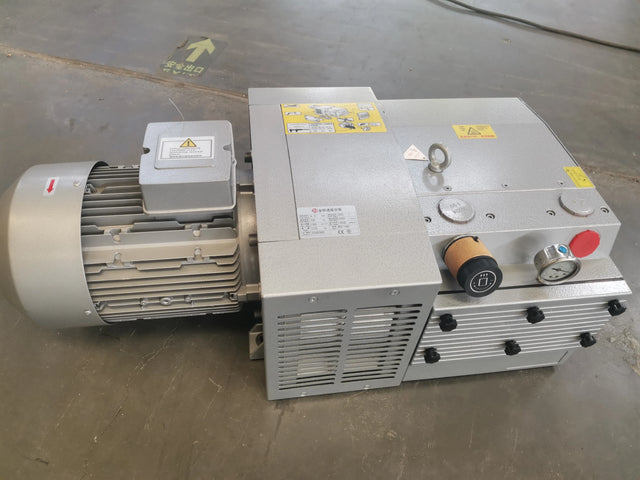

KDF100 Golden Bridge Air Compressor, 5.5kW 100m³/h 150kPa Oil-Free
The KDF100 Golden Bridge air compressor is a high-performance oil-free rotary compressor designed for clean and efficient air supply in industrial applications.
- 100 m³/h Flow Rate
- 150 kPa Max Continuous Pressure
- 5.5 kW Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The KDF100 Golden Bridge air compressor is a high-performance oil-free rotary compressor designed for clean and efficient air supply in industrial applications. With a flow rate of 100 m³/h and pressure up to 150 kPa, it delivers reliable compressed air for continuous-duty operations.
Its oil-free design ensures contamination-free air, making it suitable for applications requiring clean air output and low maintenance operation.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Air Compressor |
| Model | KDF100 |
| Brand | Golden Bridge |
| Compressor Type | Rotary |
| Configuration | Stationary |
| Lubrication Style | Oil-Free |
| Pressure | High Pressure |
| Max Continuous Pressure | 150 kPa |
| Flow Rate | 100 m³/h |
| Speed Range | Standard operation |
| Motor Type | Electric Motor |
| Power Source | AC Power |
| Power Rating | 5.5 kW |
| Voltage | 220V / 380V (Customizable) |
| Cooling Method | Air Cooled |
| Noise Level | Low Noise (Mute) |
| Gas Type | Air |
| Core Components | Motor / Pump / Bearing |
| Weight | 127 kg |
| Inspection | Test Report & Video Provided |
| Warranty (Core Components) | 12 Months |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Oil-free design for clean air output
- High flow rate of 100 m³/h
- Pressure up to 150 kPa
- Low noise (mute) operation
- Air-cooled system for efficiency
- Reliable and durable industrial design
Typical Applications
- Industrial air supply
- Pneumatic systems
- Manufacturing processes
- Packaging systems
- Food and clean air applications
- Automation systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
