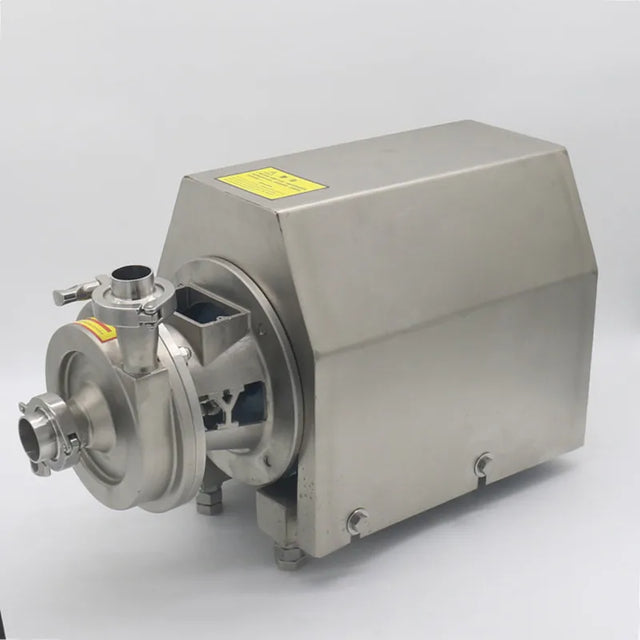

KGW Series KingGo Sanitary Centrifugal Pump, SS 3-Phase Milk Juice Pump
The KGW Series KingGo sanitary centrifugal pump is designed for hygienic transfer of milk, juice, and other liquid food products.
- 1 – 30 T/h Flow Rate
- 10 – 24 m Head
- 0.37 – 4 kW Motor Power
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The KGW Series KingGo sanitary centrifugal pump is designed for hygienic transfer of milk, juice, and other liquid food products. Constructed from stainless steel with a polished sanitary finish, it ensures clean, efficient, and reliable operation in food and beverage processing environments.
With flow rates up to 30 T/h and temperature resistance up to 140°C, this pump is ideal for continuous-duty sanitary applications requiring stable performance and easy cleaning.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Sanitary Centrifugal Pump |
| Model | KGW Series |
| Brand | KingGo |
| Pump Type | Centrifugal Pump |
| Structure | Sanitary |
| Pressure | Low Pressure |
| Max Continuous Pressure | Designed for sanitary systems |
| Flow Rate | 1 – 30 T/h |
| Head | 10 – 24 m |
| Speed Range | Up to 2900 r/min |
| Motor Type | Electric Motor (Domestic) |
| Power Source | Electric |
| Motor Power | 0.37 – 4 kW |
| Power Range | 0.55 – 18.5 kW |
| Voltage | 110V / 220V / 380V |
| Phase | Three Phase |
| Pump Body Material | Stainless Steel |
| Sealing Material | C/SIC/EPDM |
| Outlet Size | 1" |
| Max Temperature | 140°C |
| Surface Finish | Sandblast / Mirror Polish |
| Cable Length | 2 m |
| Certification | Industrial Standard |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Stainless steel sanitary construction
- Suitable for milk and juice transfer
- Flow capacity up to 30 T/h
- High-speed operation up to 2900 r/min
- Temperature resistance up to 140°C
- Easy cleaning with polished surface finish
Typical Applications
- Dairy processing
- Juice and beverage production
- Food processing
- Pharmaceutical systems
- Cosmetic production
- Sanitary fluid transfer
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
