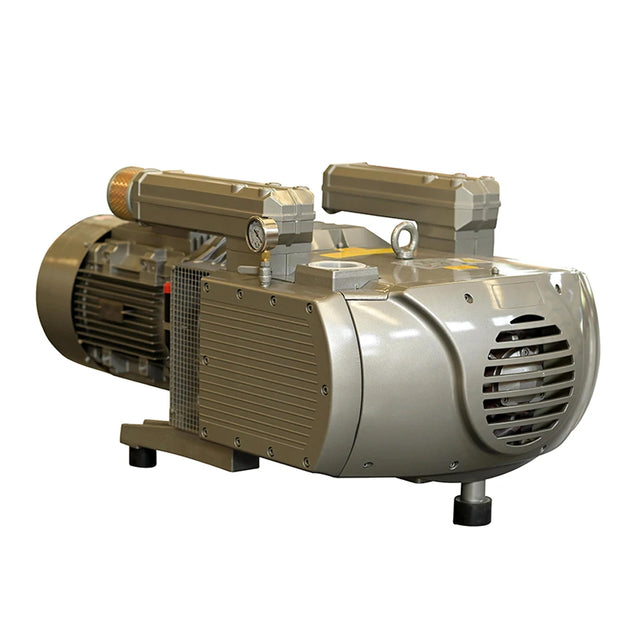

KVF250 JQT Rotary Vane Vacuum Pump, 10HP 5.5–6.6kW 300m³/h CNC Vacuum Pump
The KVF250 JQT (Golden Bridge) rotary vane vacuum pump is a high-performance dry-running vacuum solution designed for CNC router machines and industrial vacuum systems.
- 250 – 300 m³/h Flow Rate
- 200 mbar Max Continuous Pressure
- 5.5 – 6.6 kW (10 HP) Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The KVF250 JQT (Golden Bridge) rotary vane vacuum pump is a high-performance dry-running vacuum solution designed for CNC router machines and industrial vacuum systems. Built with a 100% copper motor and robust construction, it delivers reliable and stable vacuum performance under continuous operation.
With airflow up to 300 m³/h and vacuum levels down to 200 mbar, this pump ensures strong suction and efficient material handling in demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Rotary Vane Vacuum Pump |
| Model | KVF250 |
| Brand | JQT (Golden Bridge) |
| Pump Type | Vacuum Pump |
| Structure | Rotary Vane |
| Pressure | High Pressure (Vacuum) |
| Max Continuous Pressure | 200 mbar |
| Flow Rate | 250 – 300 m³/h |
| Speed | 960 – 1150 RPM |
| Motor Type | Three-Phase Motor (100% Copper) |
| Power Source | Electric |
| Power Rating | 5.5 – 6.6 kW (10 HP) |
| Voltage | 380V |
| Frequency | 50 Hz / 60 Hz |
| Pump Body Material | Industrial Alloy |
| Noise Level | 81 dB(A) |
| Outlet Size | Standard |
| Suitable Media | Air |
| Weight | 276 kg |
| Color | Silver |
| Operation Type | Dry Running |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Dry-running rotary vane design
- High airflow up to 300 m³/h
- Vacuum capability down to 200 mbar
- 10HP high-performance motor
- 100% copper motor for durability
- Reliable operation for CNC applications
Typical Applications
- CNC router systems
- Vacuum clamping systems
- Industrial vacuum processes
- Woodworking machines
- Packaging systems
- Automation equipment
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
