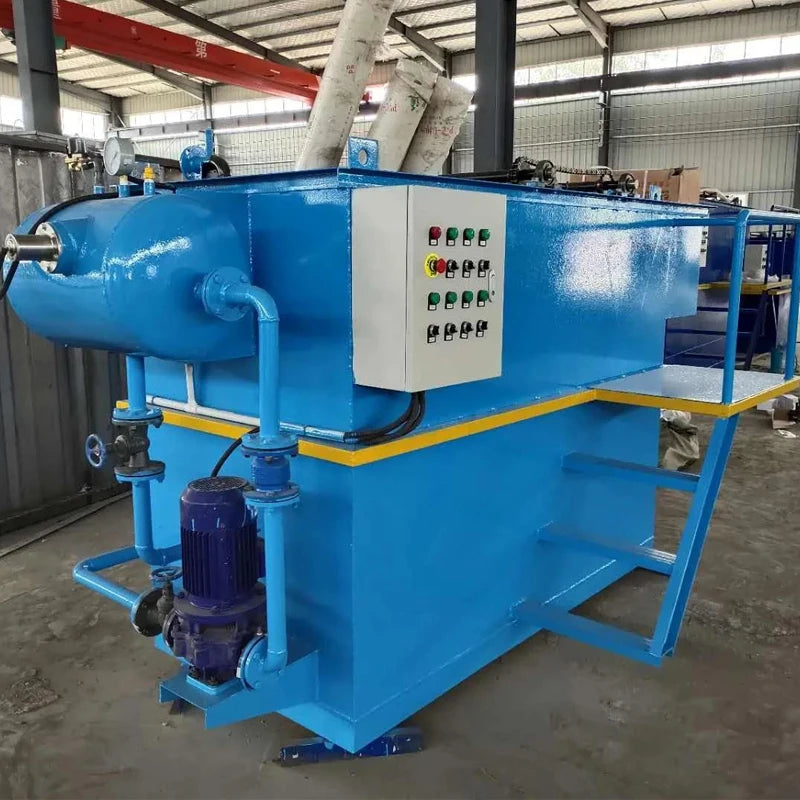

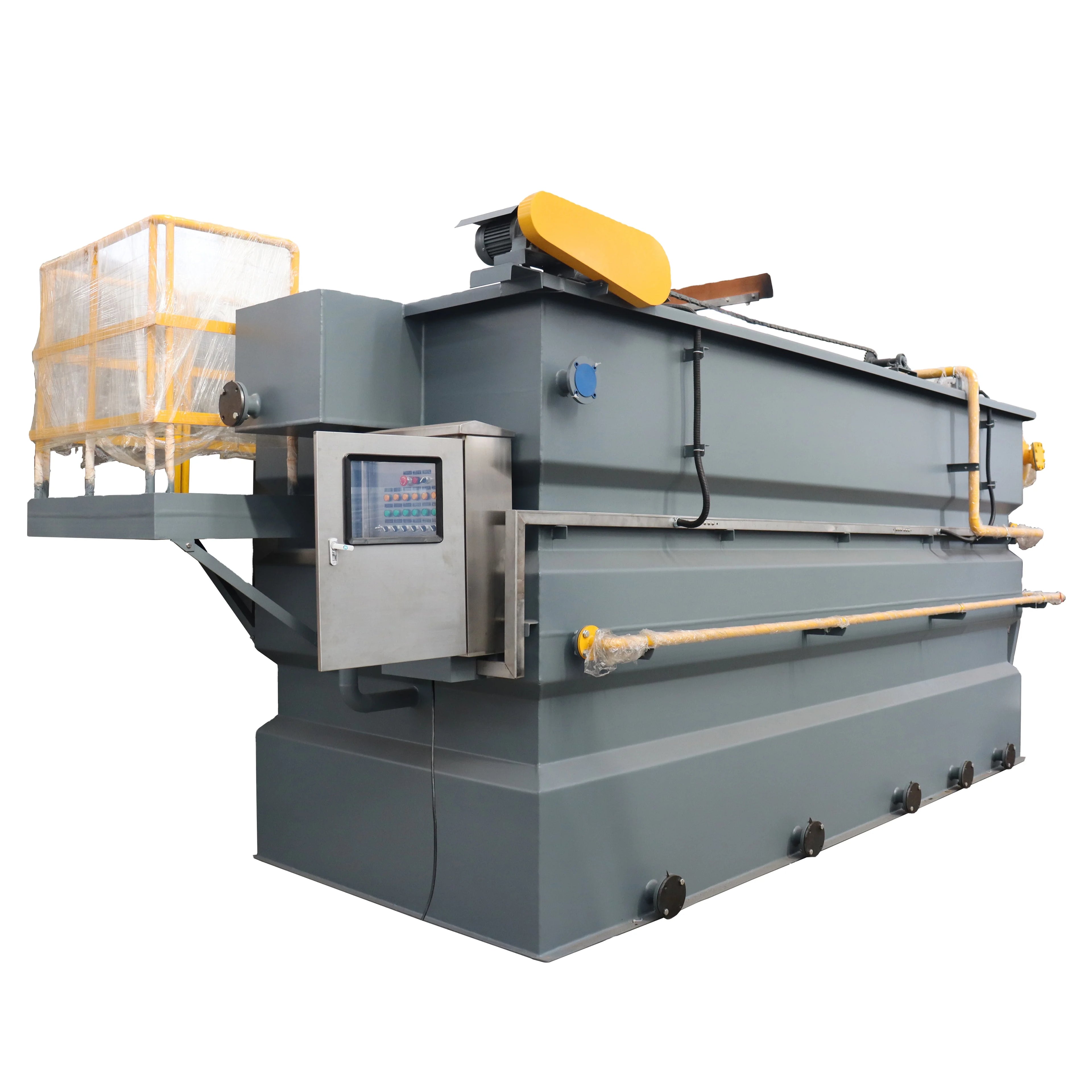

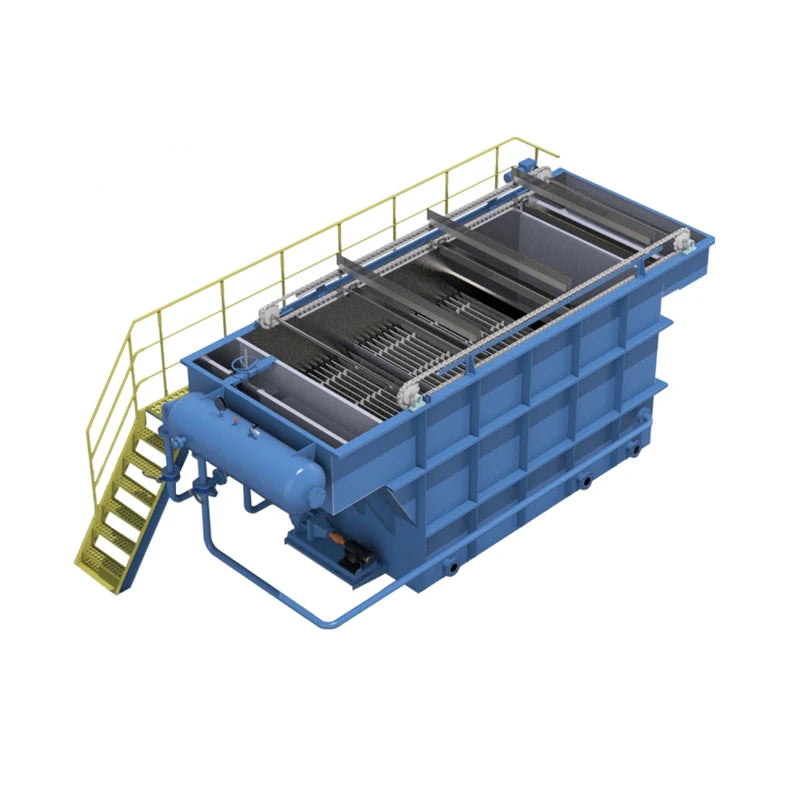

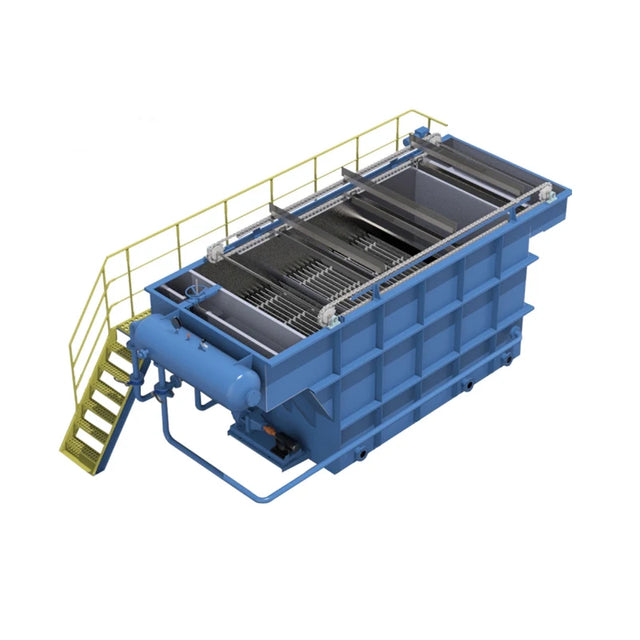

Longdai DAF 200T/D Dissolved Air Flotation System, 304 Stainless Steel 70kW PLC Unit
The Longdai 200T/D dissolved air flotation (DAF) system is a high-capacity wastewater treatment solution engineered for efficient solid-liquid separation in industrial and domestic applications.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The Longdai 200T/D dissolved air flotation (DAF) system is a high-capacity wastewater treatment solution engineered for efficient solid-liquid separation in industrial and domestic applications. Built with durable 304 stainless steel, it ensures corrosion resistance and long operational life.
Equipped with a PLC-based automatic control system, this unit delivers stable, energy-efficient performance while handling up to 10,000 L/h processing capacity. It is ideal for removing suspended solids, oils, and contaminants in demanding environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Dissolved Air Flotation System |
| Model | 200T/D DAF |
| Brand | Longdai |
| System Type | Water Treatment System |
| Structure | Dissolved Air Flotation |
| Processing Type | Filtration |
| Capacity | 250 – 10,000 L/h |
| Productivity | 10,000 L/h |
| Power Source | Electric |
| Power Rating | 70 kW |
| Voltage | 220V / 380V / 440V (50/60Hz) |
| Material | 304 Stainless Steel |
| Control System | Automatic Control Box (PLC) |
| Core Components | Pump, PLC |
| Weight | 3800 kg |
| Dimensions | Customized |
| Operation Mode | Automatic |
| Inspection | Video Outgoing-Inspection Provided |
| Test Report | Machinery Test Report Provided |
| After-sales Support | Online / Video Technical Support / Spare Parts |
| Application Scope | Industrial & Domestic Wastewater |
| Warranty | 12 Months |
Key Features
- High-capacity 200T/D wastewater treatment system
- 304 stainless steel corrosion-resistant construction
- PLC-based automatic control system
- Efficient solid-liquid separation performance
- Energy-efficient operation with low consumption
- Customizable design for various applications
Typical Applications
- Industrial wastewater treatment
- Domestic sewage treatment
- Food and beverage wastewater
- Chemical processing plants
- Municipal water treatment systems
- Oil-water separation
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
