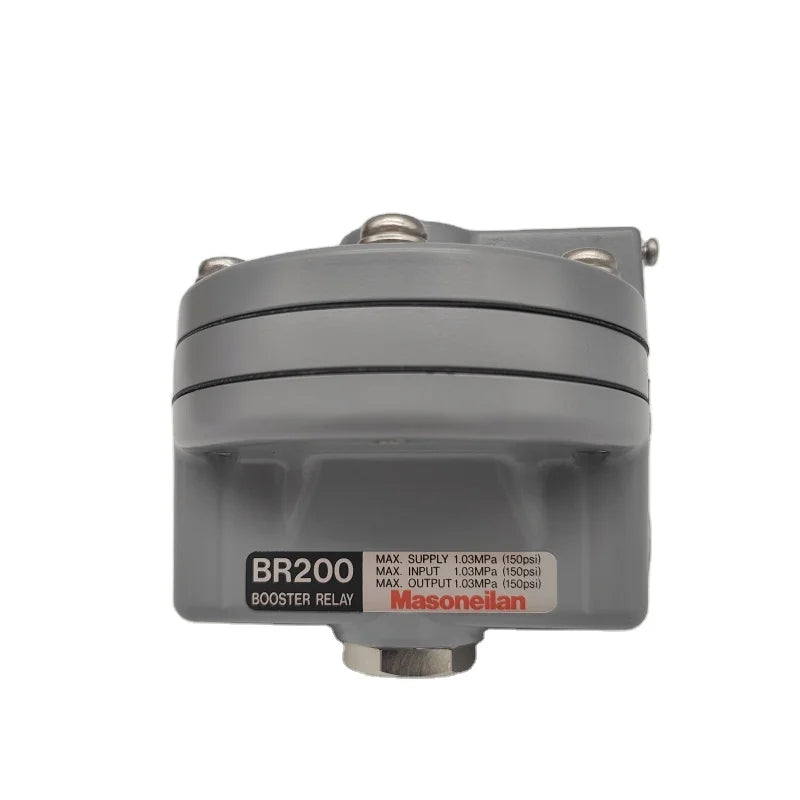

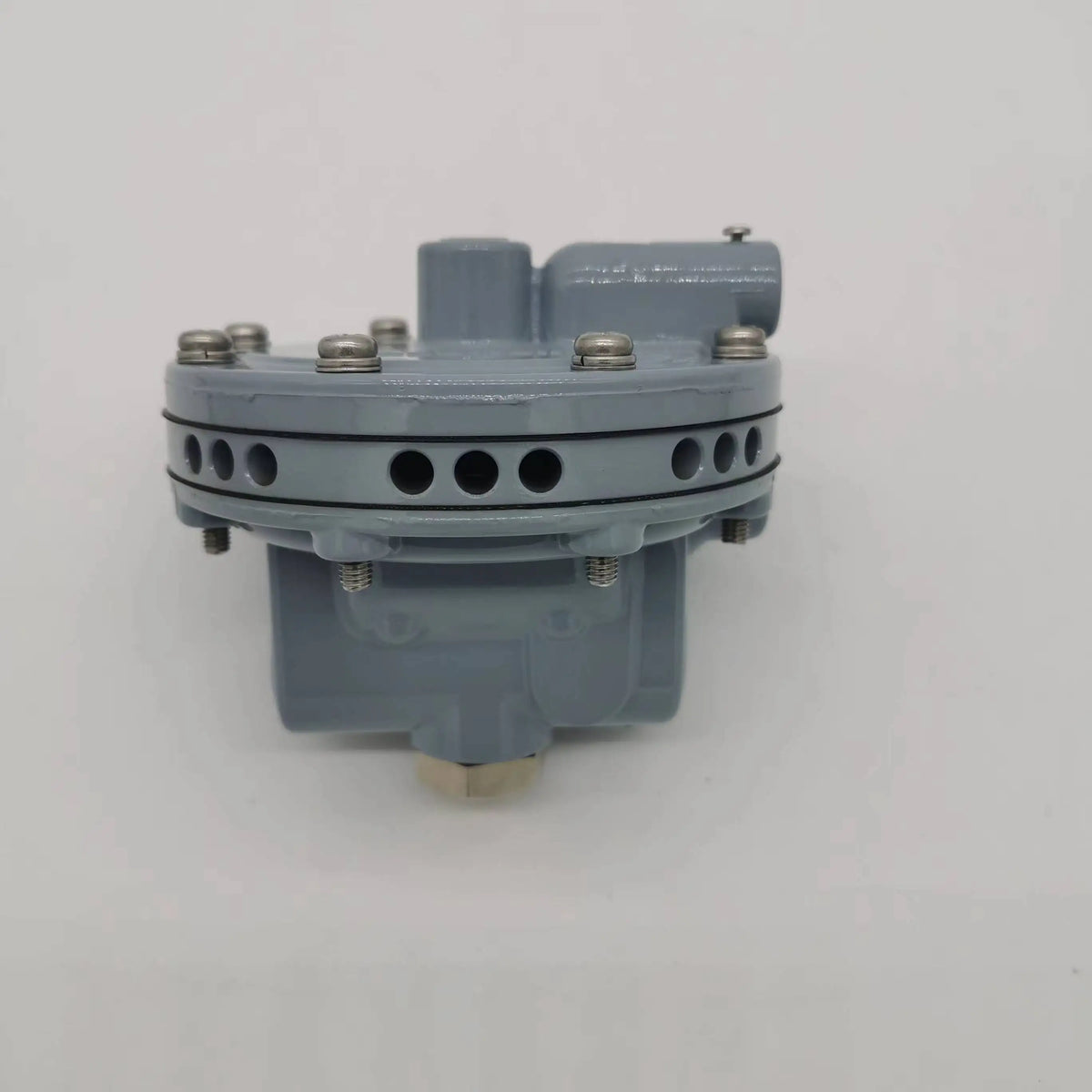

Masoneilan BR200 High Capacity Pneumatic Volume Booster Relay
The Masoneilan BR200 High Capacity Pneumatic Volume Booster Relay is designed to improve the speed and responsiveness of pneumatic valve actuators in industrial process control systems.
- 1:1 Input-to-Output Pressure Ratio
- Cv 1.2 Maximum Supply Flow Coefficient
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Masoneilan BR200 High Capacity Pneumatic Volume Booster Relay is designed to improve the speed and responsiveness of pneumatic valve actuators in industrial process control systems. Manufactured by Baker Hughes under the Masoneilan brand, this booster increases the volume of compressed air delivered to an actuator while maintaining a 1:1 input-to-output pressure ratio. It supports faster valve movement, stable pressure control, and reliable performance in demanding industrial applications.
The BR200 features an adjustable internal bypass valve for optimising actuator response, integrated supply and signal filters, and a corrosion-resistant aluminium alloy housing. Its compact construction allows installation close to compatible diaphragm and piston actuators. The booster is suitable for oil and gas processing, chemical manufacturing, petroleum refining, power generation, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Pneumatic Volume Booster Relay |
|
Manufacturer / Brand |
Masoneilan / Baker Hughes |
|
Model |
BR200 |
|
Product Type |
Pneumatic Volume Booster |
|
Operating Principle |
Pneumatic Pressure Amplification |
|
Input-to-Output Pressure Ratio |
1:1 |
|
Maximum Supply Pressure |
150 psi (10.3 bar) |
|
Maximum Signal Pressure |
150 psi (10.3 bar) |
|
Maximum Supply Flow Coefficient |
Cv 1.2 |
|
Maximum Exhaust Flow Coefficient |
Cv 1.2 |
|
Supply and Output Connections |
1/4 Inch NPT or Rc |
|
Signal Connection |
1/4 Inch NPT or Rc |
|
Housing Material |
Aluminium Alloy |
|
Operating Temperature |
−30°C to +83°C |
|
Bypass Valve |
Integrated, Adjustable |
|
Filtration |
Integrated Supply and Signal Filters |
|
Actuator Compatibility |
Pneumatic Diaphragm and Piston Actuators |
|
Approximate Weight |
0.7 kg |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Related Model |
BR400 |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
High-capacity pneumatic volume booster for improved actuator response
1:1 input-to-output pressure ratio for consistent pneumatic control
Maximum supply and signal pressure of 150 psi
Cv 1.2 supply and exhaust flow capacity
Adjustable internal bypass valve for stable actuator response
Integrated supply and signal filters for instrument air protection
Durable aluminium alloy housing with corrosion-resistant finish
Stainless steel internal components for mechanical durability
Compact construction for installation near pneumatic actuators
Compatible with diaphragm and piston actuator systems
Typical Applications
Industrial pneumatic control valve systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing and automation
Pneumatic actuator response enhancement
Valve positioner pneumatic output boosting
Industrial valve maintenance and replacement
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
