Masoneilan 78-80S Standard Capacity Pneumatic Transfer Valve
The Masoneilan 78-80S Standard Capacity Pneumatic Transfer Valve is designed to provide reliable air pressure switching and pneumatic actuator control in industrial process systems.
- Floating-Ball Pilot Valve Type
- 1.72 MPa (17.2 Bar) Maximum Body Operating Pressure
- Cv 0.8 Flow Coefficient, IN to OUT
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Masoneilan 78-80S Standard Capacity Pneumatic Transfer Valve is designed to provide reliable air pressure switching and pneumatic actuator control in industrial process systems. Manufactured by Baker Hughes under the Masoneilan brand, this three-way transfer valve combines a floating-ball pilot valve and a pneumatic switching valve in one assembly. It automatically redirects pneumatic pressure when the monitored signal pressure falls below a predetermined setting, helping control actuator response during instrument air loss, signal pressure reduction, or other specified operating conditions.
Part of the Masoneilan 78-80 Series, the 78-80S features an adjustable pressure setting range of 100–700 kPa, standard Rc 1/4 pneumatic connections, and a compact aluminium alloy housing. Its standard-capacity design provides a Cv of 0.8 for inlet-to-outlet flow and 1.3 for outlet-to-exhaust flow. The integrated pilot mechanism enables pneumatic transfer without an external electrical control signal, while its adjustable spring mechanism allows the switching pressure to be matched to the installation requirements. This transfer valve is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial pneumatic valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Standard Capacity Pneumatic Transfer Valve |
|
Manufacturer / Brand |
Masoneilan / Baker Hughes |
|
Main Model |
78-80S |
|
Product Series |
78-80 |
|
Product Type |
Three-Way Pneumatic Transfer Valve |
|
Component Category |
Pneumatic Control Valves |
|
Operating Technology |
Pneumatic |
|
Primary Function |
Pneumatic Pressure Transfer and Switching |
|
Valve Configuration |
Three-Way |
|
Pneumatic Capacity |
Standard Capacity |
|
Pilot Valve |
Integrated |
|
Pilot Valve Type |
Floating-Ball |
|
Operating Principle |
Signal Pressure Controlled Transfer |
|
Set Pressure Range |
100–700 kPa (1–7 Bar) |
|
Maximum Body Operating Pressure |
1.72 MPa (17.2 Bar) |
|
Maximum Signal Pressure |
1.03 MPa (10.3 Bar) |
|
Pressure Hysteresis |
34 kPa or Less |
|
Flow Coefficient, IN to OUT |
Cv 0.8 |
|
Flow Coefficient, OUT to EXH |
Cv 1.3 |
|
Standard Inlet Connection |
Rc 1/4 |
|
Standard Outlet Connection |
Rc 1/4 |
|
Standard Exhaust Connection |
Rc 1/4 |
|
Signal Pressure Connection |
Rc 1/4 |
|
Optional Pneumatic Connections |
NPT 1/4 |
|
Standard Operating Temperature |
−30°C to +83°C |
|
Optional Operating Temperature |
0°C to +100°C |
|
Valve Body Material |
ADC12 Aluminium Alloy |
|
Body Surface Treatment |
Anodised |
|
Housing Material |
ADC12 Aluminium Alloy |
|
Housing Surface Treatment |
Chromate |
|
Valve Plug Material |
SUS303 Stainless Steel with NBR |
|
Pilot Ball Material |
SUS440C Stainless Steel |
|
Diaphragm Material |
NBR / Polyester |
|
Spring Material |
Steel, Manufacturer-Specified Grades |
|
Pressure Adjustment |
Adjustable Spring-Loaded Mechanism |
|
Signal Connection Arrangement |
SIG and SIG.OUT |
|
Pneumatic Ports |
IN, OUT and EXH |
|
Actuator Installation |
Close to Compatible Pneumatic Actuator |
|

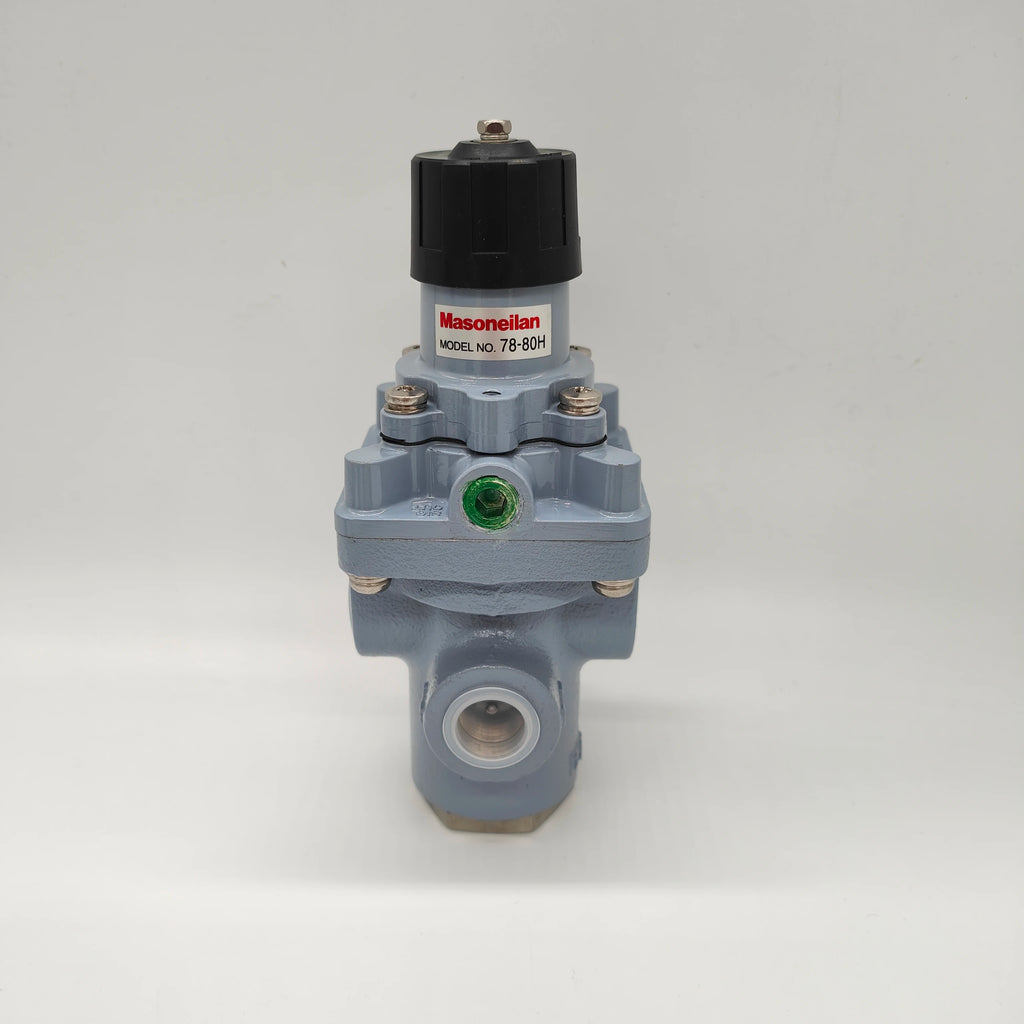

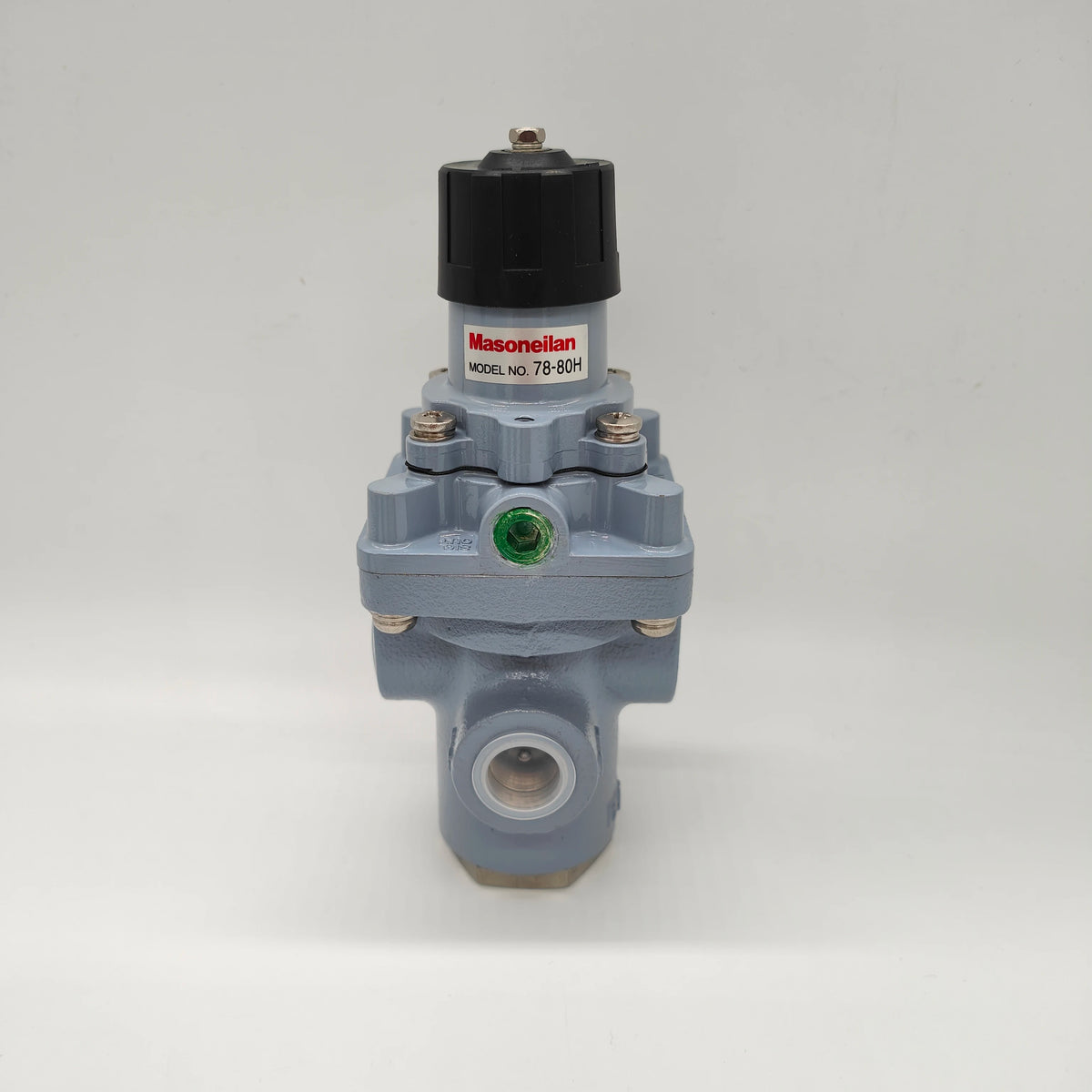

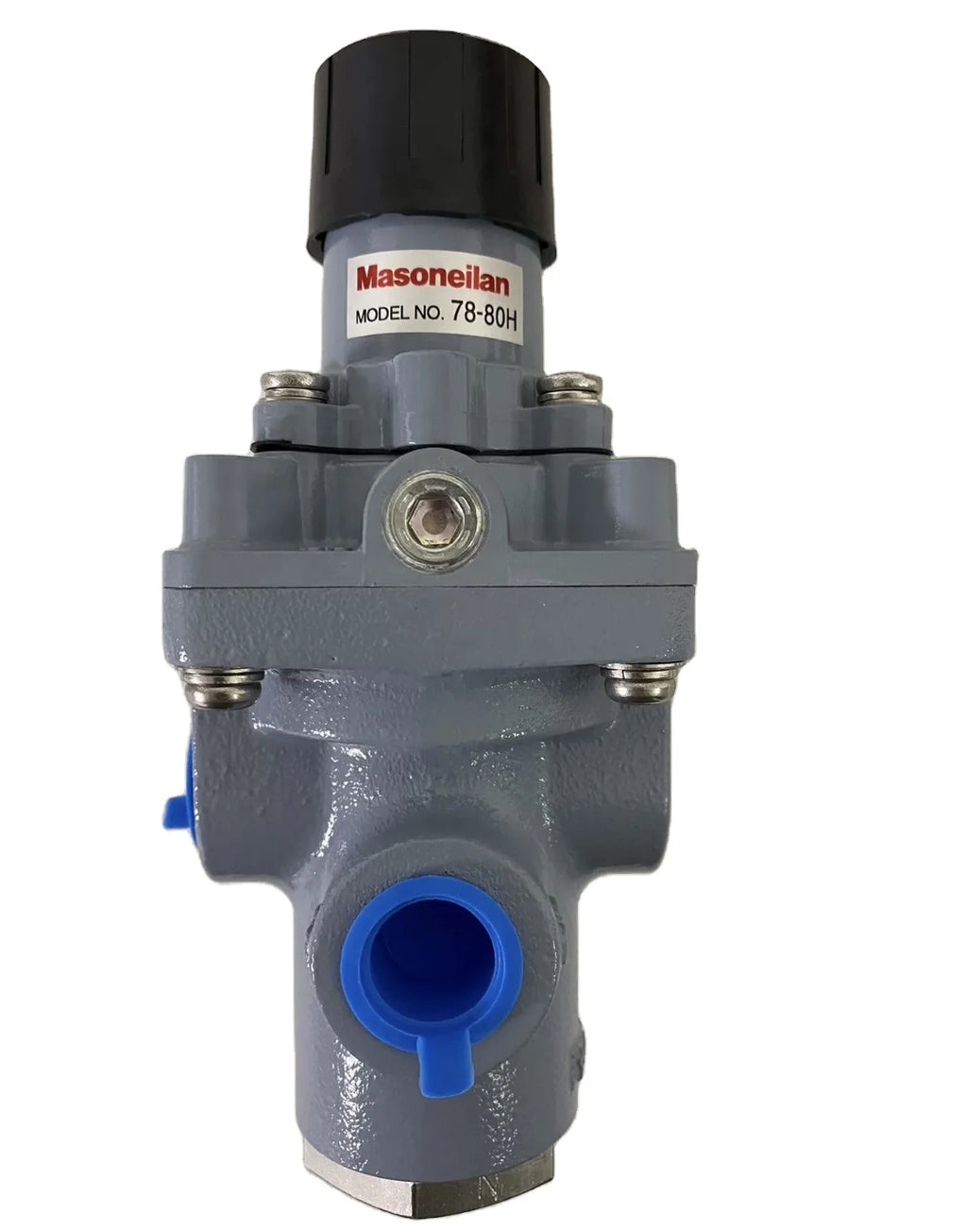

Related Model |
78-80H |
|
Related Pilotless Model |
08-80S |
|
Working Medium |
Compatible Clean, Dry Instrument Air |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Standard-capacity three-way pneumatic transfer valve for industrial actuator control
Integrated floating-ball pilot valve for automatic pressure-responsive switching
Adjustable pressure setting range of 100–700 kPa
Maximum valve body operating pressure of 1.72 MPa
Maximum pilot signal pressure of 1.03 MPa
Cv 0.8 inlet-to-outlet flow capacity for pneumatic air transfer
Cv 1.3 outlet-to-exhaust flow capacity for actuator pressure release
Standard Rc 1/4 pneumatic connections for industrial instrument air piping
Optional NPT 1/4 connection configuration
Durable ADC12 aluminium alloy valve body with anodised surface treatment
Stainless steel internal components for mechanical durability
NBR and polyester diaphragm construction for pneumatic signal response
Automatic inlet isolation when the signal pressure falls below the set pressure
Outlet-to-exhaust switching for compatible actuator control arrangements
Adjustable spring mechanism for setting the required switching pressure
Compact construction for installation near pneumatic valve actuators
Operates using pneumatic signals without requiring an external electrical power supply
Can provide pilot control signals to compatible Masoneilan 08-80S transfer valves
Suitable for industrial instrument air control and pneumatic switching applications
Designed for maintenance, replacement, and industrial valve automation upgrades
Typical Applications
Industrial pneumatic actuator pressure switching
Control valve instrument air supply management
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining and processing installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing and production machinery
Pneumatic valve actuator air transfer systems
Instrument air failure response arrangements
Pneumatic actuator exhaust control
Industrial valve lock-up arrangements with suitable piping
Pneumatic process control circuits
Industrial safety-related pneumatic switching where properly engineered
Control valve instrumentation maintenance
Industrial pneumatic equipment refurbishment
