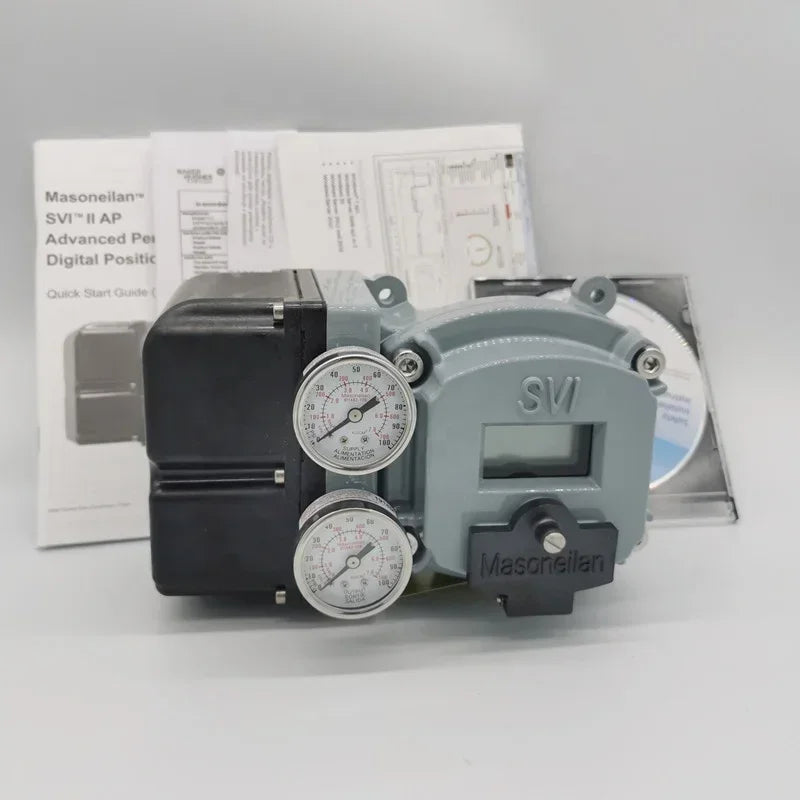

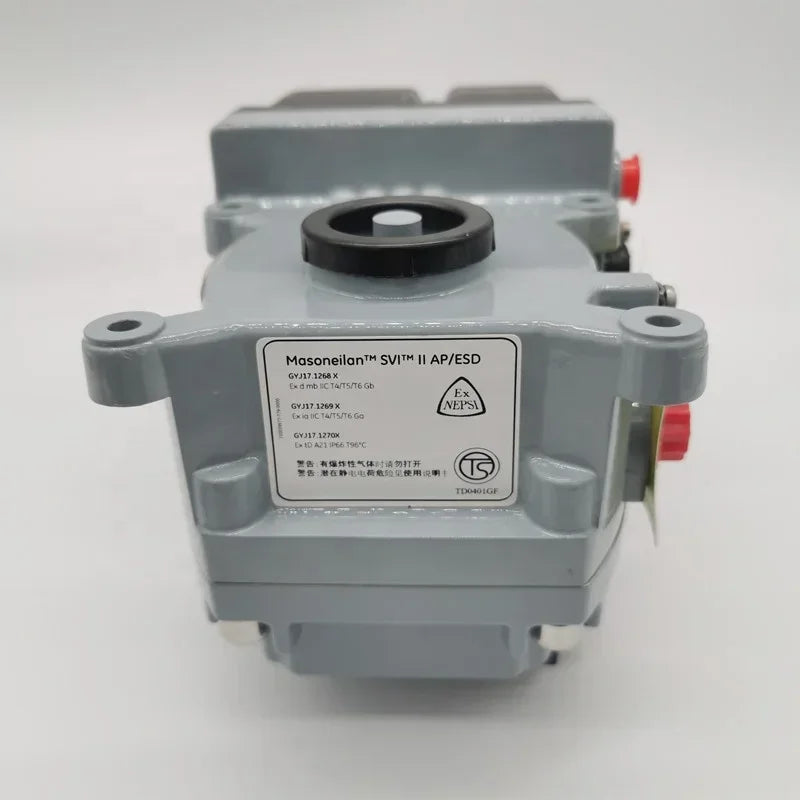

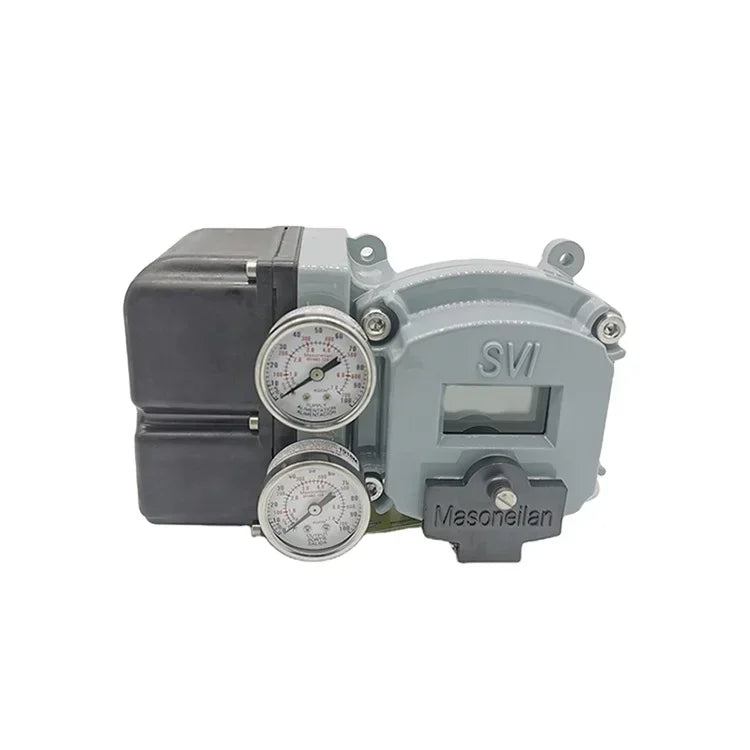

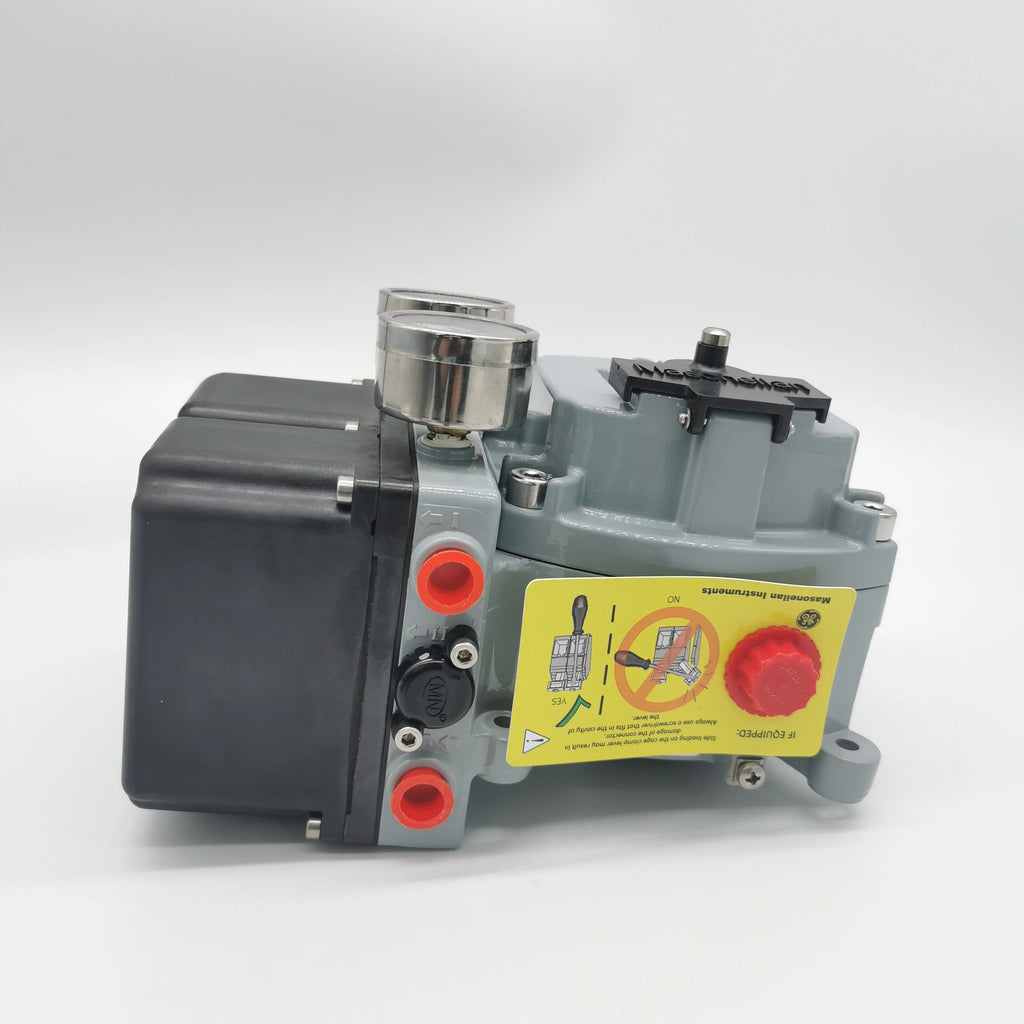

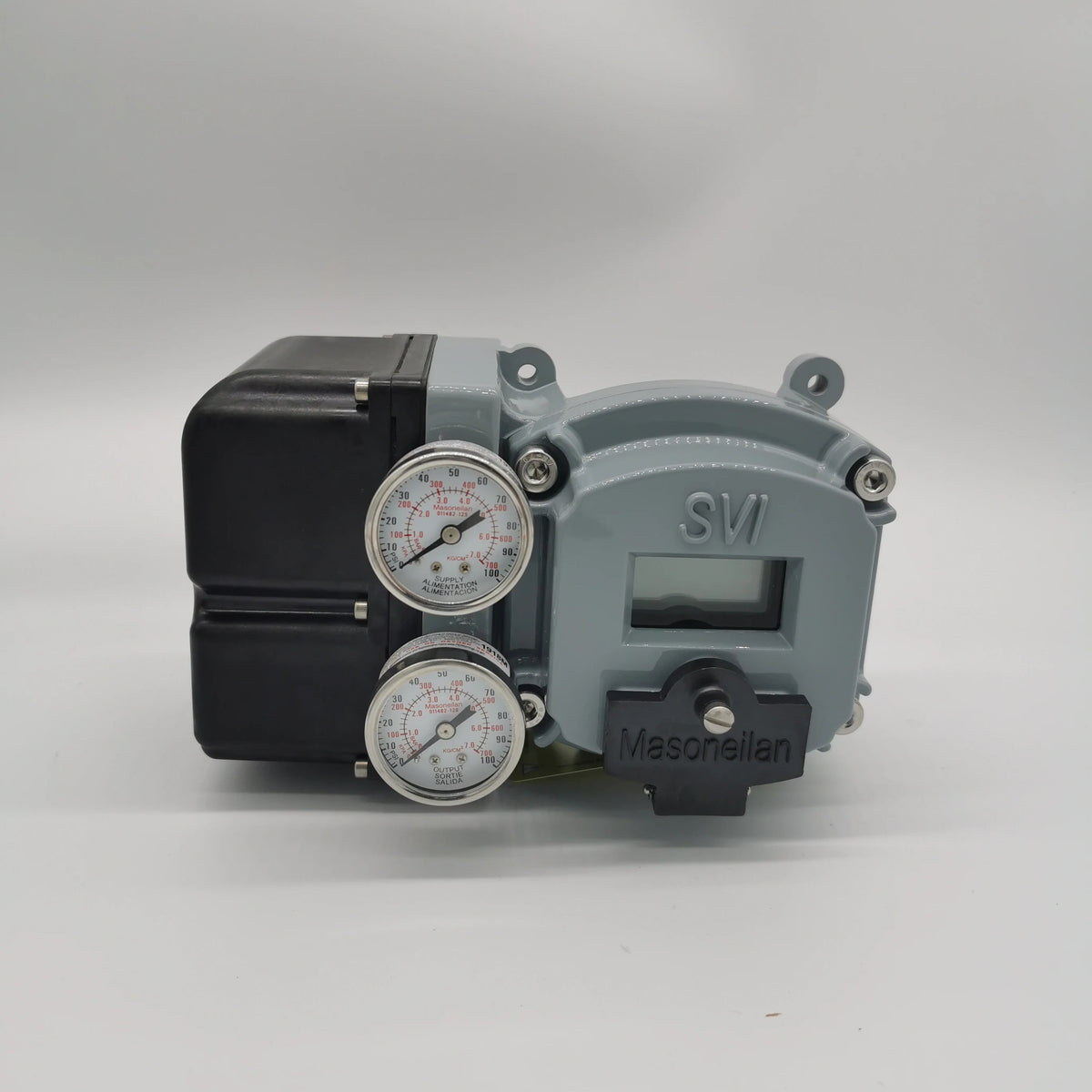

Masoneilan SVI2-21123121 Intelligent Digital Valve Positioner
The Masoneilan SVI2-21123121 Intelligent Digital Valve Positioner is an advanced electro-pneumatic instrument designed for accurate positioning and control of pneumatic valve actuators in industrial process systems.
- Standard Diagnostics Diagnostic Configuration
- Up to 100 psig for Single-Acting Configuration Pneumatic Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Masoneilan SVI2-21123121 Intelligent Digital Valve Positioner is an advanced electro-pneumatic instrument designed for accurate positioning and control of pneumatic valve actuators in industrial process systems. Manufactured by Masoneilan, a Baker Hughes brand, this SVI II AP Series positioner combines microprocessor-based control, HART digital communication, and contactless magnetic position sensing to deliver precise valve positioning. Its 4–20 mA electrical input enables reliable integration with distributed control systems and industrial automation equipment.
The SVI2-21123121 features standard valve diagnostics, single-acting pneumatic operation, an integrated LCD display with pushbuttons, and automatic calibration capabilities. Its electronic configuration includes 4–20 mA position retransmission and limit switch outputs for remote valve monitoring. The durable industrial housing and hazardous-area approval configuration make it suitable for oil and gas processing, chemical manufacturing, petroleum refining, power generation, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Valve Positioner |
|
Manufacturer / Brand |
Masoneilan / Baker Hughes |
|
Model Number |
SVI2-21123121 |
|
Product Series |
SVI II AP |
|
Product Type |
Intelligent Electro-Pneumatic Valve Positioner |
|
Positioner Technology |
Microprocessor-Based Digital Control |
|
Diagnostic Configuration |
Standard Diagnostics |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
Pneumatic Configuration |
Single Acting |
|
Pneumatic Flow Capacity |
Standard Flow |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Power Configuration |
Two-Wire, Loop Powered |
|
Position Sensing Technology |
Contactless Magnetic Position Sensor |
|
Position Feedback Output |
4–20 mA Position Retransmission |
|
Limit Switch Function |
Integrated Option Board |
|
Local Display |
LCD Display |
|
Operator Interface |
Integrated Pushbuttons |
|
Electronics Configuration |
Plug-In Electronics Module |
|
Calibration |
Automatic Calibration and Tuning |
|
Diagnostic Functions |
Standard Valve and Positioner Diagnostics |
|
Pneumatic Supply Pressure |
Up to 100 psig for Single-Acting Configuration |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Operating Temperature |
−50°C to +85°C, Subject to Configuration |
|
Housing Material |
Industrial Aluminium Housing |
|
Enclosure Protection |
IP66 / Type 4X |
|
Hazardous Area Approval Code |
ATEX / FM / CSA / IEC Intrinsic Safety and Explosion-Proof Configuration |
|
Actuator Compatibility |
Linear and Rotary Pneumatic Actuators |
|
Control System Integration |
HART-Compatible DCS and Asset Management Systems |
|
Installation |
Pneumatic Actuator Mounted |
|
Operating Application |
Industrial Valve Positioning and Process Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital electro-pneumatic valve positioning
Accurate 4–20 mA electrical control input
Integrated HART digital communication technology
Single-acting pneumatic actuator control
Standard-flow pneumatic output configuration
Contactless magnetic valve position sensing
Integrated 4–20 mA position retransmission
Limit switch outputs for valve position monitoring
Standard diagnostics for valve performance assessment
Automatic calibration and digital positioner tuning
Integrated LCD display and operator pushbuttons
Microprocessor-based control for accurate positioning
Durable aluminium housing for industrial environments
IP66 enclosure protection against dust and water ingress
Hazardous-area approval configuration for suitable installations
Compatible with linear and rotary pneumatic actuators
Supports industrial control system integration
Suitable for industrial valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
Single-acting pneumatic actuator systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial flow and pressure regulation
Linear and rotary valve automation
Pneumatic actuator position feedback systems
Industrial valve diagnostics and condition monitoring
Distributed control system integration
Manufacturing and industrial process automation
Industrial valve maintenance and replacement
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
