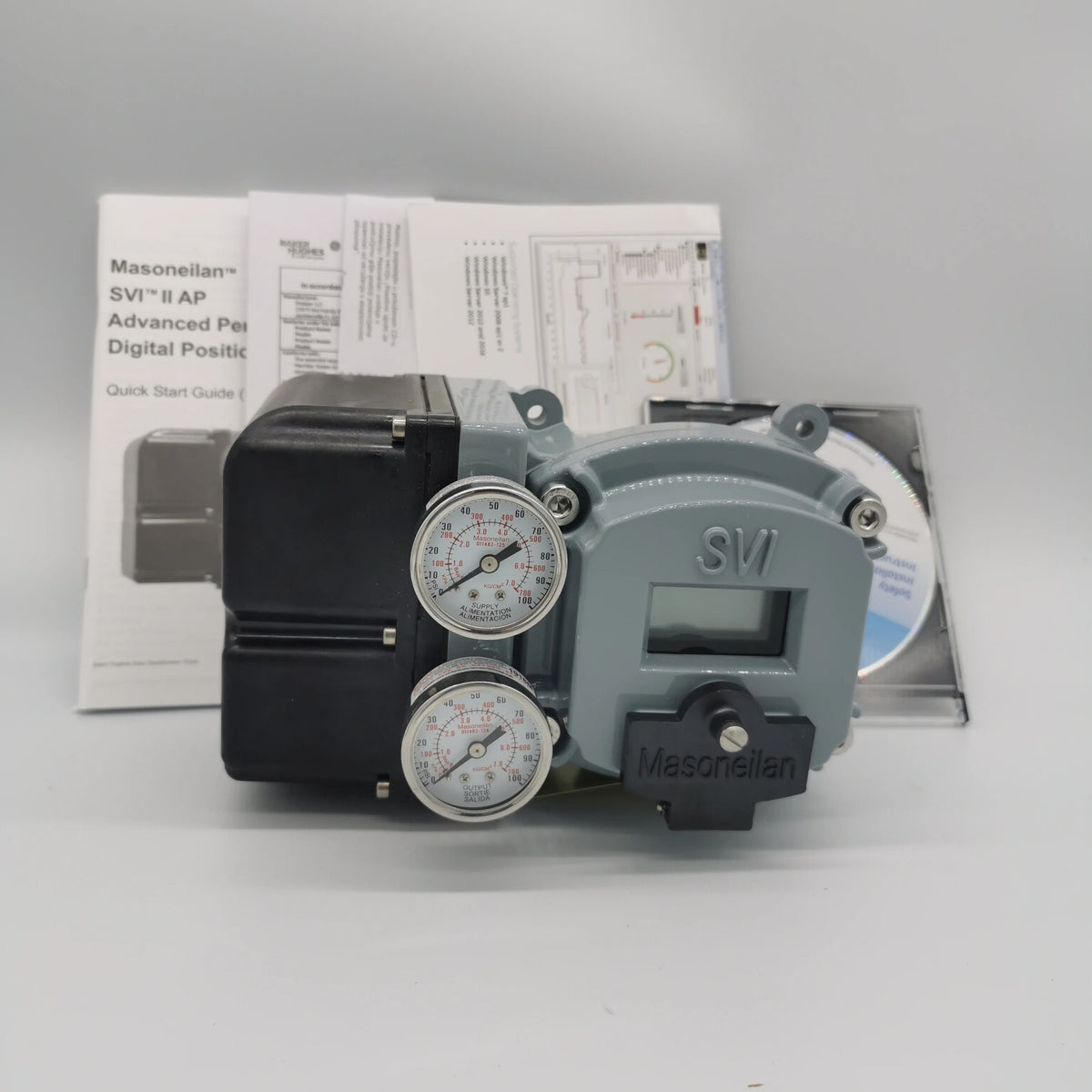

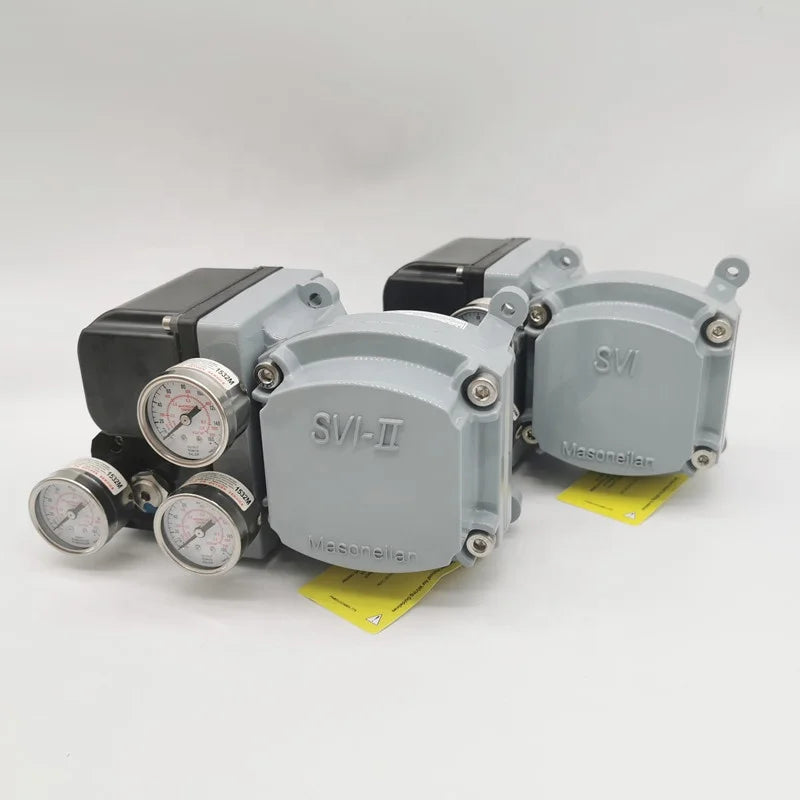

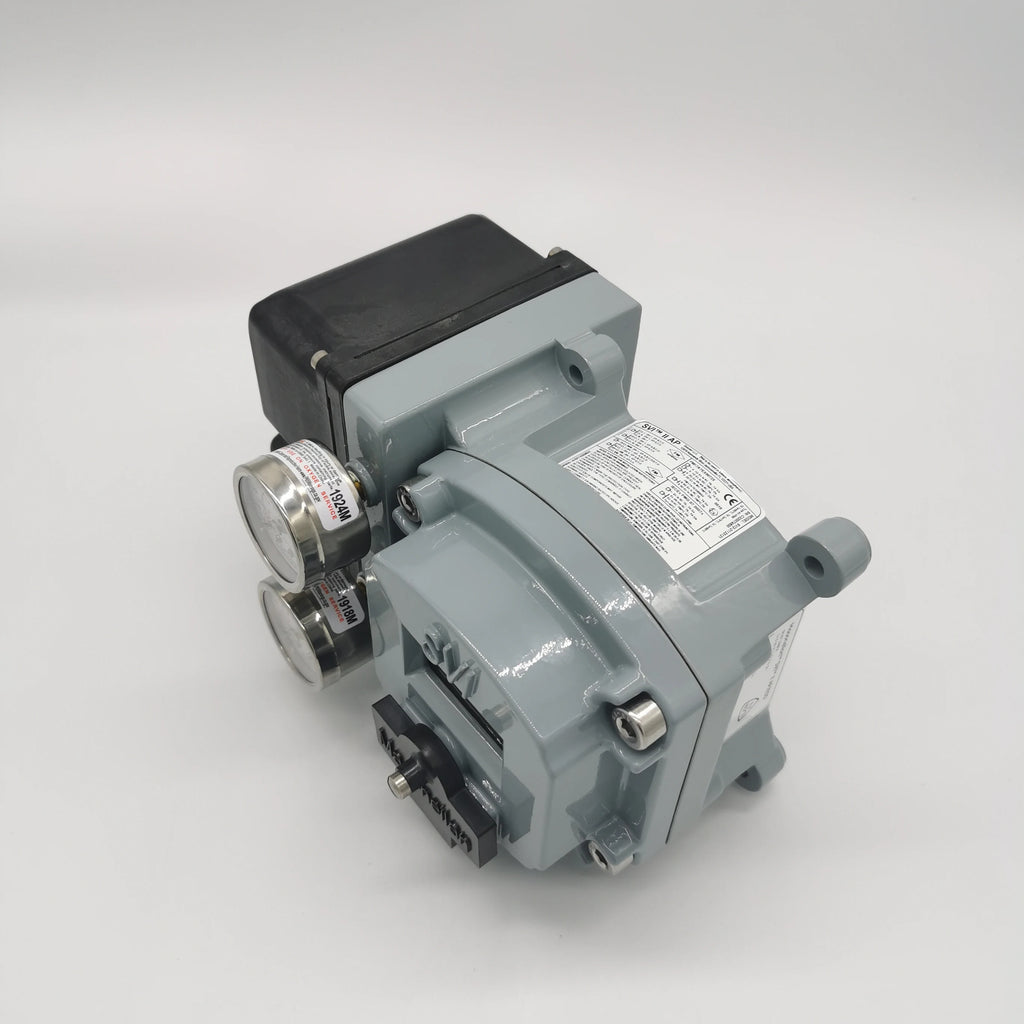

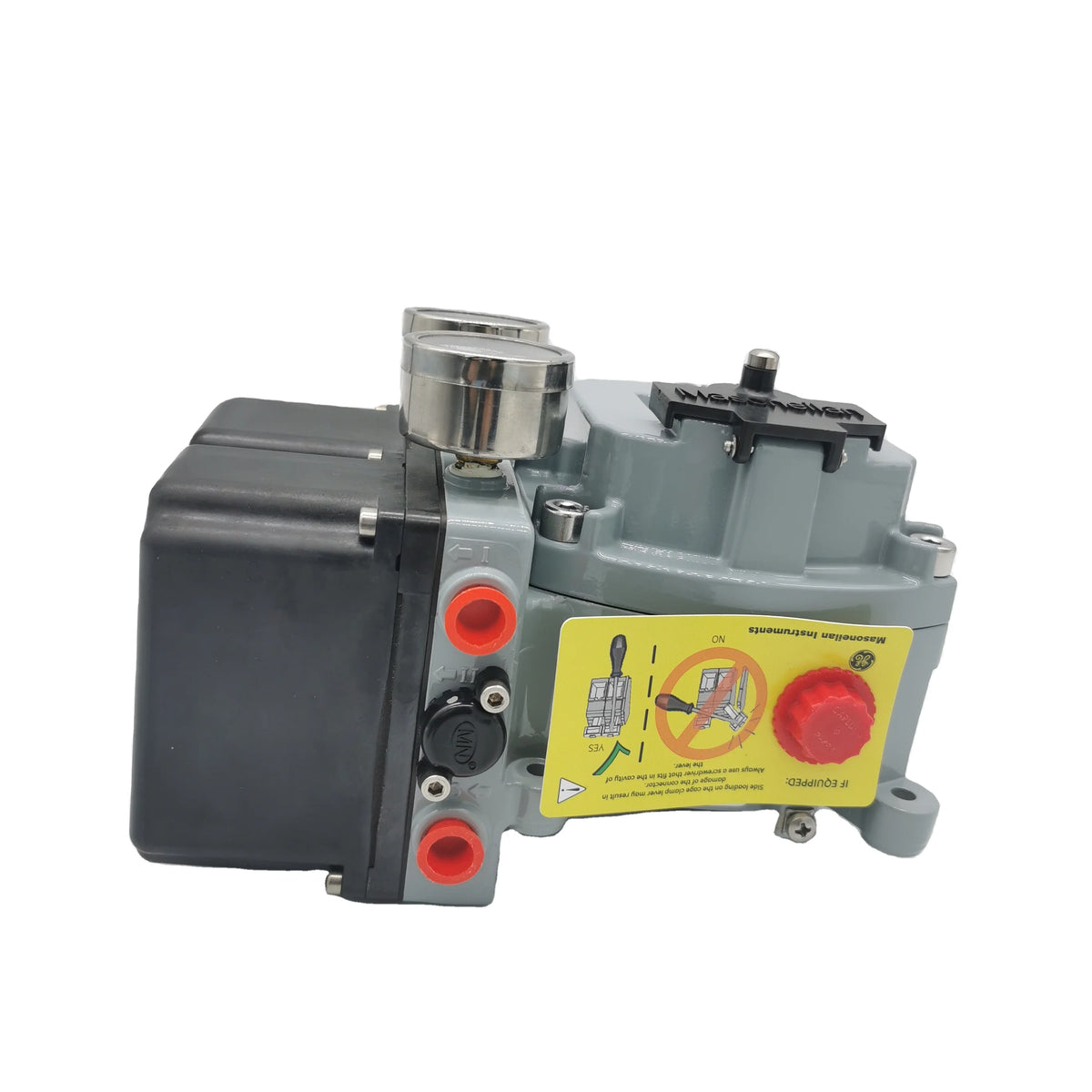

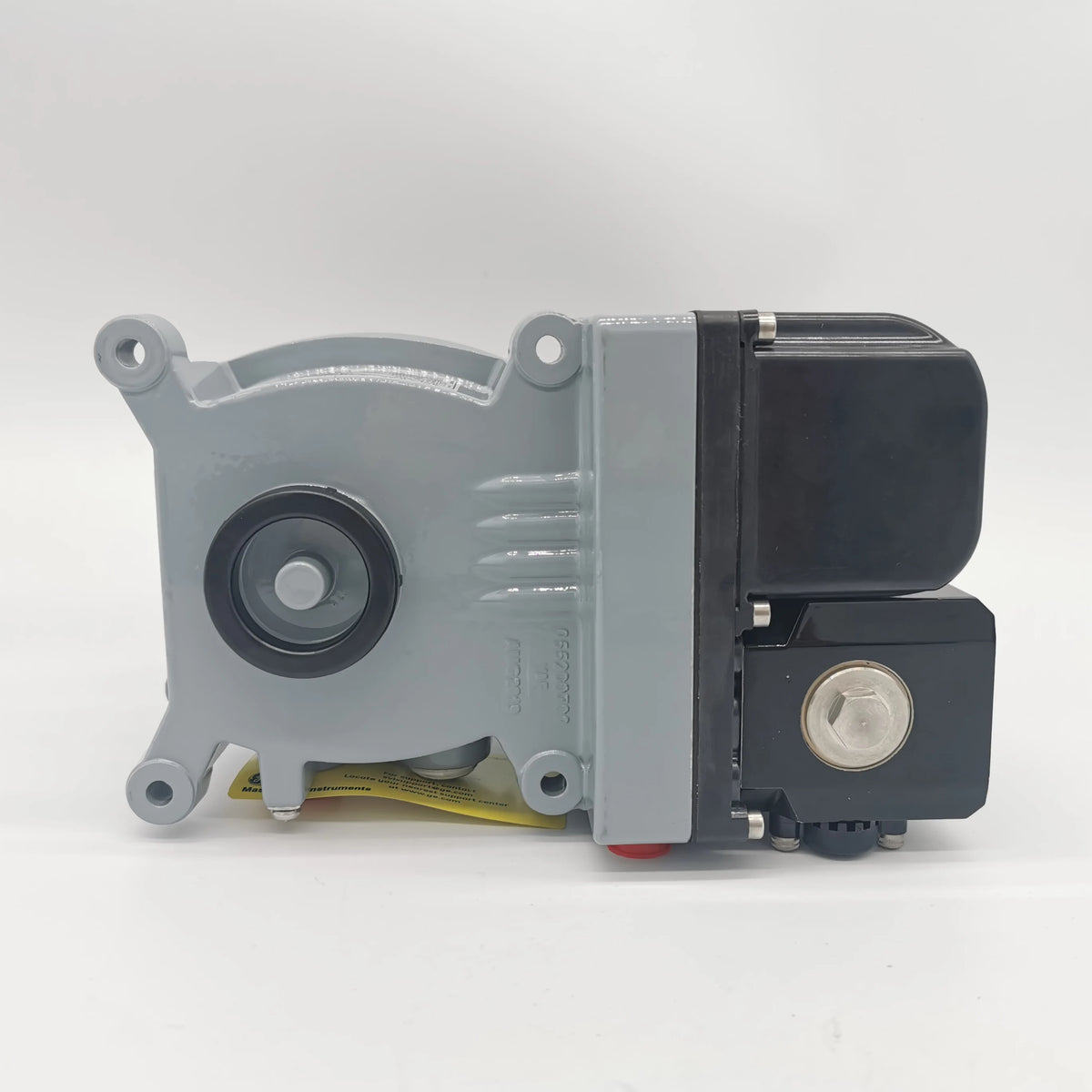

Masoneilan SVI2-22123121 Intelligent Double Acting Digital Valve Positioner with HART
The Masoneilan SVI2-22123121 Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems.
- Standard Diagnostics (SD) Diagnostic Configuration
- 1.4–10.3 Bar (20–150 psi) Pneumatic Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Masoneilan SVI2-22123121 Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems. Manufactured under the Masoneilan brand by Baker Hughes, this smart electropneumatic positioner uses a standard 4–20 mA electrical input signal with HART digital communication to regulate pneumatic output pressure and maintain accurate valve positioning. Its double-acting configuration supports controlled air delivery to both sides of compatible pneumatic actuators, ensuring responsive valve movement, stable flow regulation, and reliable performance in demanding industrial environments.
Part of the Masoneilan SVI II AP series, the SVI2-22123121 features microprocessor-based control technology, non-contact magnetic position sensing, standard diagnostic capabilities, and an integrated LCD display with pushbuttons for convenient configuration and monitoring. Its position retransmission and limit switch functions support valve position feedback and process monitoring, while automatic calibration simplifies installation and commissioning. With a durable aluminium housing and industrial-grade pneumatic components, this positioner is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial valve automation applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Valve Positioner |
|
Brand |
Masoneilan |
|
Manufacturer |
Baker Hughes |
|
Model |
SVI2-22123121 |
|
Series |
SVI II AP |
|
Product Type |
Smart Electropneumatic Valve Positioner |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Diagnostic Configuration |
Standard Diagnostics (SD) |
|
Actuator Configuration |
Double Acting |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Pneumatic Flow Capacity |
Standard Flow |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Operating Mode |
Two-Wire, Loop Powered |
|
Pneumatic Supply Pressure |
1.4–10.3 Bar (20–150 psi) |
|
Position Detection |
Non-Contact Magnetic Position Sensor |
|
Housing Material |
Low-Copper Aluminium |
|
Display Type |
LCD with Pushbuttons |
|
Position Feedback Output |
4–20 mA Position Retransmission |
|
Limit Switches |
Two Configurable Solid-State Switches |
|
Operating Temperature |
-50°C to +85°C |
|
Protection Rating |
IP66 / NEMA 4X |
|
Hazardous Area Certification |
ATEX / FM / FMc / IEC Configuration |
|
Calibration |
Automatic Zero, Span and Tuning |
|
Control Function |
Automatic Valve Position Regulation |
|
Positioner Accuracy |
±0.5% of Full Span |
|
Mounting Application |
Compatible Pneumatic Control Valve Actuators |
|
Working Medium |
Regulated, Filtered Instrument Air or Compatible Sweet Natural Gas |
|
Application Scope |
Industrial Pneumatic Valve Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent digital valve positioning for accurate industrial pneumatic actuator control.
-
Double-acting pneumatic configuration for reliable bidirectional actuator movement.
-
Standard 4–20 mA electrical input signal for integration into industrial automation systems.
-
HART digital communication for remote configuration, monitoring, and instrument diagnostics.
-
Standard diagnostic capabilities for monitoring valve position, travel, and operating performance.
-
Non-contact magnetic position sensing technology designed to reduce mechanical wear.
-
Integrated LCD display and pushbuttons for convenient local configuration and calibration.
-
Automatic zero, span, and tuning functions for simplified installation and commissioning.
-
Integrated 4–20 mA position retransmission for external valve position monitoring.
-
Two configurable solid-state limit switches for signalling and control applications.
-
Microprocessor-based electropneumatic control for precise and responsive valve movement.
-
Pneumatic supply pressure range of 1.4–10.3 bar for compatible double-acting actuators.
-
Durable low-copper aluminium housing suitable for demanding industrial environments.
-
IP66 / NEMA 4X enclosure protection against dust and water ingress.
-
Compatible with linear and rotary pneumatic valve actuators.
-
Suitable for industrial process automation and continuous valve control applications.
Typical Applications
-
Industrial process automation systems
-
Double-acting pneumatic control valve assemblies
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing equipment
-
Pneumatic linear actuator positioning
-
Rotary control valve automation
-
Ball and butterfly valve control systems
-
Industrial flow and pressure regulation
-
Distributed control systems with HART communication
-
Valve position feedback and process instrumentation systems
