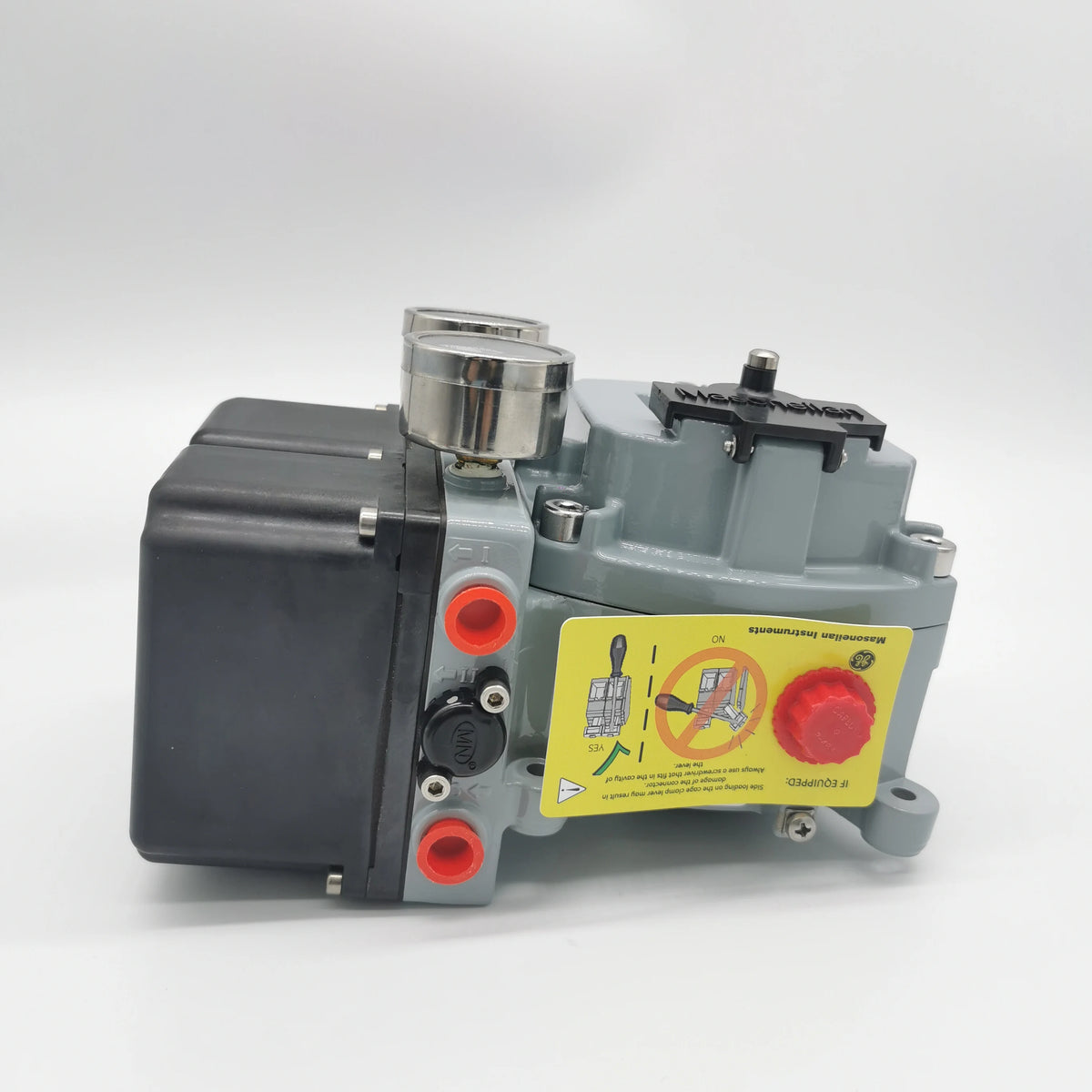

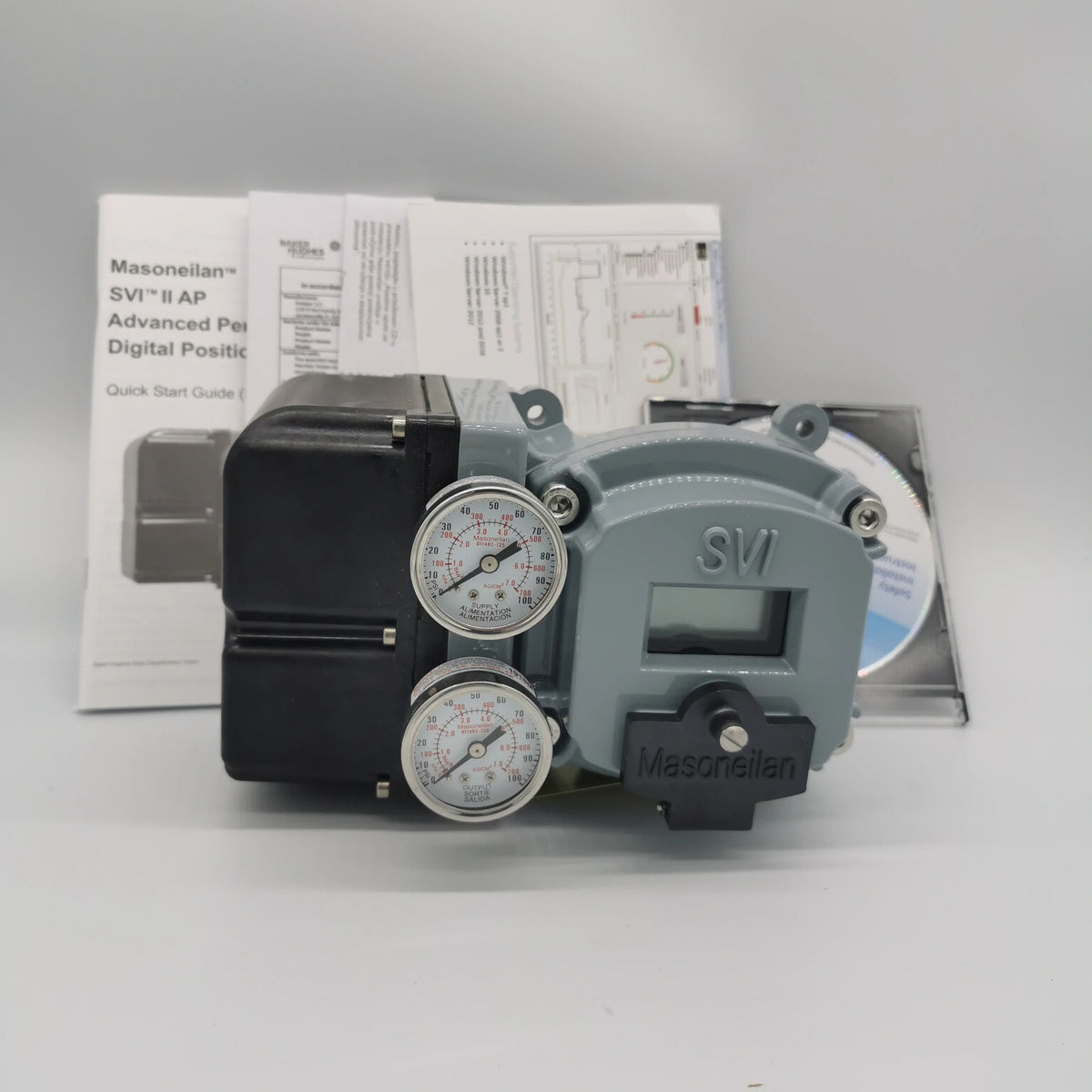

Masoneilan SVI2-31123121 Intelligent Digital Valve Positioner
The Masoneilan SVI2-31123121 Intelligent Valve Positioner is an advanced electro-pneumatic control instrument designed for precise positioning of pneumatic valve actuators in industrial process systems.
- Advanced Diagnostics Diagnostic Configuration
- 20–100 psi, Single-Acting Configuration Supply Pressure Range
- 11.2 V DC Minimum Terminal Voltage
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Masoneilan SVI2-31123121 Intelligent Valve Positioner is an advanced electro-pneumatic control instrument designed for precise positioning of pneumatic valve actuators in industrial process systems. Manufactured by Masoneilan, a Baker Hughes brand, this SVI II AP Series positioner combines microprocessor-based control with HART digital communication to deliver accurate valve positioning and reliable process performance. Its 4–20 mA control signal supports seamless integration with distributed control systems and industrial automation equipment.
The SVI2-31123121 features advanced diagnostic capabilities, a local LCD display with pushbuttons, contactless magnetic position sensing, and a single-acting pneumatic configuration. Its explosion-proof design supports suitable hazardous-area installations, while automatic calibration simplifies commissioning and maintenance. It is suitable for oil and gas processing, chemical manufacturing, power generation, petroleum refining, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Valve Positioner |
|
Manufacturer / Brand |
Baker Hughes / Masoneilan |
|
Model Number |
SVI2-31123121 |
|
Product Series |
SVI II AP |
|
Product Type |
Intelligent Electro-Pneumatic Valve Positioner |
|
Positioner Technology |
Microprocessor-Based Digital Control |
|
Diagnostic Configuration |
Advanced Diagnostics |
|
Pneumatic Configuration |
Single Acting |
|
Pneumatic Flow Capacity |
Standard Flow |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Power Supply |
Loop Powered, 4–20 mA |
|
Minimum Terminal Voltage |
11.2 V DC |
|
Minimum Current Signal |
3.6 mA |
|
Supply Pressure Range |
20–100 psi, Single-Acting Configuration |
|
Position Feedback Technology |
Non-Contact Magnetic Position Sensor |
|
Position Feedback Options |
Position Retransmission and Limit Switches |
|
Local Display |
LCD Display |
|
Operator Interface |
Integrated Pushbuttons |
|
Calibration |
Automatic Calibration and Tuning |
|
Diagnostic Functions |
Advanced Valve and Actuator Diagnostics |
|
Positioning Accuracy |
±0.5% Typical Specification |
|
Repeatability |
±0.2% |
|
Sensitivity |
±0.2% |
|
Hysteresis and Deadband |
±0.2% |
|
Operating Temperature |
−50°C to +85°C |
|
Housing Material |
Industrial Aluminium Housing |
|
Hazardous Area Protection |
Intrinsically Safe and Explosion-Proof Approval Configuration |
|
Actuator Compatibility |
Compatible Linear and Rotary Pneumatic Actuators |
|
Control System Integration |
HART-Compatible DCS and Asset Management Systems |
|
Installation |
Pneumatic Actuator Mounted |
|
Operating Application |
Industrial Valve Positioning and Process Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital electro-pneumatic valve positioning
Advanced diagnostics for valve performance monitoring
Accurate 4–20 mA electrical control signal
Integrated HART digital communication technology
Single-acting pneumatic actuator control
Standard-flow pneumatic output configuration
Contactless magnetic position sensing technology
Automatic calibration and digital valve tuning
Integrated LCD display and operator pushbuttons
Position retransmission and limit switch options
Explosion-proof configuration for approved hazardous areas
Microprocessor-based control for accurate positioning
Durable industrial aluminium enclosure
Compatible with linear and rotary pneumatic actuators
Supports industrial control system integration
Suitable for industrial valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
Single-acting pneumatic actuator systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Industrial flow and pressure regulation
Natural gas processing and distribution facilities
Industrial valve diagnostics and performance monitoring
Distributed control system integration
Automated manufacturing and production facilities
Industrial process control and instrumentation systems
