Masoneilan 035107040-716-0000 035104040-716-0000 035106040-716-0000 Actuator Diaphragms
The Masoneilan 035107040-716-0000, 035104040-716-0000, and 035106040-716-0000 Actuator Diaphragms are replacement components designed for pneumatic actuator operation in industrial control valve systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview

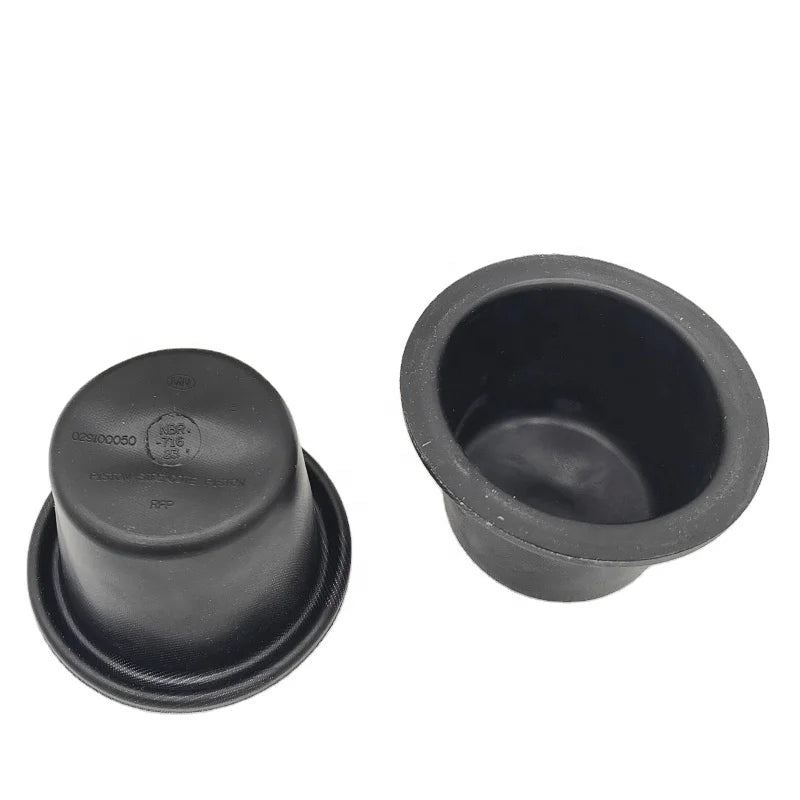

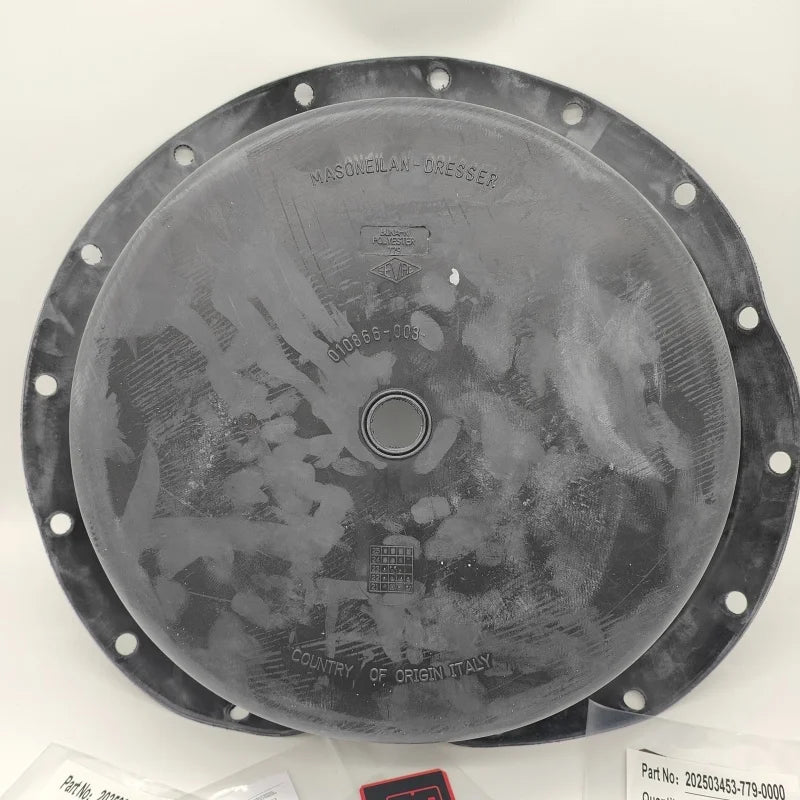

The Masoneilan 035107040-716-0000, 035104040-716-0000, and 035106040-716-0000 Actuator Diaphragms are replacement components designed for pneumatic actuator operation in industrial control valve systems. Manufactured for Masoneilan equipment under the Baker Hughes and Dresser product heritage, these diaphragms are used in the 35002 Camflex II rotary control valve series. They provide a flexible pressure-responsive element that converts pneumatic pressure into mechanical actuator movement.
The three diaphragm models are designed for different actuator sizes, with 035104040-716-0000 suitable for size 4.5, 035106040-716-0000 for size 6, and 035107040-716-0000 for size 7 actuators. Their construction supports reliable pneumatic pressure response and replacement of worn actuator diaphragms. They are suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial valve maintenance.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Pneumatic Valve Actuator Diaphragm |
|
Manufacturer / Brand |
Masoneilan / Baker Hughes |
|
Legacy Brand |
Dresser Masoneilan |
|
Model Number 1 |
035107040-716-0000 |
|
Model Number 2 |
035104040-716-0000 |
|
Model Number 3 |
035106040-716-0000 |
|
Product Series |
35002 Camflex II |
|
Product Type |
Pneumatic Actuator Diaphragm |
|
Primary Function |
Pneumatic Pressure Response and Actuator Movement |
|
035107040 Actuator Size |
Size 7 |
|
035104040 Actuator Size |
Size 4.5 |
|
035106040 Actuator Size |
Size 6 |
|
Diaphragm Material |
Nitrile Rubber Reinforced with Dacron Fabric, Documented for Size 6 |
|
Operating Medium |
Instrument Air |
|
Valve Compatibility |
Masoneilan Camflex II Rotary Control Valves |
|
Installation |
Internal Pneumatic Actuator Assembly |
|
Application |
Industrial Control Valve Maintenance |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Replacement diaphragms for Masoneilan Camflex II actuators
Compatible with selected 35002 Series rotary control valves
Available for actuator sizes 4.5, 6 and 7
Flexible diaphragm construction for pneumatic operation
Supports accurate actuator pressure response
Designed for industrial control valve servicing
Restores pneumatic actuator movement and performance
Suitable for industrial valve repair and replacement
Typical Applications
Masoneilan Camflex II actuator maintenance
Industrial pneumatic control valve repairs
Oil and gas processing facilities
Chemical and petrochemical plants
Petroleum refining operations
Power generation systems
Water and wastewater treatment
Industrial valve actuator replacement
Shipping & Support
Fast dispatch, Australia and Worldwide Shipping
Technical assistance available
1-year warranty
