SAMSON 4763-01200321 4763-01200121 4763-01300321 4763-11300311 Electro pneumatic Valve Positioners
The SAMSON 4763-01200321, 4763-01200121, 4763-01300321, and 4763-11300311 Electropneumatic Valve Positioners are industrial control instruments designed for accurate positioning of pneumatic control valve actuators.
- SAMSON Type 6109 or 6112, Depending on Configuration Current-to-Pressure Converter
- Single Acting Actuator Operation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview

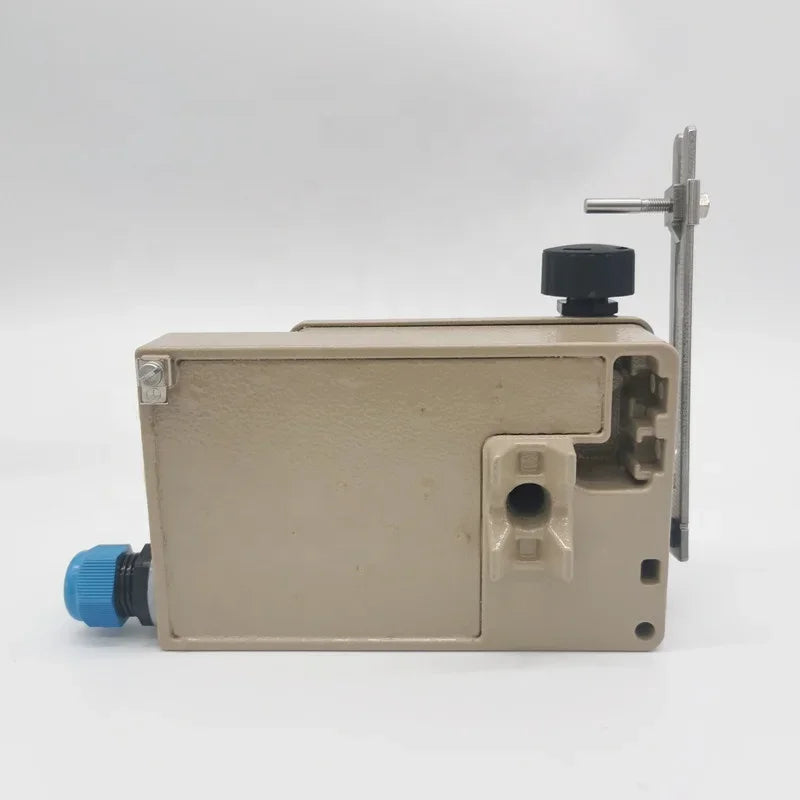

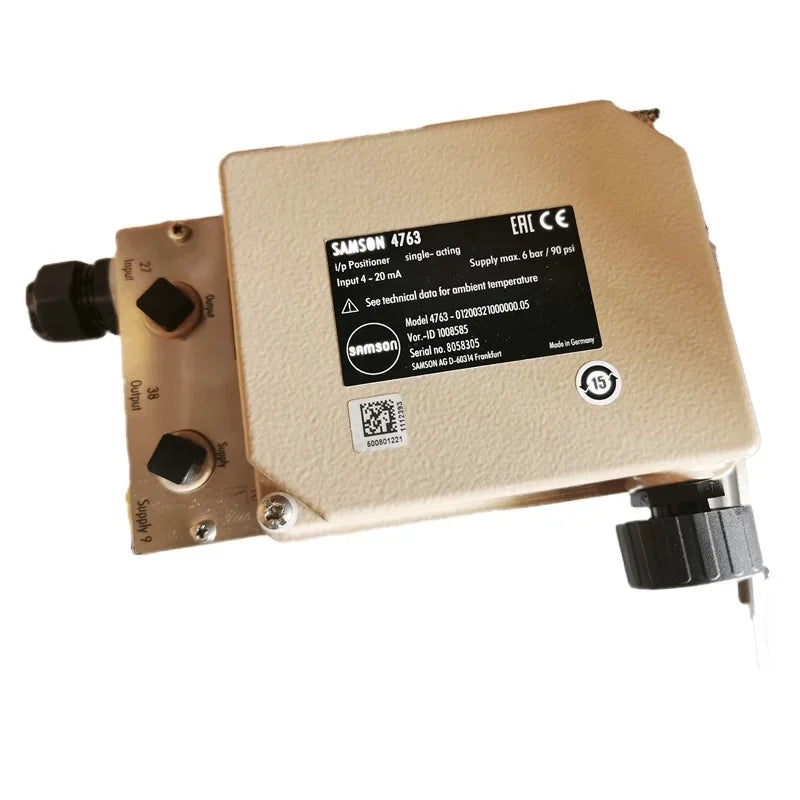

The SAMSON 4763-01200321, 4763-01200121, 4763-01300321, and 4763-11300311 Electropneumatic Valve Positioners are industrial control instruments designed for accurate positioning of pneumatic control valve actuators. Manufactured by SAMSON, the Type 4763 Series converts electrical control signals into proportional pneumatic pressure through an integrated current-to-pressure converter. Its mechanical force-balance positioning system provides stable valve travel control, adjustable response, and reliable operation in industrial process automation.
The Type 4763 features an adjustable proportional band, reversible operating direction, pneumatic volume restriction, and durable die-cast aluminium housing. Selected configurations incorporate the SAMSON Type 6109 current-to-pressure converter, while intrinsically safe versions support approved hazardous-area installations. The positioners are designed for compatible linear pneumatic actuators and can be installed using suitable SAMSON or NAMUR mounting arrangements. Typical applications include oil and gas processing, chemical manufacturing, petroleum refining, power generation, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
SAMSON |
|
Model Number 1 |
4763-01200321 |
|
Model Number 2 |
4763-01200121 |
|
Model Number 3 |
4763-01300321 |
|
Model Number 4 |
4763-11300311 |
|
Product Series |
Type 4763 |
|
Product Type |
Analogue Electropneumatic Valve Positioner |
|
Positioner Technology |
Current-to-Pressure Conversion |
|
Operating Principle |
Mechanical Force Balance |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
Electrical Input Signal |
4–20 mA DC, Standard Configuration |
|
Alternative Input Signals |
0–20 mA and 1–5 mA, Selected Versions |
|
Current-to-Pressure Converter |
SAMSON Type 6109 or 6112, Depending on Configuration |
|
Supply Air Pressure |
1.4–6 bar (20–90 psi) |
|
Pneumatic Output Pressure |
0–6 bar Maximum |
|
Positioning Characteristic |
Linear |
|
Operating Direction |
Reversible |
|
Standard Valve Travel Range |
7.5–60 mm |
|
Extended Valve Travel Range |
Up to 90 mm with Suitable Lever Extension |
|
Proportional Band |
Adjustable, Spring Dependent |
|
Characteristic Deviation |
≤1.5% |
|
Hysteresis |
Less Than 0.5% |
|
Sensitivity |
Less Than 0.1% |
|
Pneumatic Volume Restriction |
Adjustable |
|
Positioning Adjustment |
Zero and Span Adjustment |
|
Housing Material |
Die-Cast Aluminium |
|
Housing Finish |
Chromated and Plastic Coated |
|
External Components |
Stainless Steel |
|
Enclosure Protection |
IP54 Standard |
|
Optional Enclosure Protection |
IP65 with Suitable Venting Arrangement |
|
Pneumatic Connections |
G 1/4 or 1/4 NPT, Configuration Dependent |
|
Electrical Connections |
Cable Gland or Connector, Configuration Dependent |
|
Explosion Protection, 4763-0 Series |
Without Explosion Protection |
|
Explosion Protection, 4763-1 Series |
Intrinsically Safe Configuration, Subject to Certification |
|
Operating Temperature |
Depends on Converter and Temperature Configuration |
|
Mounting Compatibility |
Compatible SAMSON and NAMUR Linear Actuators |
|
Actuator Operation |
Single Acting |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Operating Application |
Industrial Pneumatic Valve Positioning |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Accurate electropneumatic control valve positioning
Integrated electrical-to-pneumatic signal conversion
Standard 4–20 mA industrial control signal
Mechanical force-balance positioning mechanism
Compatible with SAMSON Type 6109 current-to-pressure converters
Adjustable proportional band for stable valve response
Reversible operating direction for flexible valve control
Adjustable pneumatic volume restriction
Supply pressure range of 1.4–6 bar
Low hysteresis and high positioning sensitivity
Durable die-cast aluminium housing
Corrosion-resistant external stainless steel components
Intrinsically safe configuration on selected models
Compatible with standard linear pneumatic actuators
Supports NAMUR actuator mounting arrangements
Suitable for industrial valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
SAMSON pneumatic actuator control systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial flow and pressure regulation
Pneumatic diaphragm actuator positioning
Linear control valve automation
Industrial process control and instrumentation systems
Hazardous-area valve control with certified configurations
Manufacturing and industrial production facilities
Industrial valve maintenance and replacement
