MG-P-543SSV5-3 Jiekai Magnetic Drive Chemical Pump, High-Pressure Corrosion-Resistant Seal-Less Pump
The MG-P-543SSV5-3 Jiekai magnetic drive pump is a high-performance seal-less chemical pump designed for safe and efficient transfer of corrosive liquids.
- 100 – 1,133 L/min Flow Rate
- 0.1 – 10 Bar Pressure
- 0.5 – 5 HP Horsepower
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The MG-P-543SSV5-3 Jiekai magnetic drive pump is a high-performance seal-less chemical pump designed for safe and efficient transfer of corrosive liquids. Its magnetic coupling eliminates mechanical seals, preventing leakage and ensuring reliable operation in hazardous environments.

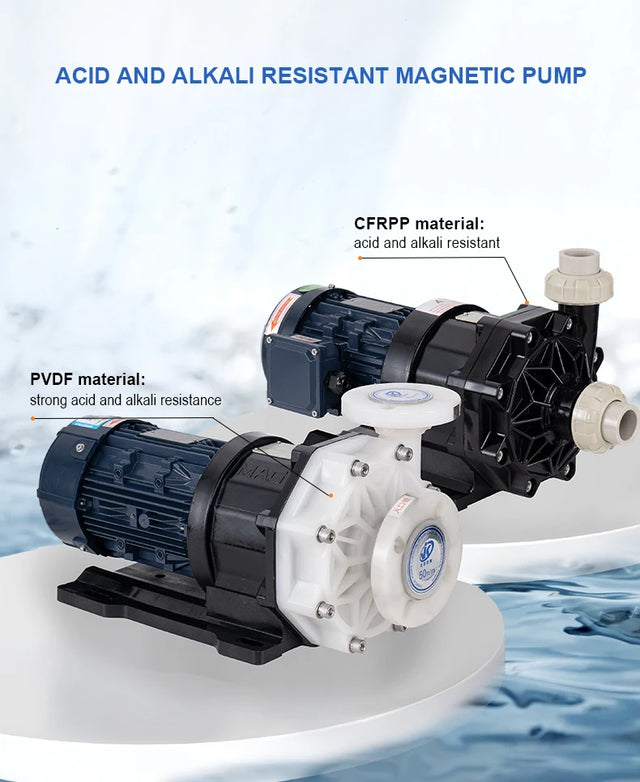

Manufactured using CFRPP, PVDF, and ETFE materials, this pump delivers excellent resistance to aggressive chemicals, making it ideal for industrial processing and water treatment systems.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Magnetic Drive Chemical Pump |
| Model | MG-P-543SSV5-3 |
| Brand | Jiekai Pump |
| Pump Type | Magnetic Drive Pump |
| Structure | Seal-less Magnetic Coupling |
| Pressure | 0.1 – 10 Bar |
| Flow Rate | 100 – 1,133 L/min |
| Max Flow Rate | Up to 500 m³/h |
| Power Range | 0.37 kW – 4 kW |
| Horsepower | 0.5 – 5 HP |
| Motor Type | Three-Phase Motor |
| Power Source | Electric |
| Voltage | 220V / 380V / 415V |
| Frequency | 50 / 60 Hz |
| Inlet/Outlet Size | 25 mm / 40 mm / 50 mm / 65 mm |
| Connection Type | Flange / Union |
| Pump Body Material | CFRPP / PVDF / ETFE |
| Shaft Material | SSIC / Ceramic |
| Sealing Material | EPDM / VITON / Ceramic |
| Applicable Temperature | 5 – 80°C |
| Outlet Type | Universal |
| Operation Mode | Continuous Duty |
| Warranty | 1 Year |
Key Features
- Seal-less magnetic drive design eliminates leakage
- High resistance to corrosive chemicals
- Durable CFRPP, PVDF, and ETFE construction
- Stable high-pressure performance up to 10 bar
- Low maintenance with no mechanical seal
- Suitable for hazardous and aggressive fluids
Typical Applications
- Chemical transfer and processing
- Water and wastewater treatment
- Acid and alkali handling
- Electroplating and PCB manufacturing
- Industrial circulation systems
- Corrosive liquid transport
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
