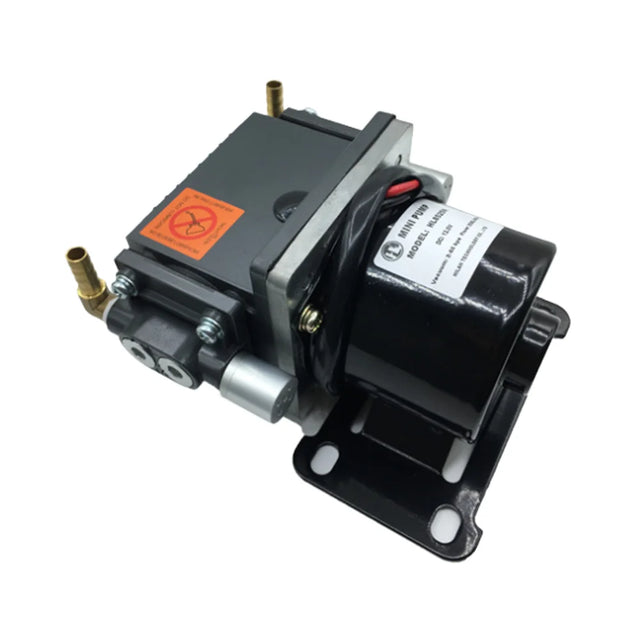

Micro Vacuum Pump, 6–24V DC 30LPM -85kPa Diaphragm Pump
The micro vacuum pump is a compact diaphragm pump designed for efficient air suction and vacuum generation in small-scale and household applications.
- 30 L/min Flow Rate
- -85 kPa Max Continuous Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The micro vacuum pump is a compact diaphragm pump designed for efficient air suction and vacuum generation in small-scale and household applications. With vacuum pressure up to -85 kPa and airflow exceeding 30 LPM, it delivers strong and stable performance in portable systems.
Its low-noise operation and multi-voltage compatibility (6V–24V DC) make it suitable for a wide range of compact devices and automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Micro Vacuum Pump |
| Model | JAVP140 |
| Brand | OEM |
| Pump Type | Diaphragm Pump |
| Structure | Micro Pump |
| Pressure | Vacuum Pressure |
| Max Continuous Pressure | -85 kPa |
| Flow Rate | 30 L/min |
| Leakage Rate | <3 mmHg/min |
| Speed Range | Controlled operation |
| Motor Type | DC Motor |
| Power Source | Electric |
| Voltage | 6V / 12V / 24V DC |
| Noise Level | <55 dB |
| Outlet Size | 8.2 mm |
| Connector Type | Hose fitting |
| Pump Body Material | Engineering Plastic |
| Dimensions | 150 × 134.5 × 60 mm |
| Lifetime | 5000 hours |
| Application Scope | Household / Small Systems |
| Warranty | 12 Months |
Key Features
Vacuum pressure up to -85 kPa
Airflow greater than 30 L/min
Low noise operation (<55 dB)
Multi-voltage compatibility (6V–24V DC)
Compact and lightweight design
Long service life up to 5000 hours
Typical Applications
Household vacuum devices
Air sampling systems
Medical and lab equipment
Automation systems
Portable vacuum systems
Small air transfer systems
Shipping & Support
Fast dispatch - Australia & World wide shipping
Technical assistance available
12-month warranty
