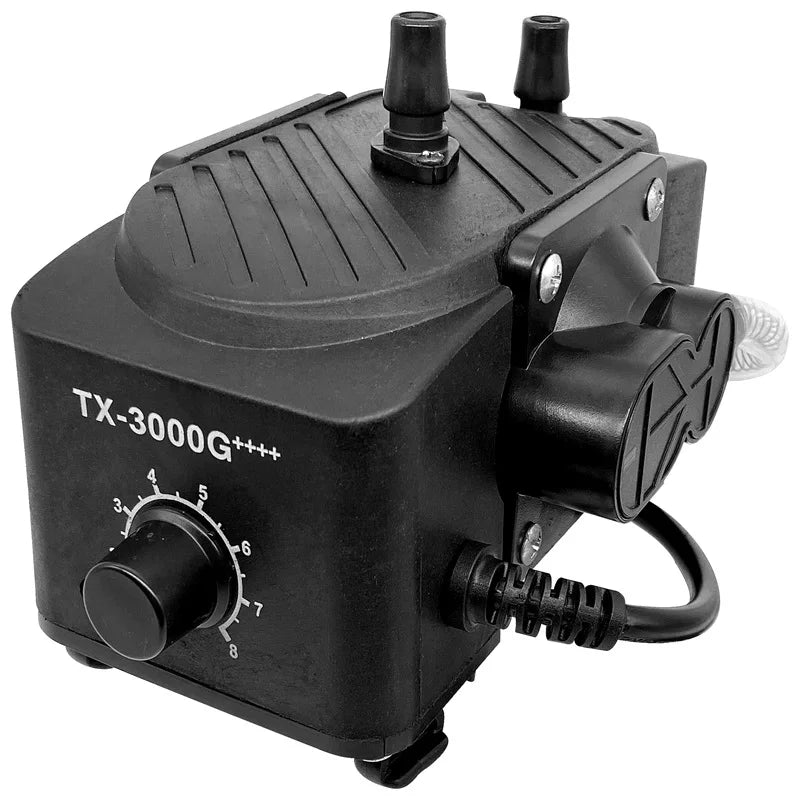

MP356 JD Diaphragm Air Pump, 26W 30L/min 25kPa AC220V Micro Compressor
The MP356 JD diaphragm air pump is a compact micro electric compressor designed for low-pressure air delivery in domestic and light industrial applications.
- 30 L/min Flow Rate
- 25 kPa Pressure
- 26 W Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The MP356 JD diaphragm air pump is a compact micro electric compressor designed for low-pressure air delivery in domestic and light industrial applications. Featuring eight-speed air volume adjustment, it provides flexible airflow control for precise operation.
With a flow rate of 30 L/min and low-noise operation at 45 dB, this pump is ideal for gas appliances and small-scale systems requiring stable and quiet air supply.

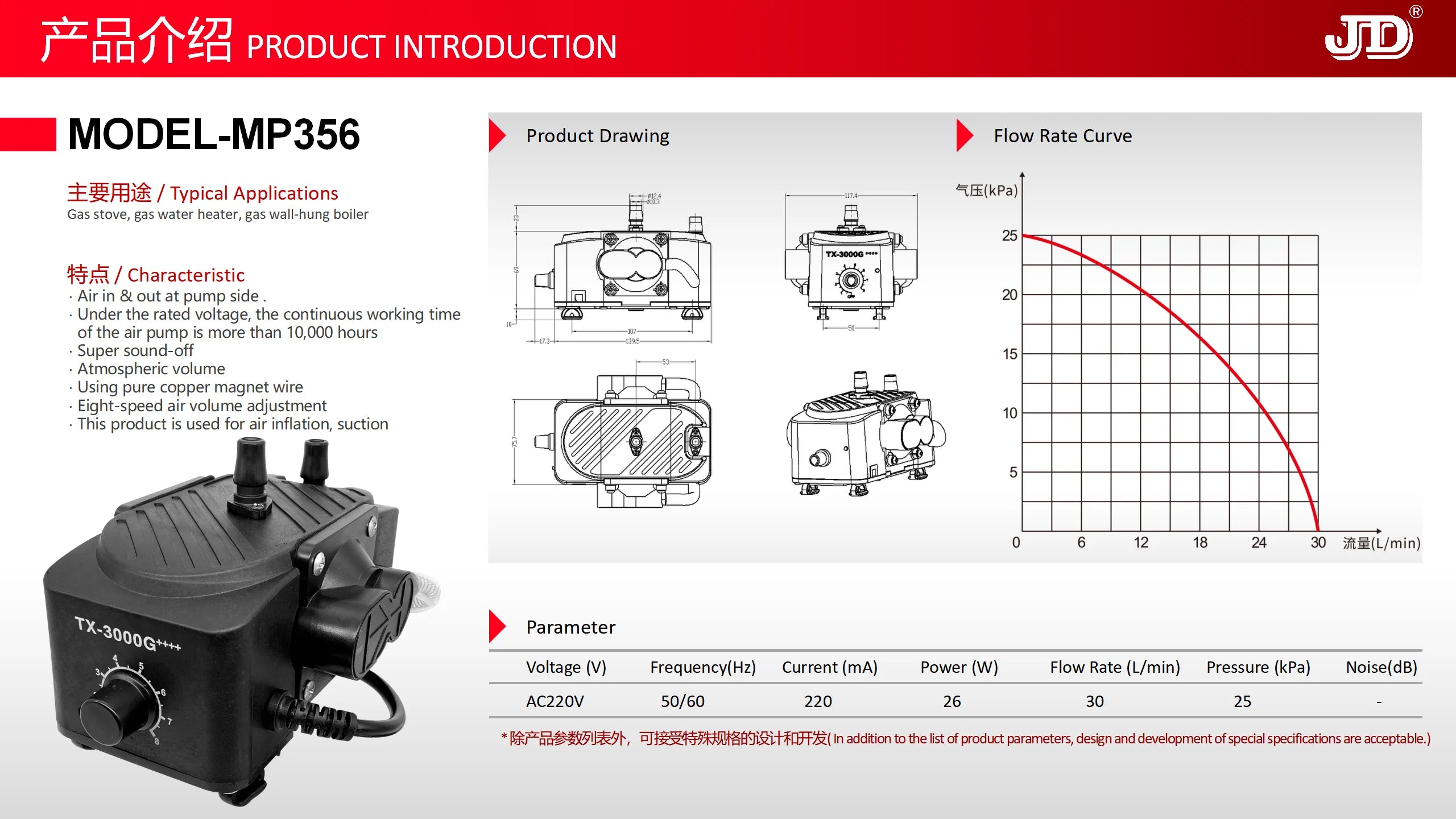

Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Micro Diaphragm Air Pump |
| Model | MP356 |
| Brand | JD Pump |
| Pump Type | Diaphragm Pump |
| Structure | Diaphragm |
| Pressure | 25 kPa |
| Flow Rate | 30 L/min |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Rating | 26 W |
| Voltage | AC 220V |
| Frequency | 50 / 60 Hz |
| Speed Control | 8-Speed Adjustable |
| Noise Level | 45 dB |
| Outlet Size | 5 mm |
| Cable Length | 20 cm |
| Pump Body Material | Engineering Plastic |
| Suitable Media | Air |
| Application Scope | Domestic / Light Industrial |
| Warranty | 12 Months |
Key Features
- Eight-speed adjustable airflow control
- Compact micro diaphragm design
- Low noise operation at 45 dB
- Energy-efficient 26W power consumption
- Stable and reliable airflow delivery
- Suitable for continuous low-pressure use
Typical Applications
- Gas stoves and water heaters
- Wall-hung boilers
- Small air supply systems
- Laboratory equipment
- Light industrial applications
- HVAC auxiliary systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
