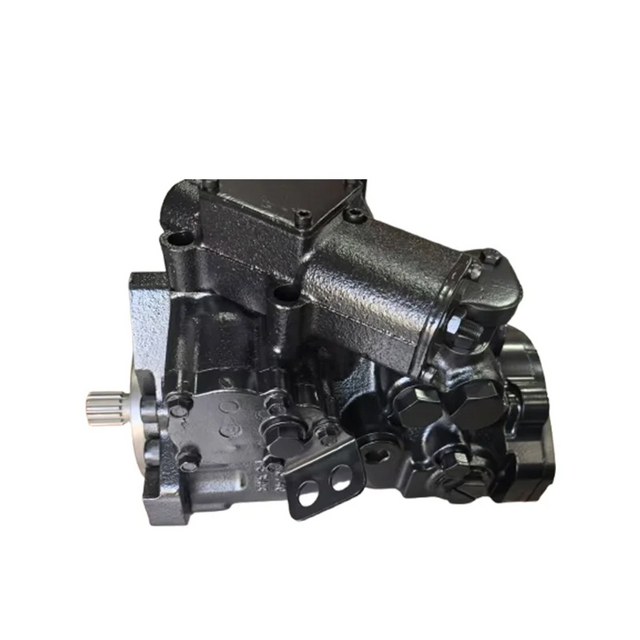

MPV046CBAARAABCABBDDAKBA Hydraulic Piston Pump, 46cc
The MPV046CBAARAABCABBDDAKBA hydraulic piston pump is a high-performance variable displacement axial piston pump from the M46 series, designed for closed circuit hydrostatic transmission systems.
- 46 cc/rev Displacement
- Up to 350 bar Max Continuous Pressure
- Configuration Dependent Rotation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The MPV046CBAARAABCABBDDAKBA hydraulic piston pump is a high-performance variable displacement axial piston pump from the M46 series, designed for closed circuit hydrostatic transmission systems. With a 46cc displacement per revolution, it delivers precise flow regulation and dependable power transmission in mobile and industrial machinery.
Engineered for durability and efficiency, the M46 series features a compact swashplate design, robust internal components, and reliable pressure control characteristics. This pump is commonly used in construction, agricultural, and material handling equipment where stable hydrostatic drive performance is essential.
Technical Specifications
| Specification | Value |
|---|---|
| Model | MPV046CBAARAABCABBDDAKBA |
| Series | M46 / MPV046 |
| Pump Type | Axial Piston Pump (Variable Displacement) |
| Circuit Type | Closed Circuit |
| Displacement | 46 cc/rev |
| Control Type | Hydraulic Displacement Control (Configuration Dependent) |
| Rotation | Configuration Dependent |
| Mounting Type | Flange Mount |
| Shaft Type | Splined Shaft |
| Max Continuous Pressure | Up to 350 bar |
| Peak Pressure | Up to 420 bar |
| Housing Material | High-Strength Cast Iron |
| Condition | New |
| Warranty | 12 Months |
Key Features
-
Variable displacement hydrostatic piston pump
-
Compact and high-efficiency swashplate design
-
Designed for closed circuit systems
-
High-pressure operating capability
-
Durable cast iron housing
-
Suitable for continuous-duty applications
Typical Applications
-
Hydrostatic drive systems
-
Construction equipment
-
Agricultural machinery
-
Road machinery
-
Material handling equipment
-
Mobile hydraulic systems
Shipping & Support
-
Fast dispatch - Australia & World wide shipping
-
Technical assistance available
-
12-month warranty
