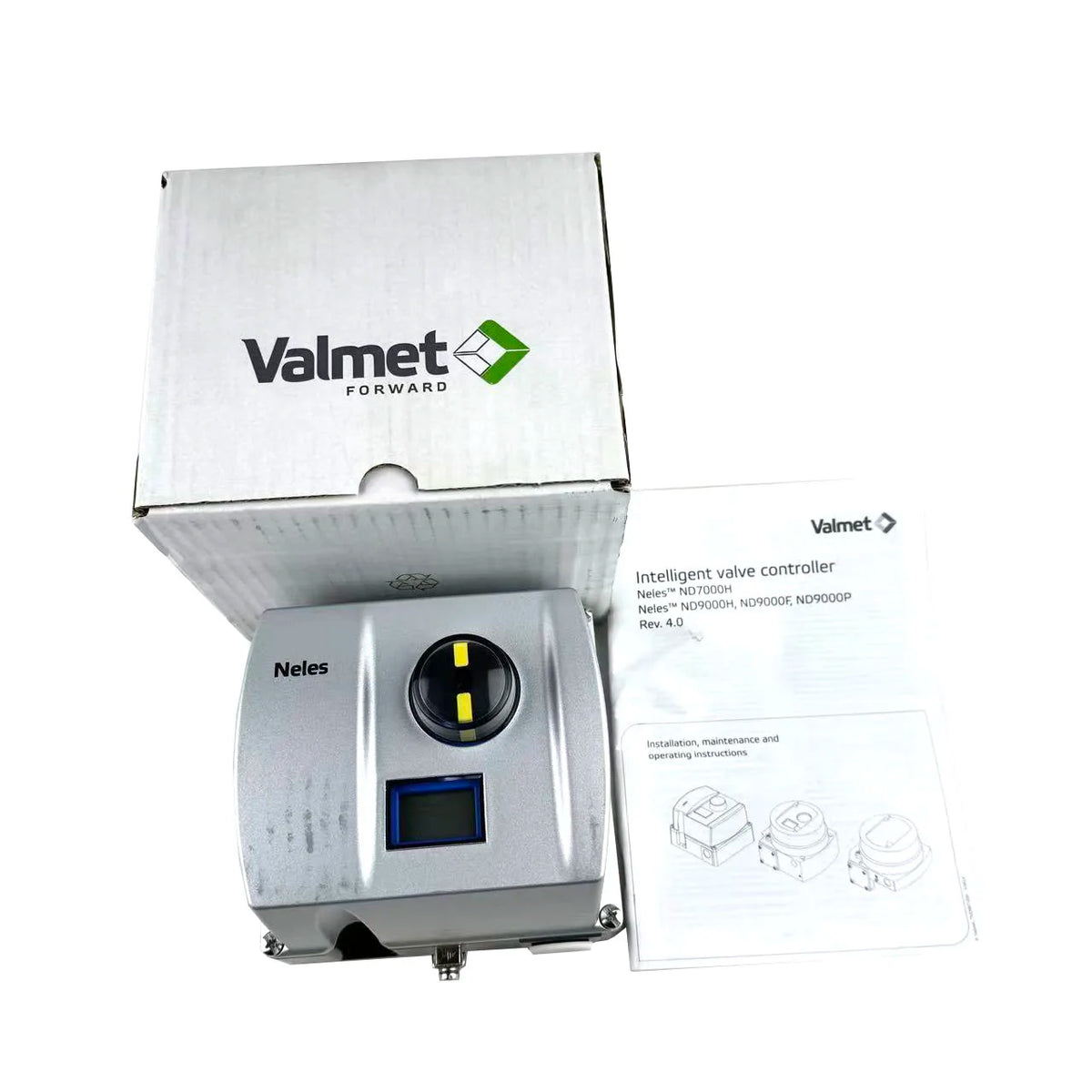

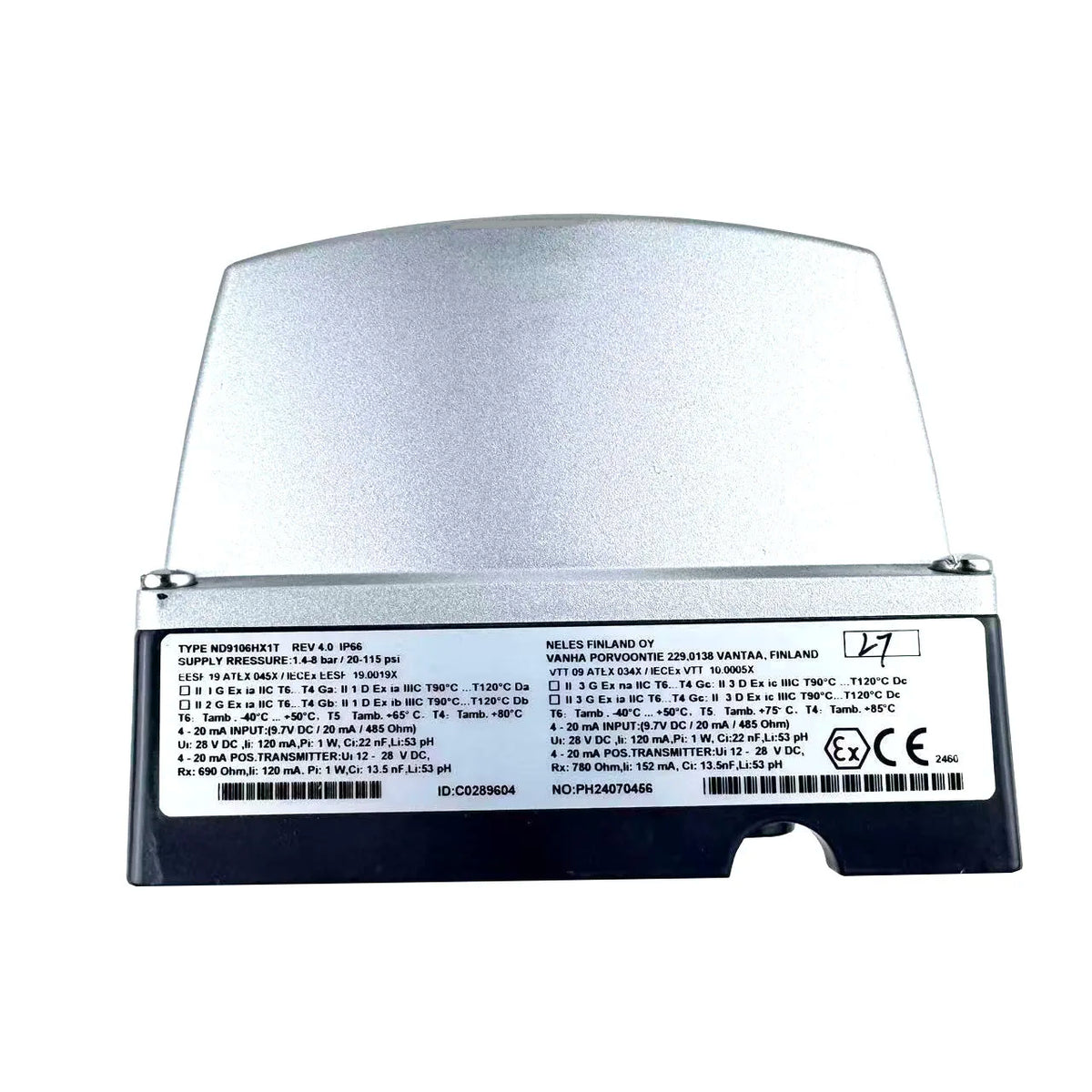

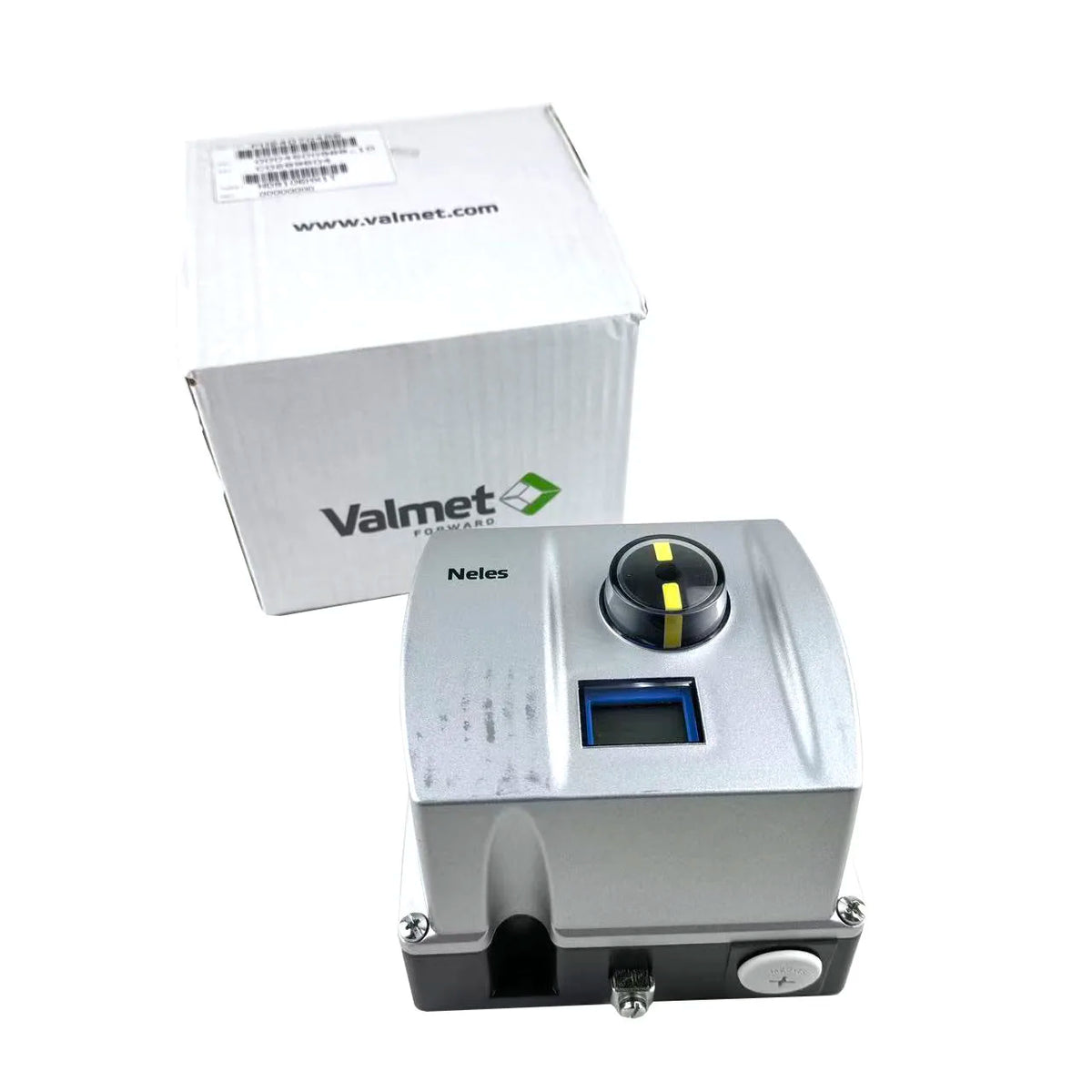

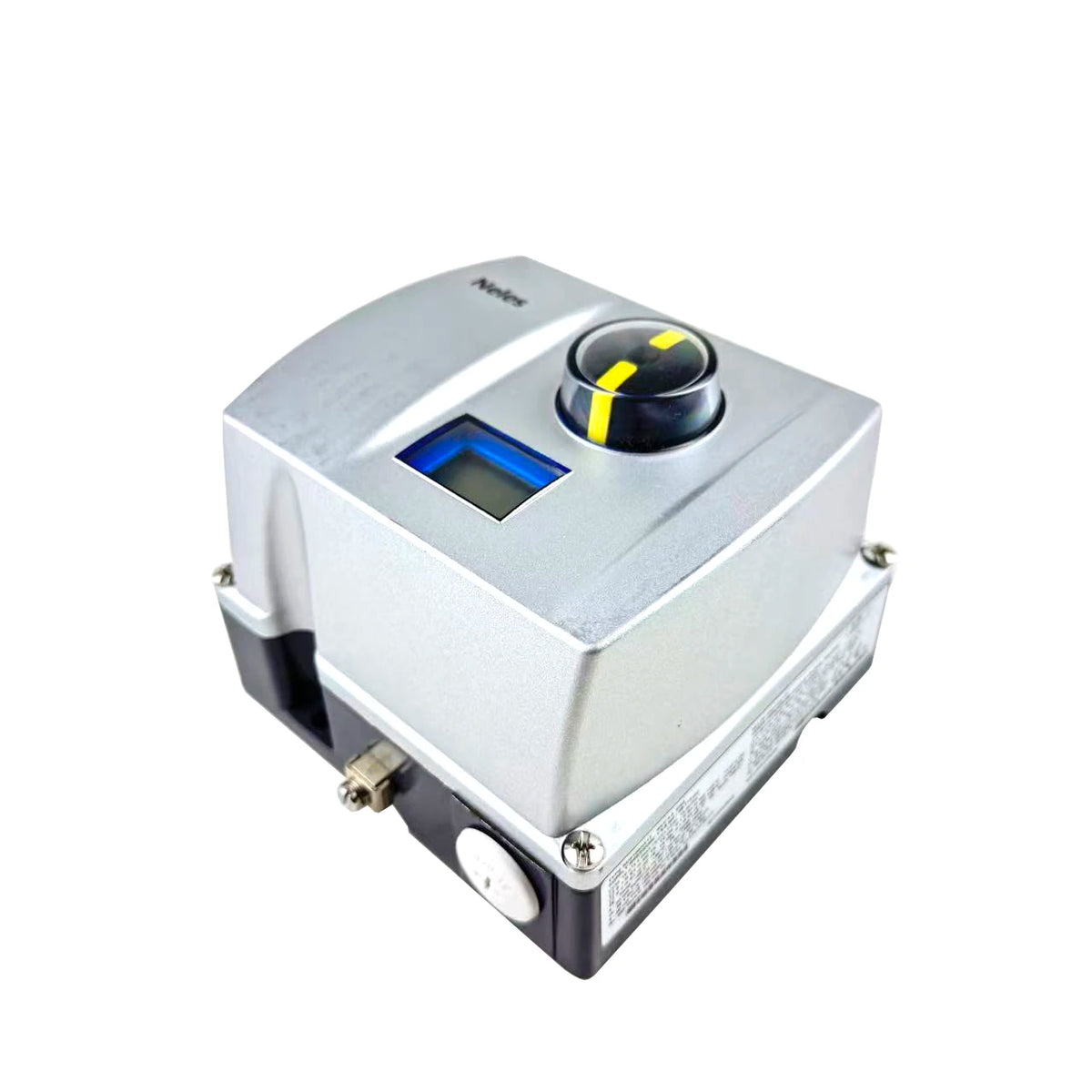

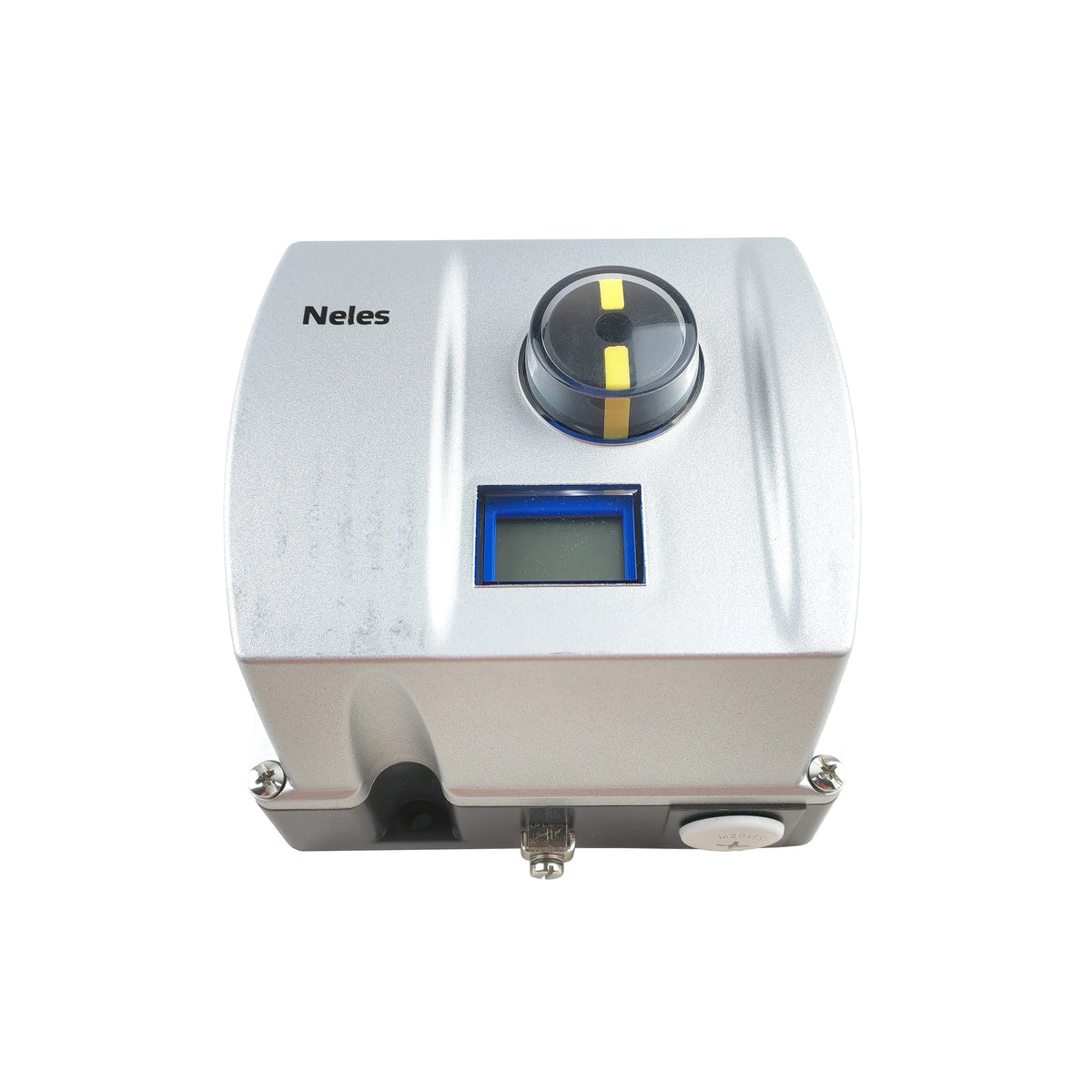

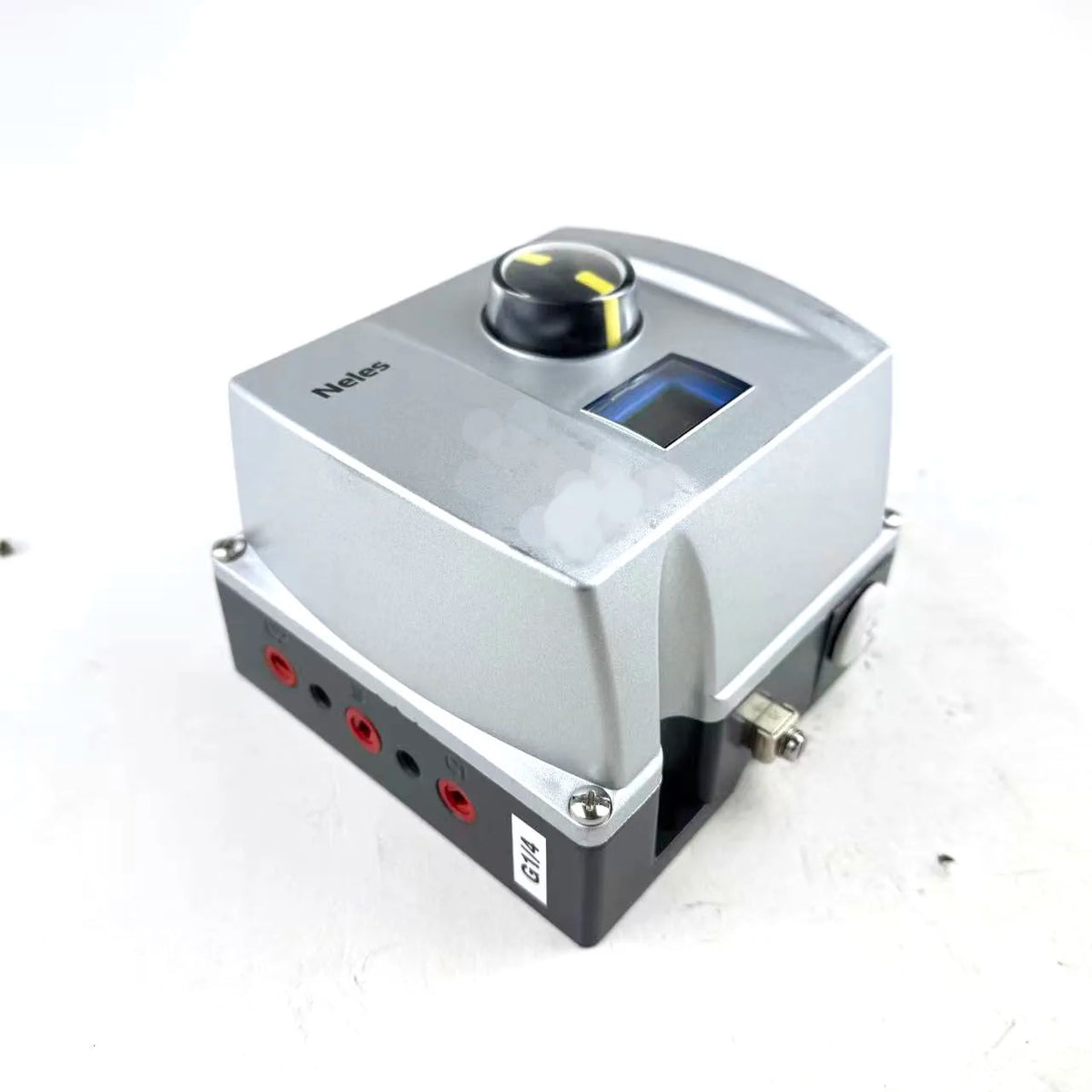

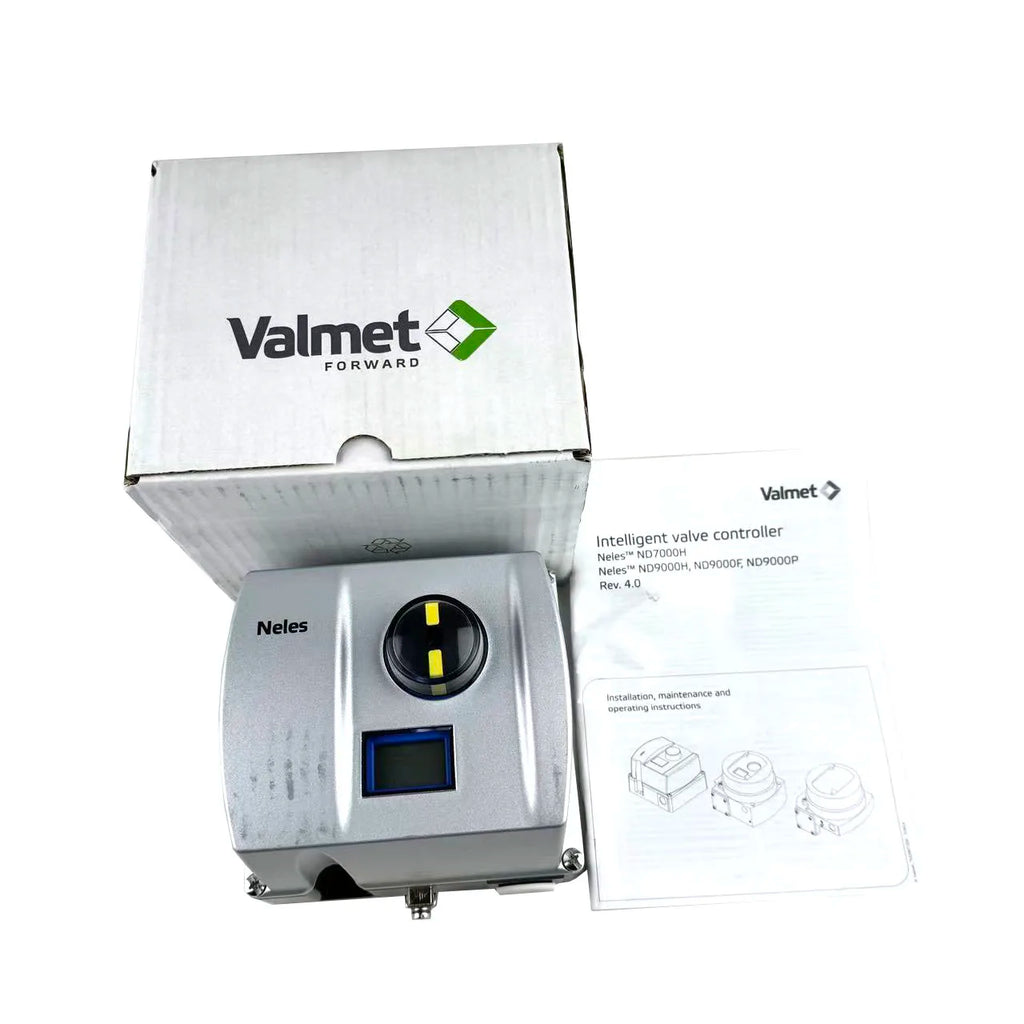

Neles ND9106HNT Intelligent Valve Positioner Explosion Proof
The Neles ND9106HNT Intelligent Valve Positioner is a top-tier smart electro-pneumatic positioner manufactured by Valmet under the renowned Neles brand.
- 1.4 to 8.0 bar (20 to 115 psi) Supply Air Pressure
- 9.7 VDC at 20 mA (10.2 VDC with HART) Minimum Terminal Voltage
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Neles ND9106HNT Intelligent Valve Positioner is a top-tier smart electro-pneumatic positioner manufactured by Valmet under the renowned Neles brand. Engineered for both rotary and linear pneumatic control valves, the ND9000 series positioner delivers precise dynamic control, benchmark operational reliability, and comprehensive online valve diagnostics. Operating on a two-wire 4 to 20 mA loop with full HART communication, the ND9106HNT ensures accurate valve stem modulation in the most demanding continuous process environments.
Built with an explosion-proof, flameproof, and intrinsically safe die-cast aluminium enclosure, this model is specifically engineered for classified hazardous areas. It features non-contact position sensing technology, eliminating physical mechanical linkages and sliding contacts to completely prevent wear, backlash, and measurement drift caused by pipeline vibration. Equipped with a high-flow pneumatic spool valve, local multilingual user interface with a graphical display, and integrated predictive diagnostics tracking valve travel, load, and pneumatic performance, the ND9106HNT is widely utilized across oil and gas refining, petrochemical facilities, pulp and paper plants, and power generation units.
Technical Specifications
| Specification | Value |
| Product Name | Intelligent Valve Positioner / Smart Position Controller |
| Manufacturer / Brand | Neles / Valmet |
| Model Number | ND9106HNT |
| Product Series | Neles ND9000 Series (ND9100 Tier) |
| Device Type | Microprocessor-Based Smart Electro-Pneumatic Positioner |
| Input Control Signal | 4 to 20 mA DC, Two-Wire Loop Powered |
| Communication Protocol | HART (Highway Addressable Remote Transducer) |
| Minimum Terminal Voltage | 9.7 VDC at 20 mA (10.2 VDC with HART) |
| Position Feedback Sensing | Non-Contact Magnetic Magnetoresistive Sensor |
| Actuator Compatibility | Rotary and Linear Pneumatic Actuators |
| Action Mode | Single-Acting or Double-Acting (Field Configurable) |
| Valve Stroke Range | Linear: 10 to 120 mm / Rotary: 45° to 95° |
| Supply Air Pressure | 1.4 to 8.0 bar (20 to 115 psi) |
| Pneumatic Flow Capacity | High Flow Delivery (Spool Valve Architecture) |
| Steady-State Air Consumption | Less than 0.22 Nm³/h at 4.0 bar |
| Housing Enclosure Material | Heavy-Duty Die-Cast Aluminium Alloy with Polyurethane Coating |
| Ingress Protection Rating | IP66 / NEMA 4X Weatherproof |
| Explosion Protection Rating | ATEX, IECEx, FM, CSA Explosion-Proof / Flameproof (Ex d) |
| Pneumatic Connections | 1/4 Inch NPT Female |
| Electrical Conduit Entries | M20 × 1.5 or 1/2 Inch NPT Female |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| User Interface & Display | Graphical LCD Display with 4-Button Local Keypad |
| Diagnostics Functionality | Online Valve Signature, Dynamic Performance, Cycle Counters |
| Approximate Net Weight | 3.8 kg (8.4 lb) |
| Condition | New |
| Warranty | 1 Year |
Key Features
Explosion-proof and flameproof enclosure engineered for hazardous zone installations
Non-contact magnetic position sensor eliminates mechanical linkage wear and backlash
Universal mounting capability suitable for single-acting and double-acting rotary and linear valves
Standard 4 to 20 mA control input with bidirectional HART communication for digital integration
Integrated local user interface with backlit graphic LCD display and intuitive navigation buttons
Automatic guided commissioning routines ensure rapid zero and span calibration
Robust die-cast aluminium housing with protective coating resists chemical corrosion and salt spray
High-capacity spool valve delivers rapid stroking speeds and low steady-state air consumption
Comprehensive predictive valve diagnostics monitor valve friction, packing condition, and air leaks
Typical Applications
Precision throttling control for rotary ball, eccentric plug, and high-performance butterfly valves
Sliding-stem linear globe valve actuation in chemical and steam process networks
Crude distillation, hydrocracking, and catalytic reforming units in oil refineries
Petrochemical continuous reactors, polymerization loops, and gas separation units
Pulp and paper stock preparation, bleaching towers, and recovery boiler control
Power generation high-pressure steam distribution and cooling water flow control
Offshore oil and gas platforms, FPSO vessels, and pipeline compressor stations
Shipping & Support
Fast dispatch: Australia & Worldwide Shipping
Technical assistance available
1-year warranty
