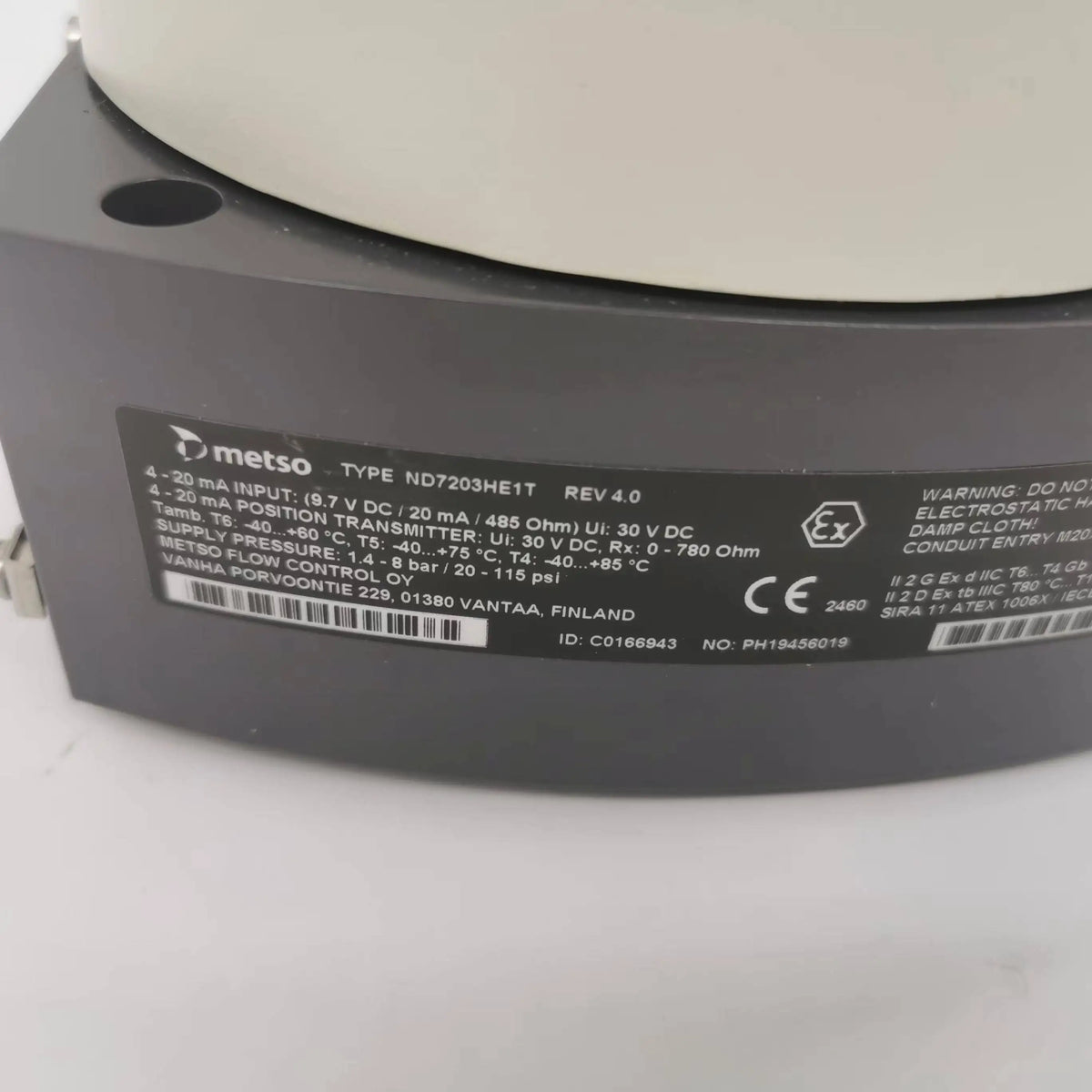

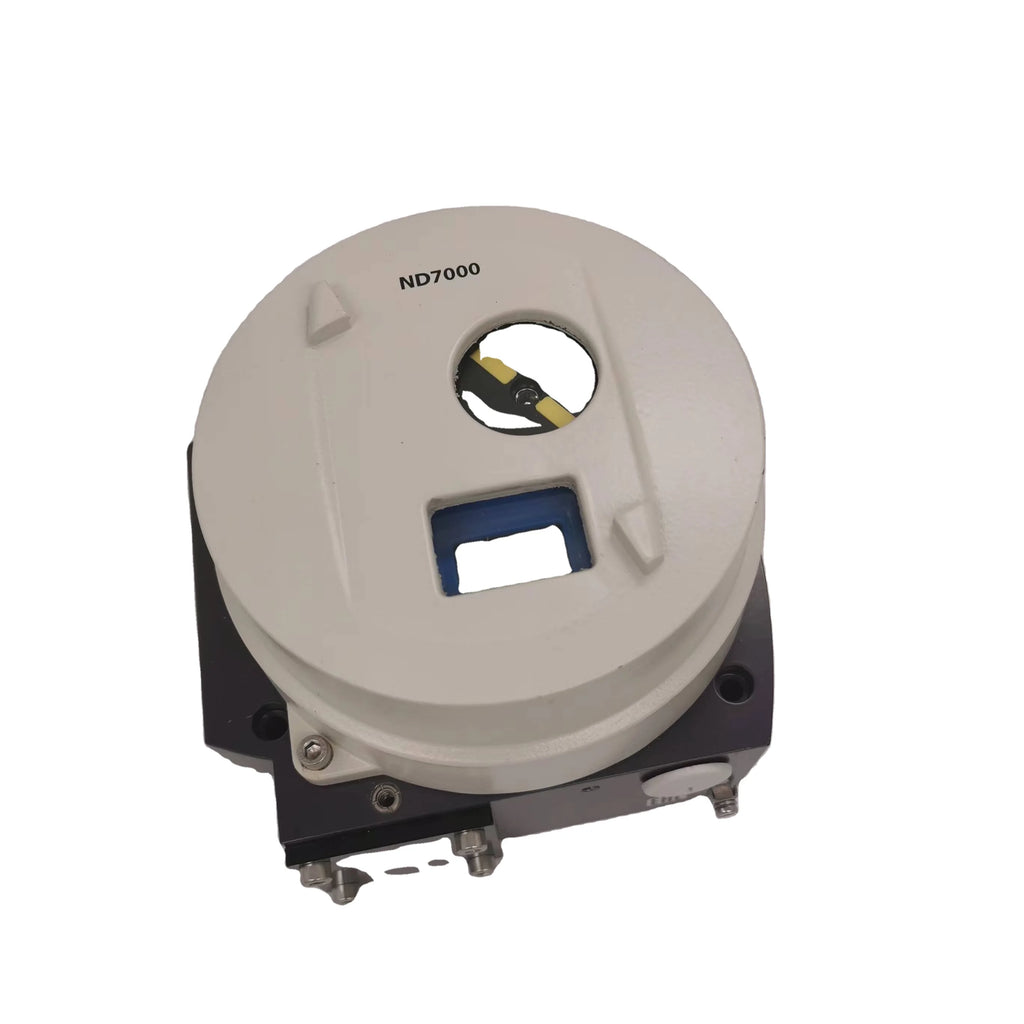

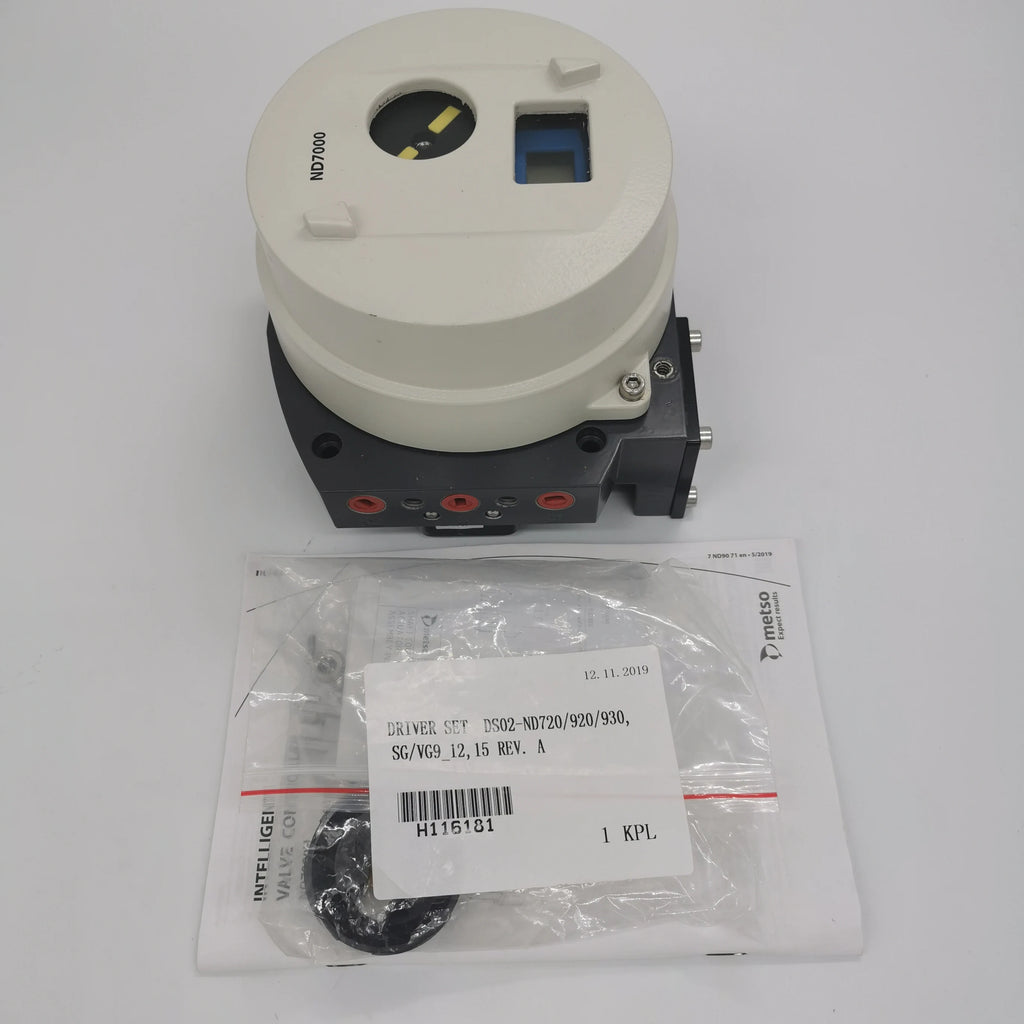

Neles ND7203HE1T Intelligent Digital Valve Positioner
The Neles ND7203HE1T Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in demanding industrial process environments.
- Single Acting and Double Acting Actuator Configuration
- 1.4–8 Bar (20–115 psi) Supply Air Pressure
- 12 Nm³/h at 4 Bar Supply Pneumatic Flow Capacity
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Neles ND7203HE1T Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in demanding industrial process environments. Manufactured under the Neles brand by Valmet, this intelligent electropneumatic valve controller operates using a standard 4–20 mA electrical input signal with HART digital communication. Its microprocessor-based control system continuously monitors valve position and adjusts pneumatic output pressure to achieve accurate, responsive and stable valve movement.
Part of the Neles ND7000 series, the ND7203HE1T features a medium-capacity pneumatic spool valve designed for actuators with stroke volumes of approximately 1–3 dm³. Its flameproof aluminium enclosure, IP66 / NEMA 4X protection, and ATEX/IECEx E1 approval configuration support suitable hazardous-area installations. The integrated passive 4–20 mA position transmitter provides an independent analogue valve position feedback signal for compatible control systems. With automatic calibration, contactless position sensing and advanced diagnostic functions, this positioner is suitable for oil and gas facilities, chemical processing plants, power generation, water treatment and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Valve Positioner |
|
Brand |
Neles / Valmet |
|
Manufacturer |
Valmet |
|
Model |
ND7203HE1T |
|
Series |
ND7000 |
|
Product Type |
Intelligent Electropneumatic Valve Controller |
|
Control Technology |
Microprocessor-Based Digital Control |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Operating Mode |
Two-Wire, Loop Powered |
|
Actuator Configuration |
Single Acting and Double Acting |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Spool Valve Capacity |
Medium Capacity, Size 03 |
|
Recommended Actuator Stroke Volume |
1–3 dm³ |
|
Pneumatic Flow Capacity |
12 Nm³/h at 4 Bar Supply |
|
Supply Air Pressure |
1.4–8 Bar (20–115 psi) |
|
Position Feedback Transmitter |
Included, T Option |
|
Position Feedback Output |
4–20 mA, Passive Two-Wire |
|
Position Transmitter Supply |
12–30 V DC |
|
Position Transmitter Load |
0–780 Ω, Subject to Approval Limits |
|
Enclosure Material |
Anodised Aluminium Alloy and Tempered Glass |
|
Enclosure Configuration |
Flameproof (Ex d) |
|
Hazardous Area Certification |
ATEX / IECEx, E1 Configuration |
|
Protection Rating |
IP66 / NEMA 4X |
|
Pneumatic Connections |
1/4 Inch NPT |
|
Electrical Cable Entry |
M20 × 1.5 |
|
Standard Operating Temperature |
−40°C to +85°C, Subject to Temperature Class |
|
Position Measurement |
Contactless Electronic Position Sensor |
|
Calibration |
Automatic and Manual |
|
Diagnostic Functions |
Self-Diagnostics, Valve Performance and Instrument Monitoring |
|
Local Interface |
Integrated Local User Interface |
|
Mounting Compatibility |
VDI/VDE 3845 and IEC 60534-6 |
|
Approximate Weight |
3.4 kg |
|
Working Medium |
Clean, Dry Instrument Air |
|
Application Scope |
Industrial Pneumatic Valve Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent digital valve positioning for accurate pneumatic actuator control.
-
Standard 4–20 mA electrical input signal for industrial automation systems.
-
HART communication for remote configuration, monitoring and diagnostics.
-
Medium-capacity pneumatic spool valve for actuators with stroke volumes of 1–3 dm³.
-
Compatible with single-acting and double-acting pneumatic actuators.
-
Built-in passive 4–20 mA position transmitter for independent valve travel feedback.
-
Contactless position measurement for accurate actuator movement monitoring.
-
Microprocessor-based control technology for responsive and stable valve positioning.
-
Automatic and manual calibration to simplify setup and commissioning.
-
Flameproof enclosure with ATEX and IECEx E1 approval configuration.
-
Durable anodised aluminium alloy housing with a tempered glass viewing window.
-
IP66 / NEMA 4X protection against dust and water ingress.
-
Pneumatic supply pressure range of 1.4–8 bar.
-
Integrated local user interface for configuration and monitoring.
-
Diagnostic functions for monitoring valve position, actuator pressure and instrument performance.
Typical Applications
-
Industrial process automation systems
-
Single-acting and double-acting pneumatic control valves
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Rotary ball and butterfly valve automation
-
Linear pneumatic control valve positioning
-
Industrial flow and pressure regulation systems
-
Distributed control systems with HART communication
-
Hazardous-area industrial instrumentation
