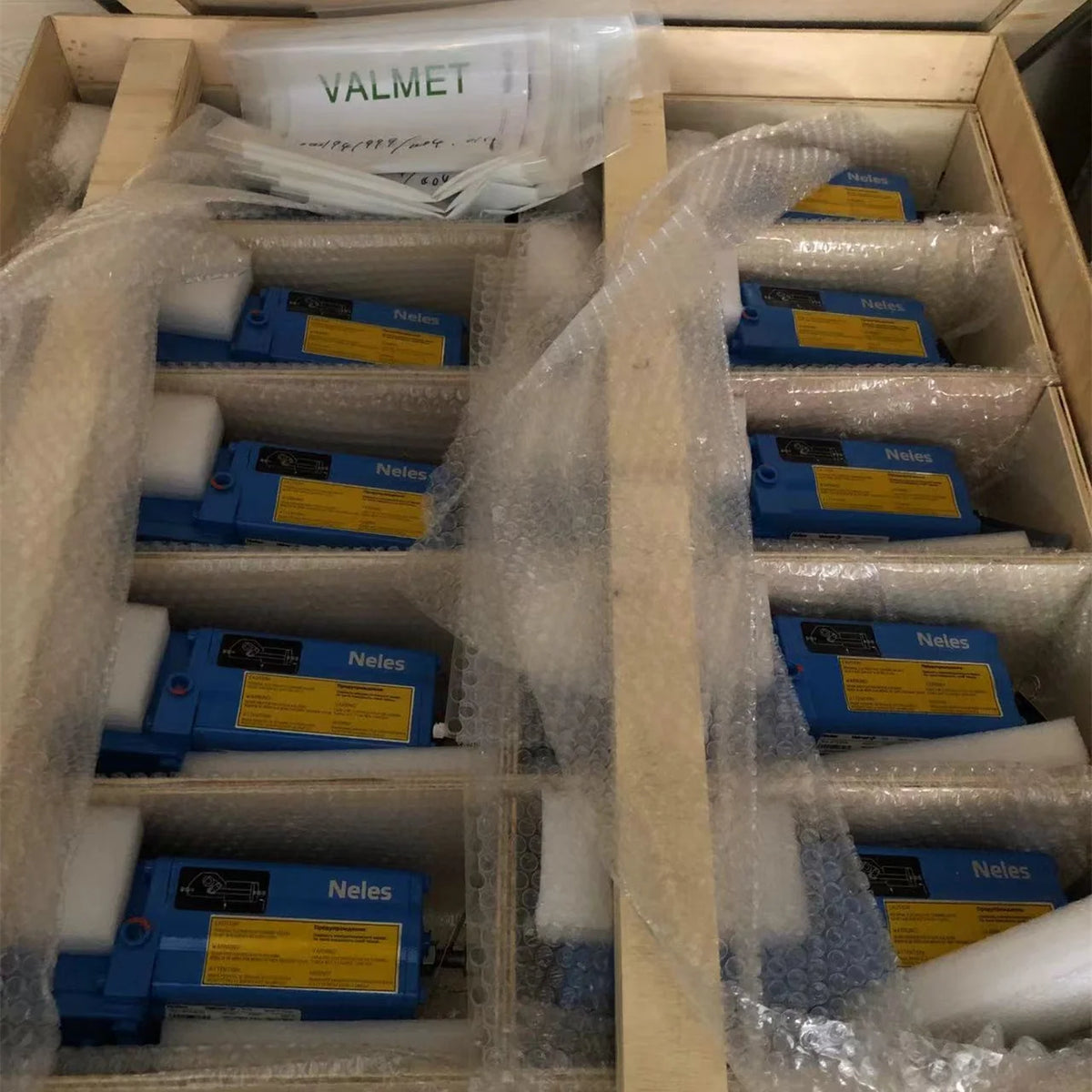

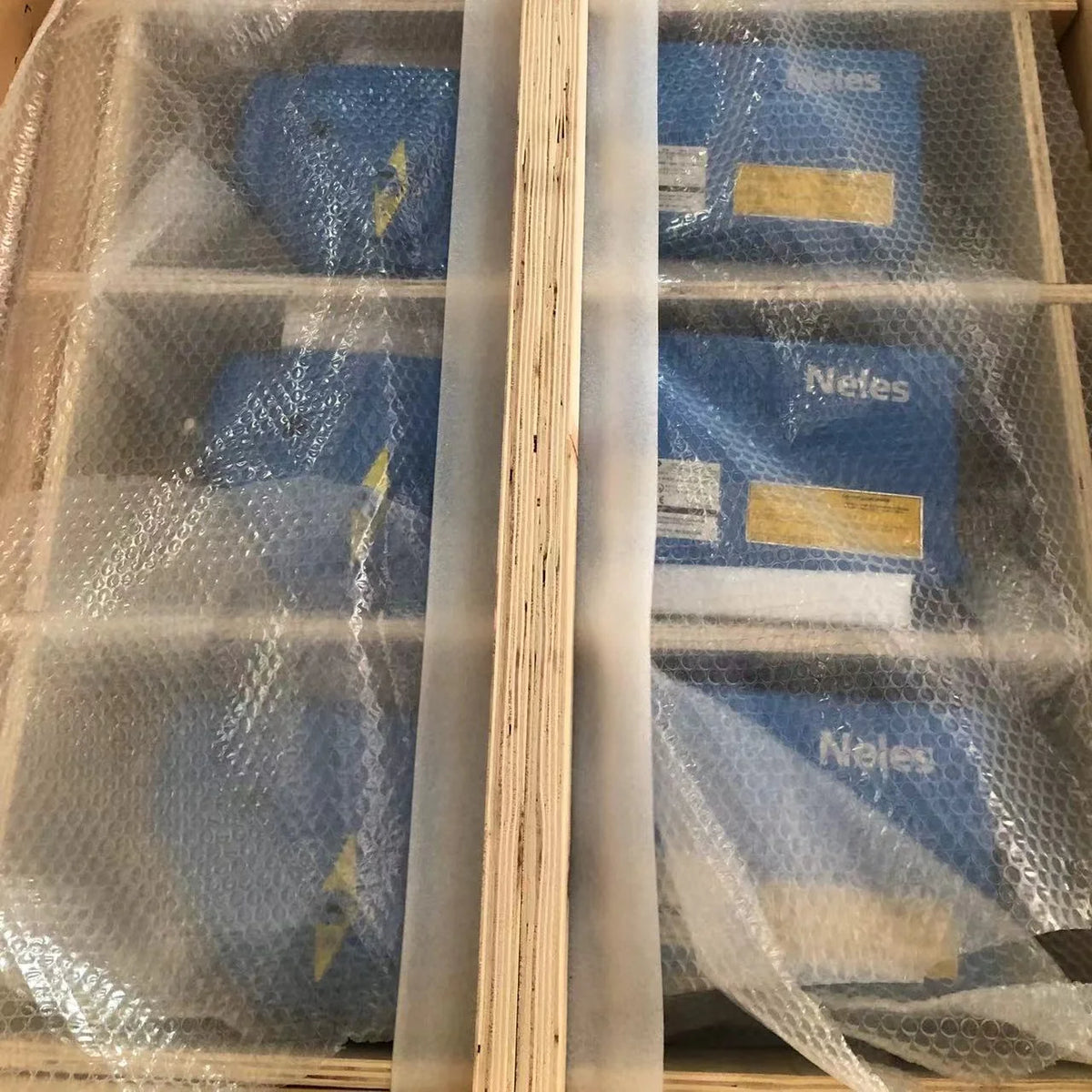

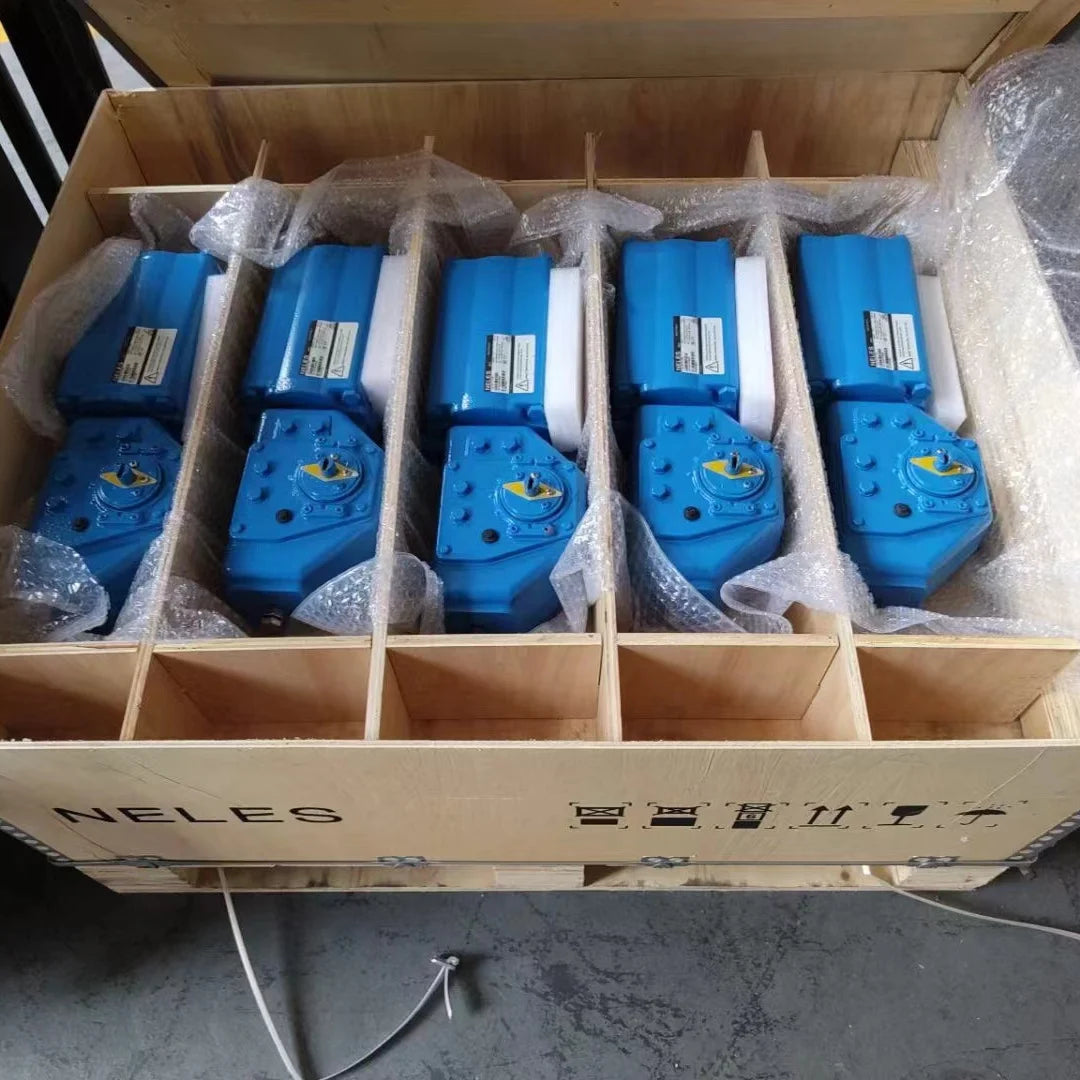

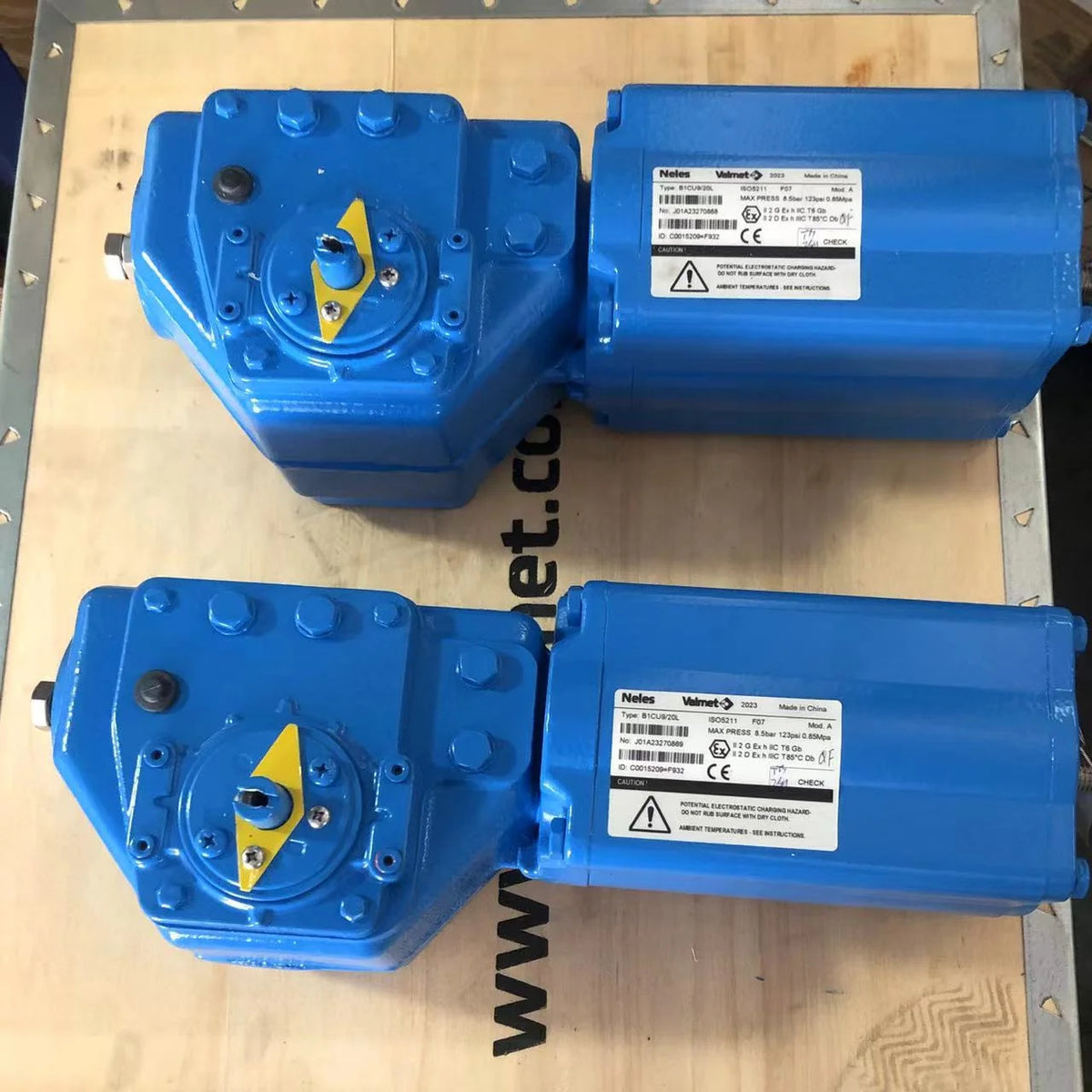

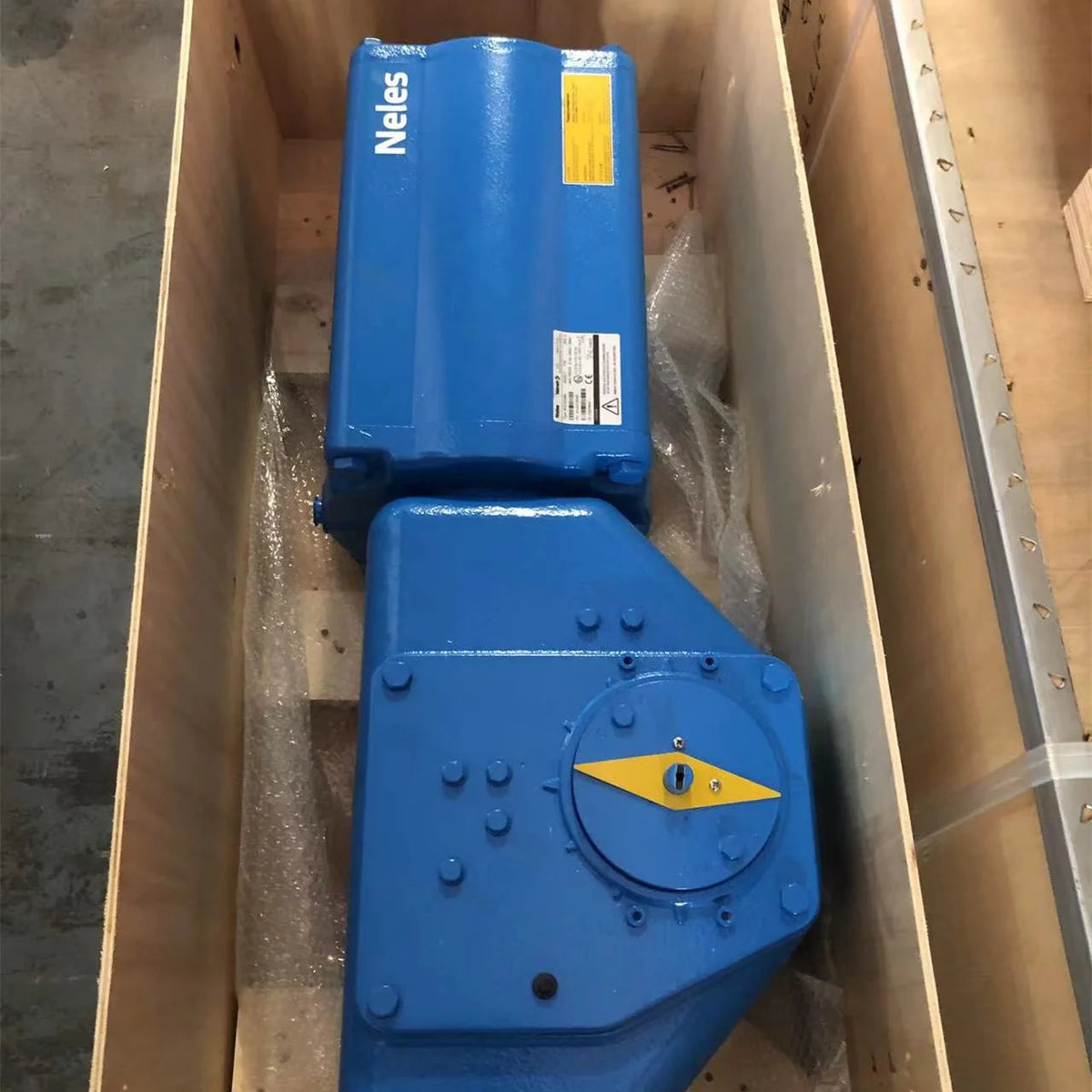

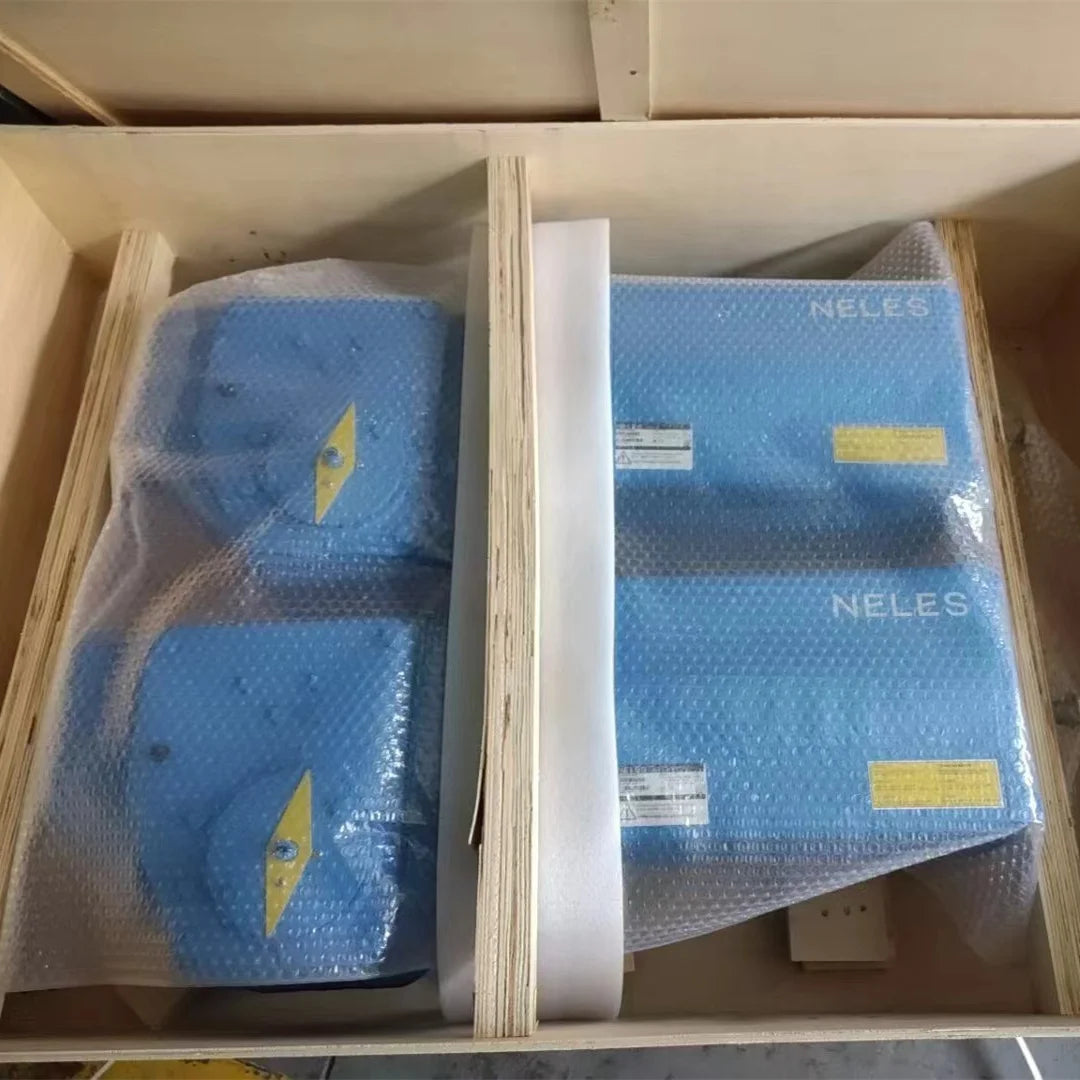

Valmet Neles B1CU Double-Acting Pneumatic Cylinder Actuator
The Valmet Neles B1CU Double-Acting Pneumatic Cylinder Actuator is designed for reliable automated operation of rotary valves in industrial process control systems.
- Double Acting Actuator Configuration
- 2.8–10 Bar Supply Pressure Range, Series
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Valmet Neles B1CU Double-Acting Pneumatic Cylinder Actuator is designed for reliable automated operation of rotary valves in industrial process control systems. Manufactured by Valmet under the Neles brand, this actuator uses compressed instrument air to generate rotational torque for opening, closing, and positioning compatible quarter-turn valves. Its double-acting piston mechanism provides controlled movement in both directions, supporting accurate valve operation and dependable industrial performance.
Part of the Neles B1C Series, the B1CU features a rugged pneumatic cylinder design, articulated lever mechanism, and corrosion-resistant construction for demanding operating environments. It supports both modulating and on-off valve control applications and is compatible with suitably sized ball, butterfly, and other rotary valves. Its durable construction makes it suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Double-Acting Pneumatic Cylinder Actuator |
|
Manufacturer / Brand |
Valmet / Neles |
|
Model |
B1CU Series |
|
Product Series |
B1C |
|
Product Type |
Pneumatic Rotary Actuator |
|
Actuator Configuration |
Double Acting |
|
Operating Principle |
Pneumatic Piston and Lever Mechanism |
|
Valve Movement |
Quarter Turn |
|
Rotation Angle |
90° Nominal |
|
Supply Pressure Range, Series |
2.8–10 Bar |
|
Torque Range, B1 Series |
28–100,000 Nm |
|
Temperature Range, B1 Series |
−55°C to +120°C, Depending on Version |
|
Enclosure Protection, Series |
IP66 / IP67 |
|
Valve Compatibility |
Ball, Butterfly and Other Rotary Valves |
|
Valve Control |
On-Off and Modulating |
|
Mounting Interface |
ISO 5211 |
|
Accessory Mounting |
VDI/VDE 3845 |
|
Positioner Compatibility |
Compatible Neles Valve Positioners |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Double-acting pneumatic cylinder design for bidirectional valve control
Quarter-turn operation for compatible rotary valves
Pneumatic supply pressure range of 2.8–10 bar across the B1 Series
Articulated lever mechanism for efficient torque transmission
Rugged construction for demanding industrial environments
Supports both modulating and on-off valve applications
Corrosion-resistant design for improved service life
ISO 5211 mounting interface for compatible valves
Compatible with suitable Neles positioners and valve accessories
Designed for reliable industrial operation and maintenance
Typical Applications
Industrial rotary valve automation
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing and automation
Pneumatic ball valve actuation
Butterfly valve automation systems
Industrial flow control and emergency shutdown applications
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
