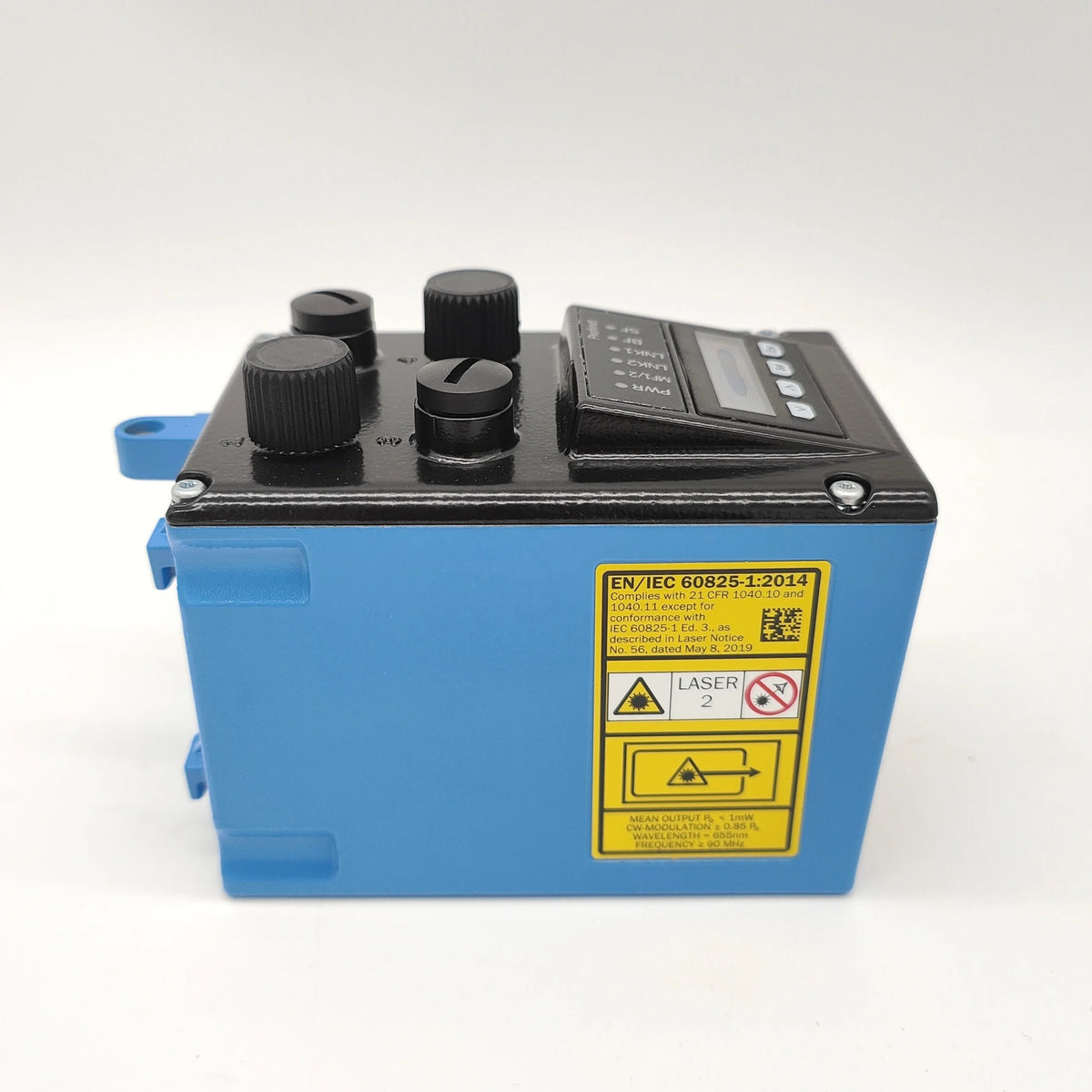

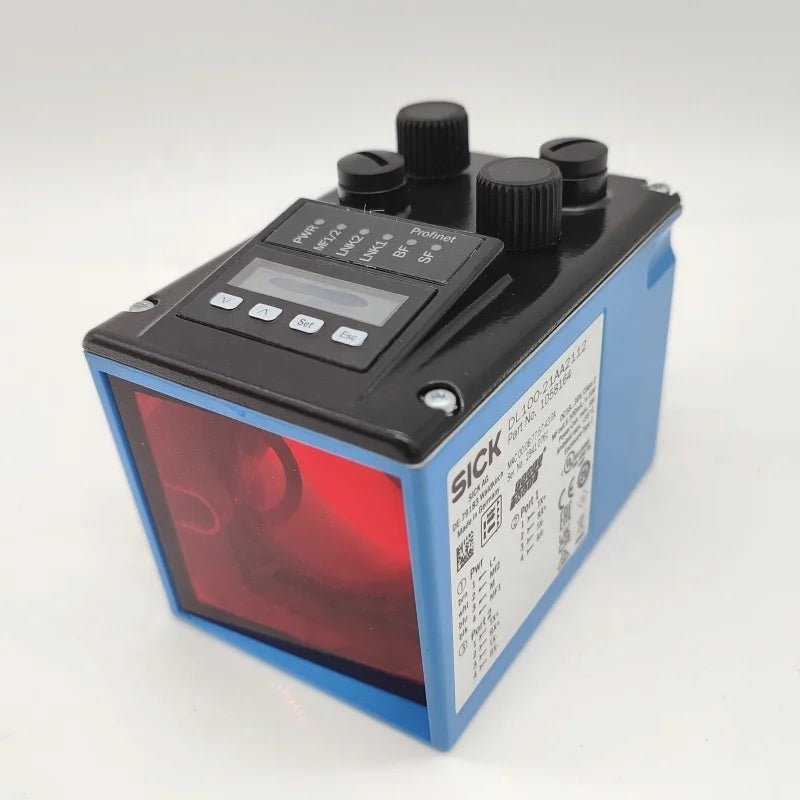

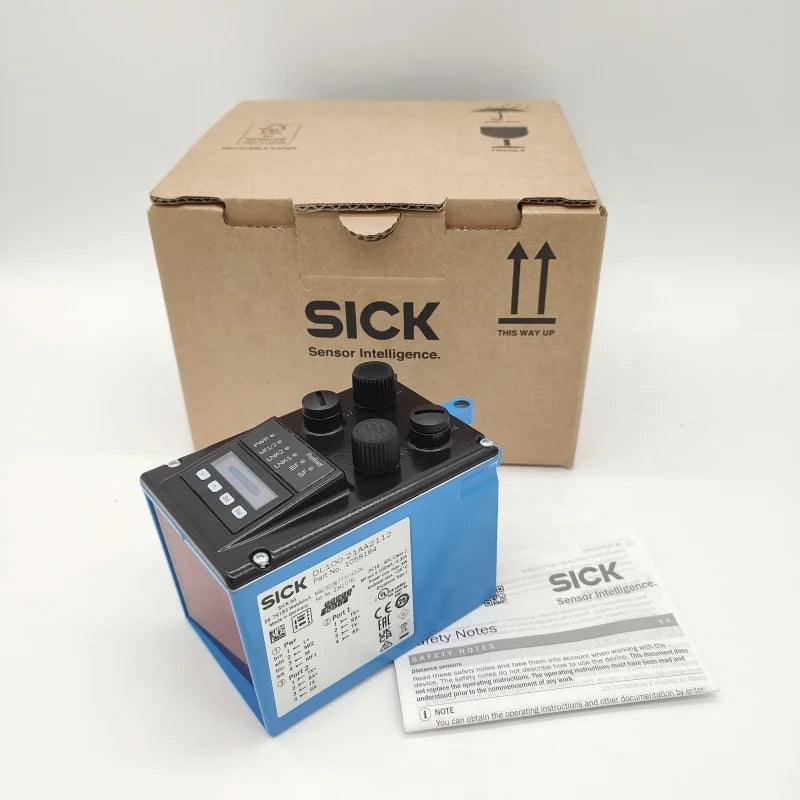

SICK DL100-21AA2112 Dx100 PROFINET Laser Distance Sensor, 100m
The SICK DL100-21AA2112 Dx100 Laser Distance Sensor is designed for precise, non-contact distance measurement and automated positioning in industrial automation systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The SICK DL100-21AA2112 Dx100 Laser Distance Sensor is designed for precise, non-contact distance measurement and automated positioning in industrial automation systems. Manufactured by SICK Sensor Intelligence, this long-range sensor uses laser-based optical measurement technology to determine distances between the sensor and a reflective target. With a measuring range of 0.15–100 metres, ±2 mm measurement accuracy, and PROFINET communication, it delivers reliable position data for automated machinery, material handling equipment, and industrial motion control applications.
Part of the SICK Dx100 series, the DL100-21AA2112 features a durable die-cast aluminium housing, visible red laser technology, and high-speed measurement capabilities for demanding industrial environments. Its integrated six-digit display, status LEDs, and configurable digital outputs simplify installation, monitoring, and system integration. Designed for indoor applications, the sensor supports accurate positioning of automated storage and retrieval systems, stacker cranes, transfer vehicles, and conveyor equipment. Its IP65 enclosure protection and industrial communication interface make it suitable for continuous monitoring and positioning applications requiring dependable distance measurement.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Laser Distance Sensor |
|
Brand |
SICK |
|
Manufacturer |
SICK AG |
|
Model |
DL100-21AA2112 |
|
Manufacturer Part Number |
1058164 |
|
Series |
Dx100 |
|
Product Type |
Long-Range Laser Distance Sensor |
|
Sensor Technology |
Optical Laser Distance Measurement |
|
Measurement Principle |
Laser Time-of-Flight Technology |
|
Measuring Range |
0.15–100 m |
|
Measurement Target |
Reflective Tape, Diamond Grade |
|
Measurement Accuracy |
±2 mm |
|
Repeatability |
0.5 mm |
|
Adjustable Resolution |
0.1, 0.125, 1, 10 or 100 mm |
|
Response Time |
2 ms |
|
Measurement Cycle Time |
1 ms |
|
Maximum Movement Speed |
15 m/s |
|
Light Source |
Visible Red Laser |
|
Laser Classification |
Class 2 |
|
Communication Interface |
PROFINET |
|
Digital Outputs |
2 Push-Pull Outputs, PNP/NPN |
|
Maximum Output Current |
100 mA |
|
Supply Voltage |
18–30 V DC |
|
Current Consumption |
Less Than 250 mA at 24 V DC |
|
Connection Type |
M12 Male Connector, SPEEDCON Compatible |
|
Display Type |
Six-Digit Dot Matrix Display with LEDs |
|
Housing Material |
Die-Cast Aluminium |
|
Optical Window Material |
PMMA Plastic |
|
Protection Rating |
IP65 |
|
Protection Class |
III |
|
Operating Temperature |
-20°C to +55°C |
|
Dimensions |
69.4 × 82.5 × 100.2 mm |
|
Approximate Weight |
800 g, Excluding Mounting Bracket |
|
Application Scope |
Industrial Distance Measurement and Positioning |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Long-range laser distance measurement from 0.15 to 100 metres for industrial positioning applications.
-
High measurement accuracy of ±2 mm for reliable distance monitoring.
-
Repeatability of 0.5 mm for consistent measurement performance.
-
Visible red Class 2 laser technology for non-contact distance measurement.
-
PROFINET communication interface for integration into industrial automation networks.
-
Two configurable push-pull digital outputs supporting PNP/NPN operation.
-
Fast 2 ms response time and 1 ms measurement cycle for dynamic positioning applications.
-
Adjustable measurement resolution to accommodate different industrial control requirements.
-
Durable die-cast aluminium housing for mechanical protection in industrial environments.
-
IP65 enclosure protection against dust and water jets.
-

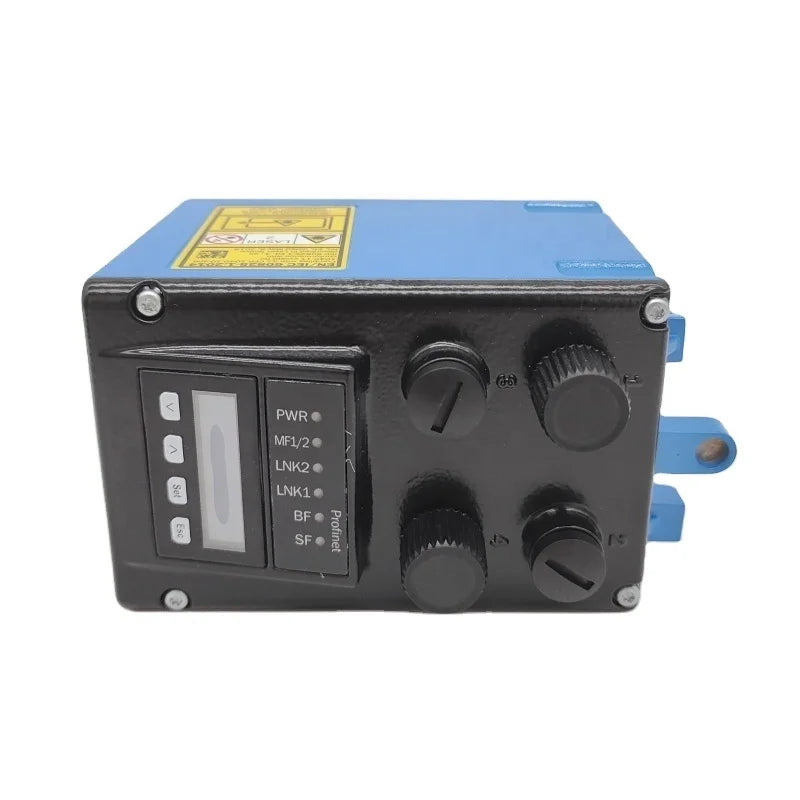

Integrated six-digit display and LED indicators for convenient monitoring and configuration.
-
Operating voltage range of 18–30 V DC for compatible industrial electrical systems.
-
M12 SPEEDCON-compatible connector for convenient electrical integration.
-
Supports moving equipment speeds up to 15 m/s under specified operating conditions.
-
Compact construction suitable for installation on automated machinery and positioning equipment.
-
Designed for dependable operation in indoor material handling, logistics, and industrial automation systems.
Typical Applications
-
Automated storage and retrieval systems (AS/RS)
-
Stacker crane positioning and control
-
Automated warehouse equipment
-
Conveyor positioning systems
-
Industrial transfer vehicles
-
Automated guided vehicle positioning
-
Industrial material handling machinery
-
Overhead crane positioning systems
-
Warehouse and logistics automation
-
Industrial motion control systems
-
Manufacturing and production equipment
-
Automated transport and handling systems
-
Non-contact industrial distance measurement
-
Industrial positioning and process monitoring
