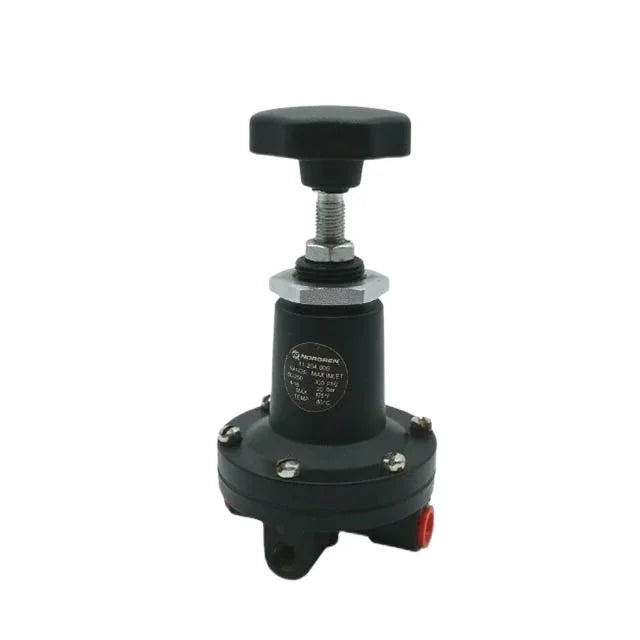

Norgren 11-204-006 G1/4 High-Precision Pilot Operated Pressure Regulator
The Norgren 11-204-006 Pressure Regulator is an industrial high-precision, pilot-operated pressure-reducing valve designed to deliver exact and repeatable compressed air pressure control.
- Two G1/4 Ports Pressure Gauge Ports
- Up to 18 dm³/s (38 scfm) Flow Capacity
- G1/4 Female (ISO 228-1) Port Size / Connection
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Norgren 11-204-006 Pressure Regulator is an industrial high-precision, pilot-operated pressure-reducing valve designed to deliver exact and repeatable compressed air pressure control. Manufactured by IMI Norgren under the established 11-204 Series, this regulator utilizes a multi-stage pilot-operated diaphragm mechanism to provide high flow capability while maintaining exceptionally low droop across shifting inlet pressures and fluctuating downstream demands.
Constructed with a heavy-duty zinc alloy body and a brass bonnet, the 11-204-006 is engineered for demanding industrial pneumatic networks. It features standard G1/4 female threaded ports and an integrated feedback pilot circuit that continuously monitors and compensates downstream pressure with high sensitivity. A built-in high-capacity relief mechanism allows rapid dissipation of downstream overpressure, making this unit well suited for industrial test benches, pneumatic air gauging, precision robotics, calibration instrumentation, and process automation circuits.
Technical Specifications
| Specification | Value |
| Product Name | High-Precision Pilot-Operated Pressure Regulator |
| Manufacturer / Brand | IMI Norgren |
| Model Number | 11-204-006 |
| Product Series | 11-204 Series |
| Regulator Type | Feedback Pilot-Operated Diaphragm Regulator |
| Port Size / Connection | G1/4 Female (ISO 228-1) |
| Pressure Gauge Ports | Two G1/4 Ports |
| Maximum Inlet Pressure | 14 bar (200 psi) |
| Outlet Pressure Adjustment Range | 0.16 to 7.0 bar (2.3 to 100 psi) |
| Flow Capacity | Up to 18 dm³/s (38 scfm) |
| Body Material | Die-Cast Zinc Alloy |
| Bonnet Material | Brass / Zinc Alloy |
| Diaphragm & Seal Material | Nitrile Rubber (NBR) |
| Relieving Mechanism | Relieving Type with High Exhaust Capacity |
| Sensitivity / Repeatability | ±0.5% of Span |
| Operating Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Adjustment Mechanism | Precision Adjustment Knob with Locknut |
| Mounting Orientation | In-Line or Panel Mounting |
| Approximate Weight | 0.85 kg (1.87 lb) |
| Operating Medium | Clean, Dry Compressed Air, Neutral Gases |
| Condition | New |
| Warranty | 1 Year |
Key Features
Multi-stage pilot-operated design delivers outstanding pressure stability with minimal droop
High-precision downstream feedback sensing ensures consistent setpoint repeatability
Integrated high-capacity internal relief valve quickly relieves excess downstream pressure
Rugged die-cast zinc alloy housing engineered for harsh industrial operating environments
Standard G1/4 threaded ports provide clean in-line installation into pneumatic systems
Dual gauge ports allow flexible installation of pressure indicators or remote monitoring lines
Smooth adjustment control knob equipped with positive locking nut to prevent setpoint tampering
Wide operating temperature resilience ranging from -20°C to +80°C for diverse industrial settings
Fast dynamic response ensures constant pressure delivery under intermittent flow demands
Typical Applications
Precision pneumatic air gauging and metrology systems
High-accuracy pilot control for larger volume regulators and booster valves
Calibration test benches and laboratory pneumatic supply skids
Industrial robotics, automated assembly lines, and tension control systems
Paint spraying, coating systems, and precision fluid dispensing automation
Packaging and printing machinery pneumatic tension networks
General industrial instrumentation air regulation and sensitive control circuits
