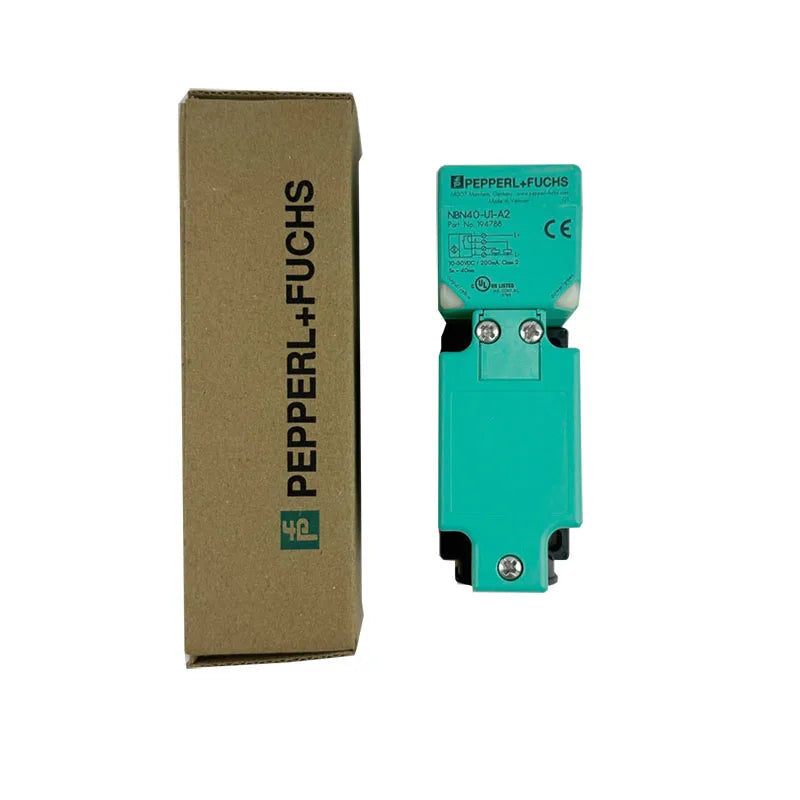

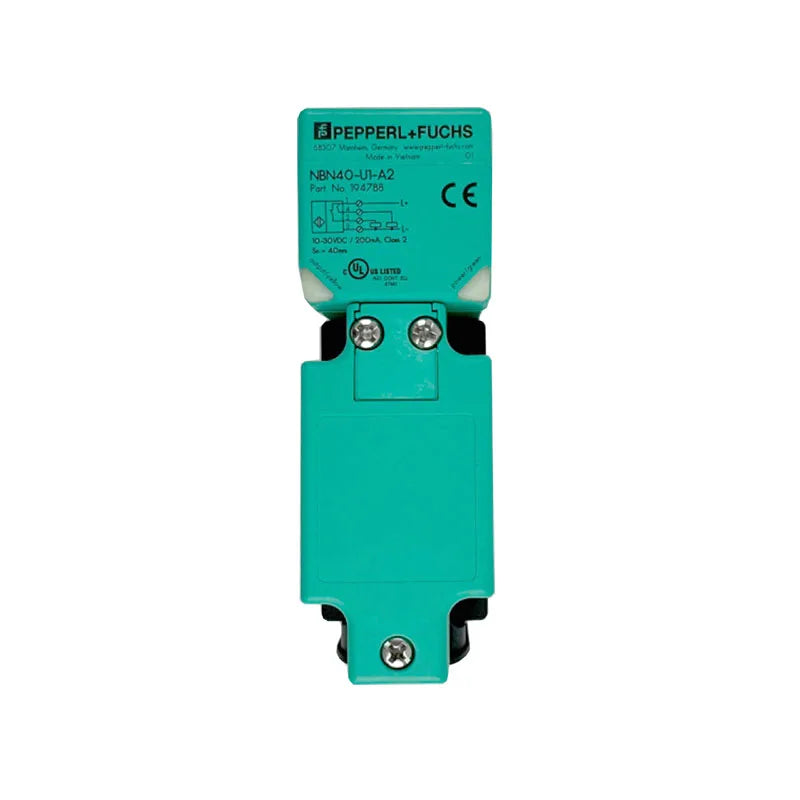

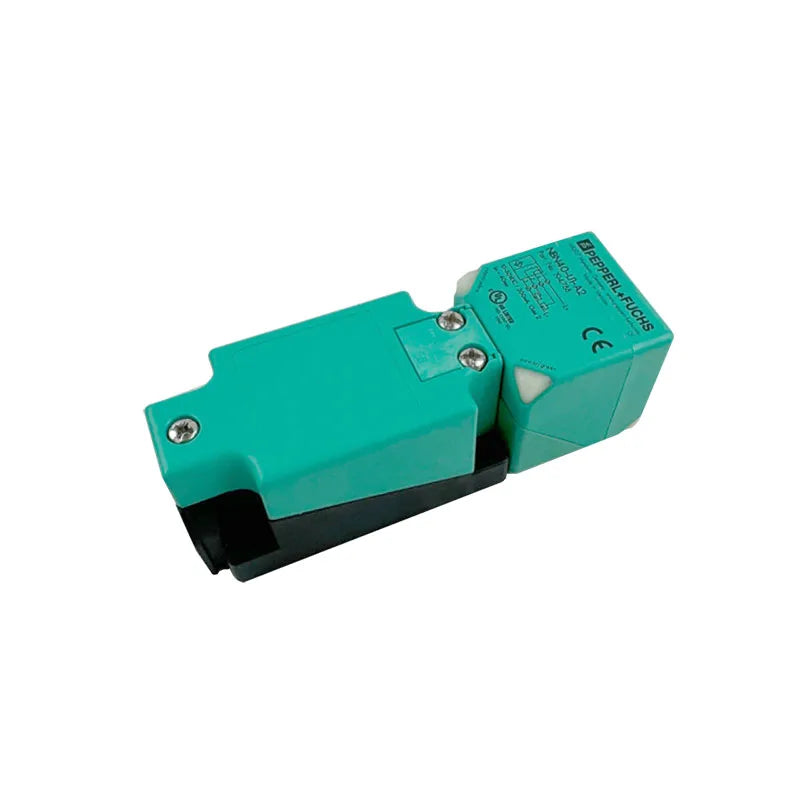

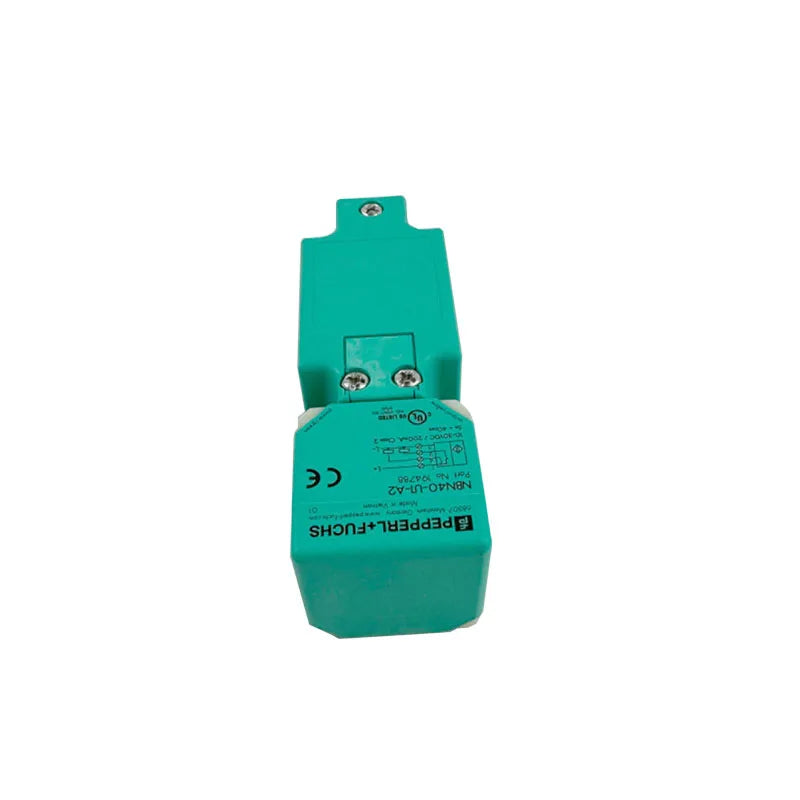

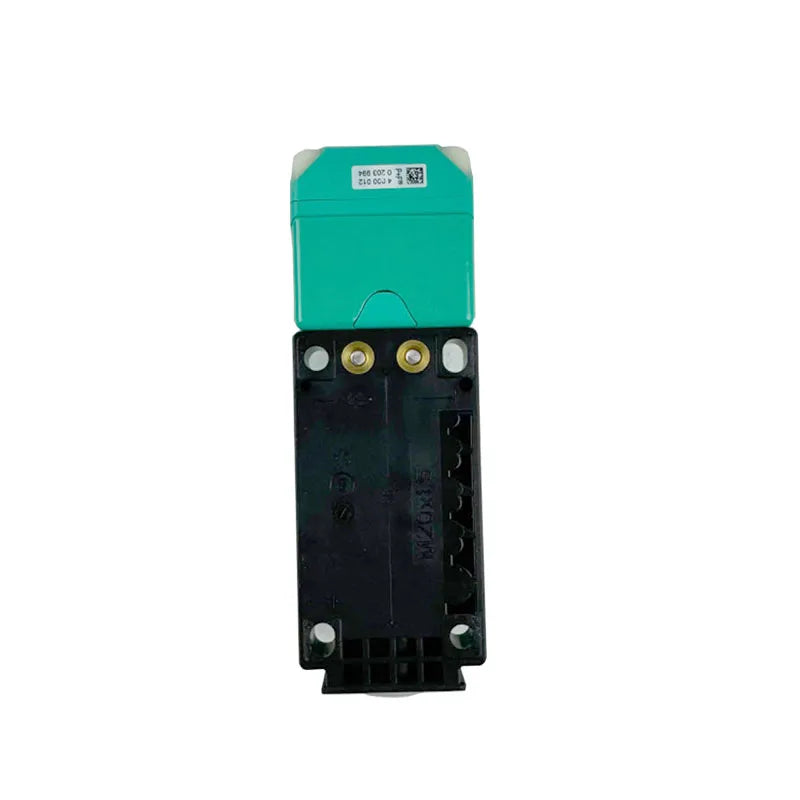

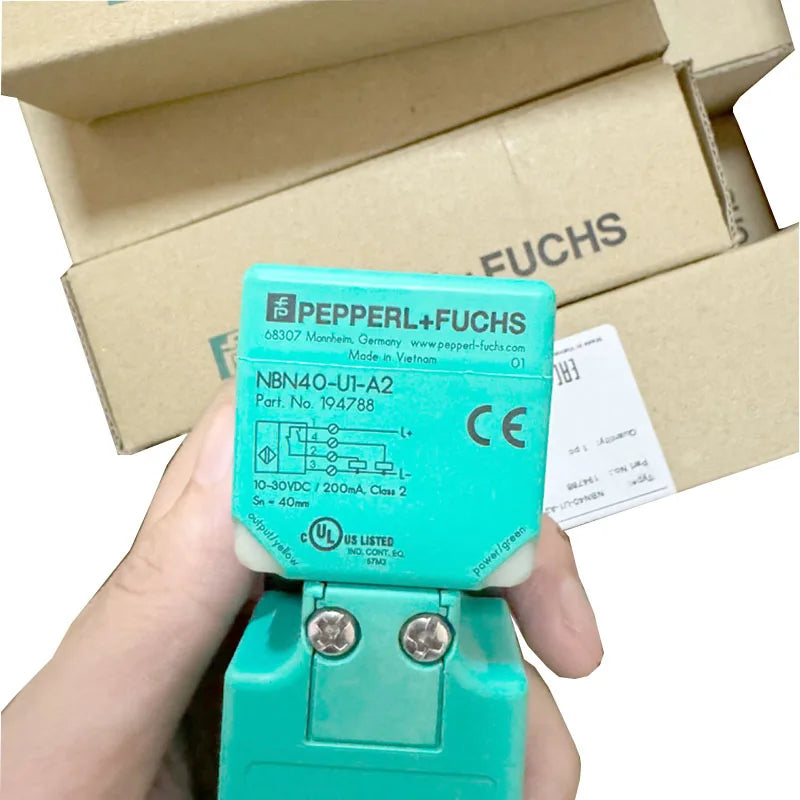

P+Fuchs NBN40-U1-A2 Inductive Proximity Sensor PNP NO/NC
The P+Fuchs NBN40-U1-A2 Inductive Sensor is a high-performance, non-contact proximity switch engineered for reliable position detection and presence sensing of metallic targets in industrial automation systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The P+Fuchs NBN40-U1-A2 Inductive Sensor is a high-performance, non-contact proximity switch engineered for reliable position detection and presence sensing of metallic targets in industrial automation systems. Manufactured by P+Fuchs under the renowned VariKont series, this rectangular inductive sensor offers a long non-flush sensing range of 40 mm. Its innovative rotatable sensor head can be positioned in five distinct orientations, providing outstanding mechanical flexibility during installation in compact machinery and tight mounting spaces.
Constructed with a rugged PA (polyamide) housing and a durable PA sensing face, the NBN40-U1-A2 is equipped with an IP68 and IP69K environmental ingress protection rating to withstand high-pressure washdowns, aggressive cutting fluids, and heavy industrial grime. It operates on a 10 to 30 VDC supply voltage and features a complementary 4-wire DC PNP output (selectable normally open and normally closed functions). Dual LED status indicators provide immediate visual feedback of power and switching status, making it a dependable choice for automotive assembly, material handling, packaging machinery, and process manufacturing.
Technical Specifications
| Specification | Value |
| Product Name | Inductive Proximity Sensor / Position Switch |
| Manufacturer / Brand | P+Fuchs (P+F) |
| Model Number | NBN40-U1-A2 |
| Product Series | VariKont Series |
| Sensor Type | Inductive Proximity Sensor |
| Installation / Mounting | Non-Flush (Unshielded) |
| Rated Operating Distance (Sn) | 40 mm |
| Assured Operating Distance (Sa) | 0 to 32.4 mm |
| Output Type | 4-Wire DC PNP (Complementary: NO + NC) |
| Operating Voltage | 10 to 30 VDC |
| Operating Current | 0 to 200 mA |
| Switching Frequency | 0 to 180 Hz |
| Reverse Polarity Protection | Built-in Reverse Polarity Protection |
| Short-Circuit Protection | Pulsing Short-Circuit Protection |
| Housing Material | Polyamide (PA) / Metal Base Mounting Flange |
| Sensing Face Material | Polyamide (PA) |
| Degree of Protection | IP68 / IP69K |
| Connection Type | Screw Terminal Compartment with M20 Cable Gland |
| Status Indicators | Green LED (Operating Voltage) / Yellow LED (Switching State) |
| Operating Temperature Range | -25°C to +85°C (-13°F to +185°F) |
| Sensor Head Flexibility | 5-Position Rotatable Sensing Head |
| Condition | New |
| Warranty | 1 Year |
Key Features
Extended 40 mm non-flush sensing distance allows reliable non-contact metallic target detection
Five-way rotatable sensor head provides maximum orientation versatility during machine mounting
Complementary 4-wire PNP output delivers simultaneous normally open and normally closed operation
Robust PA plastic housing with metal mounting base ensures structural resilience in harsh environments
Certified IP68 and IP69K ingress protection resists high-pressure washdowns and industrial dust
Built-in protection against reverse polarity, short circuits, and electrical overload surges
Large internal terminal chamber with standard M20 gland allows quick and reliable wiring termination
Bright dual LED indicators offer instant visual status verification of power supply and switching state
Wide ambient temperature range from -25°C to +85°C ensures continuous operation in extreme climates
Typical Applications
Automated assembly lines, conveying machinery, and parts transfer systems
Robotic positioning, gantry handling, and machine tool metal detection
Automotive manufacturing stamping, welding, and robotic framing lines
Packaging, palletizing, and automated sorting conveyor networks
Heavy machinery limit sensing, crane positioning, and boom angle tracking
Metal fabrication, CNC machining centers, and press brake safety positioning
General factory automation and industrial machinery process monitoring
