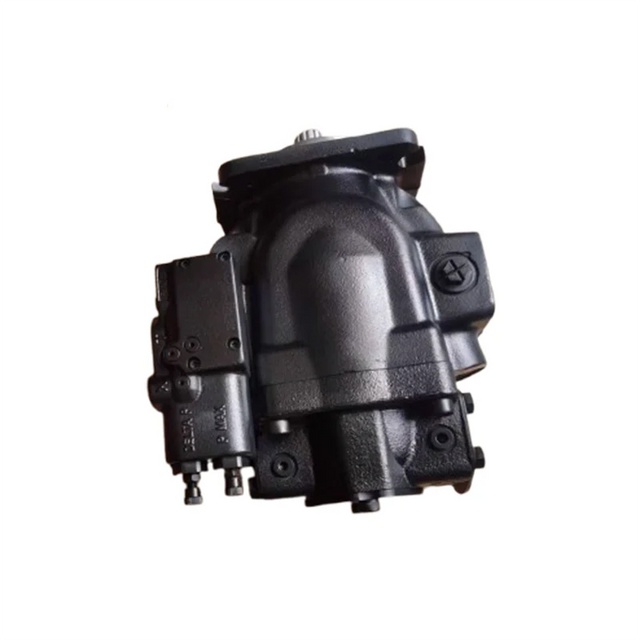

P3 Series Axial Piston Hydraulic Pump P3075 P3105 P3145
The P3 Series axial piston hydraulic pump is a variable displacement pump engineered for high-performance open circuit hydraulic systems.
- 75 / 105 / 145 cc/rev Displacement
- Up to 350 bar Max Continuous Pressure
- Configuration Dependent Rotation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The P3 Series axial piston hydraulic pump is a variable displacement pump engineered for high-performance open circuit hydraulic systems. Available in models P3075, P3105, and P3145, this series delivers efficient flow control, stable pressure output, and reliable power transmission for demanding industrial and mobile applications.
Designed with precision-machined internal components and a robust housing structure, the P3 Series ensures high volumetric efficiency and extended service life. Its customizable configuration options make it suitable for a wide range of hydraulic system requirements across construction, agricultural, and industrial sectors.
Technical Specifications
| Specification | Value |
|---|---|
| Series | P3 Series |
| Available Models | P3075 / P3105 / P3145 |
| Pump Type | Axial Piston Pump (Variable Displacement) |
| Circuit Type | Open Circuit |
| Displacement | 75 / 105 / 145 cc/rev |
| Control Type | Pressure Compensated / Load Sensing (Configuration Dependent) |
| Rotation | Configuration Dependent |
| Mounting Type | Flange Mount |
| Shaft Type | Splined Shaft |
| Max Continuous Pressure | Up to 350 bar |
| Peak Pressure | Up to 400 bar |
| Housing Material | High-Strength Cast Iron |
| Condition | New |
| Warranty | 12 Months |
Key Features
-
Variable displacement axial piston design
-
Available in 75cc, 105cc, and 145cc options
-
Customizable control configurations
-
High volumetric efficiency
-
Durable cast iron construction
-
Suitable for continuous-duty industrial use
Typical Applications
-
Industrial hydraulic power units
-
Construction machinery
-
Agricultural equipment
-
Mining machinery
-
Material handling systems
-
Mobile hydraulic systems
Shipping & Support
-
Fast dispatch - Australia & World wide shipping
-
Technical assistance available
-
12-month warranty
