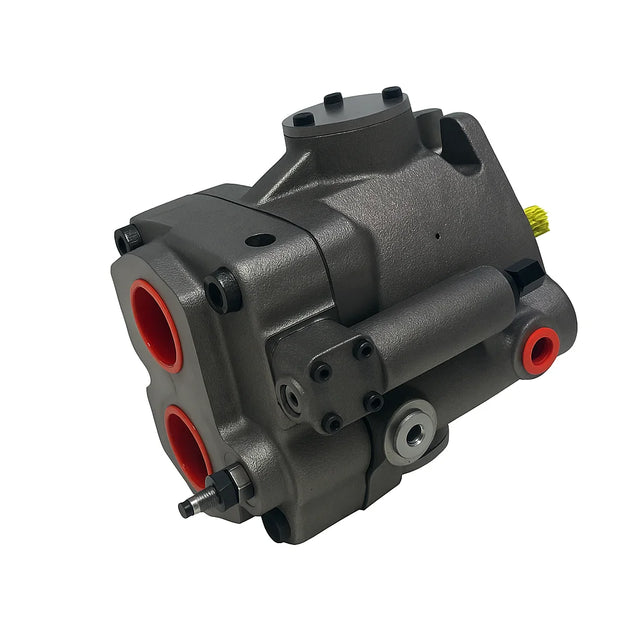

Parker Denison PV102R1EC02 Hydraulic Piston Pump
The Parker Denison PV102R1EC02 hydraulic piston pump is part of the PV Series variable displacement axial piston pumps designed for open circuit hydraulic systems.
- 102 cc/rev (152cc / 202cc Options Available) Displacement
- Up to 280 bar Max Continuous Pressure
- Configuration Dependent Rotation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The Parker Denison PV102R1EC02 hydraulic piston pump is part of the PV Series variable displacement axial piston pumps designed for open circuit hydraulic systems. Engineered for high efficiency and precise pressure control, the PV Series is widely used in industrial and mobile hydraulic applications requiring stable flow and reliable performance.
With advanced swashplate technology and heavy-duty construction, the PV102 delivers excellent volumetric efficiency, low noise operation, and consistent output under demanding operating conditions. Additional models including PV152R5EC00 and PV202R5EC00 are available to suit higher displacement and system capacity requirements.
Technical Specifications
| Specification | Value |
|---|---|
| Model | PV102R1EC02 (PV152R5EC00 / PV202R5EC00 Available) |
| Series | Parker Denison PV Series |
| Pump Type | Axial Piston Pump (Variable Displacement) |
| Circuit Type | Open Circuit |
| Displacement | 102 cc/rev (152cc / 202cc Options Available) |
| Control Type | Pressure Compensated (Configuration Dependent) |
| Rotation | Configuration Dependent |
| Mounting Type | Flange Mount |
| Shaft Type | Splined Shaft |
| Max Continuous Pressure | Up to 280 bar |
| Peak Pressure | Up to 350 bar |
| Housing Material | High-Strength Cast Iron |
| Condition | New |
| Warranty | 12 Months |
Key Features
-
Variable displacement axial piston design
-
Stable and precise pressure compensation
-
High volumetric efficiency
-
Low noise operation
-
Durable cast iron housing
-
Multiple displacement options available
Typical Applications
-
Industrial hydraulic power units
-
Manufacturing systems
-
Construction machinery
-
Agricultural equipment
-
Material handling systems
-
General hydraulic oil systems
Shipping & Support
-
Fast dispatch - Australia & World wide shipping
-
Technical assistance available
-
12-month warranty
