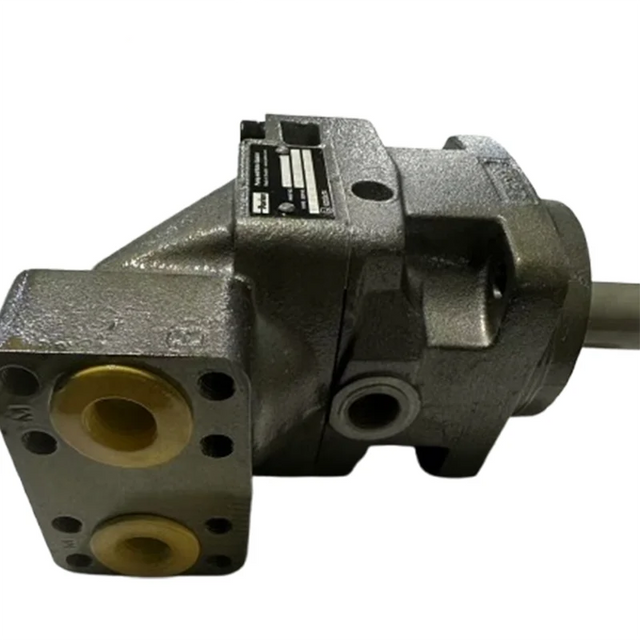

Parker F12-80 Hydraulic Piston Motor, Fixed Displacement
The Parker F12 Series hydraulic piston motor is a high-performance fixed displacement bent-axis motor engineered for demanding mobile and industrial hydraulic systems.
- 80 cc/rev / 110 cc/rev Displacement
- Up to 420 bar Max Continuous Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The Parker F12 Series hydraulic piston motor is a high-performance fixed displacement bent-axis motor engineered for demanding mobile and industrial hydraulic systems. Models including F12-80-MF-IH-K and F12-110-MF-IH-D/K are designed to deliver high torque output, excellent efficiency, and reliable operation under high-pressure conditions.
Built with a robust bent-axis design, the F12 series provides smooth operation at high speeds while maintaining strong starting torque and compact installation dimensions. These motors are widely used in hydrostatic transmissions, winch drives, track drives, and heavy-duty mobile machinery.
Technical Specifications
| Specification | Value |
|---|---|
| Series | Parker F12 |
| Available Models | F12-80-MF-IH-K / F12-110-MF-IH-D/K |
| Part Numbers | 3780772 / 3781530 / 3781534 / 3781542 |
| Motor Type | Axial Piston Motor (Bent-Axis, Fixed Displacement) |
| Displacement | 80 cc/rev / 110 cc/rev |
| Operating Circuit | Open or Closed Circuit |
| Rotation | Bi-Directional |
| Mounting Type | Flange Mount |
| Shaft Type | Splined Shaft |
| Max Continuous Pressure | Up to 420 bar |
| Speed Range | Application Dependent |
| Housing Material | High-Strength Cast Iron |
| Condition | New |
| Warranty | 12 Months |
Key Features
-
Bent-axis fixed displacement design
-
High starting torque and smooth high-speed operation
-
High-pressure capability up to 420 bar
-
Compact and durable construction
-
Bi-directional rotation capability
-
Suitable for heavy-duty mobile applications
Typical Applications
-
Hydrostatic transmissions
-
Winch and hoist drives
-
Track drive systems
-
Construction machinery
-
Mining equipment
-
Material handling systems
Shipping & Support
-
Fast dispatch - Australia & World wide shipping
-
Technical assistance available
-
12-month warranty
