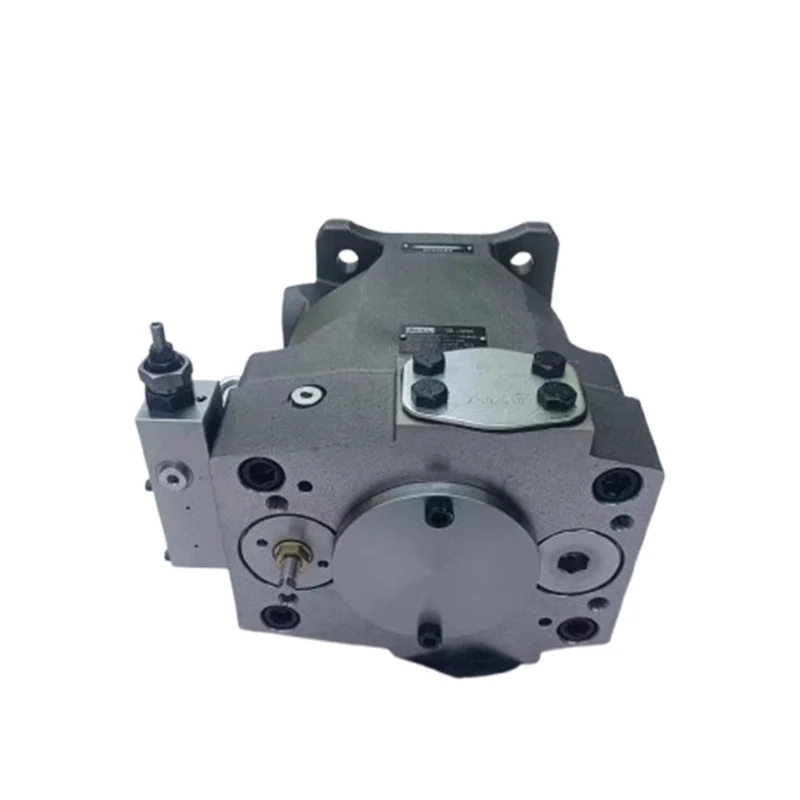

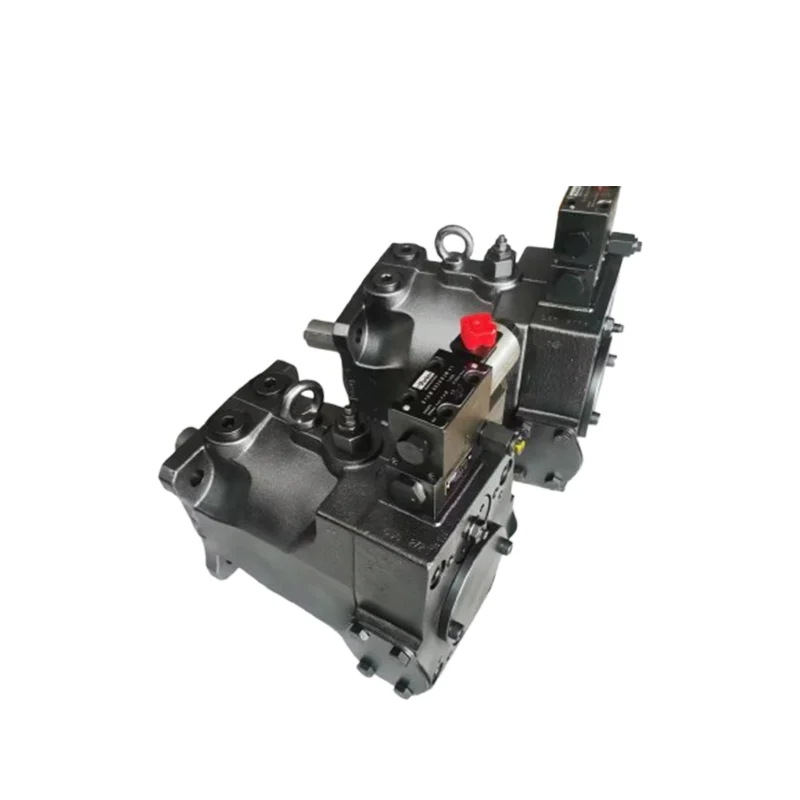

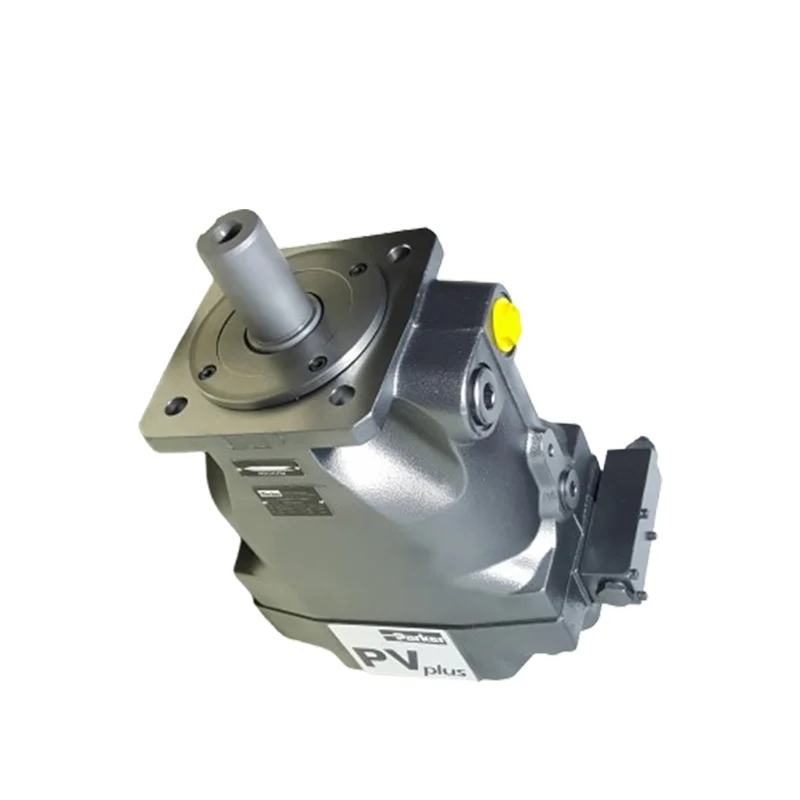

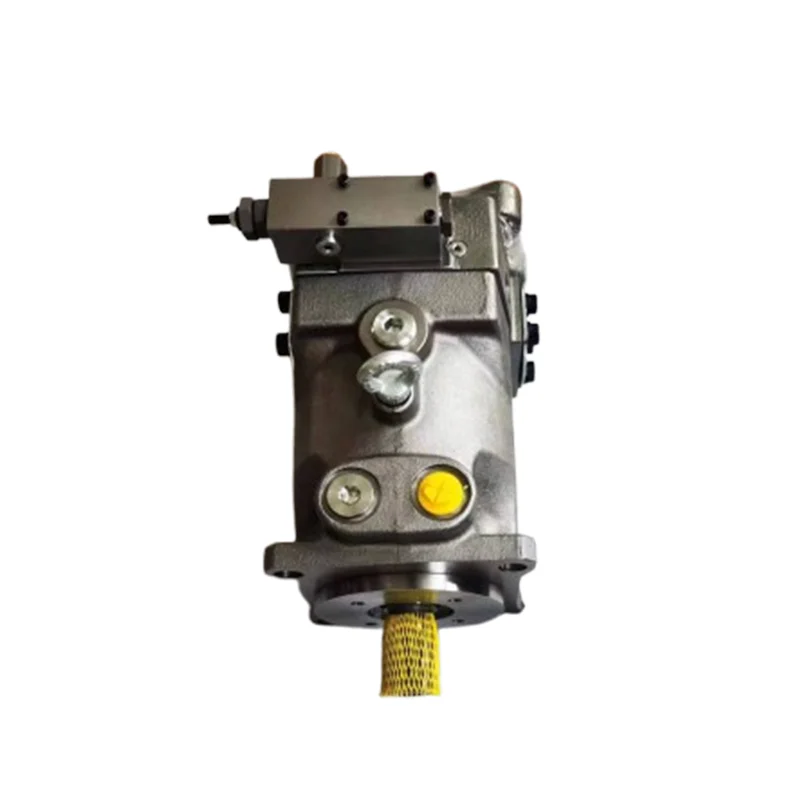

Parker PV023L1K1T1N001 Axial Piston Hydraulic Pump, 23cc
The Parker PV023L1K1T1N001 is a high-quality variable displacement axial piston pump engineered for open circuit hydraulic systems requiring reliable pressure control and efficient power transmission.
- 23 cc/rev Displacement
- Up to 280 bar Max Continuous Pressure
- Configuration Dependent Rotation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The Parker PV023L1K1T1N001 is a high-quality variable displacement axial piston pump engineered for open circuit hydraulic systems requiring reliable pressure control and efficient power transmission. With a displacement of 23cc per revolution, it provides smooth and responsive hydraulic output across a wide operating range.
Designed for industrial and mobile applications, the PV023 series features a robust swashplate construction, precision-machined internal components, and durable housing for extended service life. Its compact design and stable performance make it suitable for medium to high-pressure hydraulic systems operating under continuous-duty conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Model | PV023L1K1T1N001 |
| Series | PV023 |
| Pump Type | Axial Piston Pump (Variable Displacement) |
| Circuit Type | Open Circuit |
| Displacement | 23 cc/rev |
| Control Type | Pressure Compensated (Model Dependent) |
| Rotation | Configuration Dependent |
| Mounting Type | Flange Mount |
| Shaft Type | Splined Shaft |
| Max Continuous Pressure | Up to 280 bar |
| Peak Pressure | Up to 350 bar |
| Housing Material | High-Strength Cast Iron |
| Condition | New |
| Warranty | 12 Months |
Key Features
-
Variable displacement axial piston design
-
Stable and precise pressure control
-
High volumetric efficiency
-
Compact and durable construction
-
Suitable for medium to high-pressure systems
-
Designed for continuous-duty applications
Typical Applications
-
Industrial hydraulic power units
-
Construction equipment
-
Agricultural machinery
-
Manufacturing systems
-
Material handling equipment
-
Mobile hydraulic systems
Shipping & Support
-
Fast dispatch - Australia & World wide shipping
-
Technical assistance available
-
12-month warranty
