PD01P-HPS-PTT-A Chongfu AODD Pump, 0.25-Inch 20L/min 8.6Bar PP PTFE Diaphragm Pump

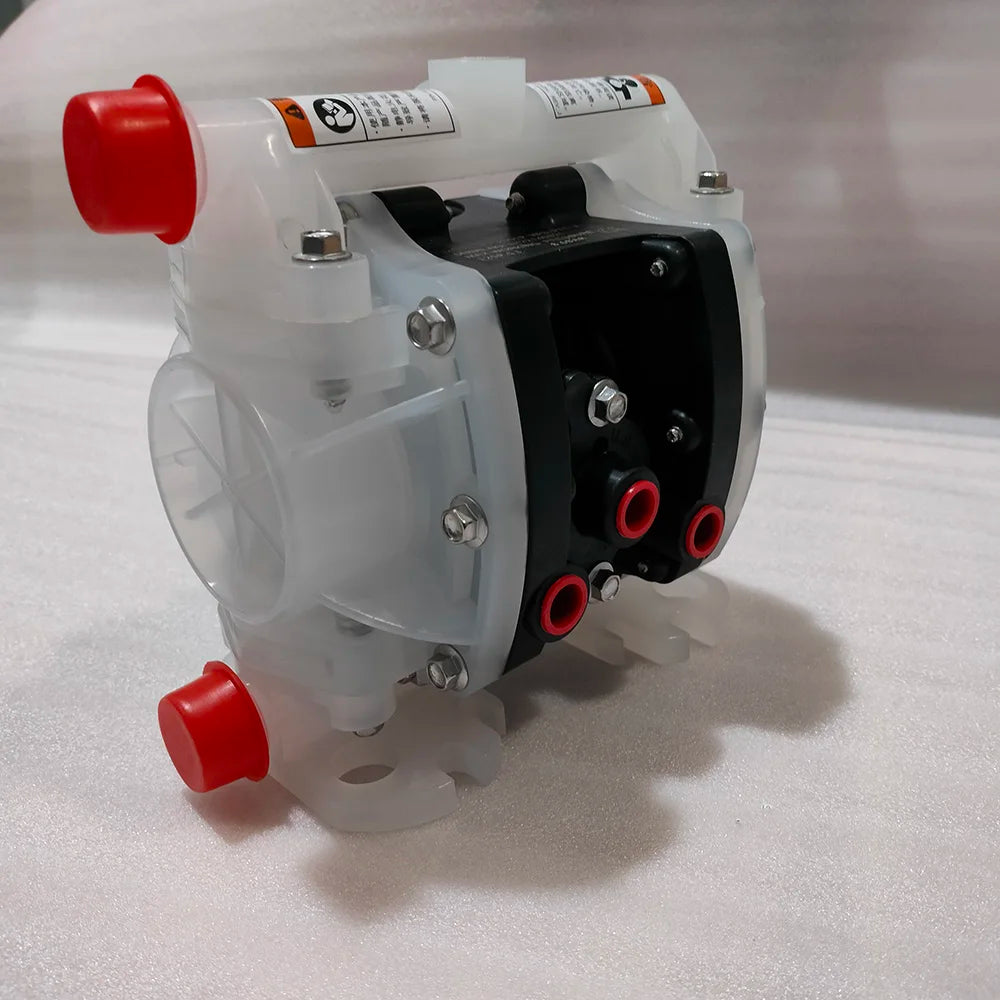

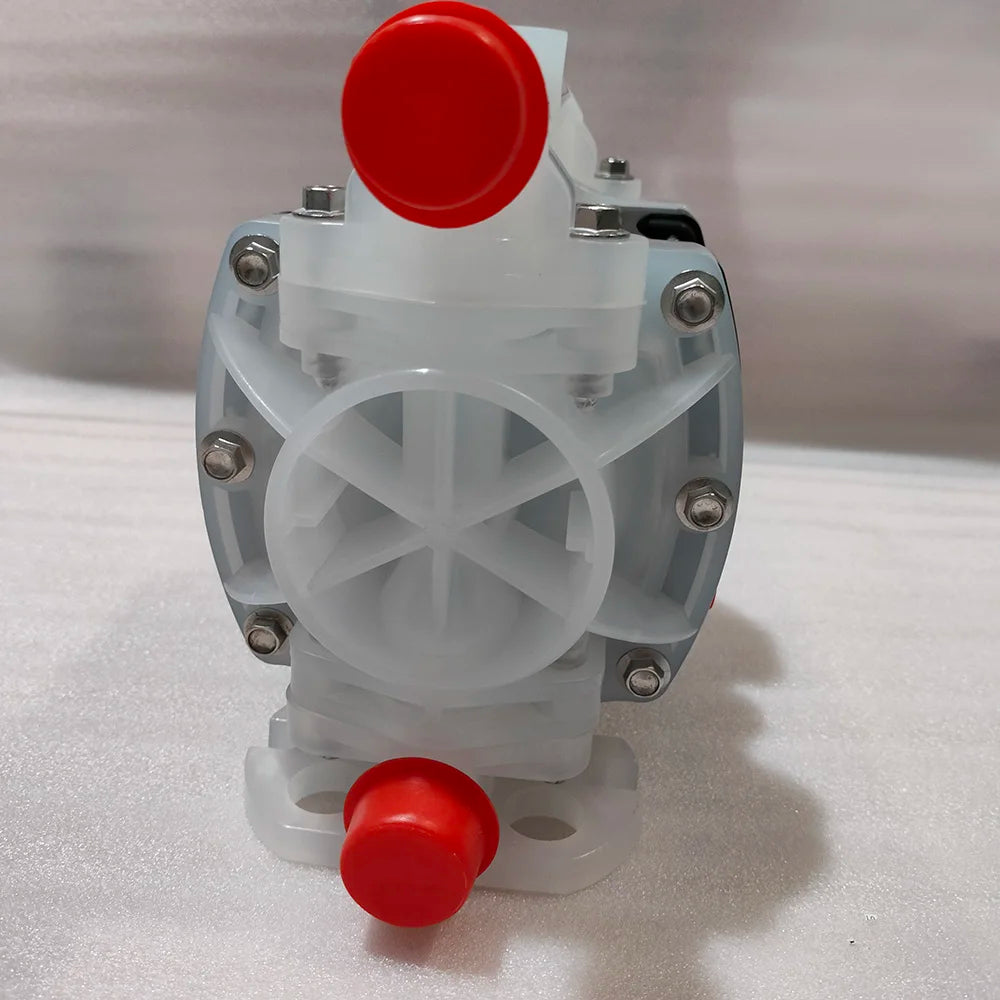

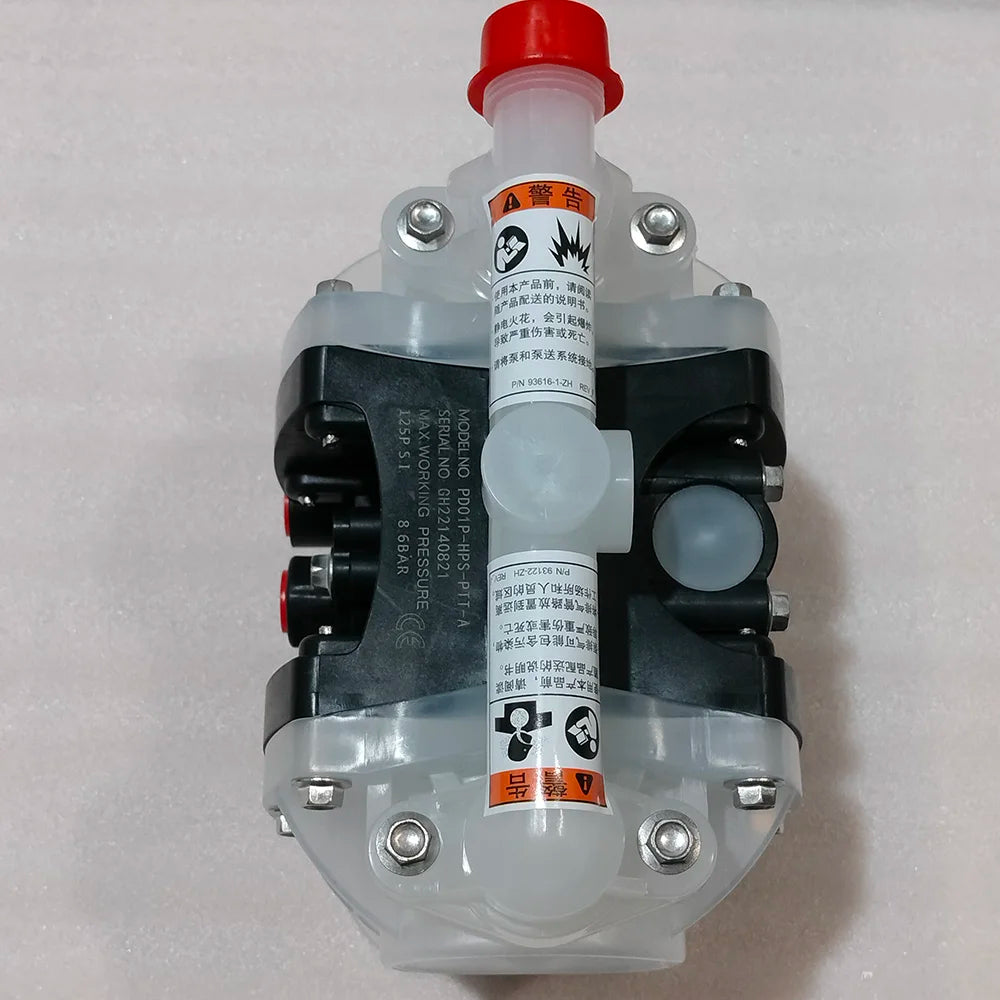

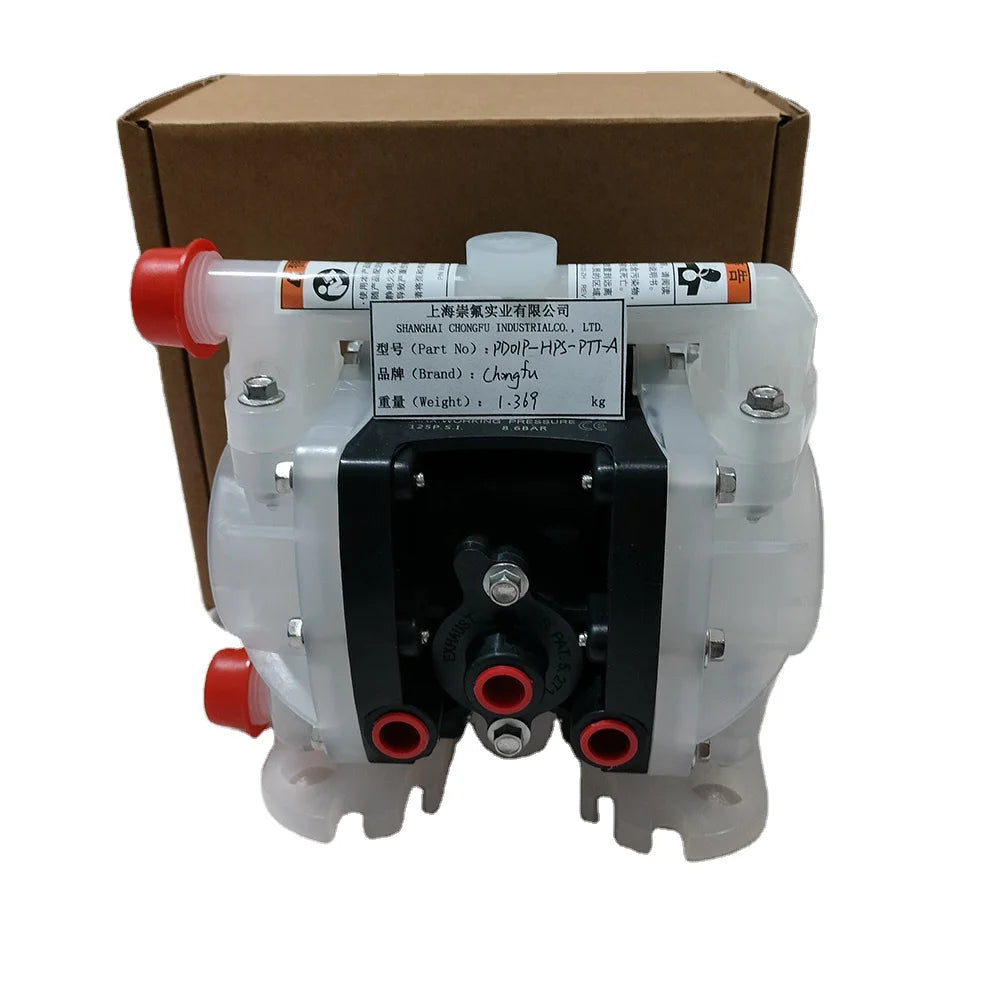

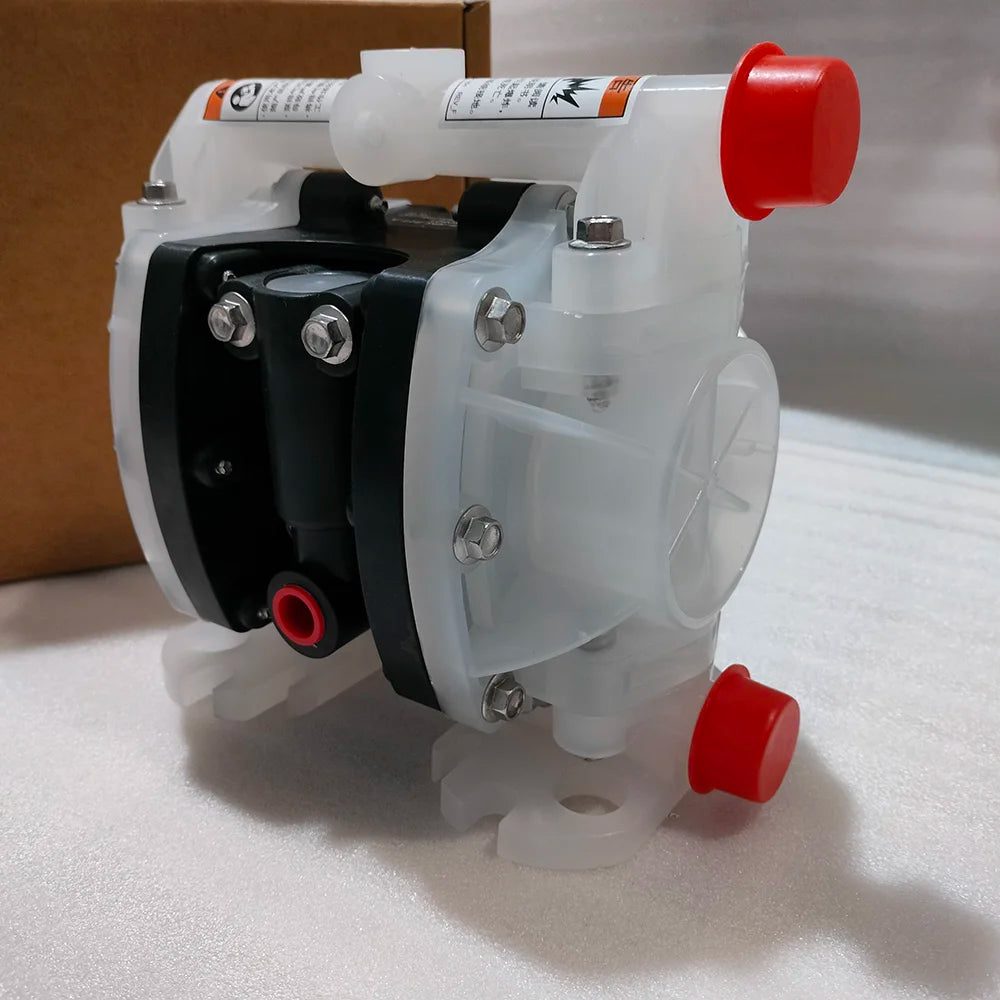

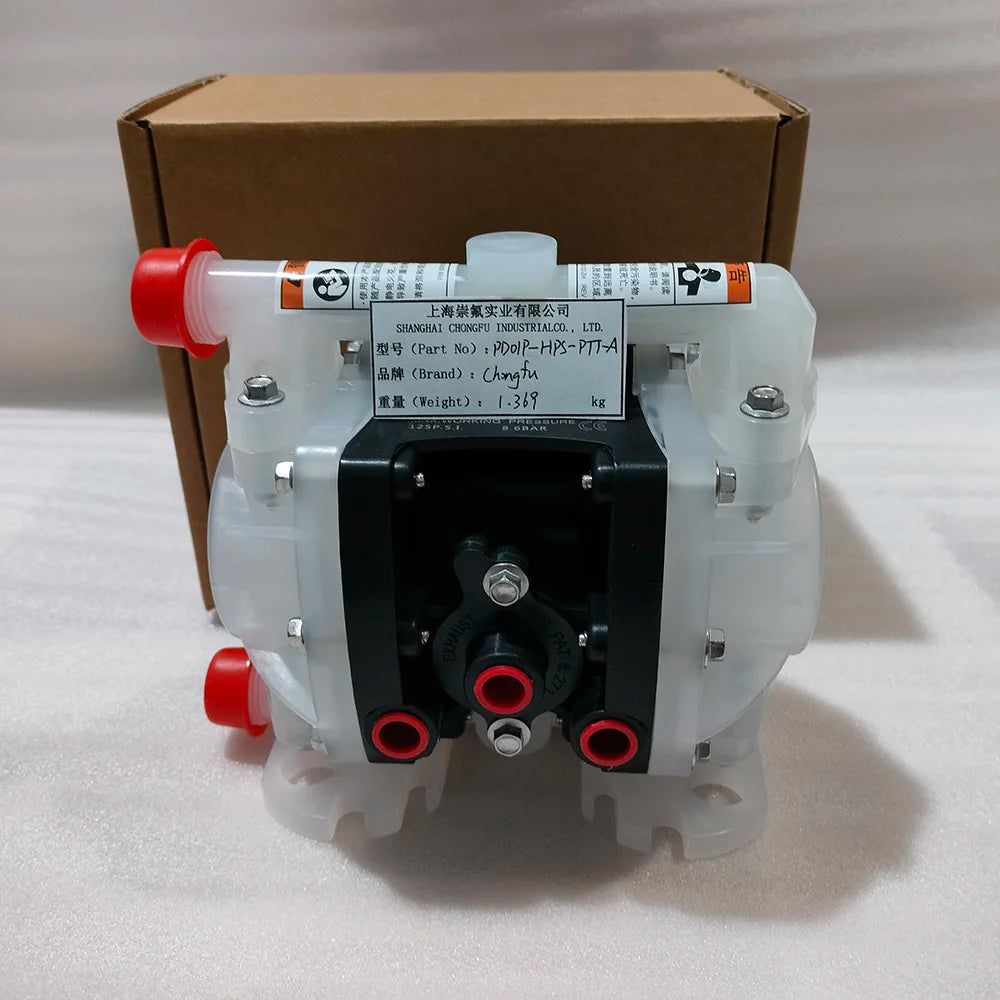

The PD01P-HPS-PTT-A Chongfu pneumatic diaphragm pump is a compact non-metallic air-operated double diaphragm (AODD) pump designed for precise chemical and fluid transfer.
- Up to 20 L/min (5.3 GPM) Flow Rate
- 0.1 – 10 Bar Max Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The PD01P-HPS-PTT-A Chongfu pneumatic diaphragm pump is a compact non-metallic air-operated double diaphragm (AODD) pump designed for precise chemical and fluid transfer. Built with a polypropylene body and PTFE diaphragm, it offers excellent chemical resistance and durability.
With a maximum flow rate of 20 L/min and operating pressure up to 8.6 bar, this pump is ideal for handling aggressive fluids in laboratory, industrial, and light-duty applications.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pneumatic Diaphragm Pump (AODD) |
| Model | PD01P-HPS-PTT-A |
| Brand | Chongfu |
| Pump Type | Diaphragm Pump |
| Structure | Air-Operated Double Diaphragm |
| Pressure | Up to 8.6 Bar |
| Max Pressure | 0.1 – 10 Bar |
| Flow Rate | Up to 20 L/min (5.3 GPM) |
| Motor Type | Pneumatic |
| Power Source | Compressed Air |
| Pump Body Material | Polypropylene |
| Diaphragm Material | PTFE |
| Sealing Material | PTFE |
| Outlet Size | 1/4 inch |
| Inlet Size | DN25 |
| Connection Type | Direct Coupling |
| Temperature Range | 0 – 200°C |
| Chemical Compatibility | Alcohol, Diesel, Gasoline, Oils, Water |
| Maximum Air Inlet Pressure | 8.6 Bar |
| Suitable Media | Chemicals / Liquids |
| Operation Mode | Continuous Duty |
| Application Scope | Industrial / Laboratory |
| Warranty | 12 Months |
Key Features
- Non-metallic AODD pump design
- Polypropylene body for corrosion resistance
- PTFE diaphragm for aggressive chemicals
- Compact 0.25-inch configuration
- Flow rate up to 20 L/min
- Safe pneumatic operation in hazardous environments
Typical Applications
- Chemical transfer systems
- Laboratory fluid handling
- Pharmaceutical processing
- Cleaning and washing systems
- Oil and fuel transfer
- Industrial dosing applications
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
