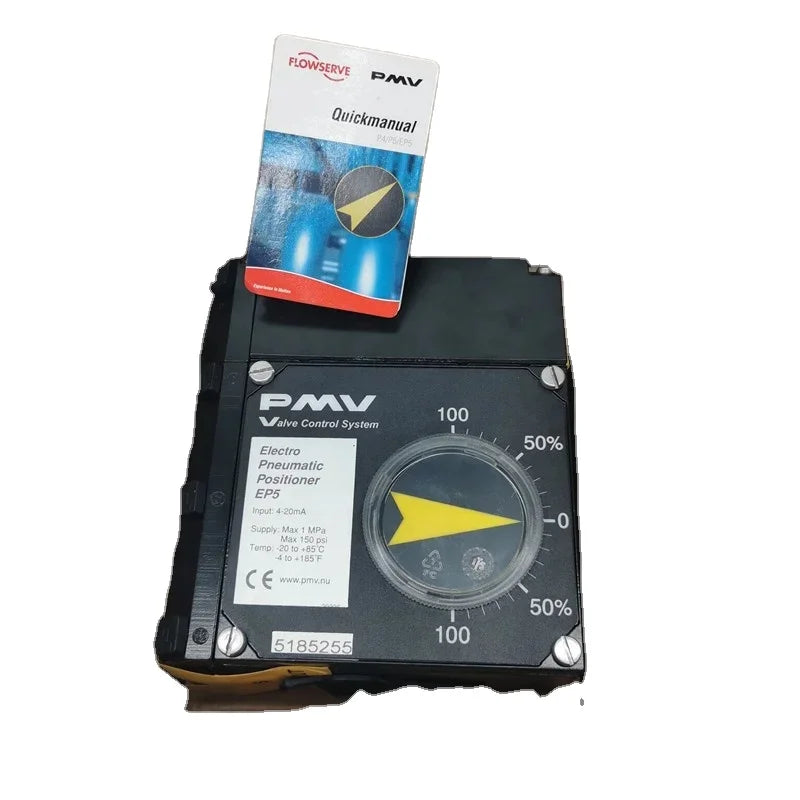

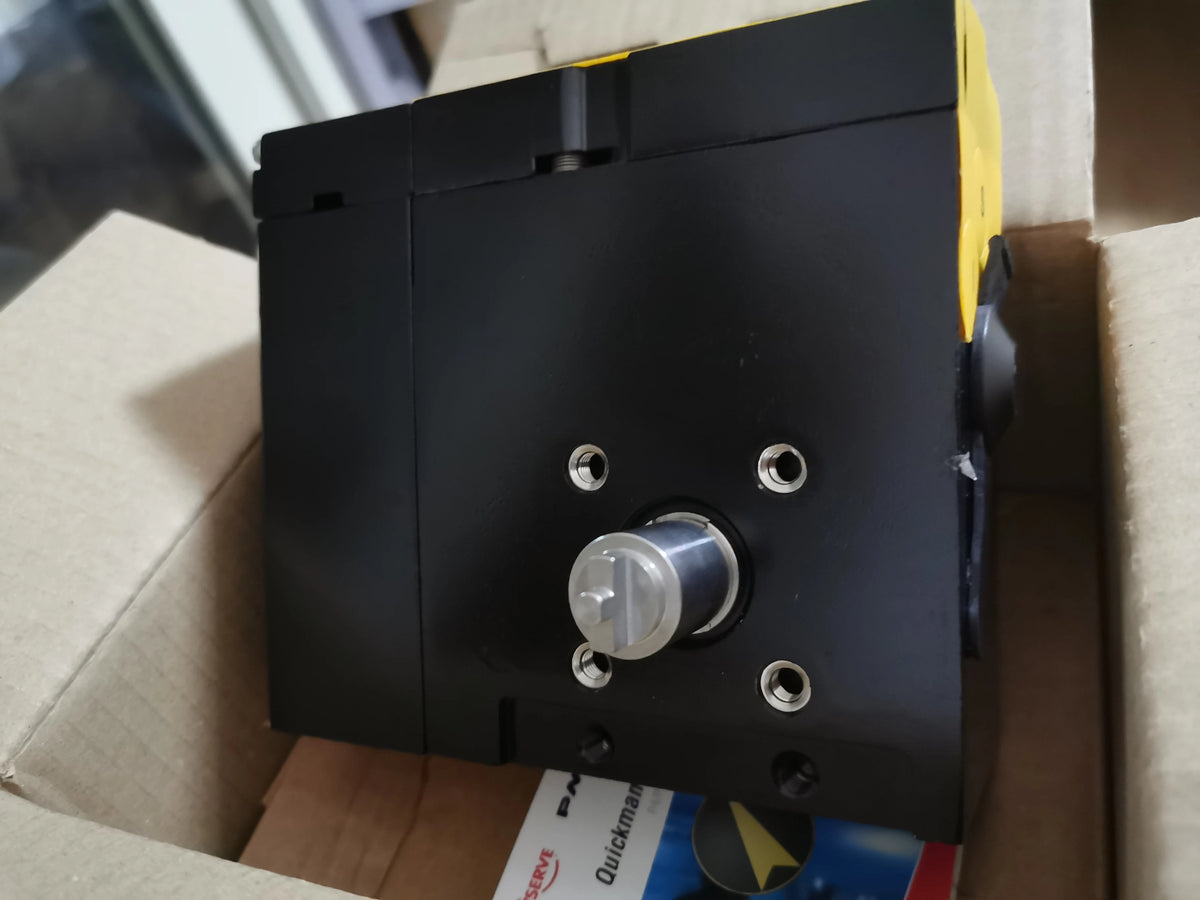

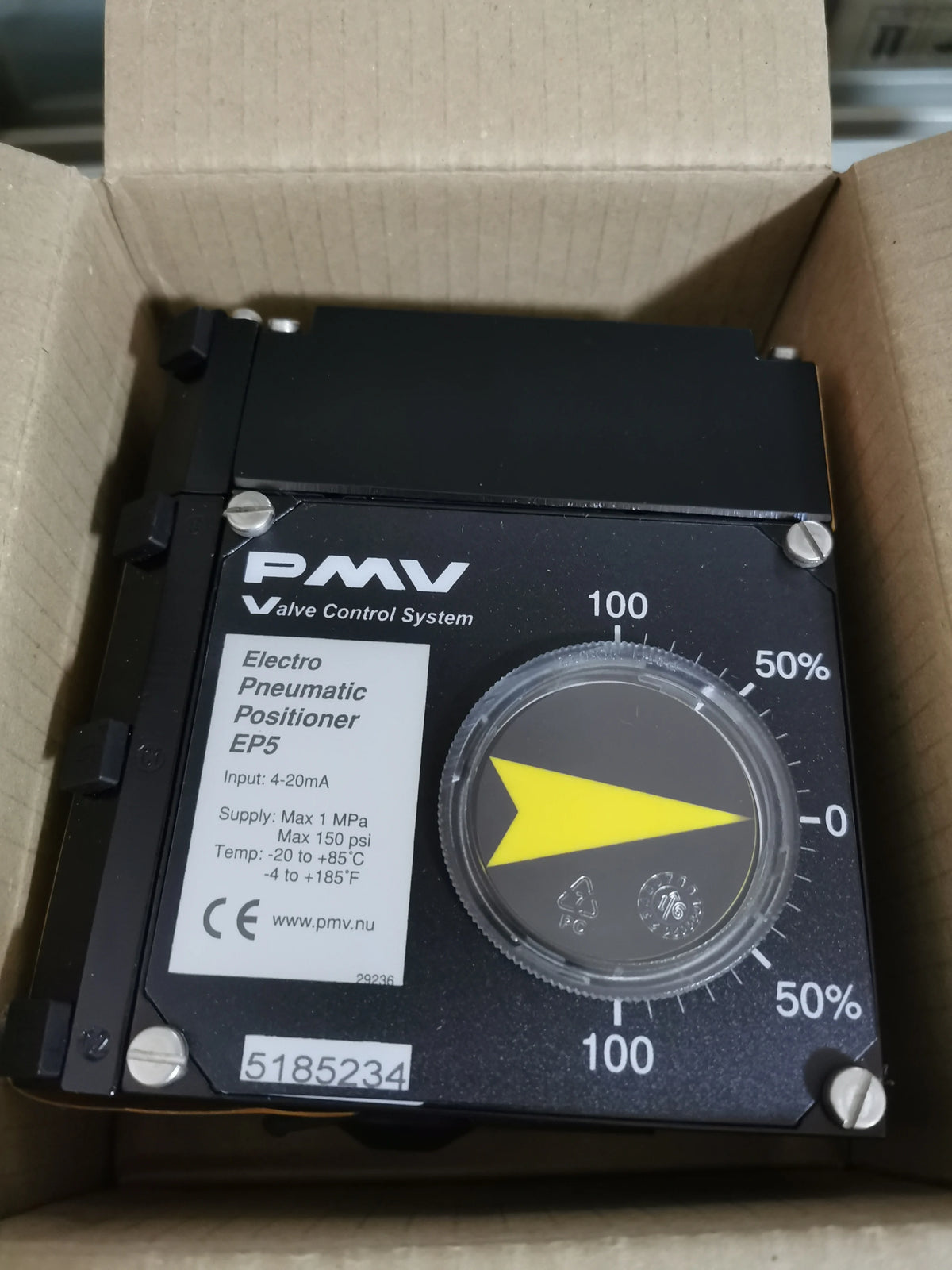

PMV EP5XX-HPNU-23K01-PV9DA-4Z Electropneumatic Valve Positioner
The Flowserve PMV EP5XX-HPNU-23K01-PV9DA-4Z Electropneumatic Valve Positioner is designed for accurate positioning and automated control of pneumatic valve actuators in industrial process systems.
- Double Acting Actuator Configuration
- 1.4–10 Bar Supply Pressure Range
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Flowserve PMV EP5XX-HPNU-23K01-PV9DA-4Z Electropneumatic Valve Positioner is designed for accurate positioning and automated control of pneumatic valve actuators in industrial process systems. Manufactured by PMV, a Flowserve brand, this EP5 series positioner converts a 4–20 mA electrical input into proportional pneumatic control pressure. Its high-performance spool valve supports responsive actuator movement, stable valve positioning, and dependable industrial process control.
The EP5XX-HPNU-23K01-PV9DA-4Z features a double-acting pneumatic configuration, high-performance spool, epoxy-coated aluminium housing, and a 90-degree direct-acting visual position indicator. It includes 1/4-inch NPT pneumatic connections, a 1/2-inch NPT electrical entry, and adjustable calibration settings. Its robust design makes it suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
PMV / Flowserve |
|
Model Number |
EP5XX-HPNU-23K01-PV9DA-4Z |
|
Product Series |
EP5 |
|
Product Type |
Electropneumatic Valve Positioner |
|
Control Technology |
Analogue Electropneumatic |
|
Electrical Input |
4–20 mA DC |
|
Communication Protocol |
Analogue, No HART |
|
Actuator Configuration |
Double Acting |
|
Spool Valve |
High Performance (HP) |
|
Pneumatic Connections |
1/4 Inch NPT |
|
Electrical Cable Entry |
1/2 Inch NPT |
|
Spindle Configuration |
Code 23 |
|
Cam Configuration |
K01 |
|
Position Indicator |
90° Direct-Acting Arrow Indicator |
|
Surface Treatment |
Epoxy Coating |
|
Housing Material |
Die-Cast Aluminium |
|
Supply Pressure Range |
1.4–10 Bar |
|
Operating Temperature |
−20°C to +85°C |
|
Linearity |
Less Than 1% of Full Scale |
|
Hysteresis |
Less Than 0.75% of Full Scale |
|
Repeatability |
Less Than 0.5% of Full Scale |
|
Deadband |
Less Than 0.15% |
|
Enclosure Protection |
IP66 / NEMA 4 |
|
Approximate Weight |
1.5 kg |
|
Calibration |
Adjustable Zero and Span |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Standard 4–20 mA electropneumatic positioning control
High-performance pneumatic spool for responsive actuator movement
Double-acting pneumatic configuration
90-degree direct-acting visual position indicator
Durable die-cast aluminium housing with epoxy coating
Standard 1/4-inch NPT pneumatic connections
1/2-inch NPT electrical cable entry
Adjustable zero and span settings for simplified calibration
IP66/NEMA 4 enclosure protection for industrial environments
Built-in gauge ports for pressure monitoring
Modular design supporting compatible PMV accessories
Designed for reliable industrial valve automation
Typical Applications
Industrial pneumatic control valve positioning
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing automation
Rotary ball and butterfly valve control
Double-acting pneumatic actuator systems
Industrial flow and pressure regulation
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
