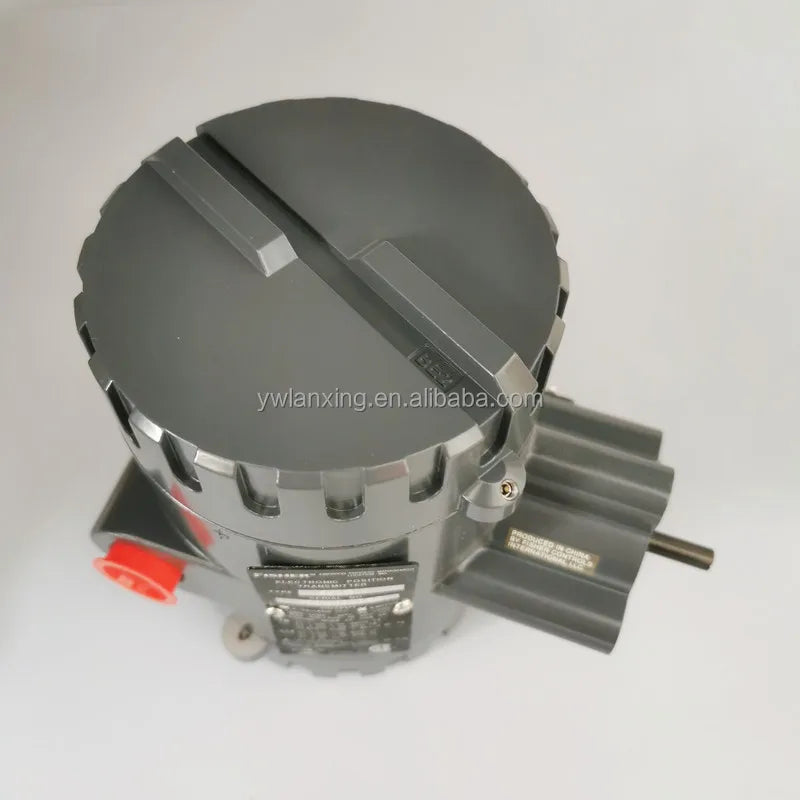

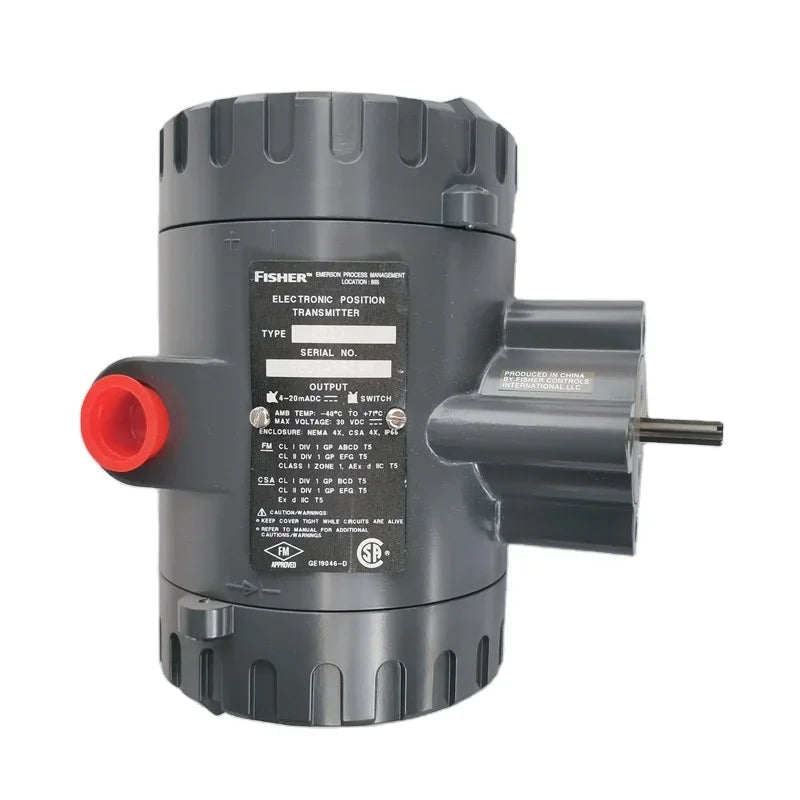

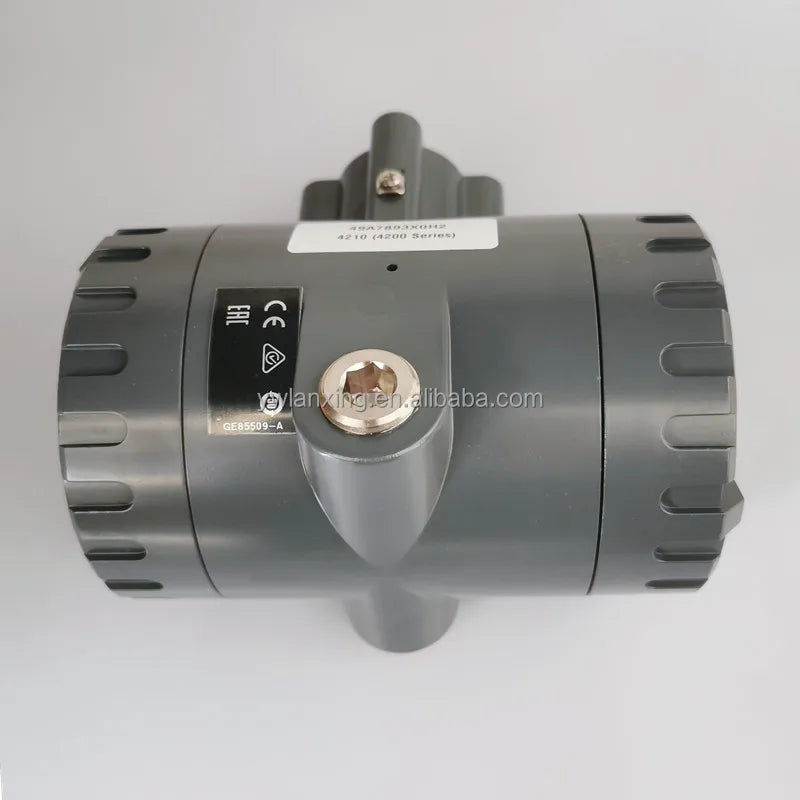

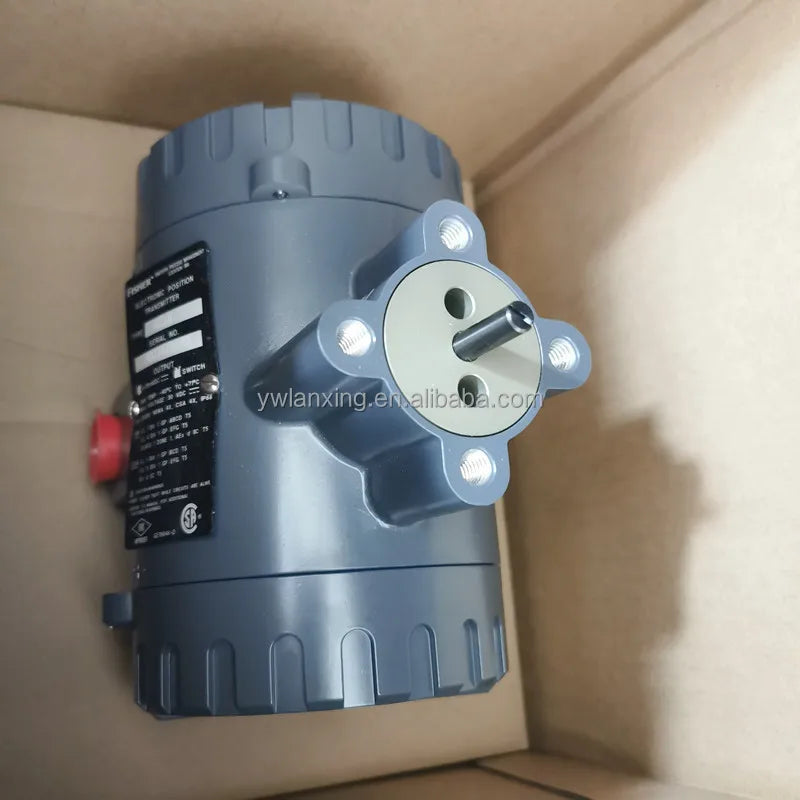

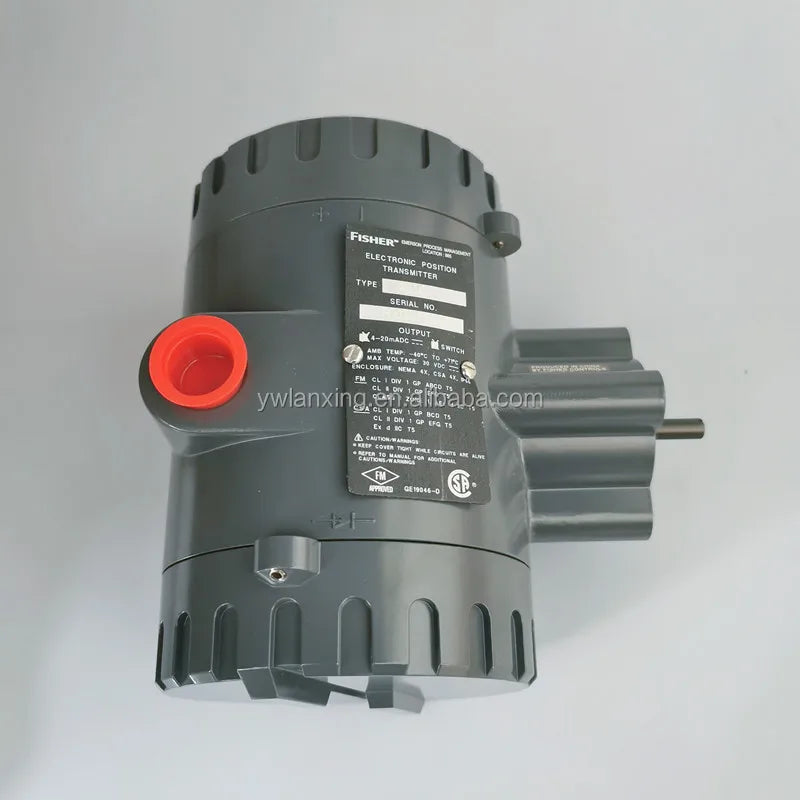

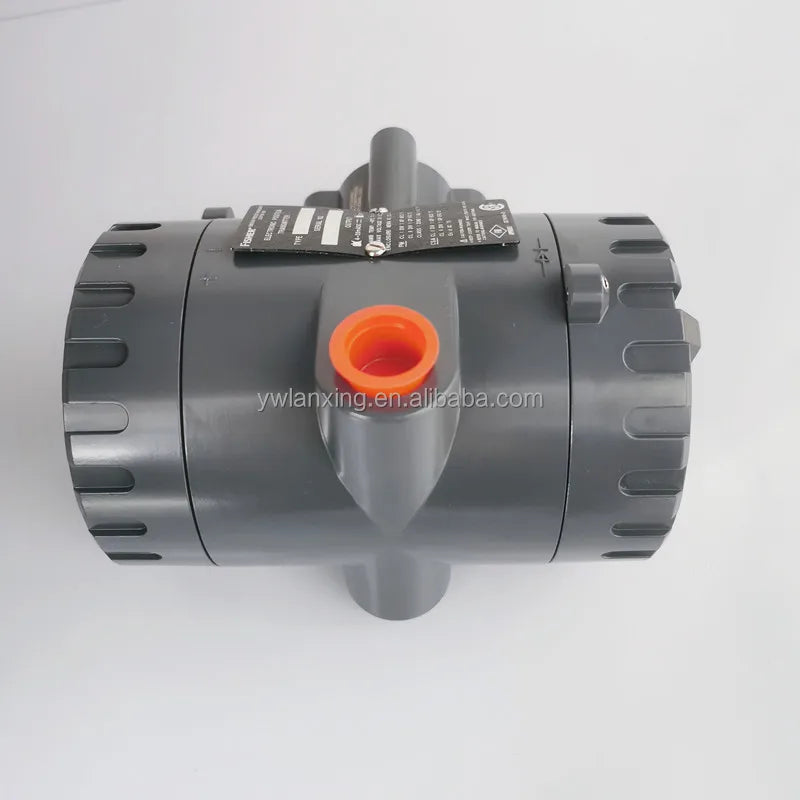

Fisher 4210 4211 Electronic Valve Position Transmitters
The Fisher 4210 and 4211 Electronic Position Transmitters are industrial instrumentation devices designed for accurate measurement and monitoring of mechanical valve positions.
- Position Transmitter with High and Low Position Switches Fisher 4210 Configuration
- 24 V DC Recommended Supply Voltage
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Fisher 4210 and 4211 Electronic Position Transmitters are industrial instrumentation devices designed for accurate measurement and monitoring of mechanical valve positions. Manufactured by Fisher, an Emerson brand, these 4200 Series transmitters convert valve stem or shaft movement into a proportional 4–20 mA DC electrical signal. Their potentiometer-based sensing technology provides continuous position feedback for rotary and sliding-stem valves, enabling integration with distributed control systems, programmable logic controllers, and industrial monitoring equipment.
The Fisher 4210 combines continuous analogue position transmission with adjustable high and low position switches, while the Fisher 4211 provides analogue position feedback without additional switching functions. Both models feature adjustable zero and span settings, durable industrial construction, and compatibility with standard-stroke pneumatic valve actuators. They are suitable for oil and gas processing, chemical manufacturing, petroleum refining, power generation, water treatment, and industrial valve position monitoring.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electronic Valve Position Transmitter |
|
Manufacturer / Brand |
Fisher / Emerson |
|
Model Number 1 |
4210 |
|
Model Number 2 |
4211 |
|
Product Series |
Fisher 4200 |
|
Product Type |
Electronic Valve Position Feedback Transmitter |
|
Primary Function |
Valve Position Measurement and Transmission |
|
Sensing Technology |
Mechanical Potentiometer |
|
Position Measurement |
Rotary Shaft and Linear Valve Travel |
|
Analogue Output Signal |
4–20 mA DC |
|
Recommended Supply Voltage |
24 V DC |
|
Supply Voltage, 4211 |
11–30 V DC |
|
Supply Voltage, 4210 |
20–30 V DC |
|
Maximum Output Current |
30 mA DC |
|
Fisher 4210 Configuration |
Position Transmitter with High and Low Position Switches |
|
Fisher 4211 Configuration |
Position Transmitter Without Position Switches |
|
Limit Switch Technology |
Electronic Position Switch Relays, 4210 |
|
Switch Contact Configuration |
SPDT Relay Contacts |
|
High Position Alarm |
Adjustable, 4210 |
|
Low Position Alarm |
Adjustable, 4210 |
|
Alarm Deadband |
Adjustable, 4210 |
|
Position Feedback Technology |
Potentiometric Shaft Position Sensing |
|
Potentiometer Configuration |
Single Potentiometer |
|
Rotary Measurement Span |
15°–90° |
|
Sliding-Stem Travel |
Up to 105 mm |
|
Standard Travel Range |
Configuration and Mounting Dependent |
|
Zero Adjustment |
Adjustable |
|
Span Adjustment |
Adjustable |
|
Electrical Connection |
1/2-inch NPT Conduit Entry |
|
Mounting Configuration |
Actuator or Valve Assembly Mounted |
|
Valve Compatibility |
Rotary and Sliding-Stem Valves |
|
Monitoring System Compatibility |
PLC, DCS and Industrial Indicating Instruments |
|
Hazardous Area Certification |
Dependent on Instrument Nameplate |
|
Operating Application |
Industrial Valve Position Monitoring |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Accurate electronic valve position measurement
Continuous 4–20 mA analogue position feedback
Potentiometer-based mechanical travel sensing
Integrated high and low position switches on Fisher 4210
Adjustable alarm switching points on Fisher 4210
Dedicated position transmission without switches on Fisher 4211
Standard 24 V DC instrument power supply
Adjustable zero and span calibration settings
Compatible with rotary and sliding-stem valve actuators
Supports valve travel monitoring up to 105 mm
Electrical position feedback for industrial automation
SPDT relay outputs for valve limit indication on 4210
Durable construction for industrial process environments
Compatible with PLC and DCS monitoring systems
Suitable for industrial valve maintenance and replacement
Typical Applications
Industrial control valve position monitoring
Pneumatic actuator travel measurement
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Rotary ball and butterfly valve monitoring
Sliding-stem control valve position indication
Industrial valve open and closed position monitoring
PLC and DCS valve feedback systems
Industrial process automation and instrumentation
Valve maintenance and position transmitter replacement
